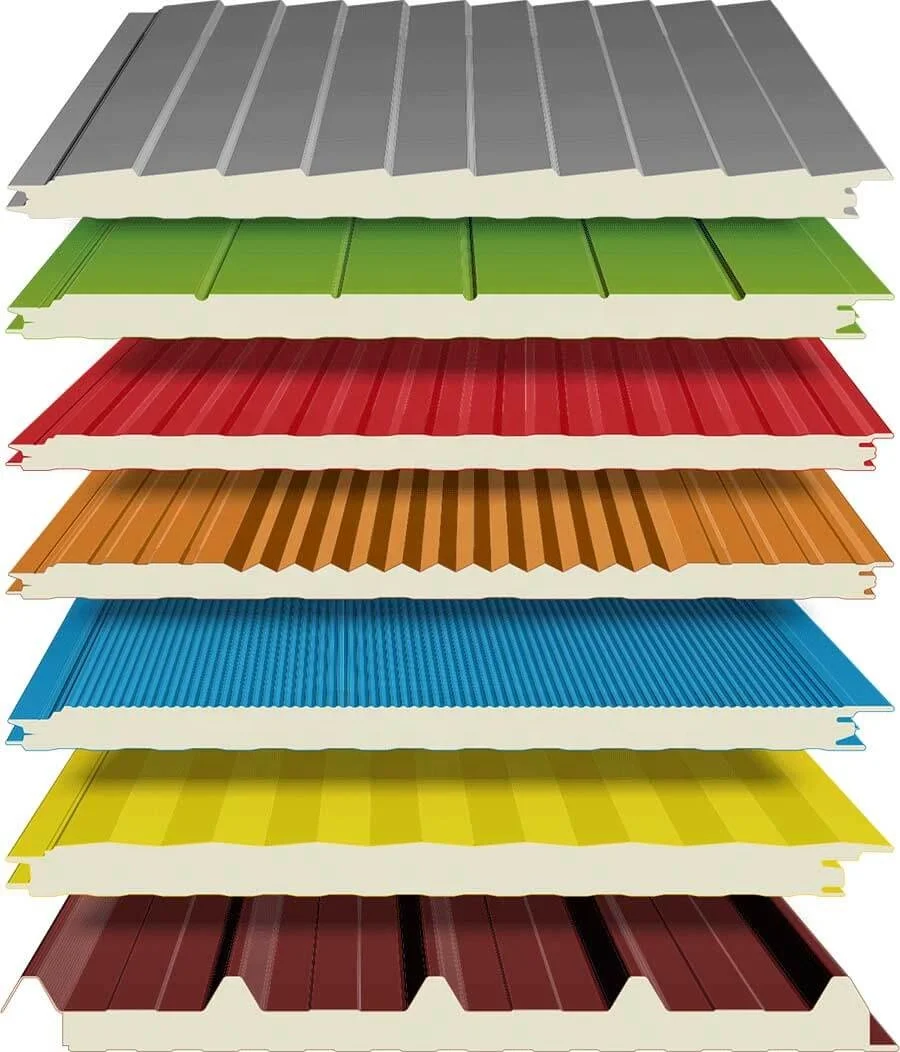

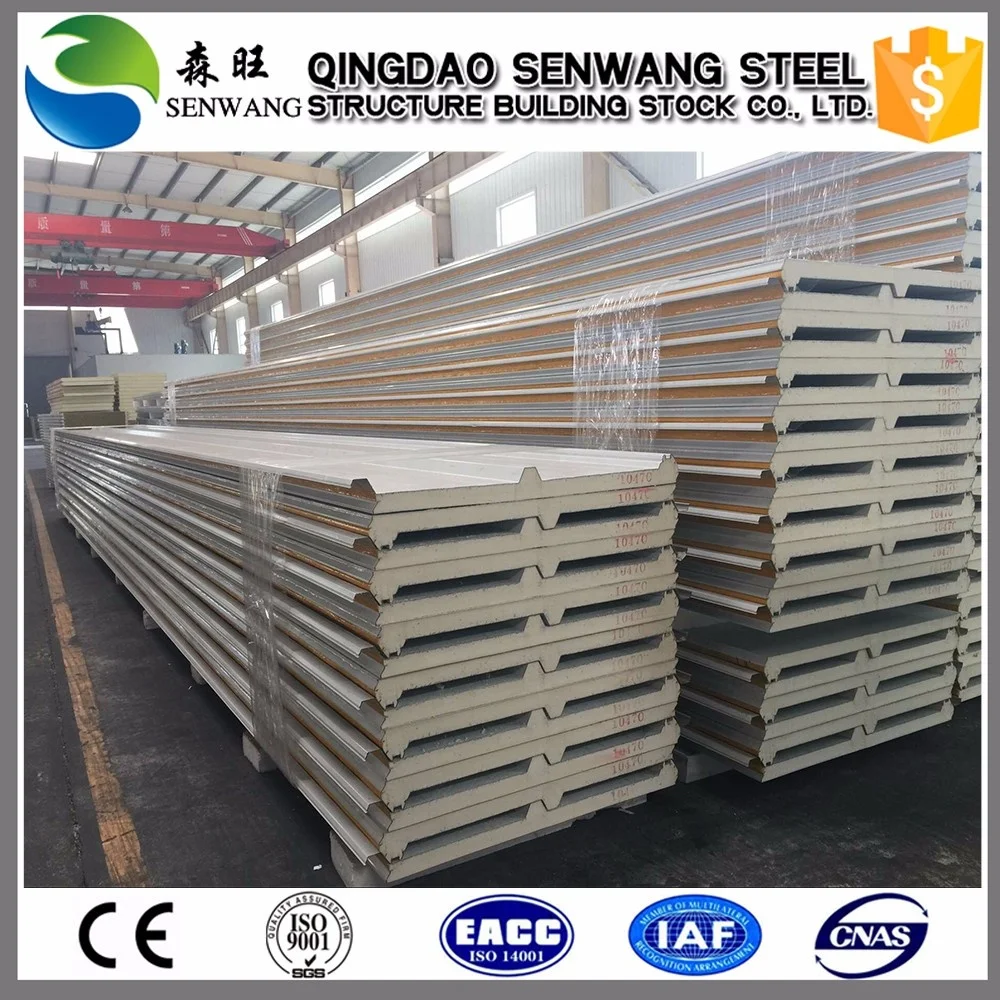

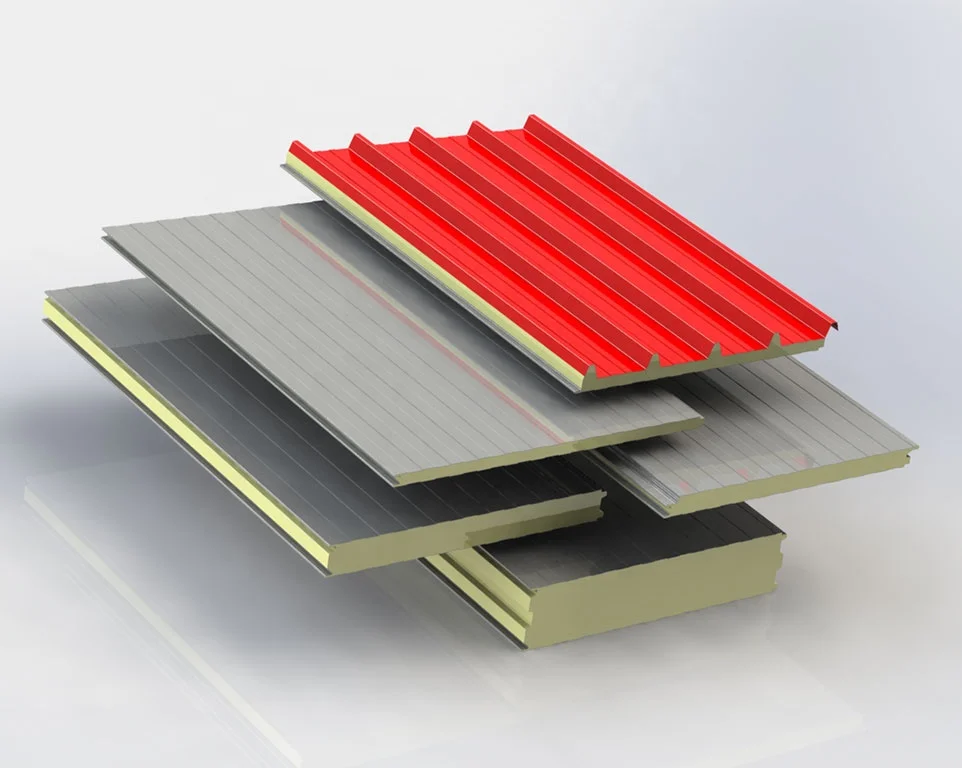

Cost effective EPS sandwich panel for warehouse fabhouse roof and wall
- Category: >>>
- Supplier: Qingdao Senwang Steel Structure Building Stock Co. Ltd.
Share on (1600729862995):
Product Overview
Description
Product Description
Specification
Specifications: | ||||||||
Type: | Senwang roof sandwich panel | |||||||
EPS Thickness: | 50mm/75mm/100mm/150mm | |||||||
Metal sheet thickness: | 0.4mm~0.8mm | |||||||
Effective width: | 950mm/960mm/1000mm/1150mm/1200mm | |||||||
Surface: | Prepainted | |||||||
Water absorption rate: | <0.018 | |||||||
Fireproof Grade: | A | |||||||
Temperature range: | -60~200 | |||||||
Density: | 35~45KG/m3 | |||||||
Color: | RAL | |||||||
Feel free to contact us to customize your own design | ||||||||
Company Profile
Qingdao Senwang Steel Structure Construction Co., LTD. It was established in1991, located in the beautiful costal city-Qingdao,
Shandong Province, China.*Our products have been exported to Japan, Korean, USA, Canada, Singapore, Australia, Soouth American, Europe, Africa and other
countries and regions.
*Australian hangar project
* Nigeria Sewage Treatment Plant( Large span steel structure workshop)
* Ghana steel structure Workshop(Span is 48m)
* Australian Cement Board Factory("L" style)
* South Africa Workshop(heavy-duty steel structure workshop)
*Angola Poultry Shed （Light steel structure +EPS)
We have more than 30 years of experience in steel structure service, very mature service system, here you can find all the answers
to solve the problem, contact us to get your custom design.
The perfection of service not only includes pre-sale, but also includes perfect after-sales service. Cooperating with us will be
the wisest choice for you.
Shandong Province, China.*Our products have been exported to Japan, Korean, USA, Canada, Singapore, Australia, Soouth American, Europe, Africa and other
countries and regions.
*Australian hangar project
* Nigeria Sewage Treatment Plant( Large span steel structure workshop)
* Ghana steel structure Workshop(Span is 48m)
* Australian Cement Board Factory("L" style)
* South Africa Workshop(heavy-duty steel structure workshop)
*Angola Poultry Shed （Light steel structure +EPS)
We have more than 30 years of experience in steel structure service, very mature service system, here you can find all the answers
to solve the problem, contact us to get your custom design.
The perfection of service not only includes pre-sale, but also includes perfect after-sales service. Cooperating with us will be
the wisest choice for you.
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
1. Material description: 1) the original width of the upper color plate is 1200mm;
2) the width of the original plate of the lower color plate is 1000mm;
3) In order to reduce the cost, when the sandwich layer is EPS, single-sided color plate can be used, and the other side is
aluminum foil composite;
4) Sandwich layer: EPS (foam board), glass filament strip, rock strip.
2. Main application: Roof board (commonly used), strong waterproof
3. Accessories: 1) Self-tapping nail: the quantity calculation method is usually 2 sets of each plate and purlin. 2) Cap: the
length of the cap is the same as that of the roof board. It is used at the joint of the board and the board, and the color is the
same as that of the roof board. 3) Ladder block: according to the number of peaks, pay attention to the color, indicate the plate
type. 4) Cornice sealing: according to the thickness of the sandwich layer groove bending, sealing foam board, the length is the
same as the total length of the roof, pay attention to the calculation of lap length.
4. Precautions:
2) the width of the original plate of the lower color plate is 1000mm;
3) In order to reduce the cost, when the sandwich layer is EPS, single-sided color plate can be used, and the other side is
aluminum foil composite;
4) Sandwich layer: EPS (foam board), glass filament strip, rock strip.
2. Main application: Roof board (commonly used), strong waterproof
3. Accessories: 1) Self-tapping nail: the quantity calculation method is usually 2 sets of each plate and purlin. 2) Cap: the
length of the cap is the same as that of the roof board. It is used at the joint of the board and the board, and the color is the
same as that of the roof board. 3) Ladder block: according to the number of peaks, pay attention to the color, indicate the plate
type. 4) Cornice sealing: according to the thickness of the sandwich layer groove bending, sealing foam board, the length is the
same as the total length of the roof, pay attention to the calculation of lap length.
4. Precautions:
1) Calculate the quantity according to the effective width of 950mm/ piece.
2) When the roof uses the same type of light mining plate, pay attention to the spread width of 1200mm, the height difference between the light mining plate and the sandwich composite plate needs to be levelled with composite plate;
3) The self-tapping nail is fixed at the joint between the board and the board. After finishing the nail, cover the cap and do not reveal the nail;
4) Plate type molecules, female mouth, when cutting use, pay attention to the installation direction.
Why Choose Us
FAQ
Q1: What are your main products?
A: Our man products have prefab K house, T house, SHS house, H house, container house, light steel structure villa, steel
structure warehouse, sentry box, sandwich panel, and other construction materials.
Q2: What will the client provide before the factory offers good quotation?
A: When we receive an inquiry from the client, the client please fills purchasing intention sheet, providing us with information
about house dimensions, draft drawing, layout and materials for prefabricated house. We will design the drawings and offer a
competitive quotation with the above information.
Q3: What are the main materials of prefabricated house?
A: Our prefabricated house materials mainly include light steel structure, sandwich panel, roof tile, door, window, covers,
screws, and other accessories.
Q4: How you calculate the total area?
A: Industry calculation rule as below:
(1) house area = exterior house length X exterior house width X floor
(2) canopy area=exterior house length X 1/2 X canopy width
(3) staircase area = 4.5 sqm X quantity of staircase
(4) corridor area = exterior house length X corridor width
(5) total area = (1) + (2) + (3) + (4) + (5)
Q5: What drawing of the house will the factory supply?
A: Plan drawing, elevation drawing, sectional drawing, foundation drawing, installation drawing.

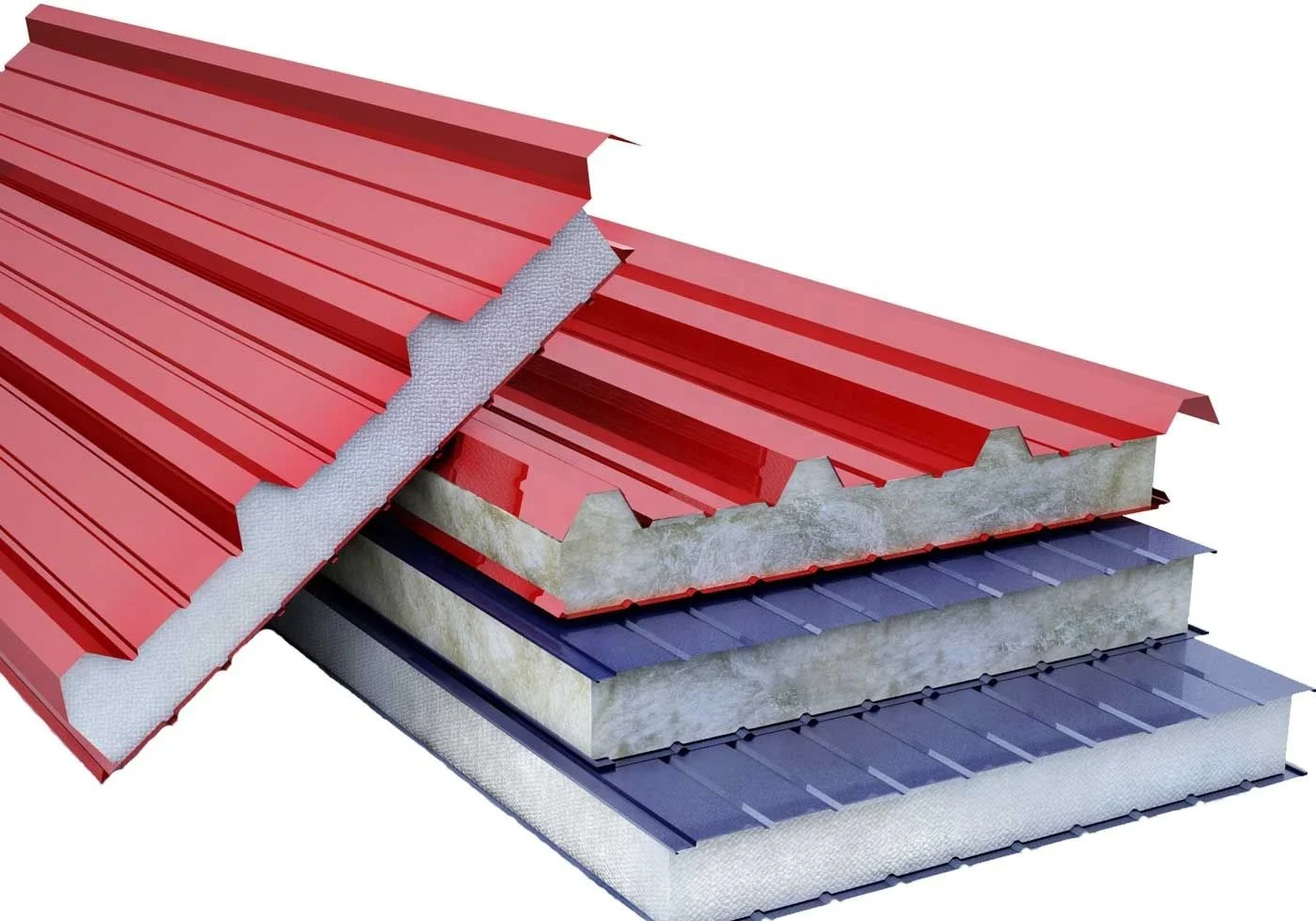

Q6: How many types of sandwich panel do you have?
A: We have an EPS(polystyrene)sandwich panel, rock wool sandwich panel, and PU(polyurethane)sandwich panel.
The characteristics of your sandwich panels respectively:
1.EPS(polystyrene)sandwich panel: thickness is 50mm, 75mm, 100mm. The EPS volume weight is 8-20Kg/m3, water-proof.
2.Rock wool sandwich panel: thickness is 50mm, 75mm, 100mm. Rock wool volume weight is 80-120Kg /m3, fire-proof,
sound-insulation, heat-preservation.
3.Glass wool sandwich panel: thickness is 50mm, 75mm, 100mm. Glass wool volume weight is 30-60Kg /m3, fire-proof,
sound-insulation, heat-preservation.
4.PU(polyurethane)sandwich panel: thickness is 50mm, 75mm, 100mm. PU volume weight is 40-80/m3 water-proof, fire-proof,
heat-proof, heat-insulation, heat-preservation, sound-insulation.
Q7: How many colors do your sandwich panels have?
A: Offwhite, ivory white, blue, green, and red color.
A: Our man products have prefab K house, T house, SHS house, H house, container house, light steel structure villa, steel
structure warehouse, sentry box, sandwich panel, and other construction materials.
Q2: What will the client provide before the factory offers good quotation?
A: When we receive an inquiry from the client, the client please fills purchasing intention sheet, providing us with information
about house dimensions, draft drawing, layout and materials for prefabricated house. We will design the drawings and offer a
competitive quotation with the above information.
Q3: What are the main materials of prefabricated house?
A: Our prefabricated house materials mainly include light steel structure, sandwich panel, roof tile, door, window, covers,
screws, and other accessories.
Q4: How you calculate the total area?
A: Industry calculation rule as below:
(1) house area = exterior house length X exterior house width X floor
(2) canopy area=exterior house length X 1/2 X canopy width
(3) staircase area = 4.5 sqm X quantity of staircase
(4) corridor area = exterior house length X corridor width
(5) total area = (1) + (2) + (3) + (4) + (5)
Q5: What drawing of the house will the factory supply?
A: Plan drawing, elevation drawing, sectional drawing, foundation drawing, installation drawing.
Q6: How many types of sandwich panel do you have?
A: We have an EPS(polystyrene)sandwich panel, rock wool sandwich panel, and PU(polyurethane)sandwich panel.
The characteristics of your sandwich panels respectively:
1.EPS(polystyrene)sandwich panel: thickness is 50mm, 75mm, 100mm. The EPS volume weight is 8-20Kg/m3, water-proof.
2.Rock wool sandwich panel: thickness is 50mm, 75mm, 100mm. Rock wool volume weight is 80-120Kg /m3, fire-proof,
sound-insulation, heat-preservation.
3.Glass wool sandwich panel: thickness is 50mm, 75mm, 100mm. Glass wool volume weight is 30-60Kg /m3, fire-proof,
sound-insulation, heat-preservation.
4.PU(polyurethane)sandwich panel: thickness is 50mm, 75mm, 100mm. PU volume weight is 40-80/m3 water-proof, fire-proof,
heat-proof, heat-insulation, heat-preservation, sound-insulation.
Q7: How many colors do your sandwich panels have?
A: Offwhite, ivory white, blue, green, and red color.
