Fully automatic Condom Bottle Cartoning Box Packaging Machine Drugs Sachet Cartoning Packing Machinery
- Category: >>>
- Supplier: ZHEJIANG LEADTOP PHARMACEUTICAL MACHINERY CO. LTD
Share on (1600729907668):
Product Overview
Description

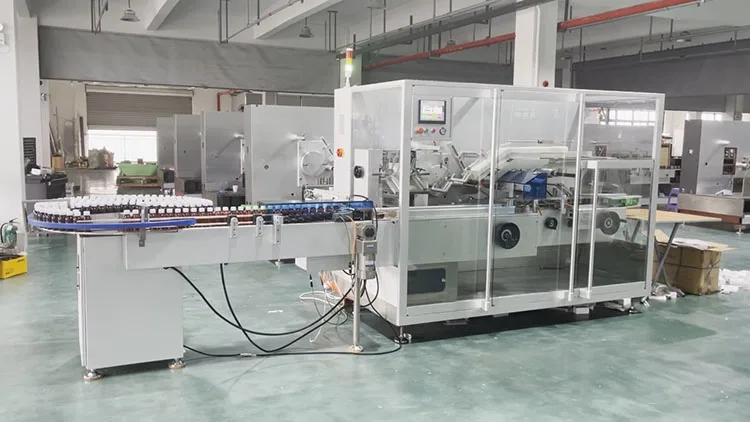

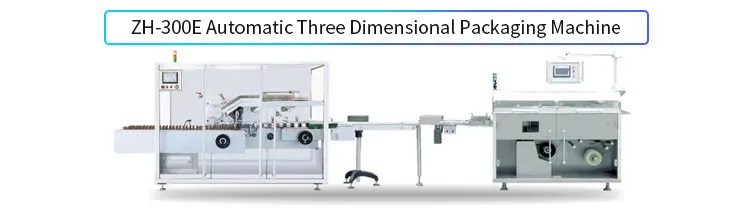

ZH-Series Automatic Cartoning Machine

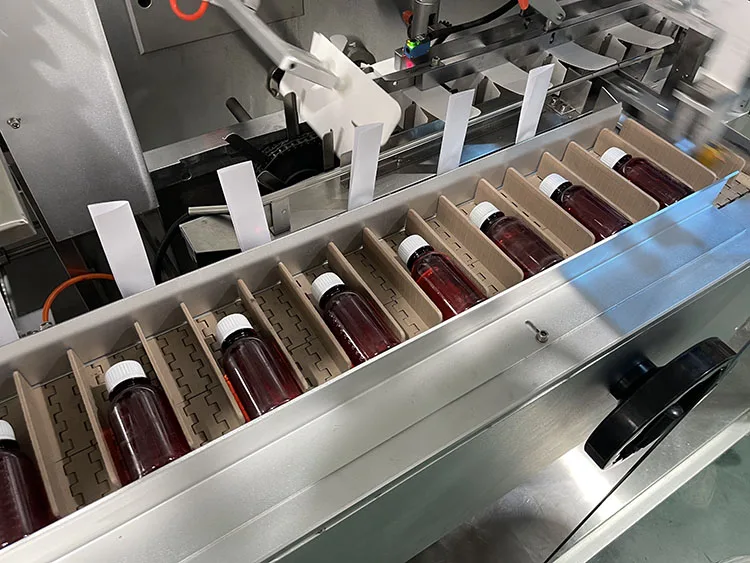

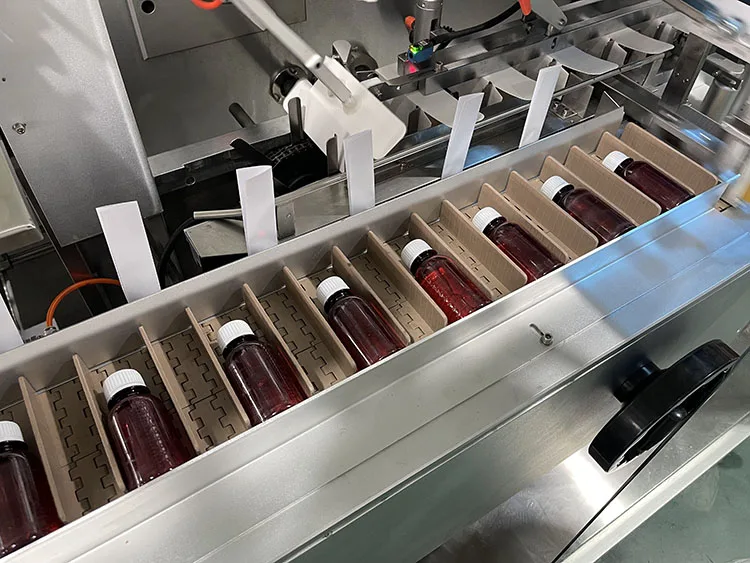

This LTPM CHINA ZH-Series Automatic Cartoning Machine is suitable for automatic filling and packing of products such as granular bags, soft double aluminum, plaster, band aid, facial mask, coffee bag, bottle, aluminum plastic plate and so on.

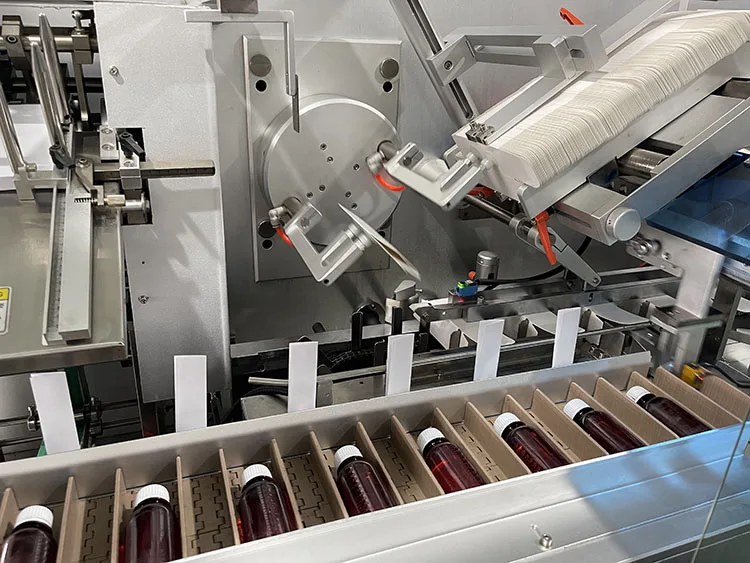

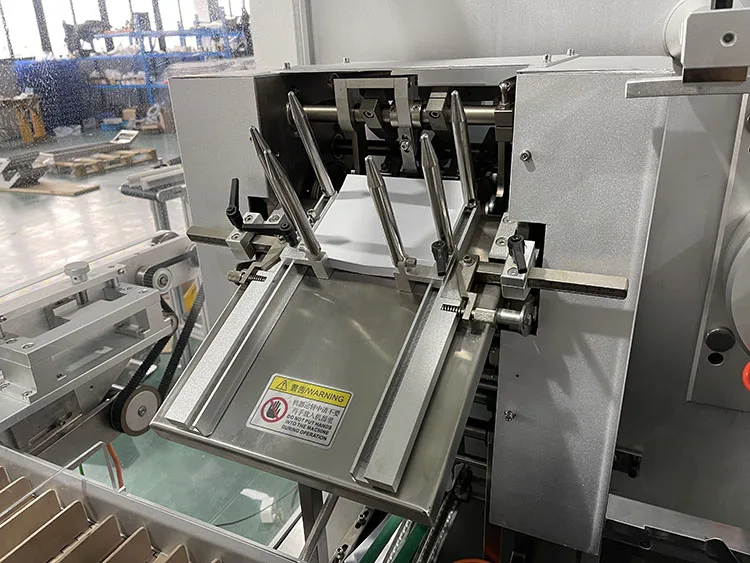

The whole process of on-line material detection, manual folding (1 to 4 times folding) and conveying, carton drawing forming and conveying, material feeding, embossing batch number, paper tongue packaging at both ends of carton (also applicable to hot melt adhesive)
Data

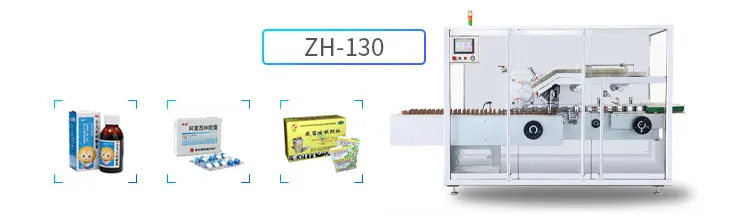

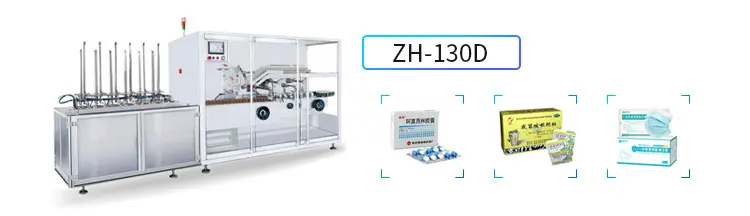

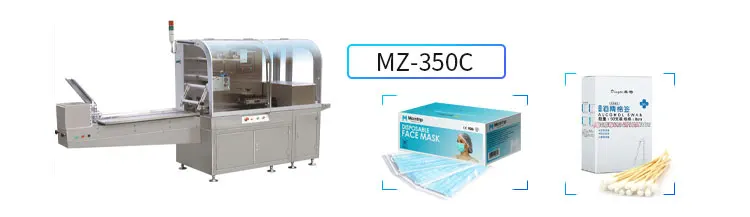

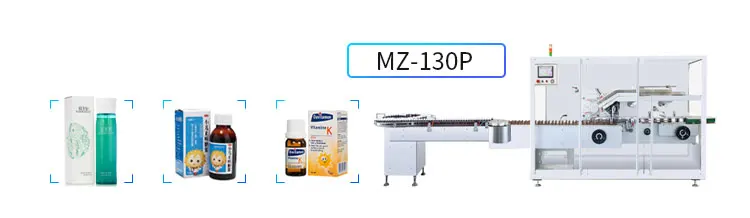

Model | ZH-130 | ZH-130D | ZH-130P | ZH-350C |
Speed | 30-130/min | 30-80/min | 30-130/min | 30-130/min |
Carton Dimension | (65-240)*(30-180)*(15-75)mm | (75-220)*(50-160)*(15-70)mm | (65-240)*(30-120)*(15-70)mm | / |
Instruction Book： | ||||
Unfolded instruction leaflet specification | (90-250)*(90-170)mm | (90-250)*(90-170)mm | (90-250)*(90-170)mm | / |
Fold range | [1-4](Fold) | [1-4](Fold) | [1-4](Fold) | / |
Working pressure | ≥0.6mpa | ≥0.6mpa | ≥0.6mpa | ≥0.6mpa |
Air consumption | 120-160L/min | 200-240L/min | 120-160L/min | / |
Power supply | 380V50HZ | 380V50HZ | 380V50HZ | 220V50/60Hz |
Motor power | 1.5kw | 1.5kw | 1.5kw | 3.2Kw |
Dimension（mm） | 3250*1210*1770 | 4800*1210*1770 | 4500*1210*1770 | 4200*960*1520mm |
Weight | 2000kg | 2400kg | 2500kg | 1200Kg |
Beyond the size can be customized
Features
01-

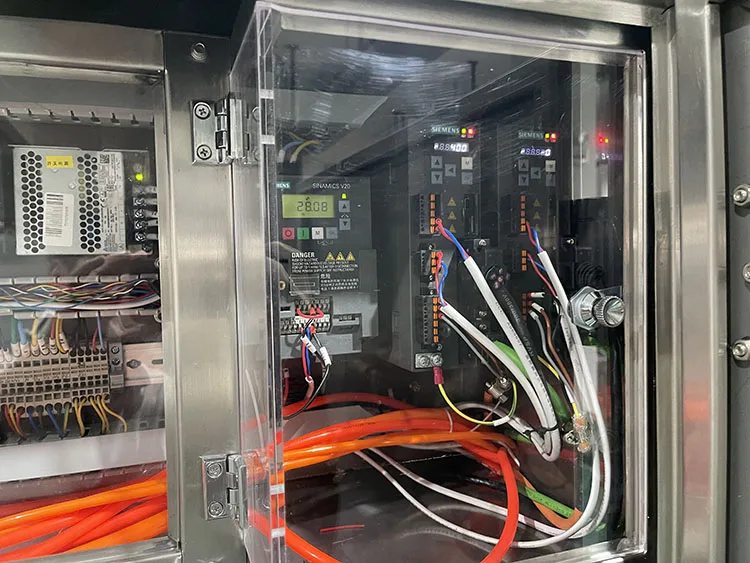

1.PLC automatic control system, frequency conversion and remonstration electrical components are all internationally renowned brands ;

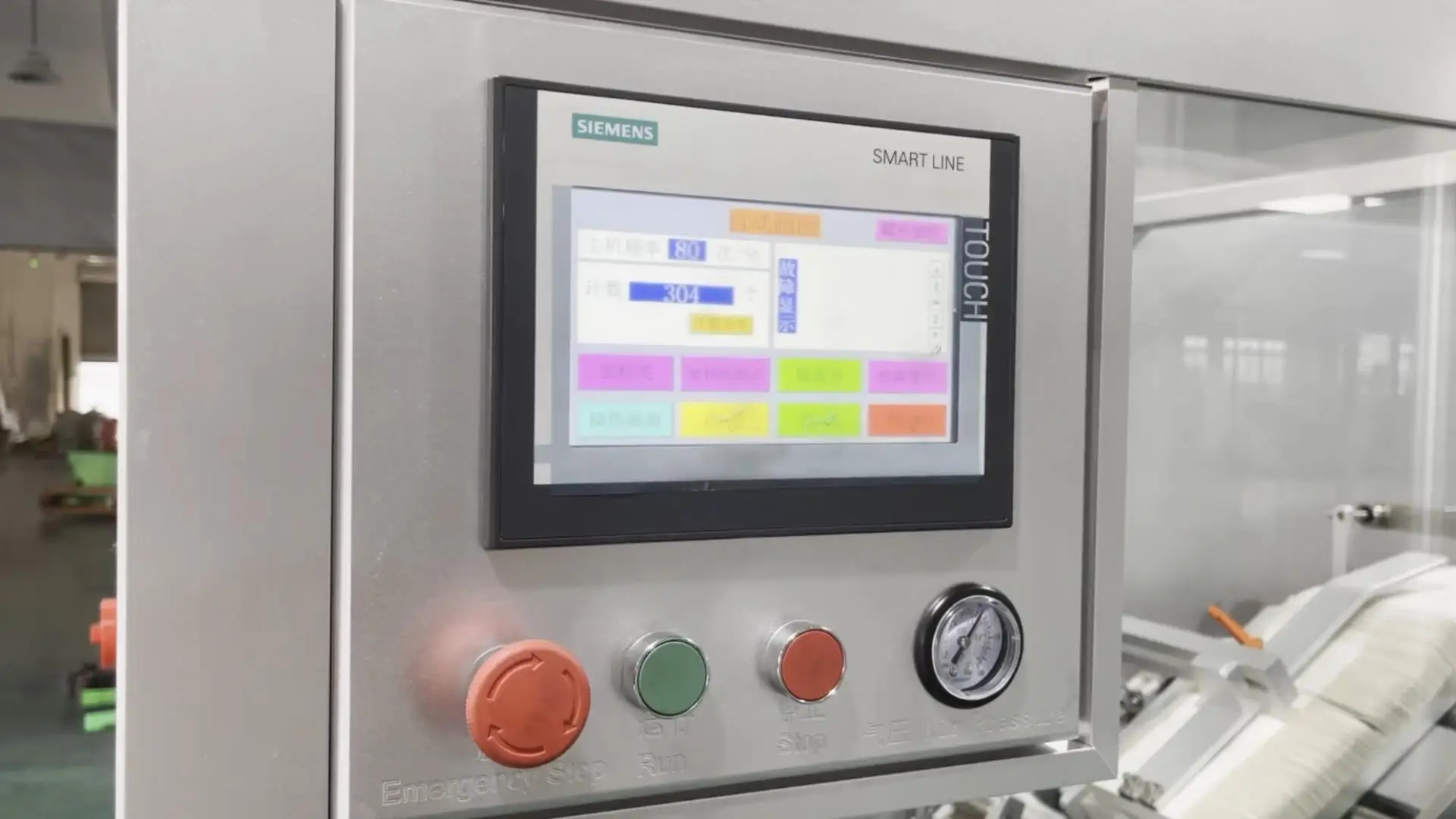

2.The touch interface makes parameter setting convenient and quick.
02-
It can automatically display, alarm and automatically remove the lack of material and paper jam in the carton, so as to ensure 100% qualified output of finished products at the outlet.
03-

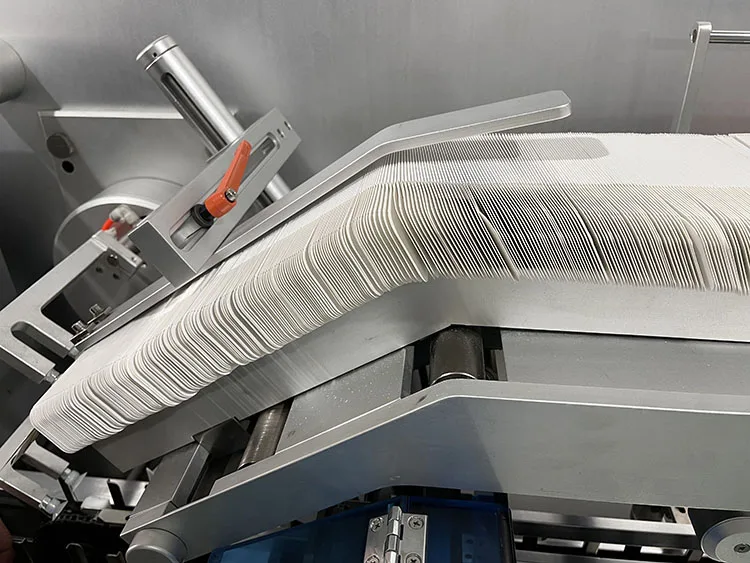

Large carton storage capacity, reducing labor burden.
04-

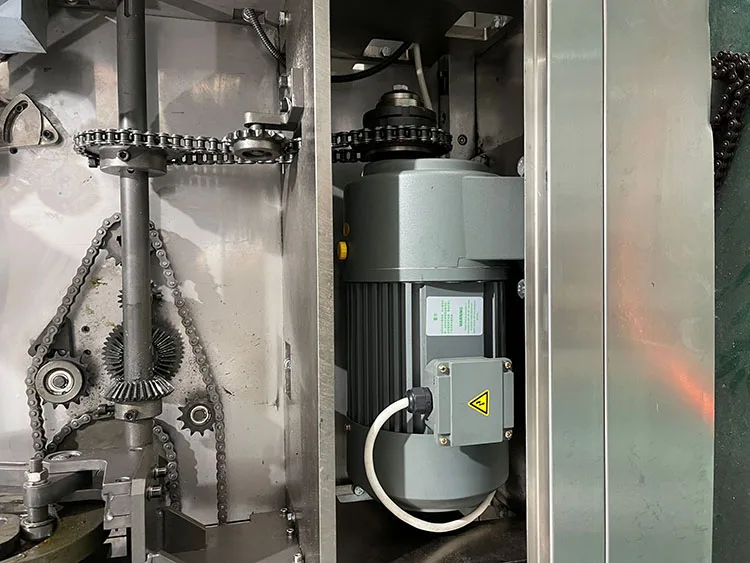

1.Servo control system, more accurate speed adjustment；

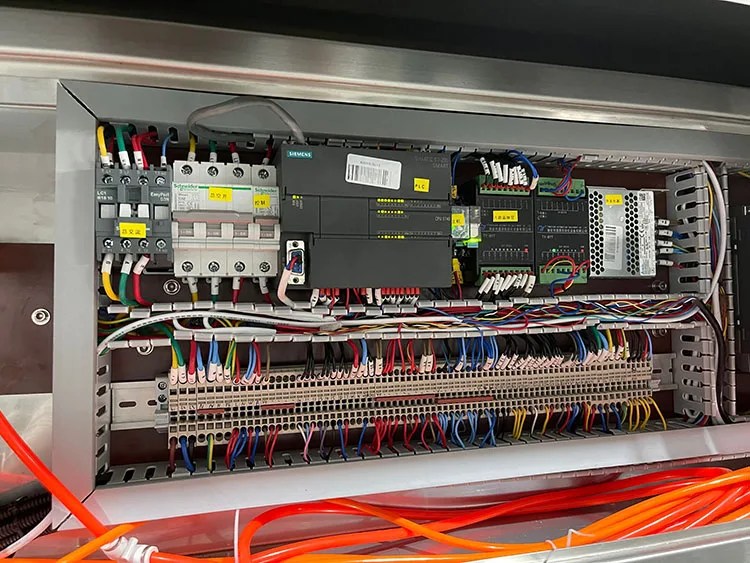

2.The wires are neat and beautiful, and the maintenance is more convenient.
2.The wires are neat and beautiful, and the maintenance is more convenient.
05-
All parts in contact with material are made of stainless steel and non-toxic materials, which meet the requirements of "GMP".
06-
1.Structure surface is aluminum sandblasting and oxidizing ;
2.Pull and push protection door, higher safty .Company Profile
Our Company
- Since year 1996, LTPM CHINA had started manufacturing Pharmaceutical and food packaging machines such as Capsule Filling Machine, Ampoule Filling and Sealing Machine, Blister Packaging Machine, Pill Counting and Bottling Line, Cartoning Machine, Bag Packaging Machine, Liquid Filling and Capping Machine etc.
- LTPM CHINA designs different types of packaging lines for customers, including standard or non-standard models.
- LTPM CHINA's machinery = high automation + high precision + more energy saving + satisfactory warranty and after-sales service + trusted brand
- LTPM CHINA designs different types of packaging lines for customers, including standard or non-standard models.
- LTPM CHINA's machinery = high automation + high precision + more energy saving + satisfactory warranty and after-sales service + trusted brand
Our Workshop
Our Certificates
ISO, CE, SGS, BV Certified Company.
Our Team
Our Customers
Orders from Alibaba
Packing & Shipping
All machine delivery with anti rust spray, film wrapping and Sea shiping affordable wooden box.
FAQ
Q1: How many different sealing type of cartoner?
A: Mainly two different types: Glue Sealing and Folding sealing.
Q2: What kind of product can cartoner machine pack?
A: Blister strip, Soft Alu Strip, Glass Bottle, Plastic Bottle, Soap, Bulb,etc. any kinds of product which can be packed into
small box under our machine range.
Q3: How many different models we have?
A: we have different models according to different production capacity which are 50box/min, 100boxes/min, 200boxes/min, 300boxes/min, 400boxes/min
Q4: Can the cartoner machine connected with different inner packaging machinery?
A: Yes, the cartoner machine can connect to filling machine, blister packing machine, pillow type packing machine, tube filling machine, etc.
Q5: What is the maintainance period of cartoner machine?
A: Every three month the operator should do the lubrication and system checking on the mechanical system and electrical system. According to our Maintanance Manual, the operator can do it easily.
Q6: Do you have manual or operation video for us to know more about the machine?
A: Yes, not only manual or operation video, 3D drawing also available to make as per your design,also the video we can make of testing the material from our packaging machine if your packing goods easier for us to find from our local market.
Q7: How can I trust you for the first time business ?
A: if you don't trust us, then we can use Alibaba trade assurance service, guarantee your money, and guarantee your machine's on-time delivery and machine quality.
Q8: Is engineer available to serve oversea?
A: Yes, but the travel fee is paid by you. So actually to save your cost, we will send you a video of full details machine installation and assist you till the end.
Q9: How can we make sure about the machine quality after we put the order?
A: Before delivery, we will run the machine for half an hour - 1 hour to ensure that the machine is OK. And we will send you the pictures and videos for you to check the quality, and also you can arrange for quality checking by yourself or by your contacts in China.
A: Mainly two different types: Glue Sealing and Folding sealing.
Q2: What kind of product can cartoner machine pack?
A: Blister strip, Soft Alu Strip, Glass Bottle, Plastic Bottle, Soap, Bulb,etc. any kinds of product which can be packed into
small box under our machine range.
Q3: How many different models we have?
A: we have different models according to different production capacity which are 50box/min, 100boxes/min, 200boxes/min, 300boxes/min, 400boxes/min
Q4: Can the cartoner machine connected with different inner packaging machinery?
A: Yes, the cartoner machine can connect to filling machine, blister packing machine, pillow type packing machine, tube filling machine, etc.
Q5: What is the maintainance period of cartoner machine?
A: Every three month the operator should do the lubrication and system checking on the mechanical system and electrical system. According to our Maintanance Manual, the operator can do it easily.
Q6: Do you have manual or operation video for us to know more about the machine?
A: Yes, not only manual or operation video, 3D drawing also available to make as per your design,also the video we can make of testing the material from our packaging machine if your packing goods easier for us to find from our local market.
Q7: How can I trust you for the first time business ?
A: if you don't trust us, then we can use Alibaba trade assurance service, guarantee your money, and guarantee your machine's on-time delivery and machine quality.
Q8: Is engineer available to serve oversea?
A: Yes, but the travel fee is paid by you. So actually to save your cost, we will send you a video of full details machine installation and assist you till the end.
Q9: How can we make sure about the machine quality after we put the order?
A: Before delivery, we will run the machine for half an hour - 1 hour to ensure that the machine is OK. And we will send you the pictures and videos for you to check the quality, and also you can arrange for quality checking by yourself or by your contacts in China.
