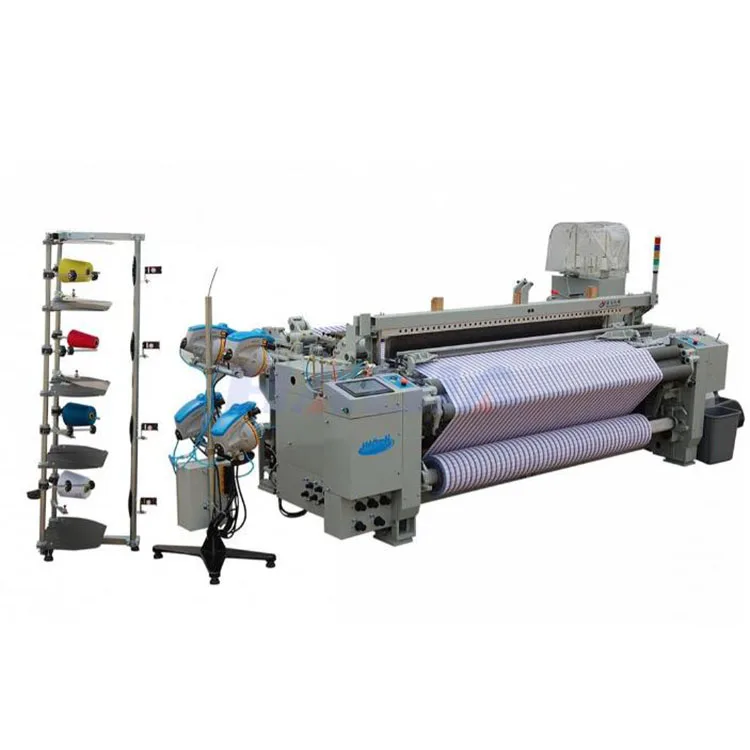

Textile Machine High Speed China Mini Power Price Textile Loom Machine

Share on (1600729909425):


Price:

Quantity:


Product Overview

Description



Product Paramenters


Nominal reed space
190.210.230.250.280.340.360cm
The effective width
0-600mm (reed space 190~250cm),0-800mm (reed space≥280cm)
Opening way
crank, cam, dobby, jacquard
Beam diameter
Ø800mm, Ø1000mm
Heald Frame No.
Positive CAM Shedding: heald frame up to 10 pieces; Dobby Shedding: heald frame up to 16 pieces
Nozzle Quantity
double nozzle, four nozzle,six nozzle
Voltage
380v、415v、480v
Beating up method
four-linkage beating-up,six linkage beating-up (optional)
Scissors and feeler
mechanical ceramic scissors; Electric Scissors
Warranty
1 Year
Lead time
30-45 Days


Application Scope:Applicable yarn type and thickness: staple fiber 100~5S/1 (imperial cotton count) (Nm170-8.5); filament 50-900D (denier)(55.6~1000dtex).
Applicable fabric types: base cloth, cold cloth, gauze, core cloth, fine flat cloth, labor cloth, down quilt top, cotton flannel,
corduroy, wada tweed, rainproof canvas, coat fabric, poplin, striped color cloth, Oxford cloth, gingham twill cotton fabric, pile, fabric, bed sheet cloth, thin fabric, thin outerwear fabric, pure wool fabric, facecloth, cotton and linen blended shirt fabric, towel, linen base cloth, lining fabric, women's clothing fabric, curtain fabric, sportswear fabric, shirting fabric, uniform fabric.

Innovation points
● This model adopts box type wall plate and is thick, high strength and stable.
● The other key parts used in the frame, such as the center plate, 4 braces, middle support, etc., are all weighted to ensure the stability of the entire frame, which is conducive to the weaving of heavy fabrics on the loom.
● The stable rear beam structure reduces unnecessary shaking and ensures smooth warp feeding when weaving high-density and heavy fabrics at higher speeds.
● The weft beating mechanism adopts a four-link structure, which is suitable for high speed weaving of short reed width, and a six-link structure, which is suitable for weaving of long reed width and high weft density.
● Optimized electric control device to improve the automation of the loom, and several electric control models are planned to adapt to different models, fabrics and customers' needs. The machine is adapted to weave cotton, hemp, wool, chemical fiber and other fibers, and the varieties are suitable for light, medium and heavy fabrics, with wide weaving range and stable performance, which can meet different customers' needs.



Product Details




Product Application


Application scope

Label, Tie, Furnishings, Curtain, Sofa cloth, Bed Cloth, Towel, Carpet, Velvet, Craft Brocade, Garment Fabric, Lining, Saree, Silk Fabric, Leno fabric and so on.

Applicable Machine

Suitable for all kinds of looms at home and abroad, like rapier loom, air jet loom, water jet loom, projectile loom.




Recommend Products




Company Profile






* Company Introduction

Zhejiang Qihui Electronic Jacquard Machine Co., Ltd., located in Hangzhou, a famous textile city in China. Our company has rich experience in the textile industry and our main products include electronic jacquard machine, jacquard CAD software and some accessories, which is suitable for all kinds of looms at home and abroad, like rapier loom, air jet loom, water jet loom, projectile loom. Meanwhile, we are the first enterprise that successfully developed electronic jacquard machines in China. Now Our products are exported to clients in such countries and regions as India, Pakistan, Indonesia, Vietnam, Nepal, Egypt, Japan and Brazil, etc. At present, our market has more than 30,000 sets, and we can produce 3000 sets of electronic jacquard machines every year. Since we established, we has been committed to the development, design, manufacturing, sales and technical services of textile equipment and supporting parts mainly based on electronic jacquard machines. Qihui is a national high-tech enterprise and a provincial high-tech enterprise research and development center. We have established long-term cooperation with Zhejiang University, Zhejiang University of Technology and other scientific research institutes. We have more than 80 patent technologies such as inventions, utility models and software copyrights. We have won many honors such as the national, provincial and municipal science and technology progress awards, the first batch of patent demonstration enterprises, and the first set of equipment. We enjoy a high reputation in the textile industry and we are committing to becoming a world-class textile equipment supplier with unremitting pursuit and exploration.




FAQ


Q: Are you a manufacturer or trading company?
A: We are a manufacturer. We have more than 15 years' experience in research, development and manufacturing of jacquard machine and related accessories. )

Q: Where is your factory located? How can I visit it?
A: Our factory is located in Hangzhou, China. It takes 30 minutes from Hangzhou International Airport to our factory. Welcome to visit us.

Q:How about our quality and after service?
A: We carry out very strict quality control in every production process, even 100% quality examination and test before shipping. Our after-service team can provide you technical support on installation or on the problems that you encounter in the use. In India, we can provide the service on spot, and other areas by video.

Q: After an order is placed, when can you ship?
A: Generally about 30 days. Kindly please be noted that our production lead time depends on specific items and item quantities.

Q: What's payment terms?
A: We prefer TT, 30% in advanced payment+70% paid before shipment, but also accept L/C.

Q: I want to be your agent in my country,is it ok?
A: Yes, No problem. We are looking forward to long-term partners with high ability.
