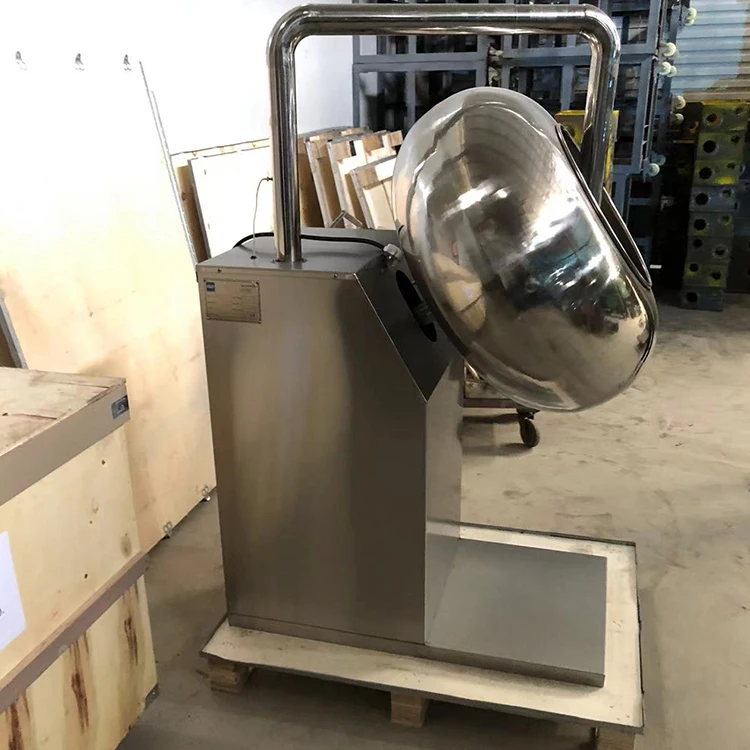

Automatic Coating Tablet Machine Coating Machine For Pharmaceutical
- Category: >>>
- Supplier: Hangzhou SED Imp.And Exp.Co. Ltd.
Share on (1600729911733):
Product Overview
Description
Recommend Products
Products Description
This machine is suitable for the sugar coating, polishing and rolling of Chinese and Western tablets, pills, pellets, small pills, water pills, dropping pills and granules in pharmaceutical, chemical, food, research institutes and hospitals. It can also be used for the trial production of new drugs in scientific research institutions.
Working Principle:

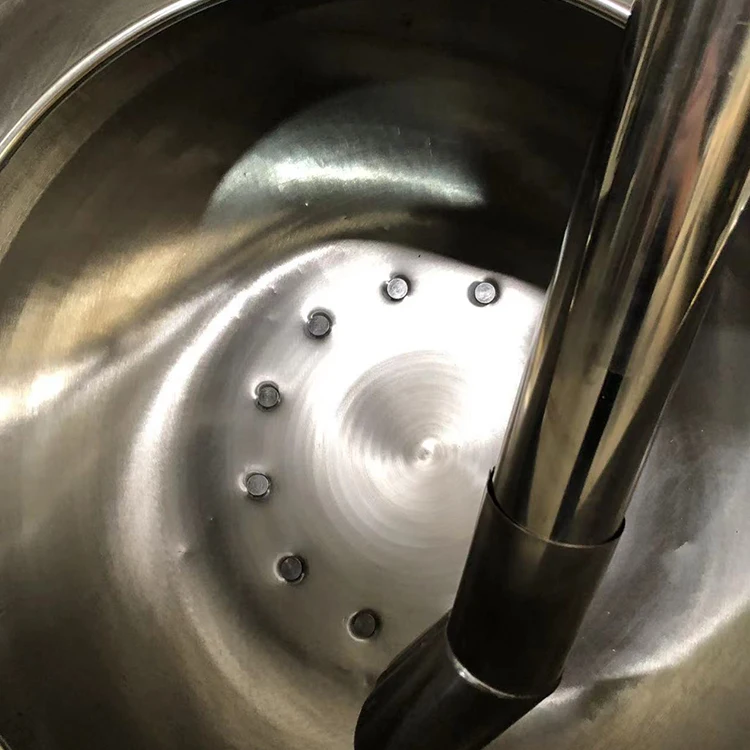

Through the pot body, the tablets roll, slide and rub in the pot, so that the coated powder is evenly distributed on all Tablets. The air outlet pipe of the attached electric blower can extend into the pan for heating. At the same time, the blower passes hot air to the inner layer of the pot to remove the water on the surface of the tablets, so as to obtain the stiff sugar coated tablets.
Model | 300BY-D | 400BY-D | 600BY-D | 800BY-D | 1000BY-D |
Sugar-coated pot diameter (mm) | 300 | 400 | 600 | 800 | 1000 |
Capacity (kg/batch) | 1-4 | 2-6 | 6-15 | 30-50 | 50-80 |
Internal heating power (kw) | 0.5 | 0.5 | 0.8 | 0.9 | 1 |
Speed of sugar-coated pot (rpm) | 0-46 | 0-46 | 0-40 | 0-32 | 0-32 |
Main motor power (kw) | 0.12 | 0.12 | 0.75 | 1.1 | 1.1 |
Blower motor power (kw) | 0.06 | 0.06 | 0.1 | 0.2 | 0.2 |
Weight (kg) | 30 | 35 | 115 | 230 | 240 |
Total power (kw) | 0.66 | 0.68 | 1.7 | 2.2 | 2.3 |
Dimension (mm) | 560*300*850 | 560*400*850 | 780*600*1360 | 1150*800*1550 | 1150*1100*1600 |

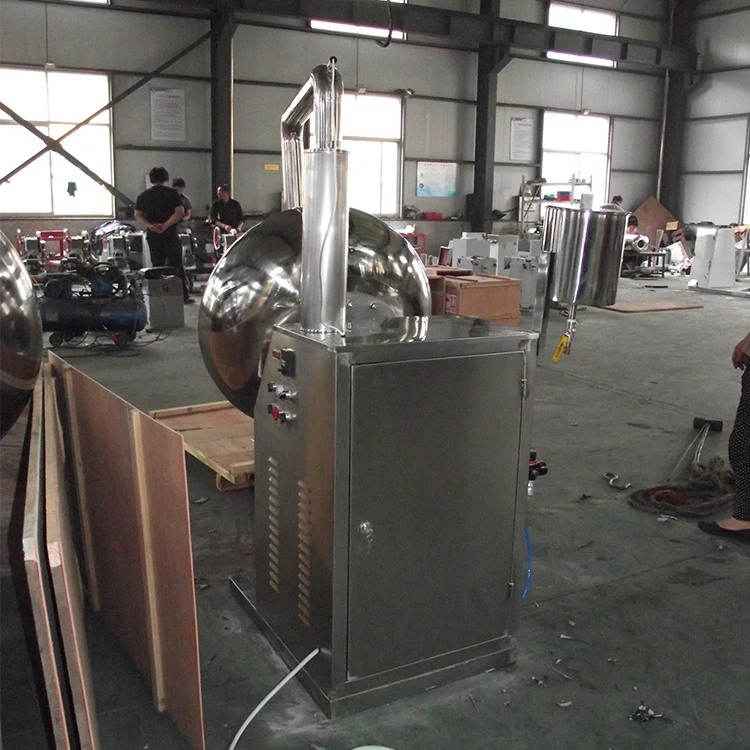

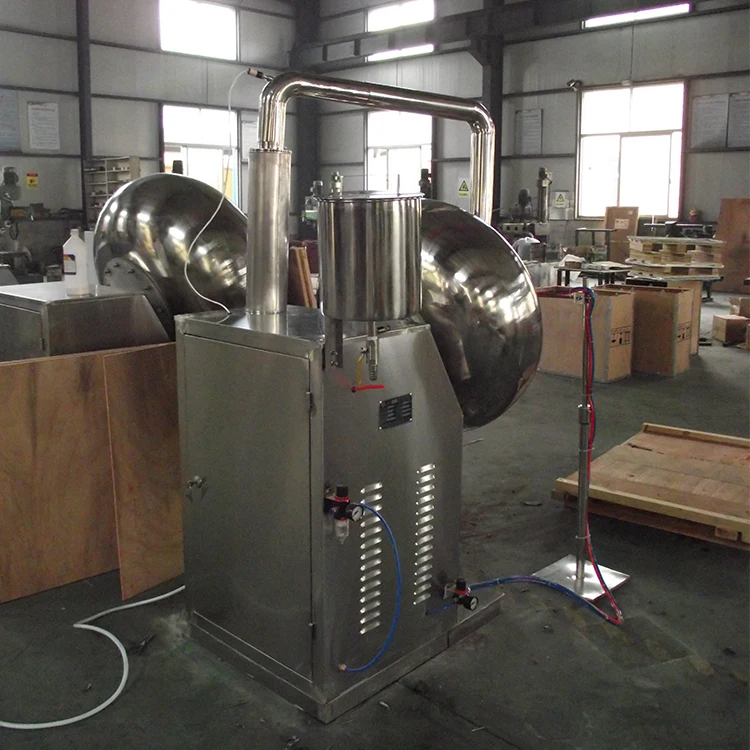

Details Images
