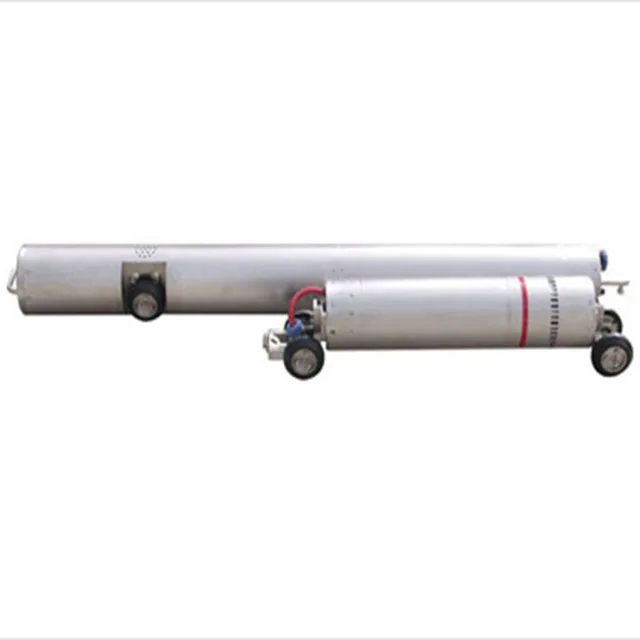

Professional 6 inches industrial NDT pipeline x ray inspection crawler welding detector
- Category: >>>
- Supplier: Dandong Aolong Radiative Instrument Group Co. Ltd.
Share on (1600729918993):
Product Overview
Description
Description
Main Performance ofAL-100E Pipeline Crawler
1) Default 2 drive, mandatory all-wheel-drive;
2) Forward positioning exposure, backward without exposure;
3) In the crawling process, the running speed can be automatically adjusted according to the pipe
slope (up and down), and the positioning is accurate;
4) Functions of fault detection (" water encounter ", "resistance", "power failure" (overcurrent, overvoltage), "overheating detection of components", "low mA", etc.) are provided during
crawling and exposure. After detecting a fault, the tractor will reverse immediately to realize
real-time protection and controllable fault reversing.
1) Default 2 drive, mandatory all-wheel-drive;
2) Forward positioning exposure, backward without exposure;
3) In the crawling process, the running speed can be automatically adjusted according to the pipe
slope (up and down), and the positioning is accurate;
4) Functions of fault detection (" water encounter ", "resistance", "power failure" (overcurrent, overvoltage), "overheating detection of components", "low mA", etc.) are provided during
crawling and exposure. After detecting a fault, the tractor will reverse immediately to realize
real-time protection and controllable fault reversing.
5) Pipe external adjustment: The exposure time can be adjusted outside the pipe.

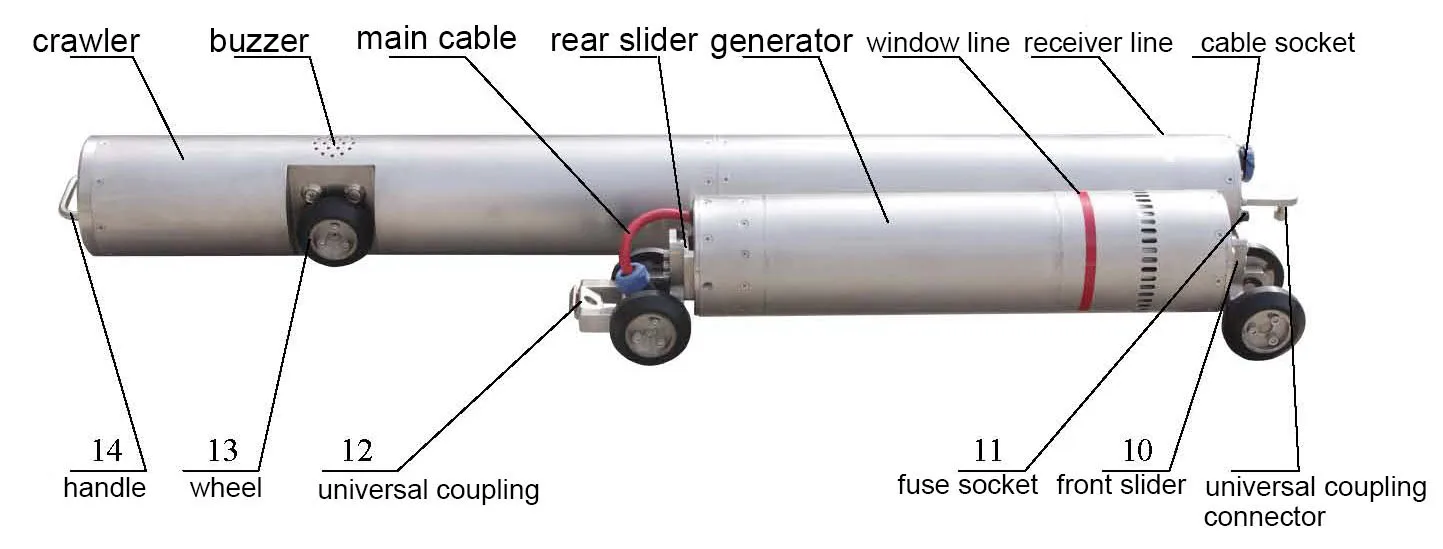

Specifications of AL-100E X Ray Pipeline Crawler
Model | AL-100E X-ray Crawler | ||
Range of Pipe Diameter | Φ159mm—Φ168mm | ||
Max. Penetration (A3 Steel) | 12mm | ||
Tube (Cone) | Max. Output Voltage | 120kv | |
Max. Output Current | 3mA | ||
Focal Size | 1.0×2.3mm | ||
Beam | 360°×30° | ||
Environment Temperature | -30 ~ 80° | ||
Relative Humidity | ≤90% | ||
Energy Capacity of Battery | 110V,10Ah | ||
Crawling Ability | ≤27° | ||
Location Accuracy | ±5mm | ||
Crawling Distance | 4km (round trip) | ||
Crawling Speed | 16~18m/min | ||
Turning Radius | ＞10D | ||
crawler Dimension and weight | outer diameter 127mm×1200mm 23kg | ||
Tube heard Dimension | outer diameter 120mm×515mm | ||
