2023 New brand TY-327T EPA diesel track mini skid steer loader with GP bucket

Share on:


Price:$9,900.00 - $9,999.00
Price in USD:Details

Quantity:


Product Overview

Description



Product Description

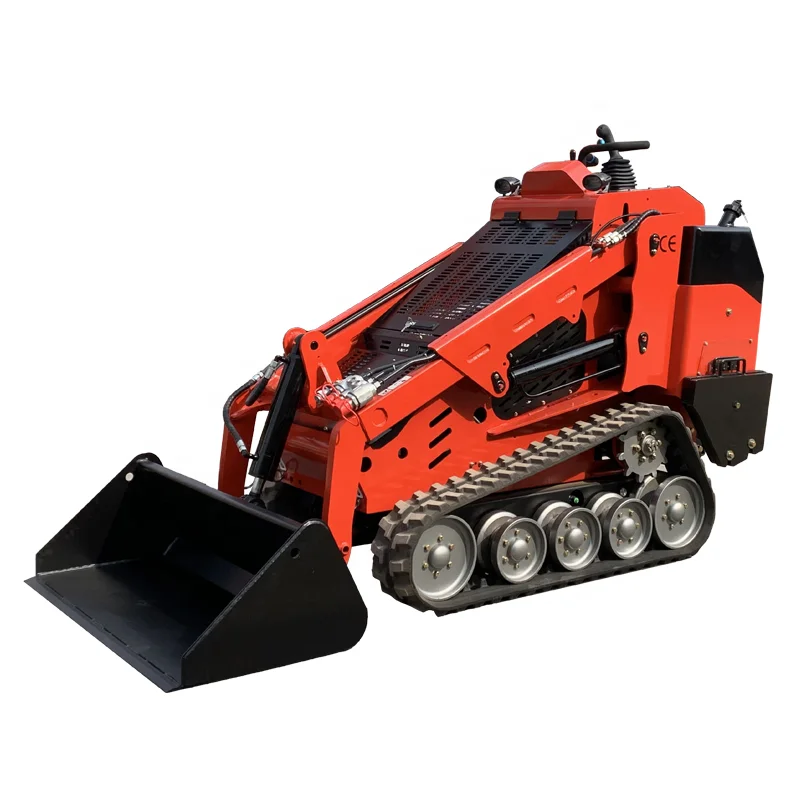

2023 New brand TY-327T EPA diesel track mini skid steer loader with GP bucket


VMENG MINI LOADER.jpg





mini loader 327T




 MINI SKID STEER LOADER VMENG TY-327T CHARACTERISTICS:


1. The VMENG TY-327T has powerful traction and lift, allowing it to perform many large tasks up close.


2. Crawler design, fast turn, low pressure on soft ground and grass.


3. VMENG BRAND work accessories offer endless opportunities for this mini crawler loader.


4. VMENG TY-327T can save you a lot of work, either alone or as a supplement to a large loader.

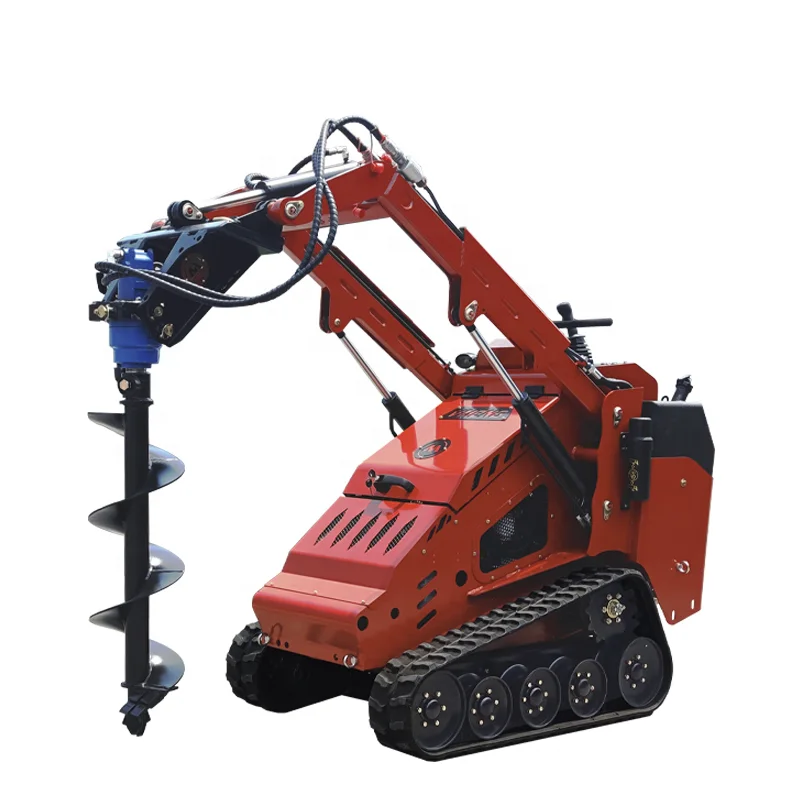

 tracked mini loader with auger.png








Mini skid steer loader TY-327T specifications:






















































DIMENSIONS



TY-327T Tracked



Operating height



2695mm



Height to bucket hinge pin



2000mm



Height to top



1496mm



Overall length with GP bucket



2694mm



Overall length without bucket



2067mm



Wheelbase



1080mm



Overall width



1070mm



Mini ground clearance



94mm



Angle of departure



23°



Rated loading capacity



400kgs



Kerb weight



1330kgs






 5
















































POWER



TY-327T Tracked



Engine maker



   Perkins engine



Fuel type



Diesel



Rating power



25hp



Number of cylinder



3



Displacement



1.123L



Rated speed



3600 rpm



TRAVEL SPEED



TY-327T Tracked



Max. drive speed



6.8 km/h

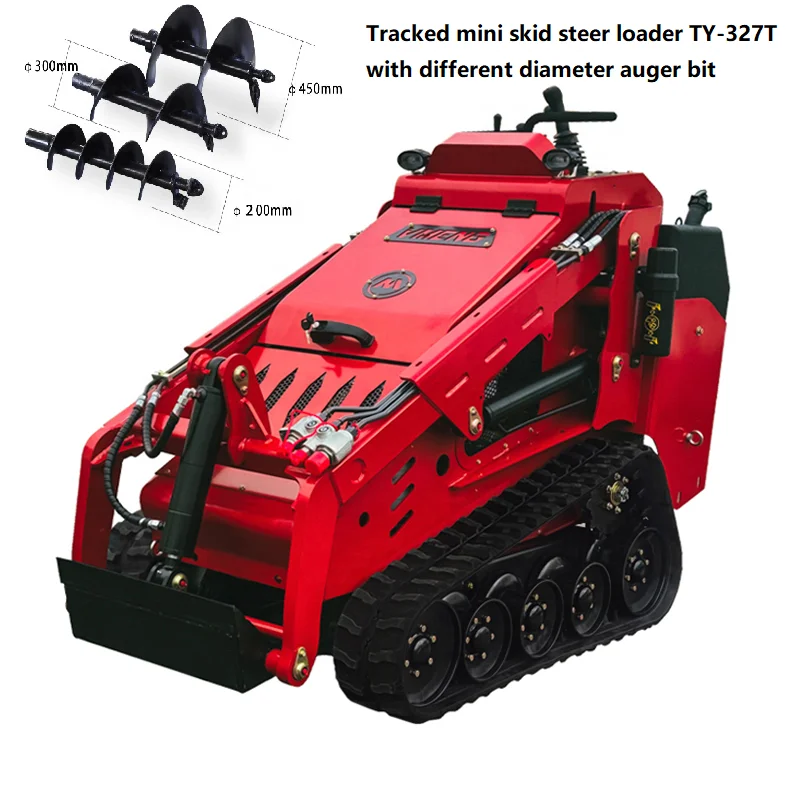

auger 5.png













































































HYDRAULIC SYSTEM



TY-327T Tracked



WORKING SYSTEM




working  system pressure



180bar



working system Flow rate



36L/min



DRIVING SYSTEM




Driving System pressure



250 bar



Driving system Flow rate



62.4 L/min



Auxiliary circuit System




Auxiliary circuit Pressure



180bar



Auxiliary circuit flow rate



36L/min



FLUID CAPACITIES



TY-327T Tracked



Fuel tank capacity



40 L



Engine oil



4.7 L



Hydraulic reservior capacity



40 L




BATTRY



TY-327T Tracked



Electrical Voltage



12V



Battry type



45AH made by YUASA






_20200904141736.jpg driving directly.pngHydraulic oil tank.png


1.Japan Kubota diesel EPA engine 25hp, 3-cylinder


2. Italy Hansa master pump,direct connecting to engine


3. Hydraulic joystick control for driving.


4. 400kgs-500kgs loading capactiy


5. Total width 1060mm


6.  ISO 330mm rubber crawler


*Travel through narrow doorways, aisles, alleys and gates -indoors or outside!


*Easy to load and transport on a trailer


*The mini loader with both walk behind and ride on capabilities.


*More than 20 attachments available.

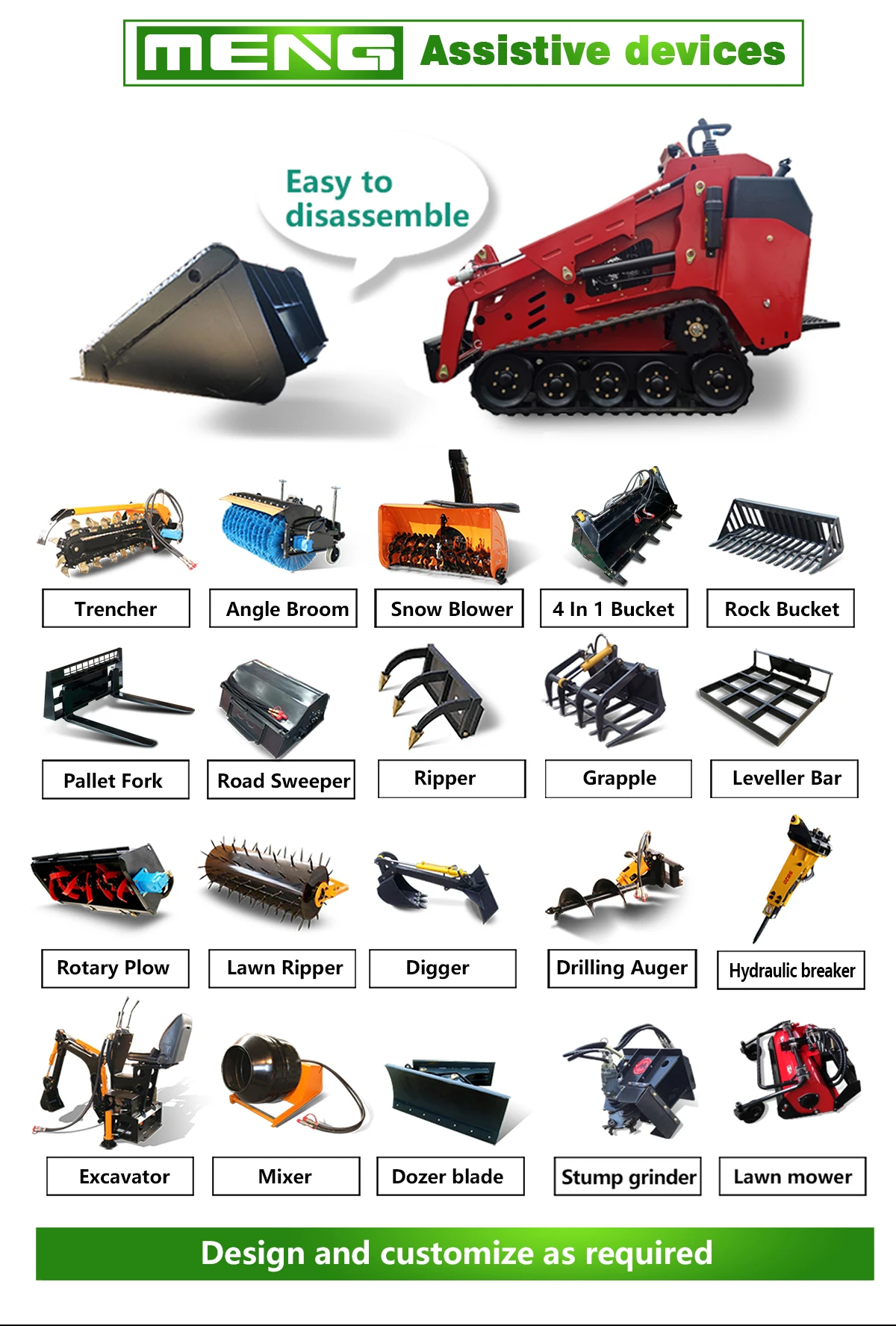

Mini skid steer loader TY-327T with attachments:

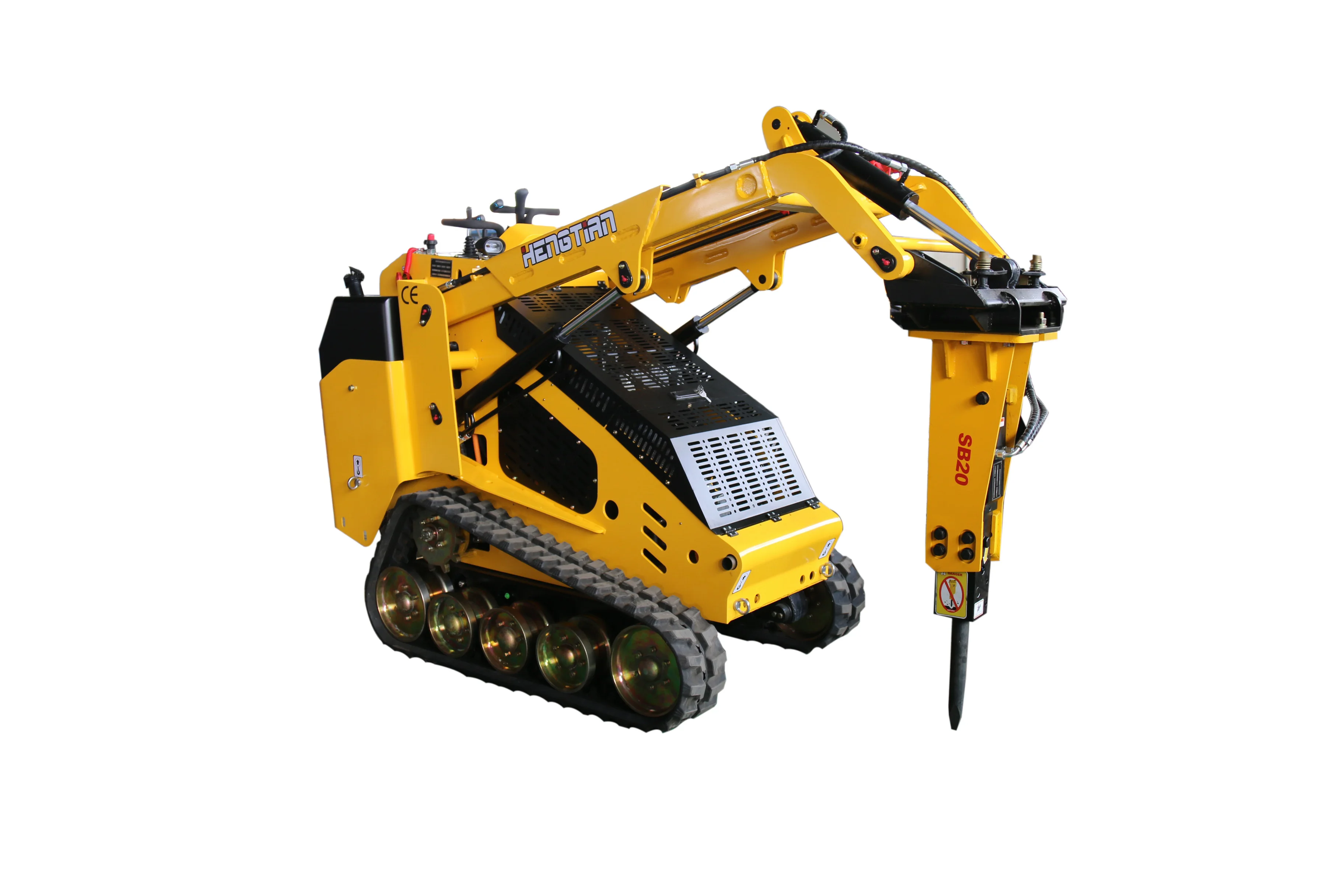

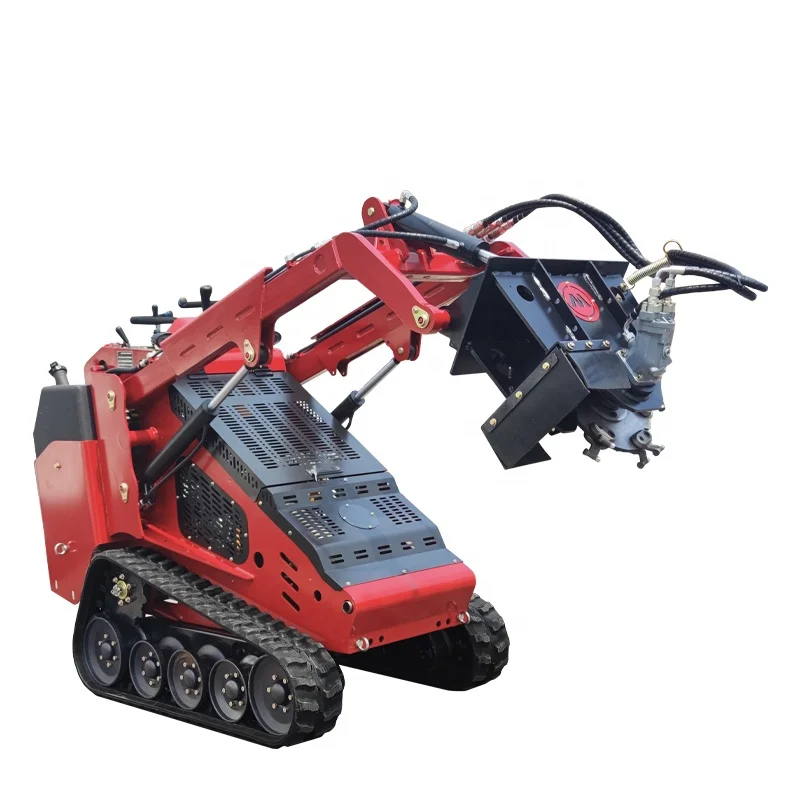

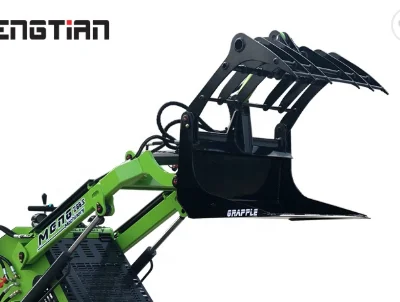

breaker quick attachindustrial grapplemini loader stump grinder





mini loader trencher TY-327TMINI LOADER auger 2.png


loader tools

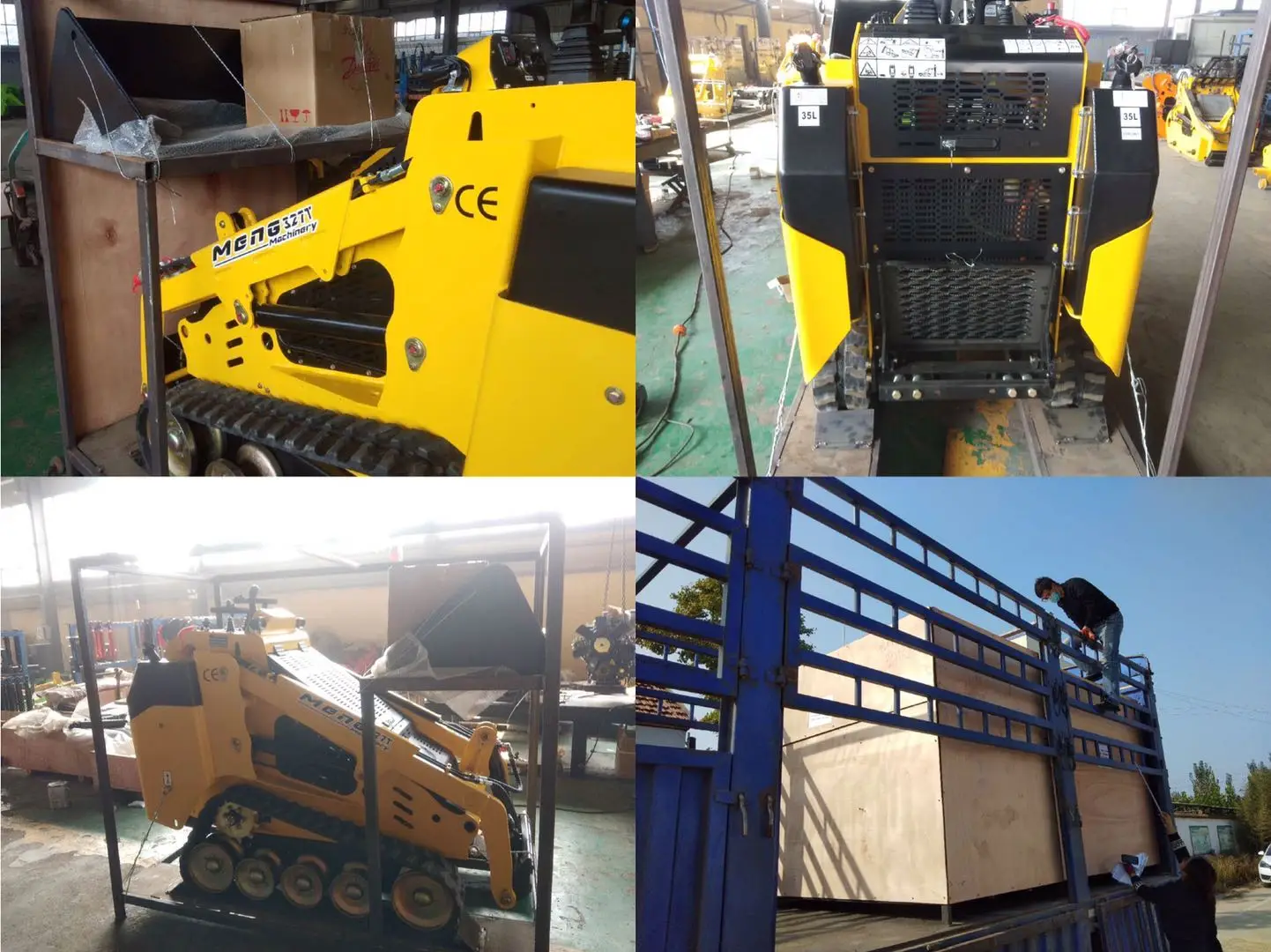

Packaging & Shipping


 1. 1-3 units, will be packed into plywood cover box, the packing measurement should be negotiated with the seller according to your order items(including attachments, tools,etc..)





2.  6 units into one 20'GP container.
3. 12 units into one 40'GP container.









Company Information


Taian Hi-Tech Sunrise Machinery Co., Ltd (say “Hengtian”) locates at the foot of world famous Mount Tai, has beautiful environment and convenient transportation of road, train and airport.
• Since founded in 2003, Hengtian has been developed into an integrated and professional machinery manufacturing and mining equipment enterprise with/integrating R&D, manufacturing, sales and service, etc.
• With excellent quality and competitive price, Hengkang products have won full recognition and trust from customers all over the world, especially in Australia, Canada, America and Europe.
• Hengtian will devote to provide quality products and satisfied services for all customers by adopting advanced manufacturing technology, equipments and management control system.
• Warmly welcome friends around the world to come and create a win-win future!

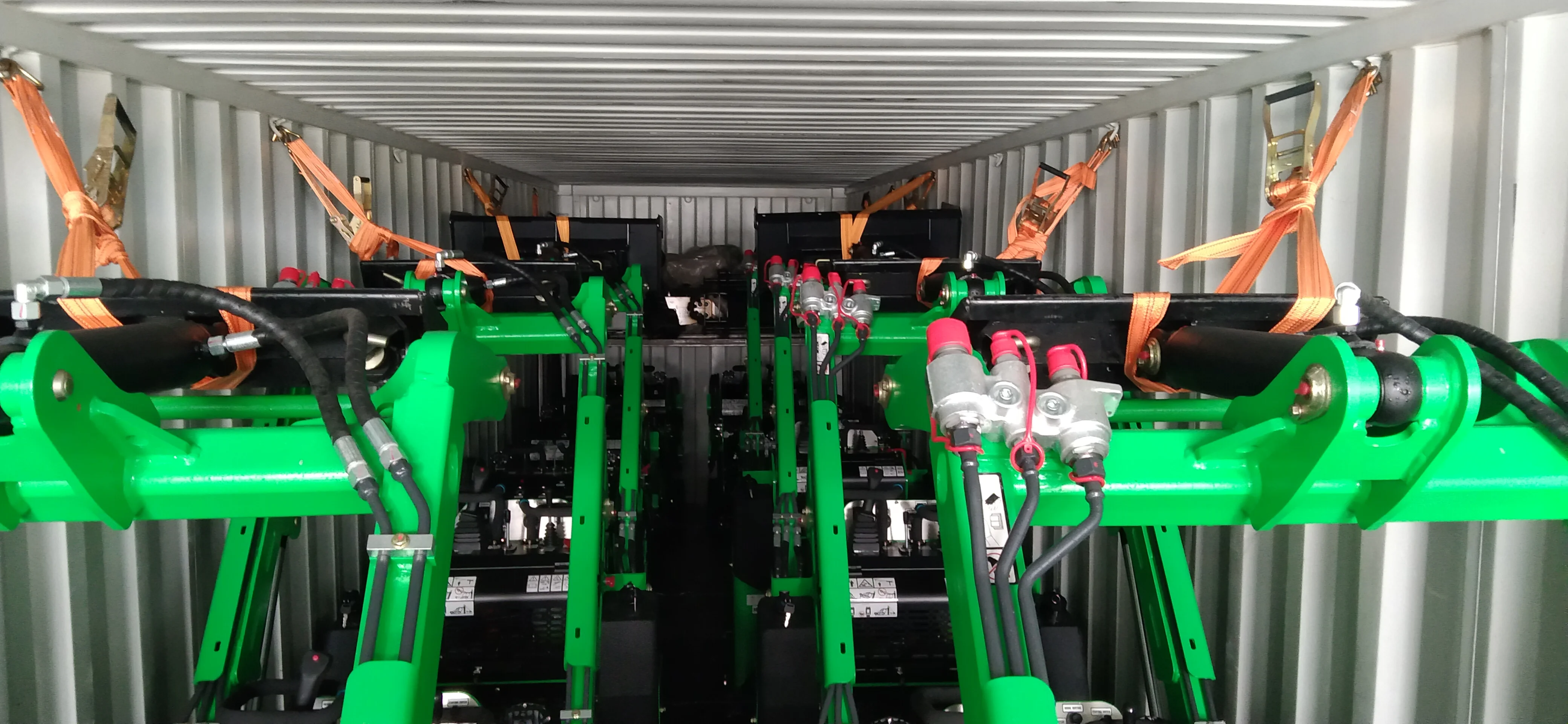

mini loader shipping.jpg

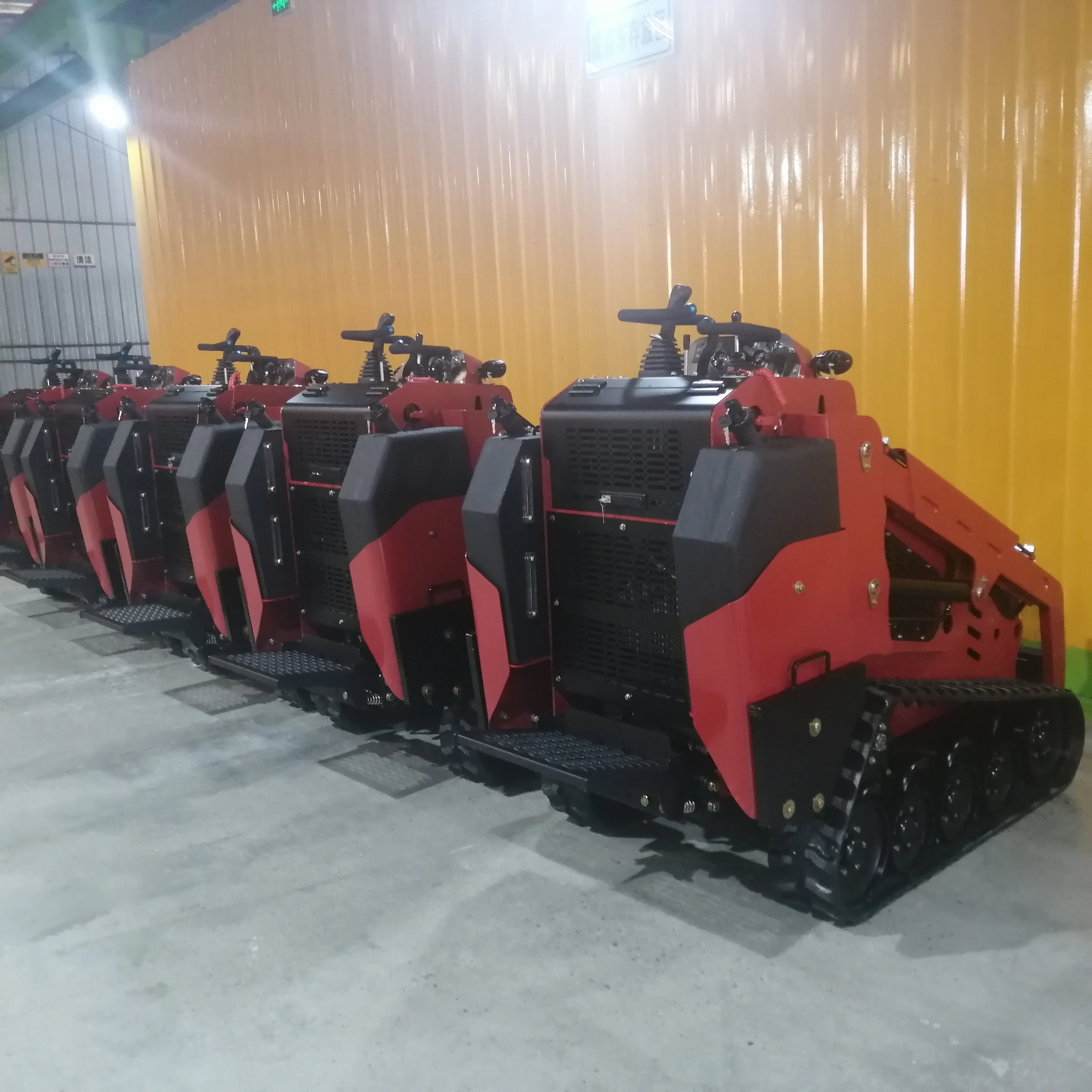

 showroom 2


mini skid steer shipping.jpg


diesel skid steer
