High Efficiency Automatic Electrical Power Airjet Loom Weaving Machine Air Jet Loom
- Category: >>>
- Supplier: Zhejiang Qihui Electronic Jacquard Co. Ltd.
Share on (1600729965142):
Product Overview
Description
Product Paramenters
Project | Specifications | Options |
Reed width | Nominal reed width: 150,170,190,210,230,250,280,340,360,390cm | |
Effective reed width: nominal reed width reduced by 0-60cm (150-250cm) | ||
Nominal reed width reduction 0 - 80cm (above 280cm) | ||
Weaving range | Short fiber: Ne100-Ne5 | |
Filament: 50D-900D | ||
Weft selection | Double-jet, four-jet and six-jet free weft selection | |
Power | Direct control of positioning parking through electromagnetic brake | |
Super-start motor 3.0Kw (cam opening) 3.7Kw (dobby opening) 6.5Kw (jacquard opening) | ||
Two-hand operation of button switch | ||
Weft insertion | Combined main nozzle and auxiliary nozzle | Extension nozzle |
Use profiled reed | ABS weft brake | |
Auxiliary main nozzle | ||
Opening | Negative cam opening: up to 8 heald frames | |
Crank connecting rod opening: 4 or 6 heald frames | ||
Positive cam opening: up to 8 heald frames | ||
Dobby opening: up to 16 heald frames | ||
Jacquard opening | ||
Menstruation | Electronically controlled continuous positive let-off | |
Single warp beam (reed width below 250cm) | Left and right warp axes and upper and lower warp axes | |
Positive relaxation | ||
Diameter of side plate of warp shaft Ф 800mm | Φ 914， Φ 1000mm | |
Coiling | Electronic coiling | Mechanical coiling |
Weft density range: 25-205 pieces/inch (mechanical winding), 25-300 pieces/inch (electronic winding) | ||
Maximum roll diameter: Ф 600mm (cam, dobby, jacquard opening) Ф 520mm (crank opening) | ||
Beat-up | Crank type multi-reed foot beating-up mechanism | |
Four-link beat-up (narrow width), six-link beat-up (wide width) | ||
Measuring length and storing latitude | Vibrating weft storage | Electronic drum weft storage (FDP) |
Weft frame | Floor type 4 bobbins (2 sprays), floor type 8 bobbins (4 sprays) | |
Selvage | Planetary gear type flanging device | |
Yarn end treatment | Edge discarding and coiling 3 roller type | |
Weft cutting | Mechanical scissors | |
Lubrication | The main transmission part is of oil bath type, with manual centralized oil supply | Automatic centralized oil supply |
Parking device | Weft yarn: photoelectric weft detector, double probe | |
Warp yarn: 6 rows of electrically contacted stop pieces | ||
Others: skein yarn and selvedge yarn break and stop automatically | ||
Parking reason display: display information on the human-machine interface, multi-function four-color light parking display | ||
Automation | Control: multi-function microcomputer control system with parameter setting/control/monitoring/self-diagnosis/artificial intelligence interface | |
Broken weft finding device: automatic hook finding | ||
Jog slowly through frequency converter (forward and reverse) | ||
Other: monitor output terminal | ||
Memory card system | ||
Automatic control device for weft insertion time (AJC) |
Product Details
Product Application
Application scope
Label, Tie, Furnishings, Curtain, Sofa cloth, Bed Cloth, Towel, Carpet, Velvet, Craft Brocade, Garment Fabric, Lining, Saree, Silk Fabric, Leno fabric and so on.
Applicable Machine
Suitable for all kinds of looms at home and abroad, like rapier loom, air jet loom, water jet loom, projectile loom.
Company Profile

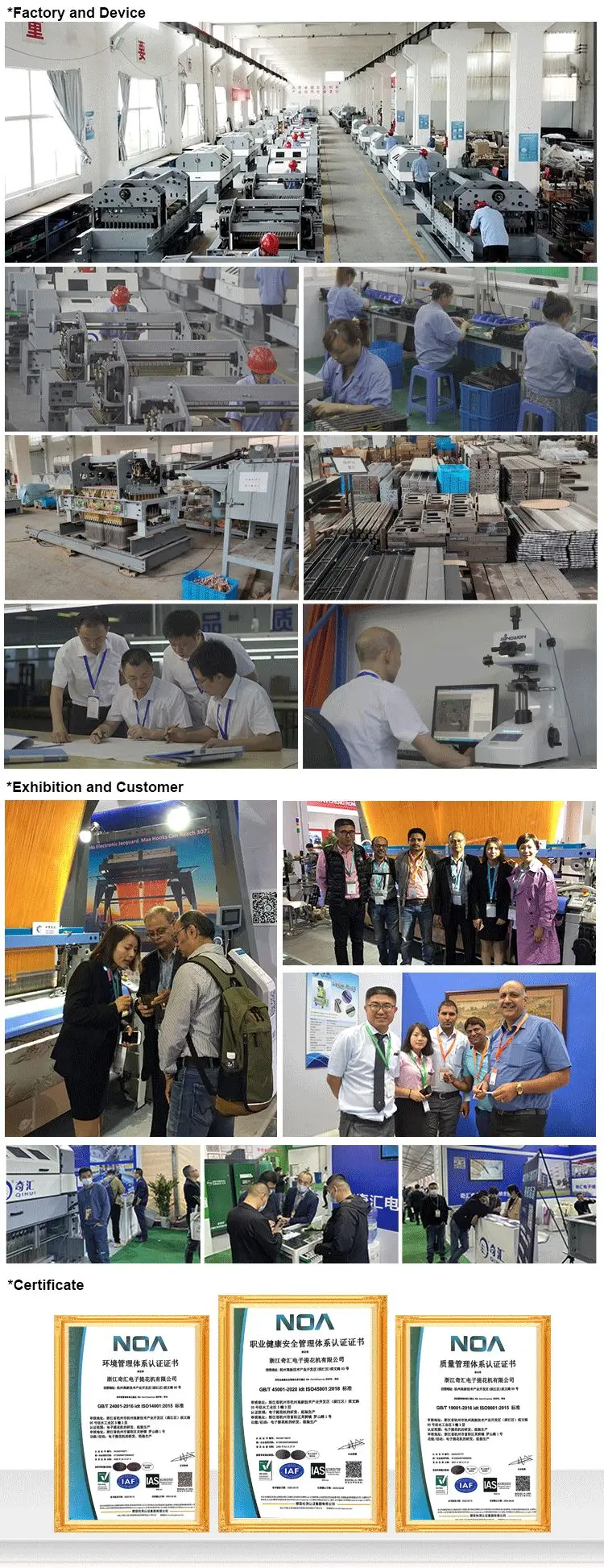

* Company Introduction
Zhejiang Qihui Electronic Jacquard Machine Co., Ltd., located in Hangzhou, a famous textile city in China. Our company has rich experience in the textile industry and our main products include electronic jacquard machine, jacquard CAD software and some accessories, which is suitable for all kinds of looms at home and abroad, like rapier loom, air jet loom, water jet loom, projectile loom. Meanwhile, we are the first enterprise that successfully developed electronic jacquard machines in China. Now Our products are exported to clients in such countries and regions as India, Pakistan, Indonesia, Vietnam, Nepal, Egypt, Japan and Brazil, etc. At present, our market has more than 30,000 sets, and we can produce 3000 sets of electronic jacquard machines every year. Since we established, we has been committed to the development, design, manufacturing, sales and technical services of textile equipment and supporting parts mainly based on electronic jacquard machines. Qihui is a national high-tech enterprise and a provincial high-tech enterprise research and development center. We have established long-term cooperation with Zhejiang University, Zhejiang University of Technology and other scientific research institutes. We have more than 80 patent technologies such as inventions, utility models and software copyrights. We have won many honors such as the national, provincial and municipal science and technology progress awards, the first batch of patent demonstration enterprises, and the first set of equipment. We enjoy a high reputation in the textile industry and we are committing to becoming a world-class textile equipment supplier with unremitting pursuit and exploration.
FAQ
Q: Are you a manufacturer or trading company?
A: We are a manufacturer. We have more than 15 years' experience in research, development and manufacturing of jacquard machine and related accessories. )
Q: Where is your factory located? How can I visit it?
A: Our factory is located in Hangzhou, China. It takes 30 minutes from Hangzhou International Airport to our factory. Welcome to visit us.
Q:How about our quality and after service?
A: We carry out very strict quality control in every production process, even 100% quality examination and test before shipping. Our after-service team can provide you technical support on installation or on the problems that you encounter in the use. In India, we can provide the service on spot, and other areas by video.
Q: After an order is placed, when can you ship?
A: Generally about 30 days. Kindly please be noted that our production lead time depends on specific items and item quantities.
Q: What's payment terms?
A: We prefer TT, 30% in advanced payment+70% paid before shipment, but also accept L/C.
Q: I want to be your agent in my country,is it ok?
A: Yes, No problem. We are looking forward to long-term partners with high ability.
A: We are a manufacturer. We have more than 15 years' experience in research, development and manufacturing of jacquard machine and related accessories. )
Q: Where is your factory located? How can I visit it?
A: Our factory is located in Hangzhou, China. It takes 30 minutes from Hangzhou International Airport to our factory. Welcome to visit us.
Q:How about our quality and after service?
A: We carry out very strict quality control in every production process, even 100% quality examination and test before shipping. Our after-service team can provide you technical support on installation or on the problems that you encounter in the use. In India, we can provide the service on spot, and other areas by video.
Q: After an order is placed, when can you ship?
A: Generally about 30 days. Kindly please be noted that our production lead time depends on specific items and item quantities.
Q: What's payment terms?
A: We prefer TT, 30% in advanced payment+70% paid before shipment, but also accept L/C.
Q: I want to be your agent in my country,is it ok?
A: Yes, No problem. We are looking forward to long-term partners with high ability.
