Hot Sale JK Lifepo4 20s 200a Smart BMS with UART Communication Serial Port Battery Management System Bms
- Category: >>>
- Supplier: Chengdu Longrun Chuangshi Technology Co. Ltd.
Share on (1600729996370):
Product Overview
Description

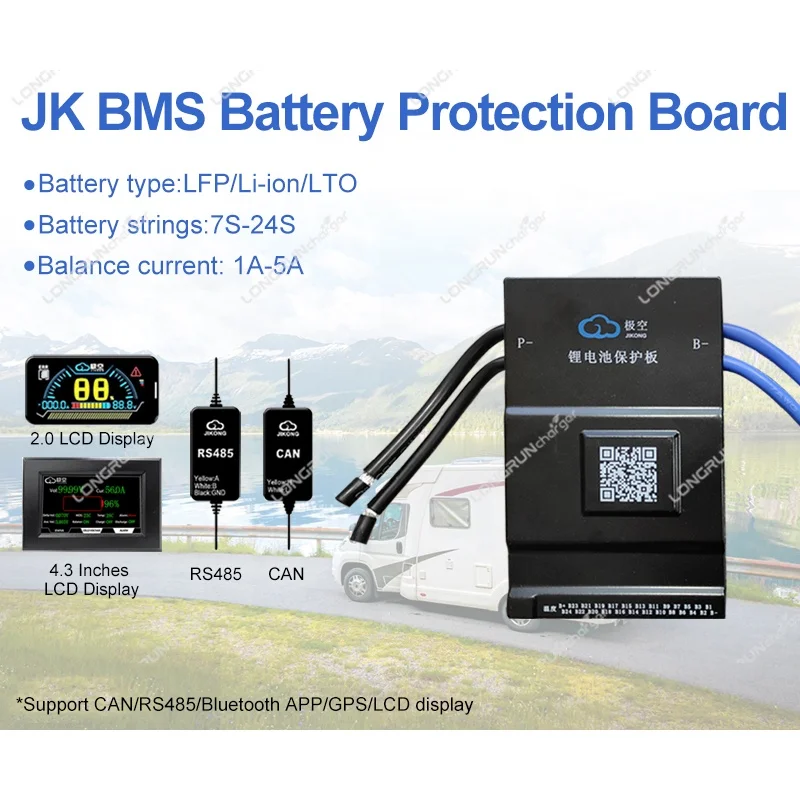

JK Smart Active BMS 4-25s Balance Current 0.4a-5a 40a-250a RS485/CAN GPS LCD Display Optional |
Note:
a):We are the OFFICIAL authorized global dealer of Chengdu JK BMS;
b):Each product has passed the factory quality inspection，then sent directly from the JK factory in Chengdu；
c):The price of all models is the version of built-in Bluetooth software;
d):JK BMS factory is ten minutes away from us；
e):We have certified ce certificate.
Products Description
JK-BD4A8S4P
JK-BD4A17S4P
JK-BD4A24S4P
JK-BD6A17S6P/JK-BD6A20S6P
JK-BD6A24S6P/JK-BD6A17S8P
JK-BD6A20S8P/JK-BD6A24S8P
Size:136*83*17.4mm
JK-BD6A20S10P/JK-BD6A24S10P
JK-BD6A20S15P/JK-BD6A24S15P

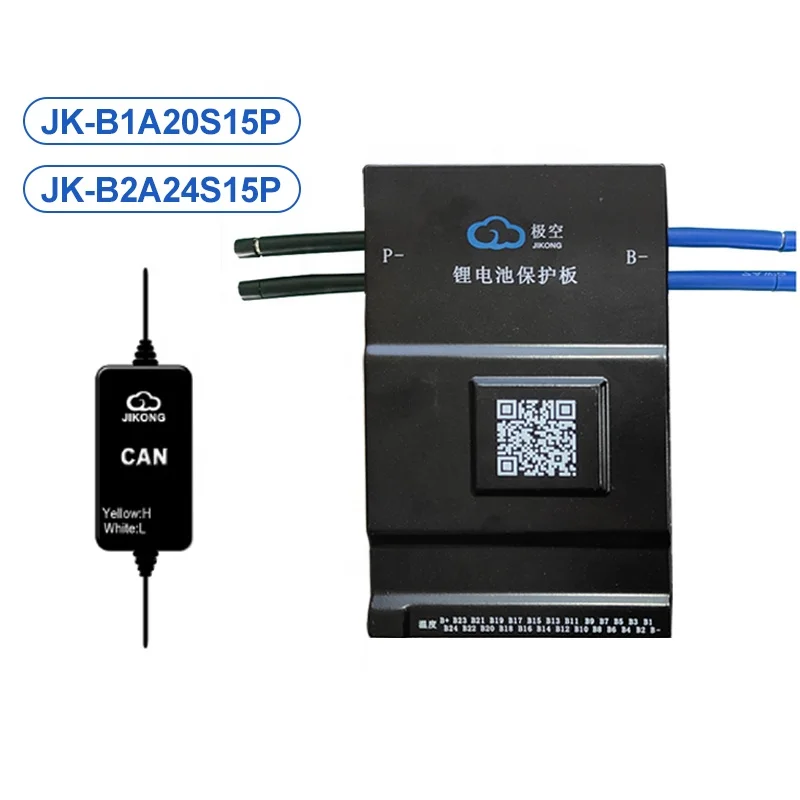

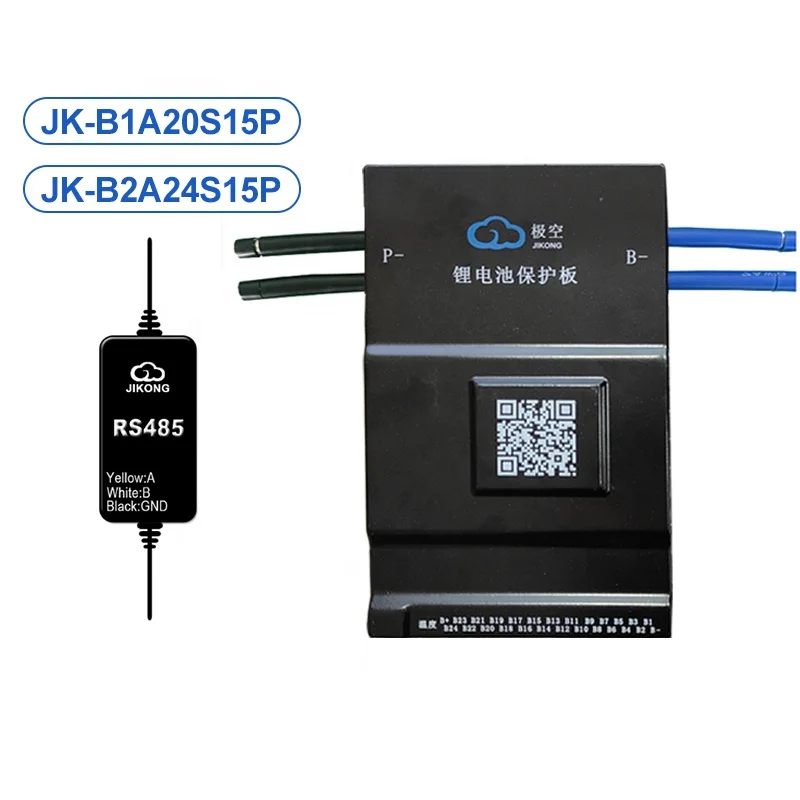

JK-B1A20S15P/JK-B1A24S15P
JK-B2A20S15P/JK-B2A24S20P
JK-B2A24S20P
Size:162*102*20.4mm
JK-B1A8S20P/JK-B2A8S20P
Size:153*136*17.6mm
JK-B2A25S-RP/JK-B5A25S-60P
234*144*32mm
Specifications | Models | |||||||||||
BD6A20S10P | BD6A24S10P | B1A20S15P | B1A24S15P | B2A24S20P | B2A24S20P | |||||||
Number of battery strings | 8-20 | 8-24 | 8-20 | 8-24 | 8-24 | 8-24 | ||||||
Equalization | Active equalization | |||||||||||
Balance current | 0.6A | 0.6A | 1A | 1A | 2A | 2A | ||||||
Main circuit resistance | 0.8mΩ | 0.8mΩ | 0.5mΩ | 0.5mΩ | 0.3mΩ | 0.5mΩ | ||||||
Continuous discharge current | 100A | 100A | 150A | 150A | 200A | 200A | ||||||
Maximum discharge current | 200A | 200A | 300A | 300A | 300A | 350A | ||||||
Overcurrent Protection (adjustable) | 10～100 A | 10～100 A | 10～100 A | 10～150 A | 10～150 A | 10～200 A | ||||||

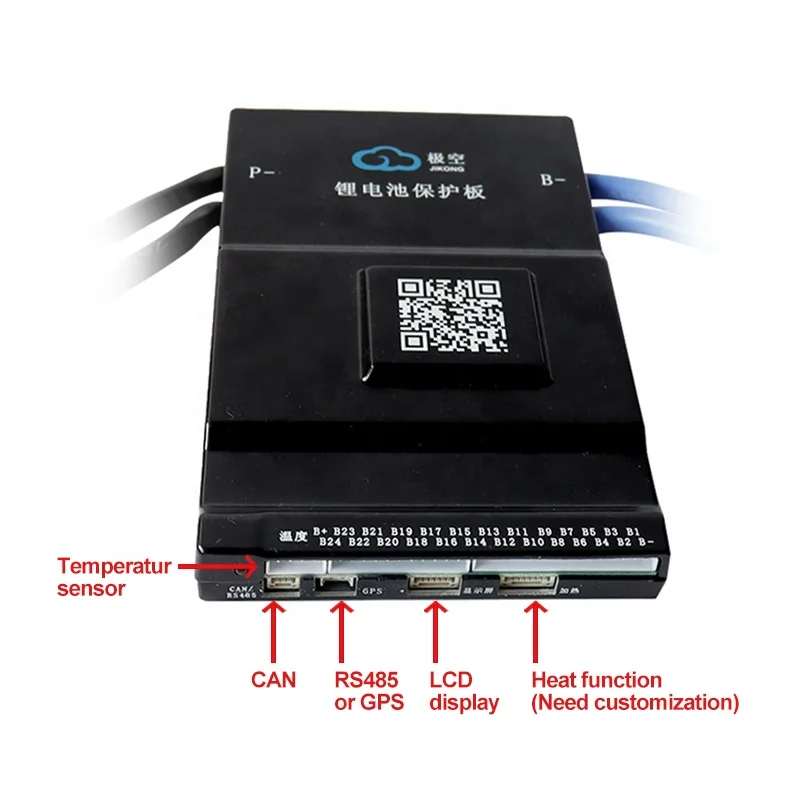

Other interfaces (custom made) | RS485 | RS485 | RS485 | RS485 CAN | RS485 CAN | RS485 CAN | ||||||
Charge and discharge interface： 1 port Cell voltage range： 1-5v Voltage acquisition accuracy： ±5 mV Overcharge protection voltage： 1.2～4.35 V adjustable Overcharge release voltage： 1.2～4.35 V adjustable Overcurrent release time： 2～120S adjustable Over discharge protection voltage：1.2～4.35 V adjustable Over discharge recovery voltage 1.2～4.35 V adjustable Number of temperature detections 3 Temperature protection： YES Short circuit protection： YES Coulomb counter: YES Bluetooth function: Support Android, IOS system GPS (optional)： Support (select one of RS485 and GPS) | ||||||||||||
Application

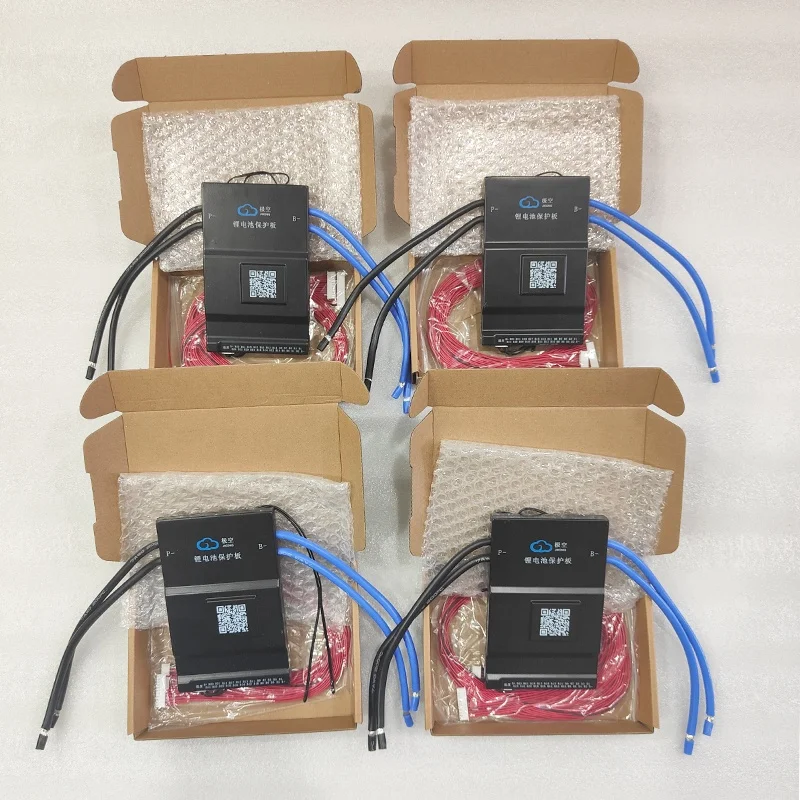

Package &Shipping
FAQ
1. Who are we? Chengdu Longrun Chuangshi Technology Co., LTD.Located in Chengdu, China, Engaged in Electric Vehicle Charging System, AC Servo Control System,as well as electronic information and the battery internalizes system. 2. How can we guarantee quality? Always a pre-production sample before mass production.Always final Inspection before shipment. 3.What can you buy from us? On board charger,ev charger,car charger,Lifepo4,Lithium ion etc.We offer OEM and ODM. 4. Why choose us?*More competitive price! As a manufacturer, we have our own factory and R&D team, so the price will be more competitive. |
