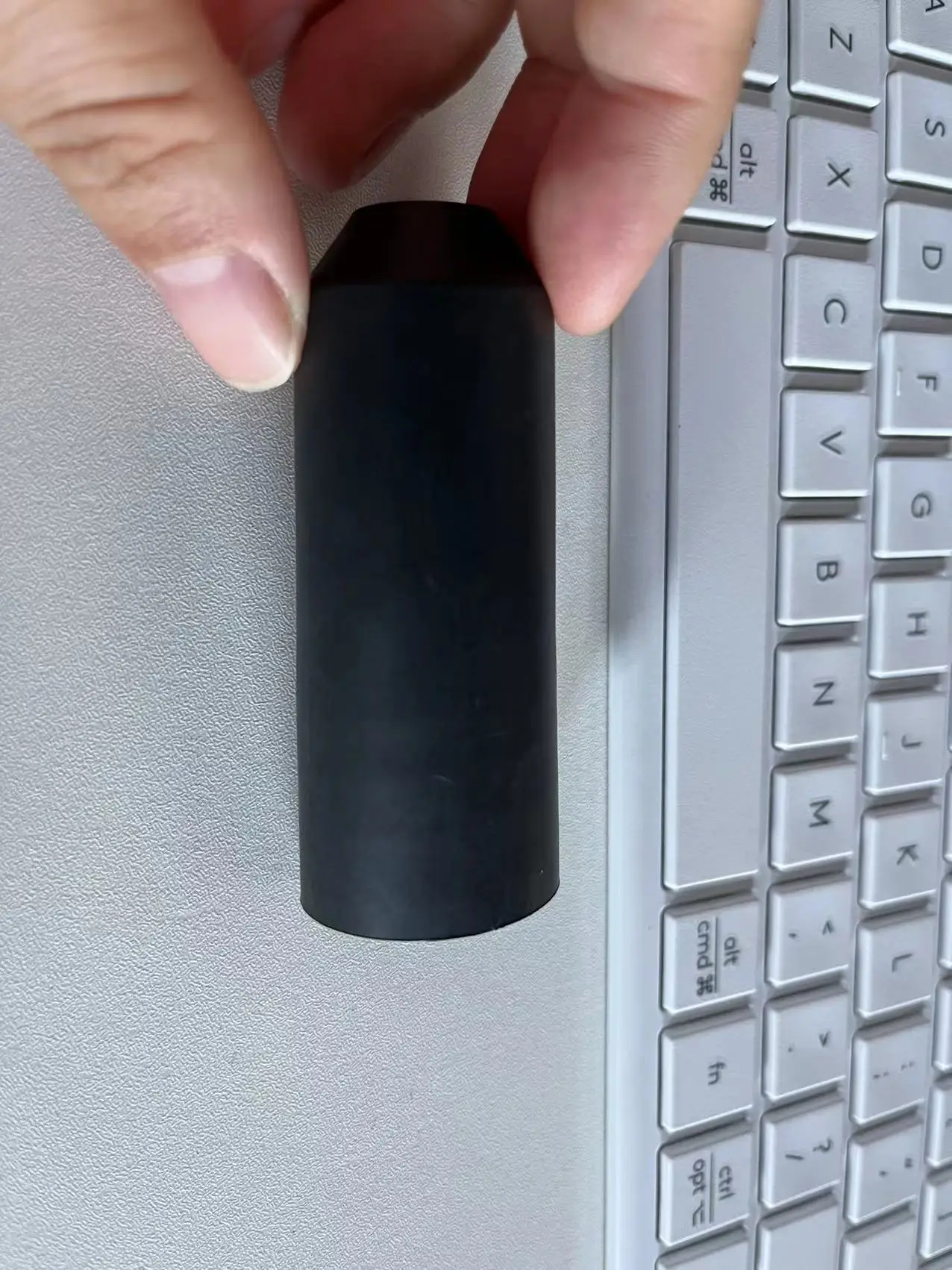

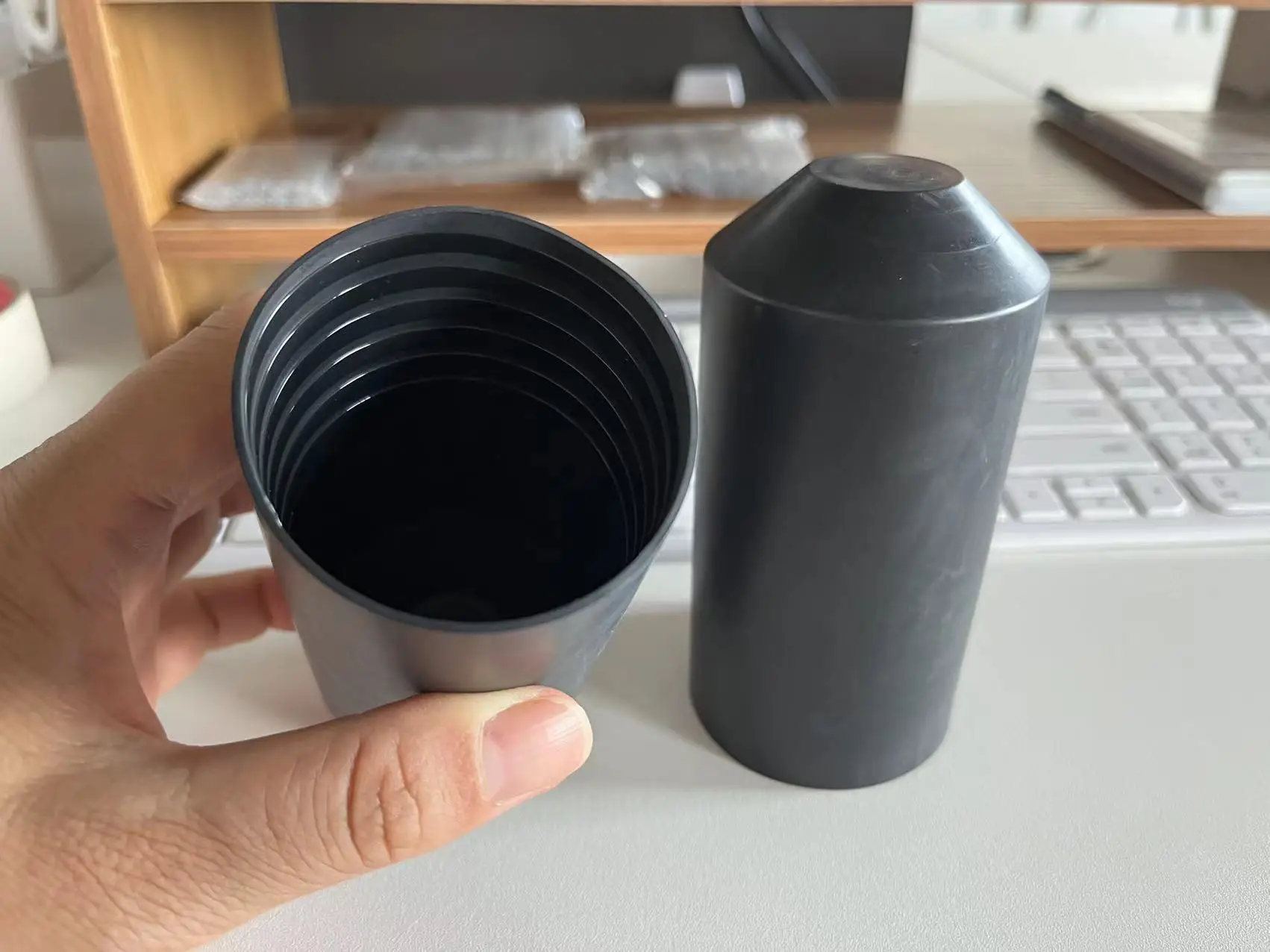

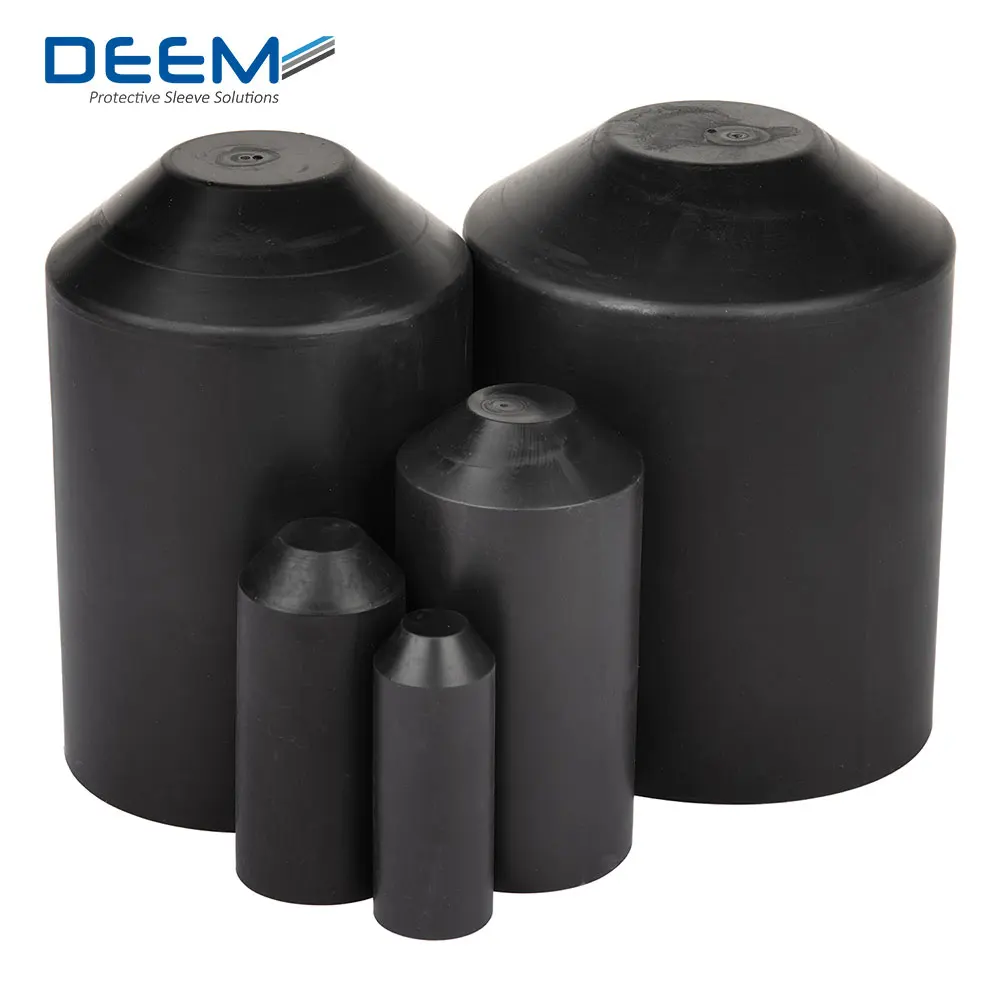

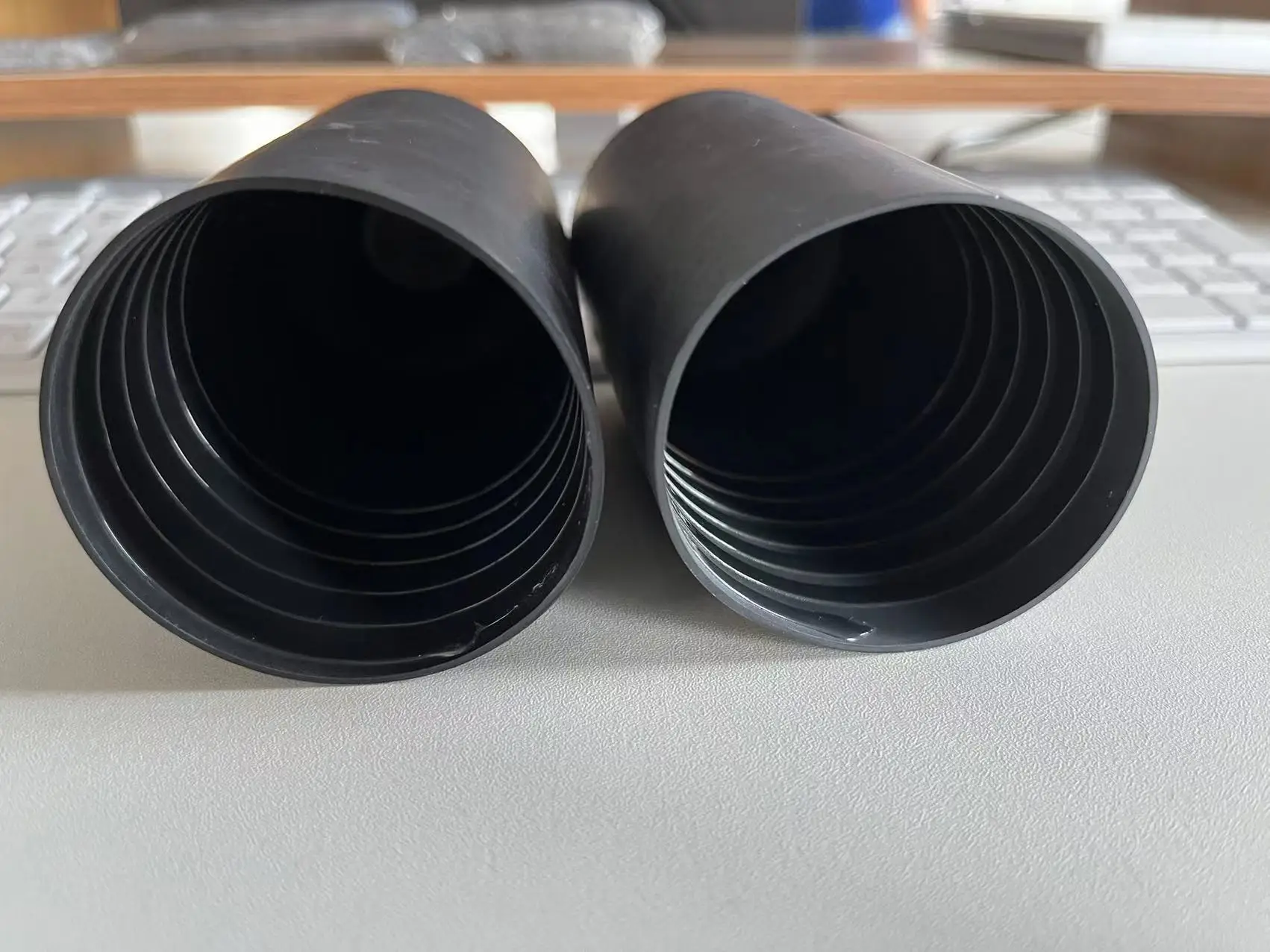

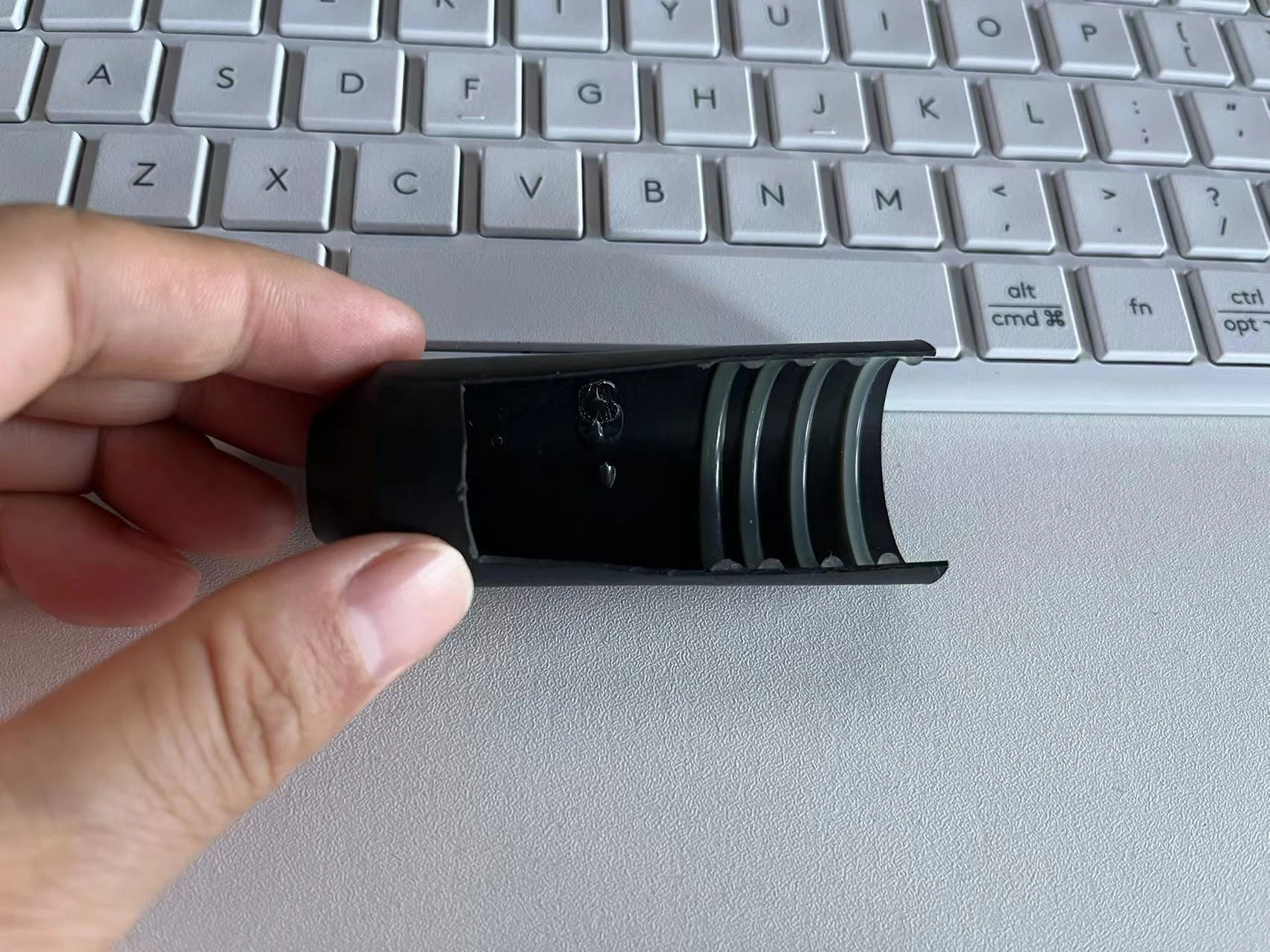

DEEM Heat shrink Cable End Caps waterproof PE end covers heat shrink electrical insulator end caps with glue
- Category: >>>
- Supplier: Deem Electronic & Electric Material Co. Ltd.
Share on (1600730151815):
Product Overview
Description
Various
Operating temperature: -55°C to +110°C
Minimum full recovery: 120 °C
Technical Data
| Property | Test Method | Typical Data |
| Operating temperature | IEC 216 | -55°C to +110°C |
| Tensile strength | ASTM D 638 | >14 MPa |
| Elongation at break | ASTM D 638 | > 400% |
| Elongation at break after aging | 150°C/168 hrs. | >300% |
| Density | ASTM D 792 | 1.05 |
| Flammability | / | Flammable |
| Dielectric strength | IEC 243 | >15 kV/mm |
| Volume resistance | IEC 93 | >10 14 Ω.cm |
Dimensions
| Size DM-EC (D) | As supplied (mm) | After recovered (mm) | Cable Diameter (mm) | |||
| D (min) | D (max) | A (±10%) | L (±10%) | Dw (±5%) | ||
| Standard length end caps | ||||||
| 12/4 | 12 | 4 | 15 | 40 | 2.6 | 4-10 |
| 14/5 | 14 | 5 | 18 | 45 | 2.6 | 5-12 |
| 20/6 | 20 | 6 | 25 | 55 | 2.8 | 6-16 |
| 25/8.5 | 25 | 8.5 | 30 | 68 | 2.8 | 10-20 |
| 35/16 | 35 | 16 | 35 | 83 | 3.3 | 17-30 |
| 40/15 | 40 | 15 | 40 | 83 | 3.3 | 18-32 |
| 55/26 | 55 | 26 | 50 | 103 | 3.5 | 28-48 |
| 75/36 | 75 | 36 | 55 | 120 | 4 | 45-68 |
| 100/52 | 100 | 52 | 70 | 140 | 4 | 55-90 |
| 120/60 | 120 | 60 | 70 | 150 | 4 | 65-110 |
| 145/60 | 145 | 60 | 70 | 150 | 4 | 70-130 |
| 160/82 | 160 | 82 | 70 | 150 | 4 | 90-150 |
| 200/90 | 200 | 90 | 70 | 160 | 4.2 | 100-180 |
