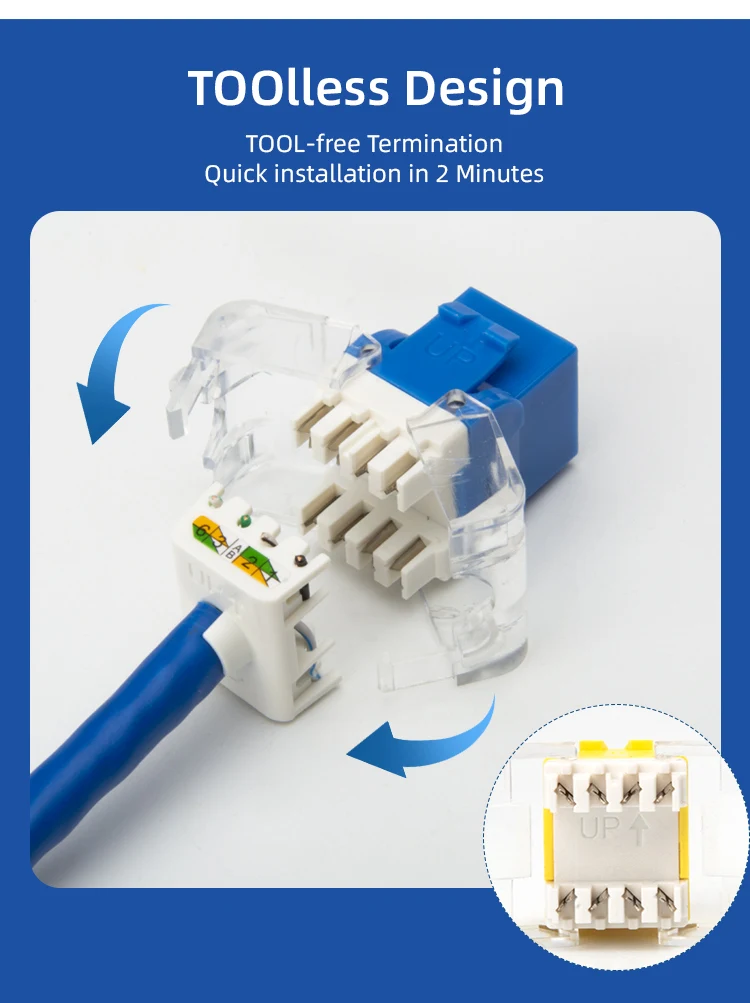

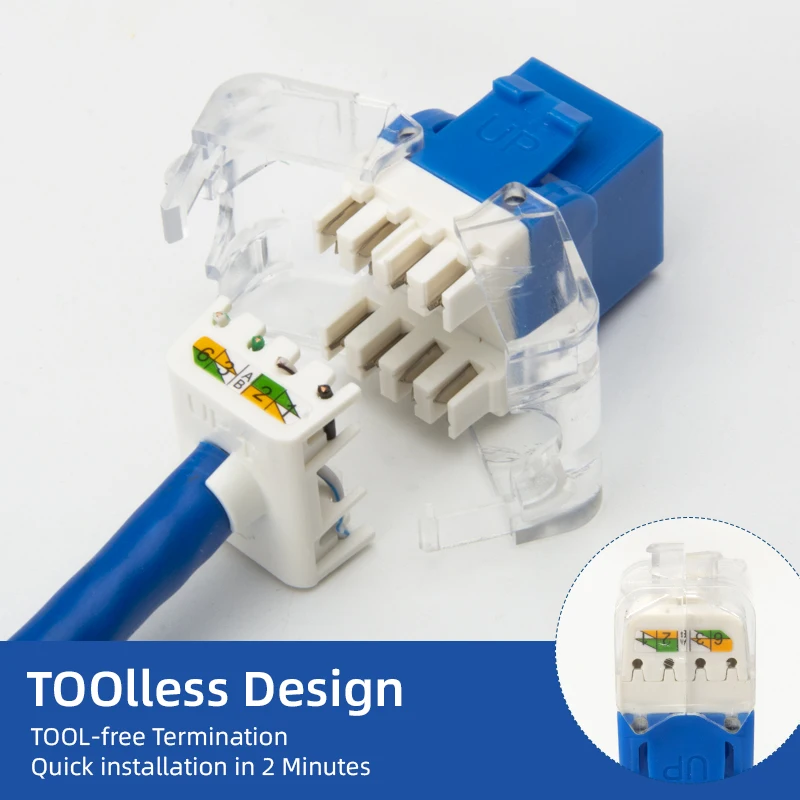

Network UTP Tool Free RJ45 8P8C Cat 6 Cat 6a Keystone Jack Toolless ethernet RJ45 modular jack Cat5e Cat6 Cat6a keystone jack

• Material of plastic parts: PC UL94V-0

• Standard 110 and LSA dual use punching tool make operation more convenient

• IDC clips with 45 degree angled design ensure the cables reliable connection

• According to the standard of ISO/IEC 11801 & TIA/EIA 568-B.2 Cat.6A

• Golden plated Pins, IDC clips and internal PCB board match well and provide best performance

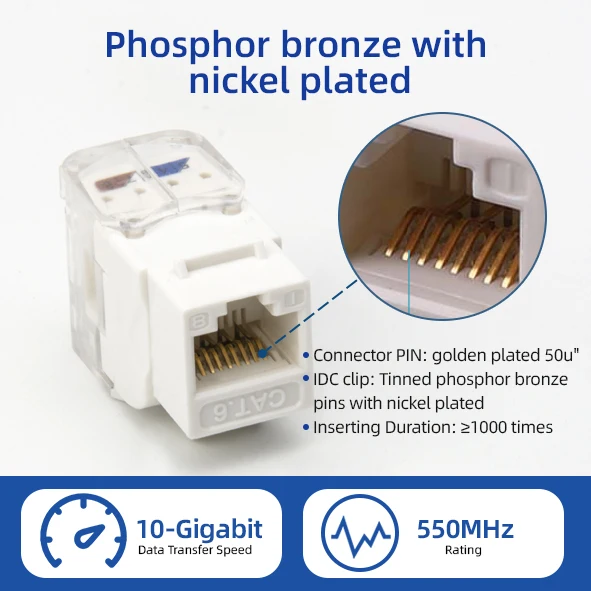

• Whole Pin nickel plated with connect pins golden plated prevent oxidation, lasting the service life

• IDC clips: Tinned phosphor bronze nickel plated with dependability 250 times

• Contact Resistance: ≤20mΩ

• Dielectric strength: 1000V(AC750V)1min

• Insulation Resistance: ≥1000MΩ

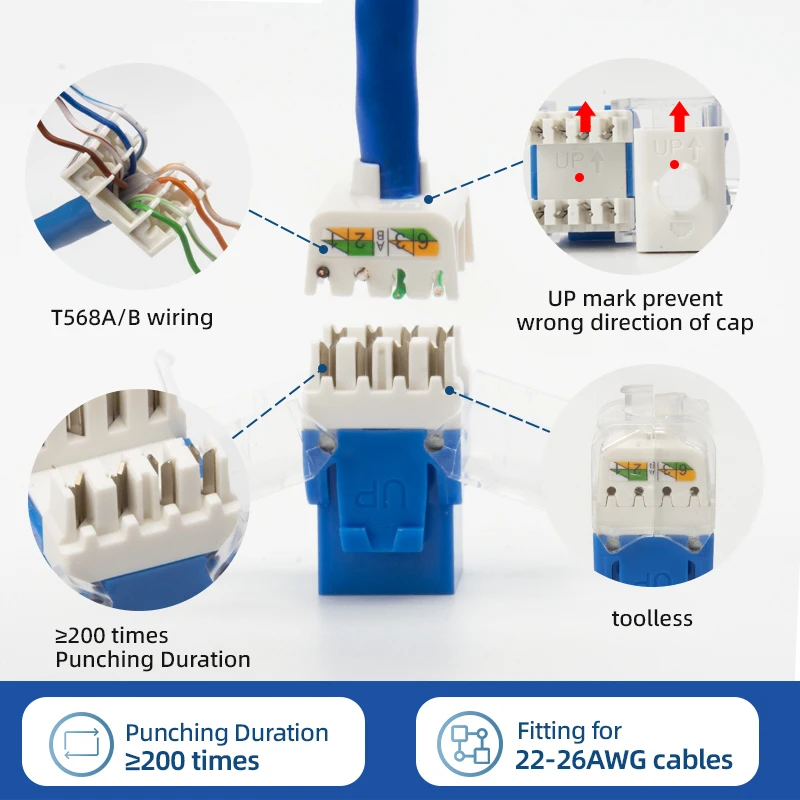

• IDC clip: Tinned phosphor bronze pins with nickel plated, fitting for 22-26AWG cables

• Inserting Duration: ≥750 times

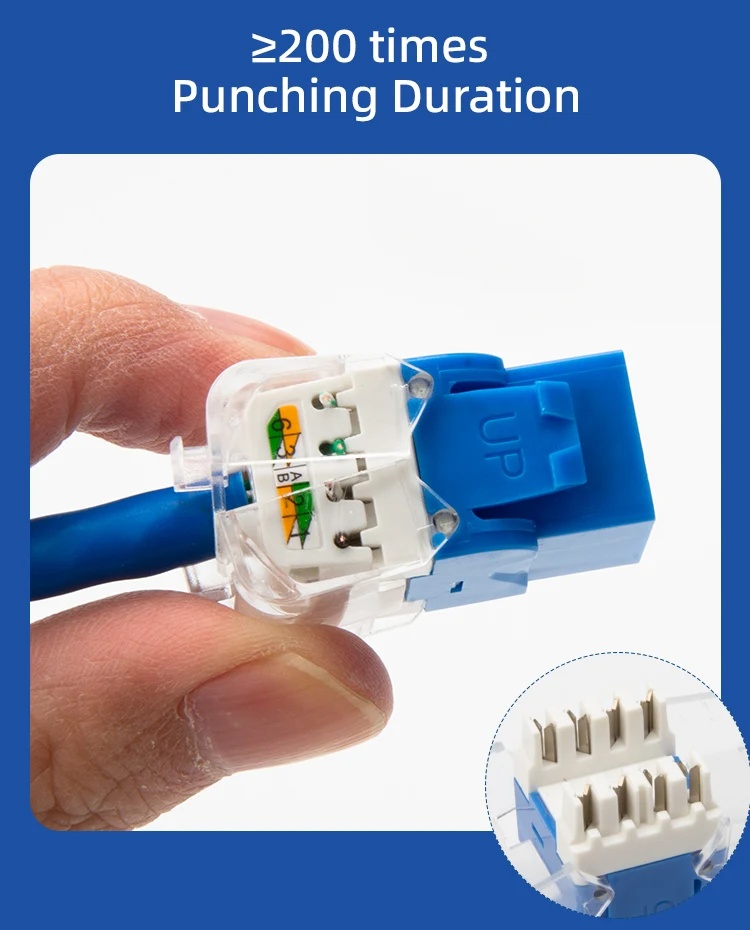

• Punching Duration: ≥250 times

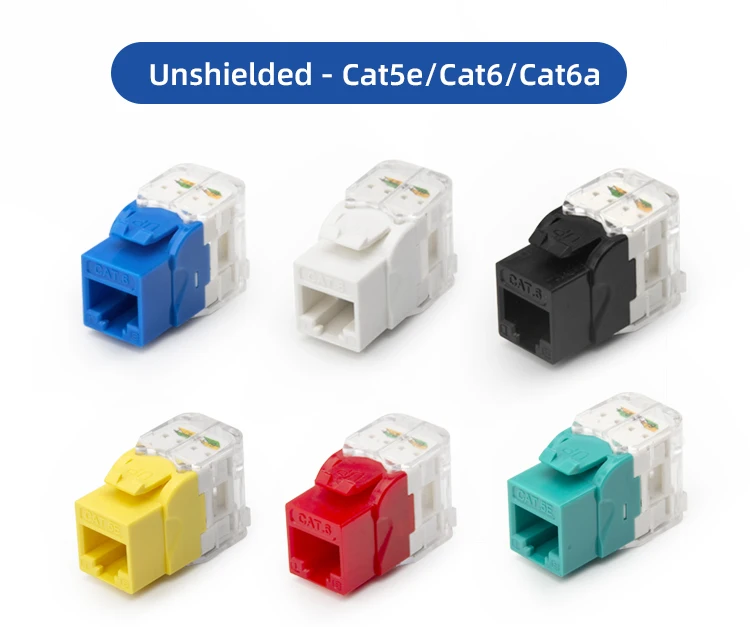

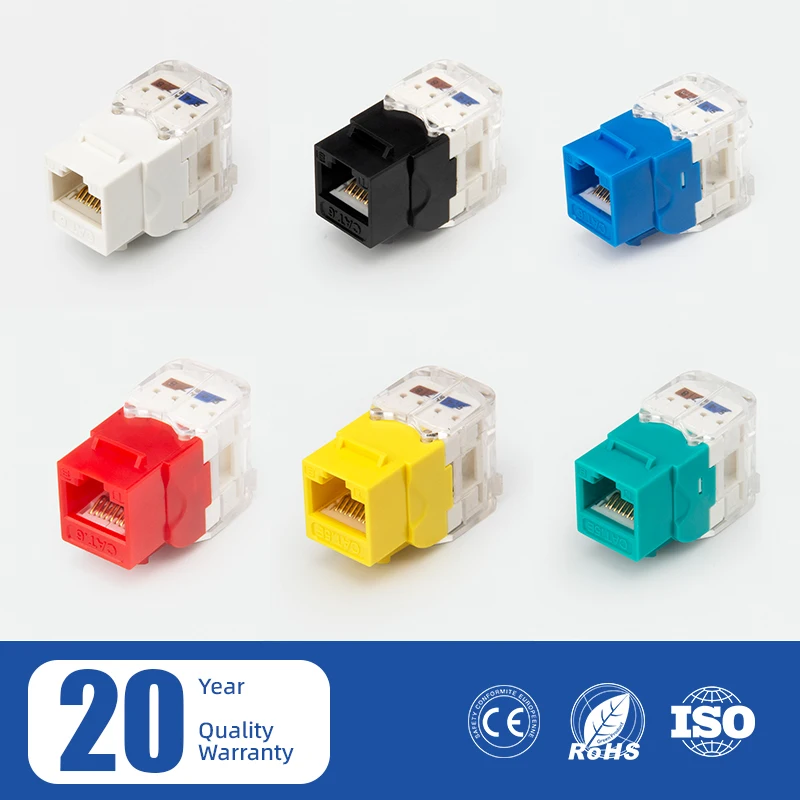

• Jack housing plastic part: UL 94V-2,RED,YELLOW,BLUE,GREEN,BLACK and other colors available

• Termination caps material UL94V -2

• Working temperature: -25℃~60℃

• TIA/EIA-568B.2-1;

• EN50173;

• UL 94V-0;

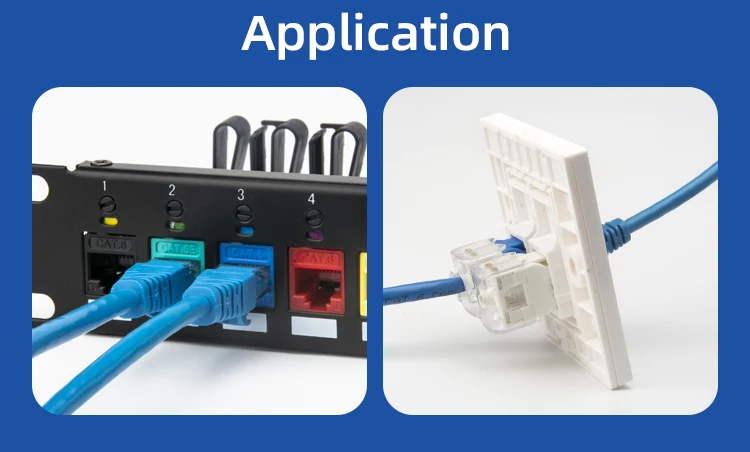

• Structured cabling transmitting data ,voice, video

• Applied for Cat.6A and lower Classes

• Suitable for working area, central room, managing room, equipment room and subsystem applications
