Deep Cycle 12v 200ah 250ah Agm Gel Lead Acid Battery solar storage power battery for house
- Category: >>>
- Supplier: Shenzhen Anern Optoelectronics Co. Ltd.
Share on (1600730215795):
Product Overview
Description
Products Description
Deep Cycle 12v 200ah 250ah Agm Gel Lead Acid Battery solar storage power battery for house
Features:
1.Grid refining technology and the thicker
2.plates are used to extend the battery standby
3.life and reduce the plate grid corrosion speed
4.Using oxygen recombination technology：maintenance-free
5.Unique vent valve design: control water losing,prevent air and spark going inside
1.Grid refining technology and the thicker
2.plates are used to extend the battery standby
3.life and reduce the plate grid corrosion speed
4.Using oxygen recombination technology：maintenance-free
5.Unique vent valve design: control water losing,prevent air and spark going inside

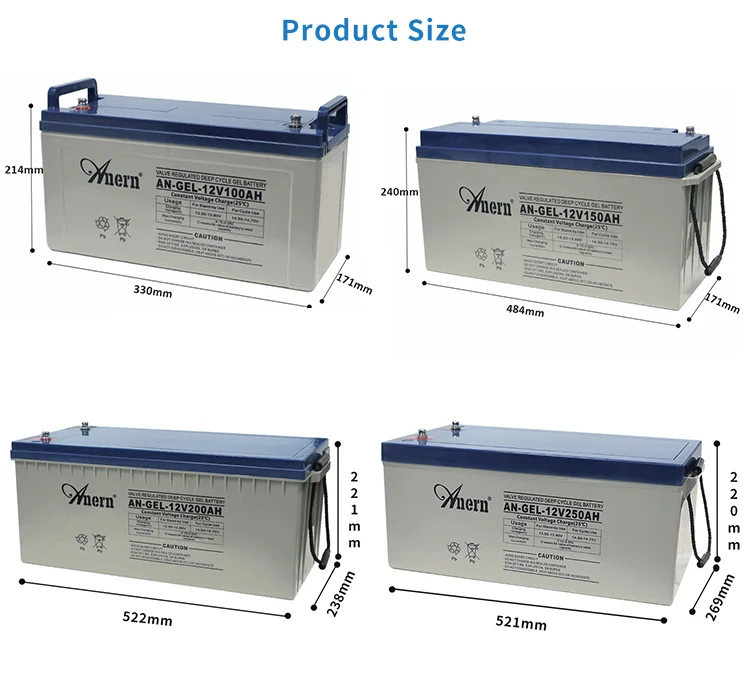

Specification
No. | Item No. | Capacity(AH) | Voltage(V) | Size(mm) | Weight(KG) ±4% |
1 | AN-GEL-100AH | 100 | 12 | 330*171*214 | 26.20kg |
7 | AN-GEL-150AH | 150 | 12 | 484*171*240 | 38.04kg |
10 | AN-GEL-200AH | 200 | 12 | 522*238*221 | 57.30kg |
11 | AN-GEL-250AH | 250 | 12 | 521*269*220 | 65.60kg |

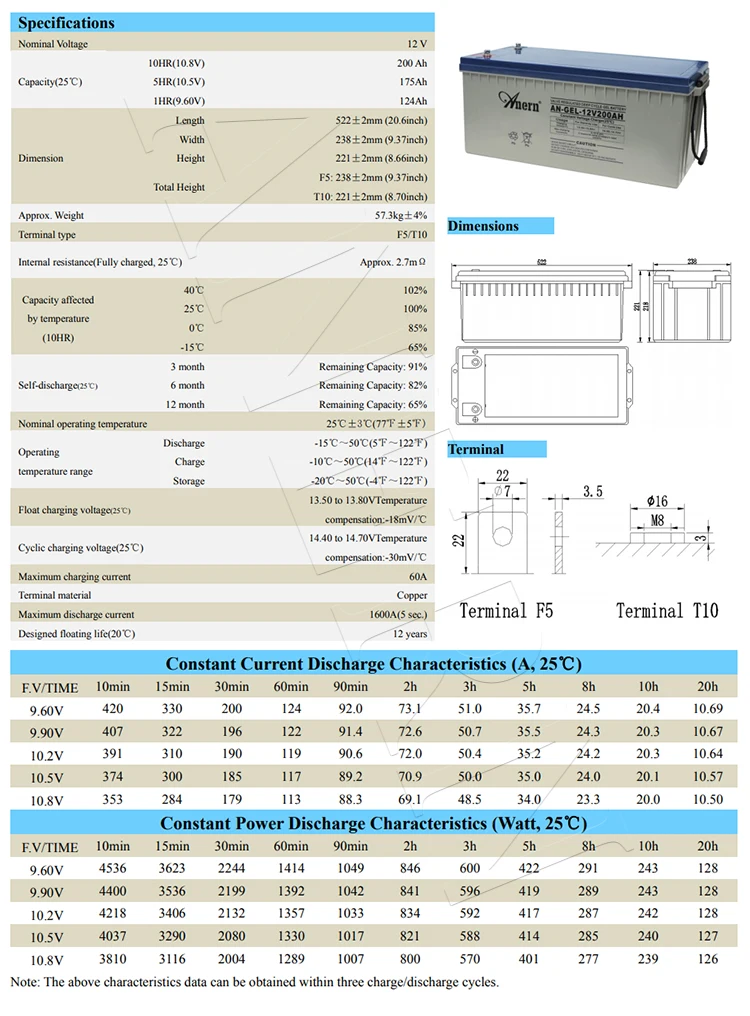

Item No. | AN-GEL-200AH | ||
Nominal Voltage | 12 V | ||
Capacity(25℃) | 10HR(10.8V) | 200 Ah | |
5HR(10.5V) | 175Ah | ||
1HR(9.60V) | 124Ah | ||
Dimension | Length | 522±2mm (20.6inch) | |
Width | 238±2mm (9.37inch) | ||
Height | 221±2mm (8.66inch) | ||
Total Height | F5: 238±2mm (9.37inch) | ||
T10: 221±2mm (8.70inch) | |||
Approx. Weight | 57.3kg±4% | ||
Terminal type | F5/T10 | ||
Internal resistance(Fully charged, 25℃) | Approx. 2.7mΩ | ||
Capacity affected by temperature (10HR) | 40℃ | 102% | |
25℃ | 100% | ||
0℃ | 85% | ||
-15℃ | 65% | ||
Self-discharge(25℃) | 3 month | Remaining Capacity: 91% | |
6 month | Remaining Capacity: 82% | ||
12 month | Remaining Capacity: 65% | ||
Nominal operating temperature | 25℃±3℃(77℉±5℉) | ||
Operating temperature range | Discharge | -15℃～50℃(5℉～122℉) | |
Charge | -10℃～50℃(14℉～122℉) | ||
Storage | -20℃～50℃(-4℉～122℉) | ||
Float charging voltage(25℃) | 13.50 to 13.80VTemperature | ||
compensation:-18mV/℃ | |||
Cyclic charging voltage(25℃) | 14.40 to 14.70VTemperature | ||
compensation:-30mV/℃ | |||
Maximum charging current | 60A | ||
Terminal material | Copper | ||
Maximum discharge current | 1600A(5 sec.) | ||
Designed floating life(20℃) | 12 years | ||
Product Details

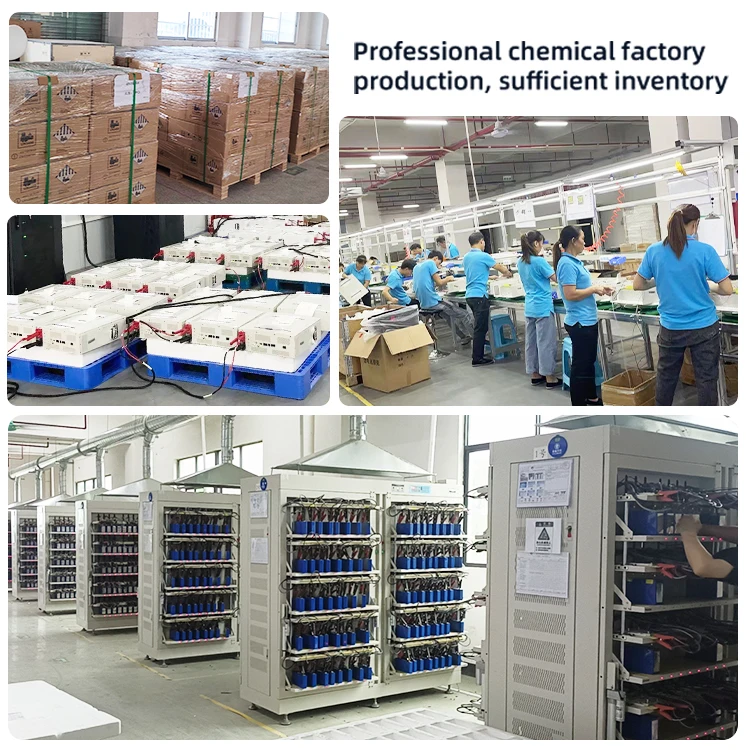

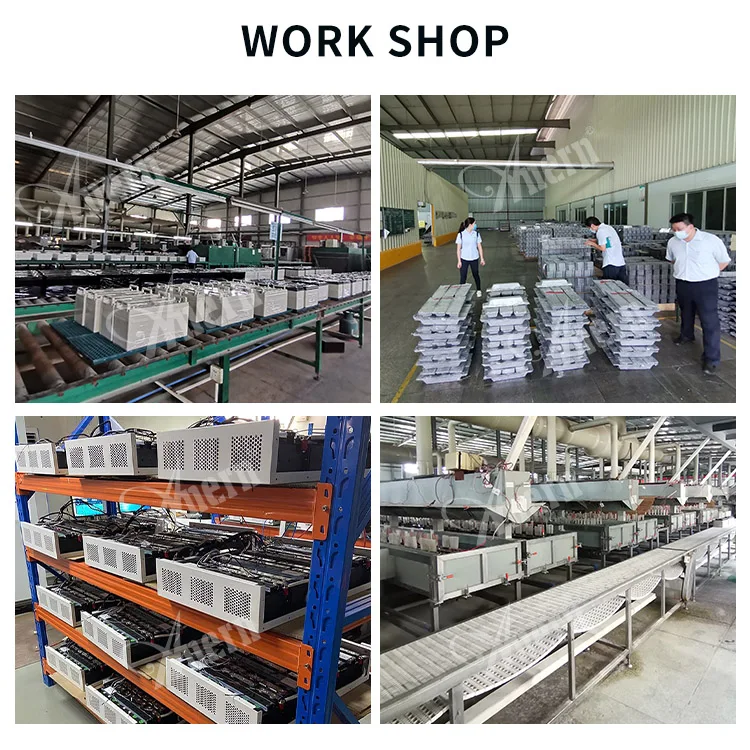

Anern Factory
We can offer OEM services as your specific requirements,provide a cost effective, energy efficient, and long term outdoor solar solution.

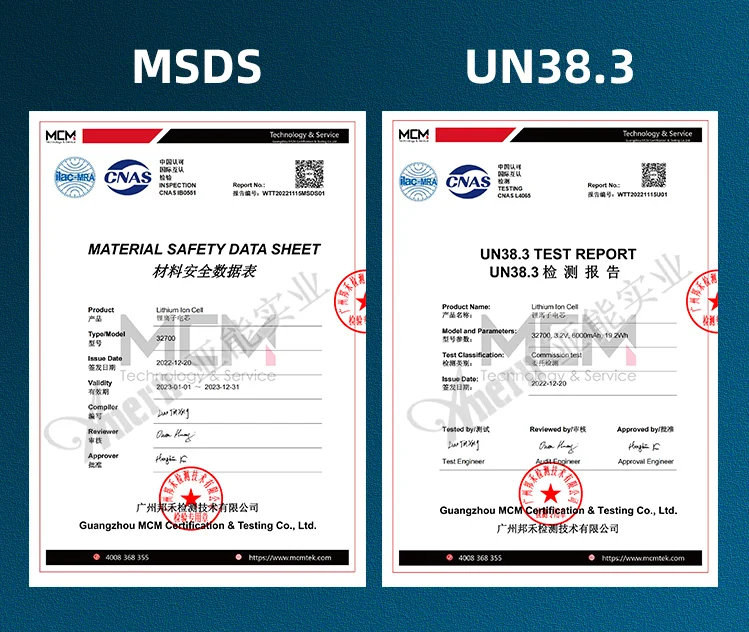

Certifications
Application
Exhibition
Company Information
Anern is headquartered in Guangzhou, which is one of most important Chinese Central Cities, with occupying area of 5,000 sqm, among which a modern showroom with area of 7,000 sqm. Each year there are over 1,000 personnel from various countries clients and governemnt institutions come to visit us.
