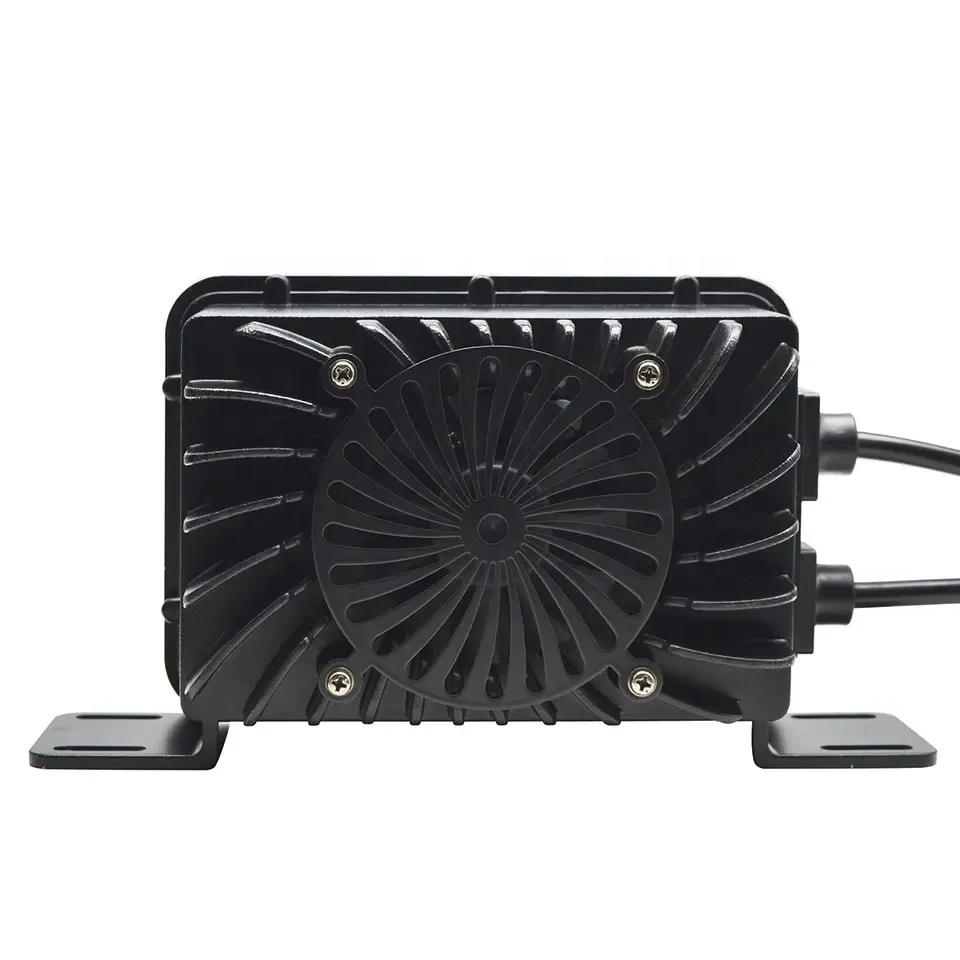

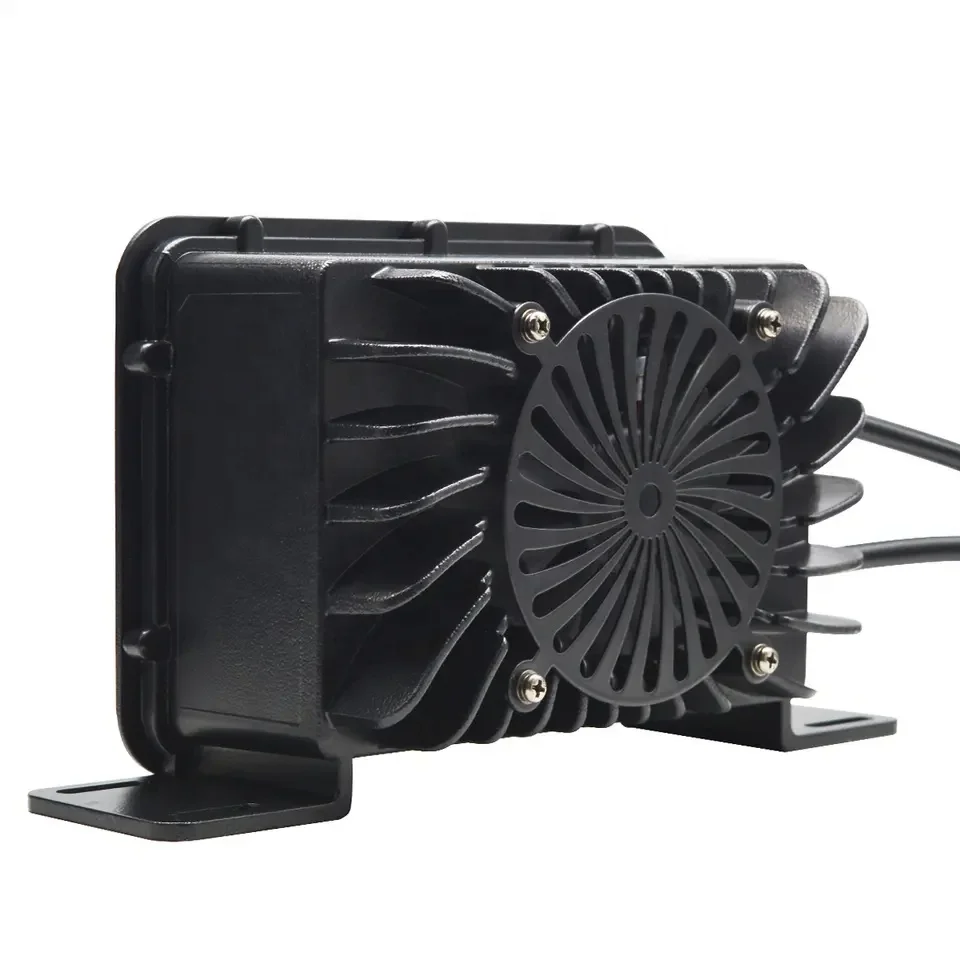

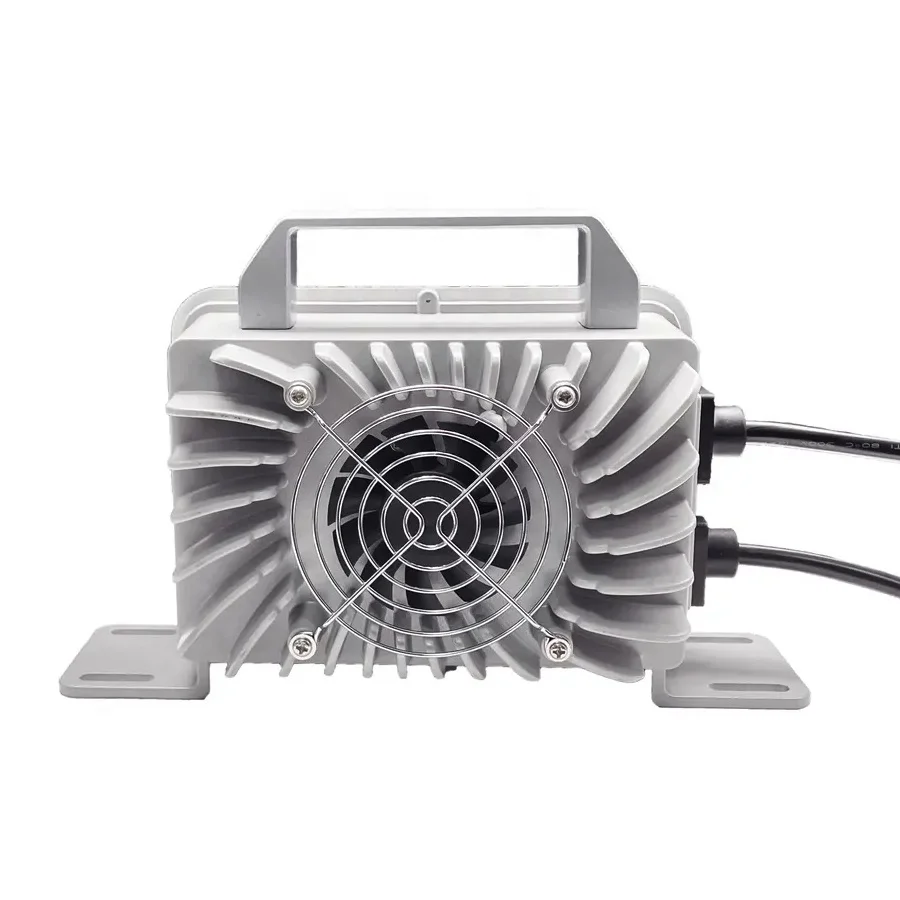

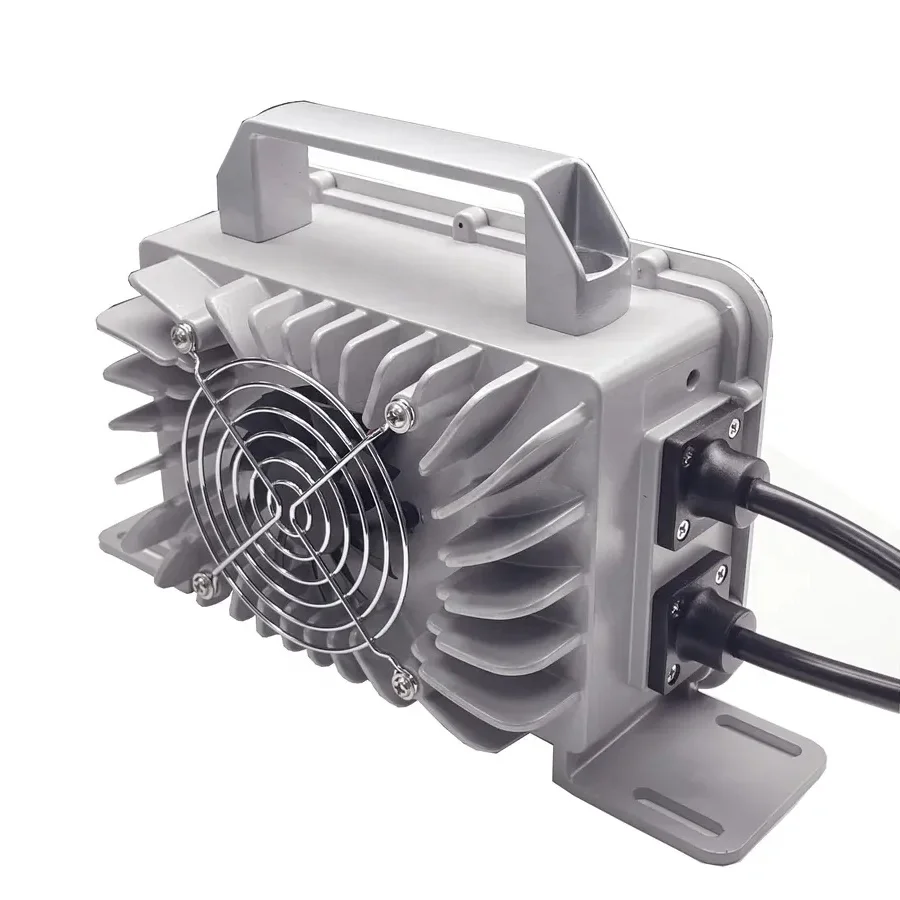

IP65 EU/AU/UK/US Plug 12V 50A 24V 36V 48V 60V 72V Lithium ion Battery Charger
- Category: >>>
- Supplier: Kowint Energy (shenzhen) Co. Ltd.
Share on (1600730258946):
Product Overview
Description
Product Features
1）600W
2）Circuit topology:APFC+LLC resonant half bridge topology, full load PF value 0.99+, efficiency 92+%

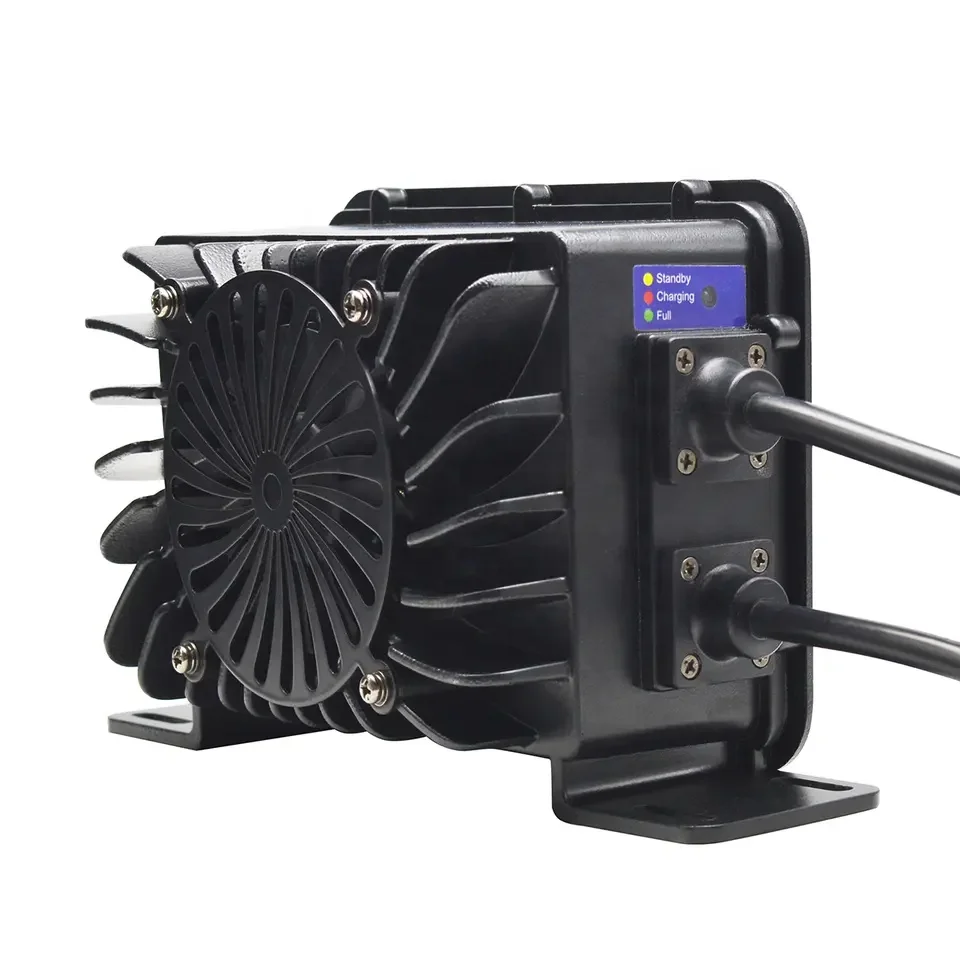

3）Dual-color LED charging status and Digital display screen
4）Waterproof rating: IP66
5）MCU controls the output voltage and current to rise slowly, without impact on the battery
6）Protections: Over Current, Over Voltage, Over temperature, Short Circuit, Reverse Polarity, shut off or trickle and anti-reverse charge
7）Aluminum case, Robust, Elegant and Reliable
1）600W
2）Circuit topology:APFC+LLC resonant half bridge topology, full load PF value 0.99+, efficiency 92+%
3）Dual-color LED charging status and Digital display screen
4）Waterproof rating: IP66
5）MCU controls the output voltage and current to rise slowly, without impact on the battery
6）Protections: Over Current, Over Voltage, Over temperature, Short Circuit, Reverse Polarity, shut off or trickle and anti-reverse charge
7）Aluminum case, Robust, Elegant and Reliable
Output Reference
Type | Specification | DC Voltage(Max) | (CC:A) Charging current | Light Turning(A) | ||||||
Cell Brand | REPT | Li-ion | Lifepo4 | Lead acid | Lithium | Lead acid | ||||
UY600S | 12V 30A | 12.6V/16.8V | 14.4/14.6V | 14.7V | 20A | 8%CC | 25%CC | |||
24V 20A | 25.2V/29.4V | 29.2V | 29.4V | 12A | ||||||
36V 15A | 42V | 43.8V | 44.1V | 8A | ||||||
48V 10A | 50.4V/54.6V/58.8V | 58.4V | 58.8V | 6A | ||||||
60V 8A | 63V/67.2V/71.4V | 69.35/73V | 73.5V | 5A | ||||||
72V 6A | 84V/88.2V | 87.6V | 88.2V | 4A | ||||||
Brand Name | YEWY | Model Number | UY600S | ||
Input Voltage | 100-240Vac | Frequency | 50~60HZ | ||
Input fuse | 10A | Dimension | 262(L) X 136(W) X 86(H) mm | ||
Efficiency | >=92% | Weight | 2.2kg | ||
Operating humidity | 5%-95%RH Non-condensing | Leakage Current | <=0.75mA | ||
Operating Temperature | -20℃—+40℃ | Storage Temperature | -40℃-+70℃ | ||
Safety certifications | CE, RoHS Directive-compliant | ||||
Suitable battery Type | Lead Acid/LiFePo4/Li-ion | ||||
Charging Time | Cut-off point for Li battery is 8% of CC and it can be set between 3-10%.(charging time:3-4 hours) | ||||
Transition for Lead acid charger is 25% of CC.(charging time:6-8 hours) | |||||
Protection | Over Current, Over Voltage, Over temperature, Short Circuit, Reverse Polarity, shut off or trickle and anti-reverse charge | ||||
Advantage | MCU and intelligent PWM IC control ,full automatic transition of CC,CV and Float/Cut-off, meet the demands for different Curve. | ||||
Advantage | Aluminum case, Robust, Elegant and Reliable | ||||
Package Contents | 1*battery charger 1*Input Wire 1*User Manual This battery charger is your affordable necessity without sacrificing performance. It features an integrated MCU and PWM for power control. | ||||
