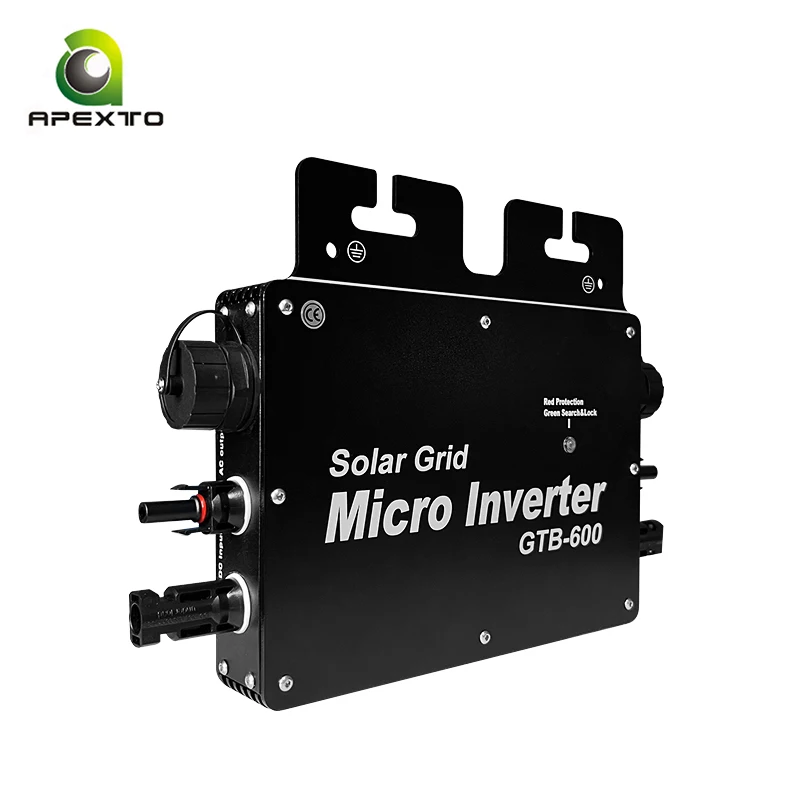

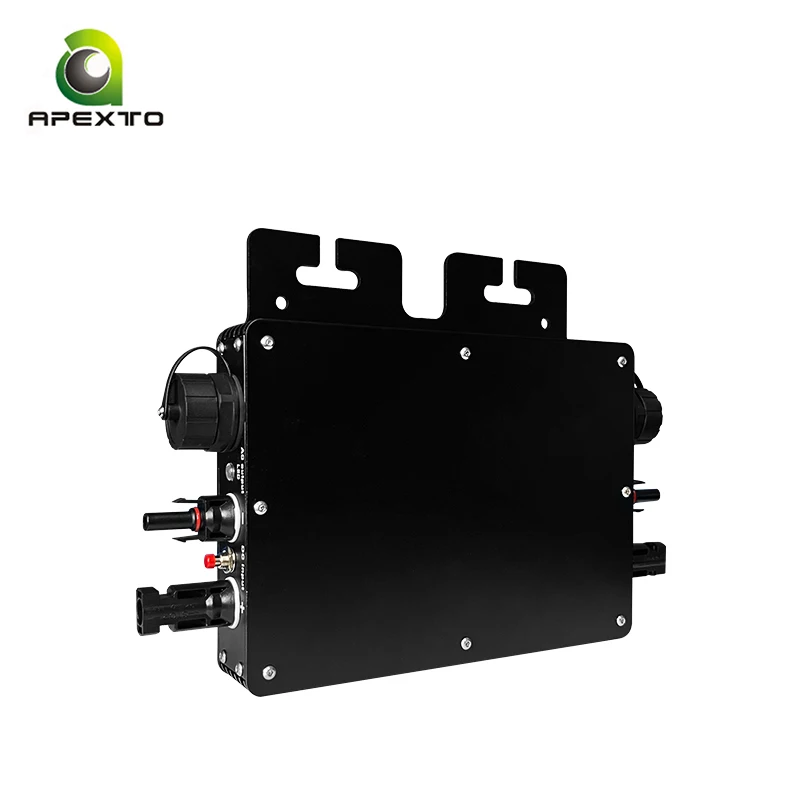

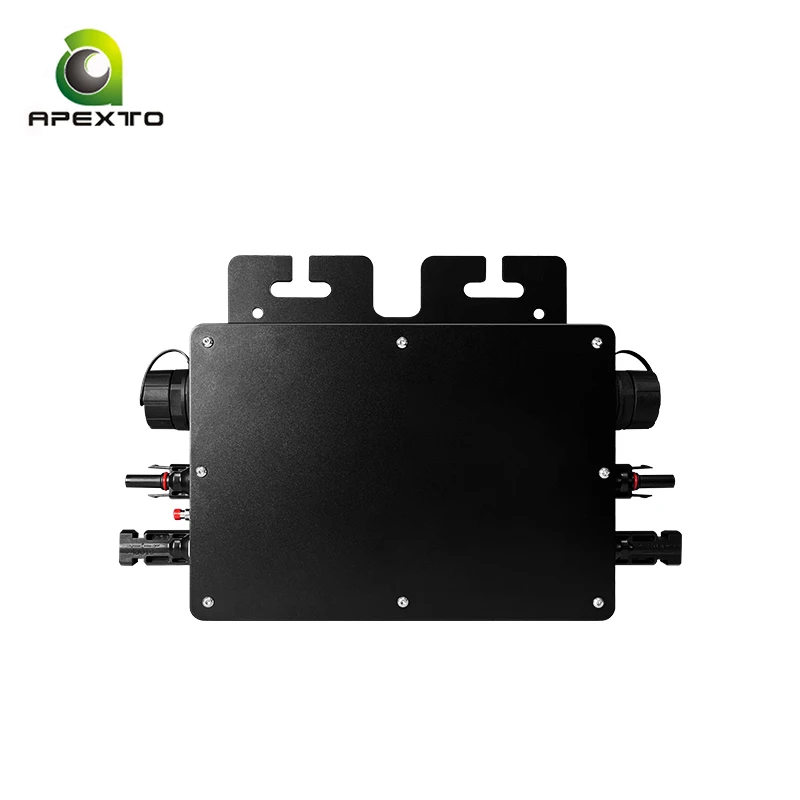

600 1000W Micro Inverter dual voltage converter 110v 220v 600w Micro Inverter pure sine wave
- Category: >>>
- Supplier: Shenzhen Apexto Electronic Co. Ltd.
Share on (1600730346771):
Product Overview
Description

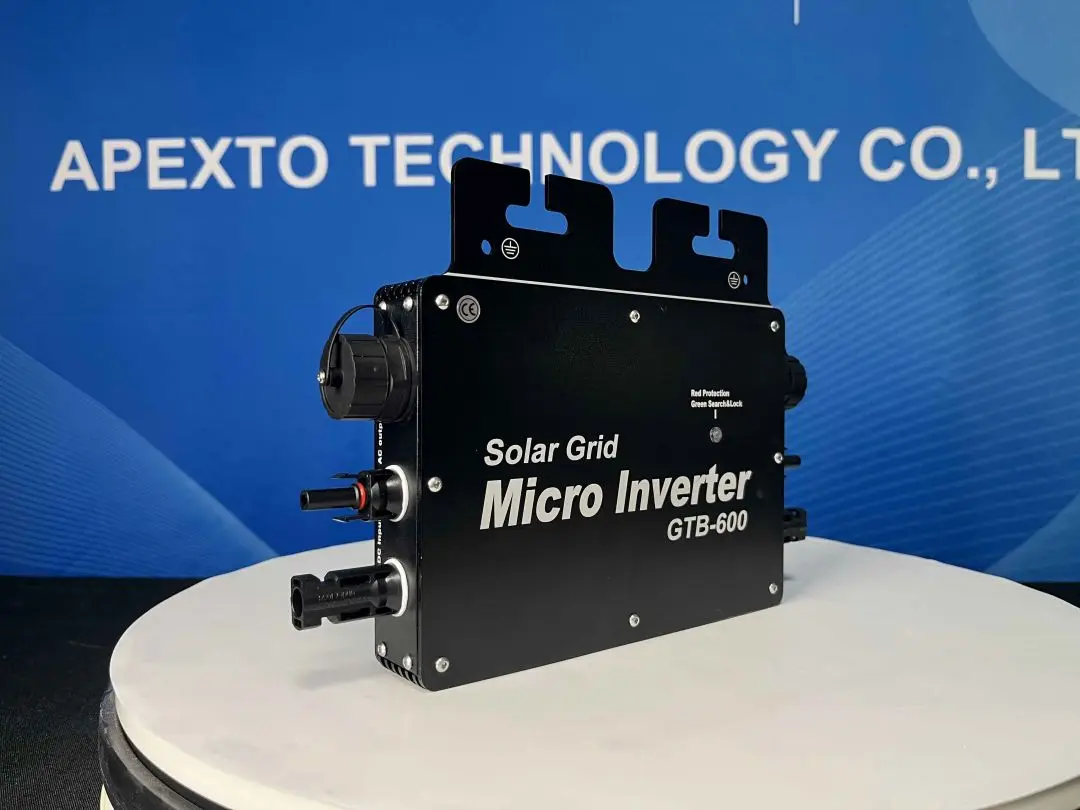

Micro inverter（GTB-600, GTB-700, GTB-800）specifiction
Thank you for using GTB series micro inverter! GTB series micro inverter has high efficiency MPPTengine,intelligent wifi
module,multiple security protection, simple installation, reliable performance, equipped with a new generation of smart home (smart life app) wifi monitoring system to usetogether, to achieve the Internet of things intelligent online monitoring and control!
module,multiple security protection, simple installation, reliable performance, equipped with a new generation of smart home (smart life app) wifi monitoring system to usetogether, to achieve the Internet of things intelligent online monitoring and control!
Specifications | ||||||
Model | GTB-600 | GTB-700 | GTB-800 | |||
Recommended solarpanelinputpower（W） | 200-300W*2 | 250-350W*2 | 275-400W*2 | |||

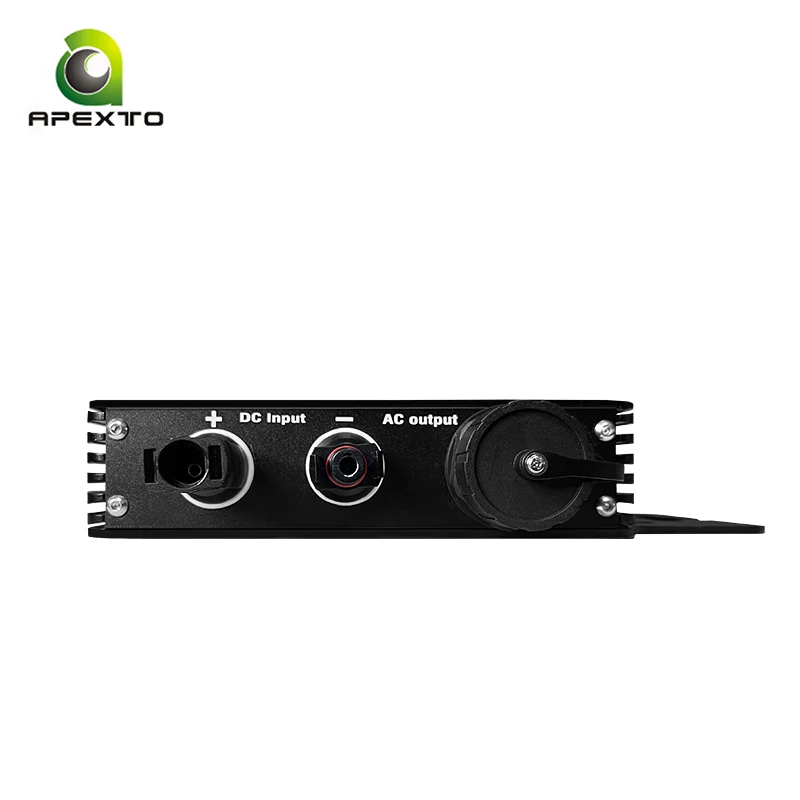

Number of DC input connections(group)/DC | MC4*2 | |||||
Maximum DC input voltage | 52V | |||||
Operating voltage range | 20-50V | |||||
Start-up voltage | 18V | |||||
MPPT tracking range/MPPT | 22-50V | |||||
MPPT tracking accuracy /MPPT | >99.5% | |||||
Maximum DC input current | 12A*2 | |||||
Rated power output | 550W | 650W | 750W | |||
Maximum output power | 600W | 700W | 800W | |||
Rated output voltage | 120V | 230V | ||||
Output voltage range | 90-160V | 190-270V | ||||
Rated AC current (at 120V) | 5A | 5.83A | 6.6A | |||
Rated AC current(at 230V) | 2.6A | 3A | 3.47A | |||
Rated output frequency | 50Hz | 60Hz | ||||
Output frequency range | 47.5-50.5Hz | 58.9-61.9Hz | ||||
THD | <5% | |||||
Power factor | >0.99 | |||||
Maximum number of branch circuit connections | @120VAC: 5set*1 /@230VAC: 10set*1 | |||||
Maximum conversion efficiency | 95% | 94.5% | 94% | |||
CEC efficiency/ CEC | 92% | |||||
Night losses | <80mW | |||||
Over/under voltage protection | yes | |||||
Over/under frequency protection | yes | |||||
Anti-islanding protection | yes | |||||
Over current protection | yes | |||||
Over load protection | yes | |||||
Over temperature protection | yes | |||||
Protection class | IP65 | |||||
Working environment temperature | -40℃ — +65℃ | |||||
Weight | 2.5kg | |||||
Indication light quantity | Working status/ LED light*1 + Wifi Signal led light*1 | |||||
Communication connection mode | Wifi/2.4G | |||||
Cooling method | Natural cooling(no fan) | |||||
Working environment | Indoor and outdoor | |||||
Certification standards | EN61000-3-2, EN61000-3-3, EN62109-2. EN55032, EN55035, EN50438 | |||||
Operation guidance
1.Do not open the micro inverter when working and cut the DC / AC cable to avoid the risk of electric shock!
2.Micro
inverterisagrid-connected power generation equipment, it must be connected to the gridandthearid can workproperlyto generate electricity, when the grid power outage, the device will also stop generating electricity.
inverterisagrid-connected power generation equipment, it must be connected to the gridandthearid can workproperlyto generate electricity, when the grid power outage, the device will also stop generating electricity.
3.When the micro inverter fails, please first disconnect the AC voltage, and then remove the faulty inverter and reconnected

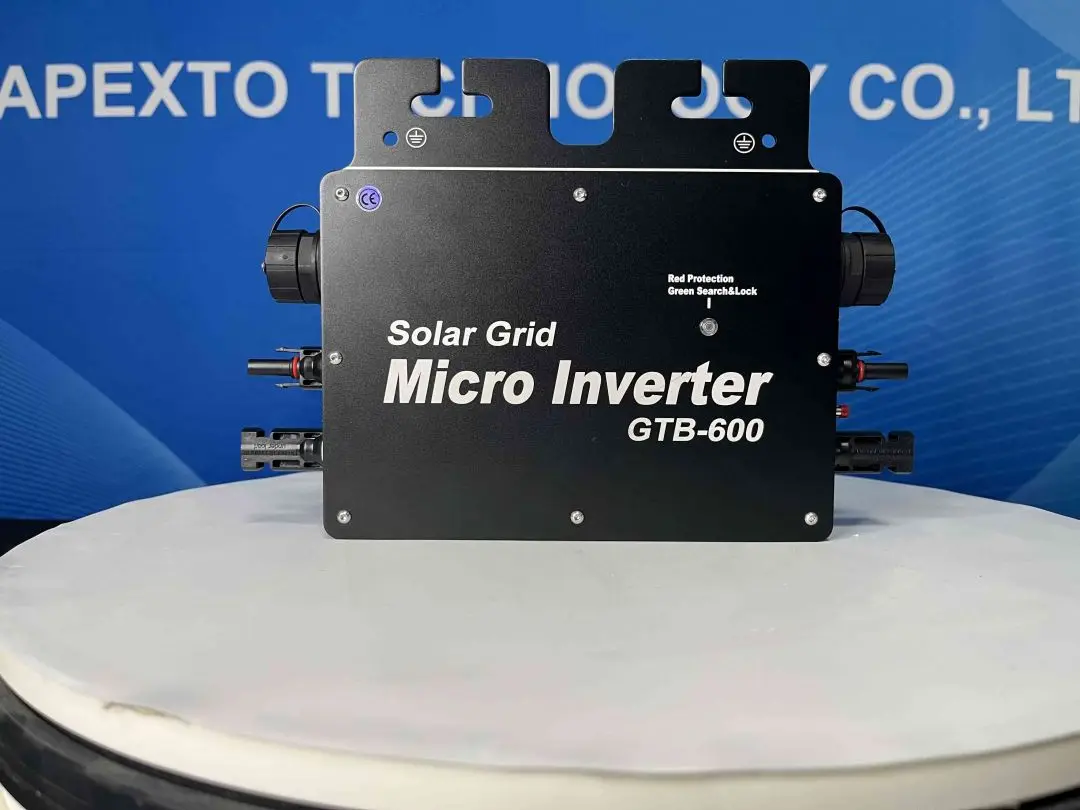

4.Micro inverter to adapt to the operating temperature is (-40°C to + 65°C), please do not touch the inverter shell directly with your hands to avoid burns. When the temperature of the inverter exceeds a certain value, the inverter will turn on the over-temperature protection functionand whe thetemperature of the inverter drops, the inverter will be restarted. 5.The micro inverter has2indicatorlights, the main LED is located on the front side of the housingand will provideinformation about the inverter operating status, the secondary LED is located onthesideoftheDCconnector and will provide information about the status of the WiFi signal.
Case installation
We know about all the issues that come with conventional energy sources…Our solar experts will be guiding you on how to get the most out of your solar power system!
Established in 2007, Shenzhen Apexto Technology Co.,Ltd is one of Alibaba Top 5 suppliers a full service manufacturing and trading company that always goals to keep customers on top of market trends with partnering together to build a successful program.
Company Advantages:
1)- 11+ years golden supplier on Alibaba, payment are 100% safe and secured by Alibaba.
2)- We have exported to more than 70 countries in the world, and more than 1,000,000 product shipping abroad. We also have 1,000 square meters warehouse in Shenzhen city for test product and stocks.
3)- The quality of products can be guaranteed! Each product will be tested before shipping out. Quick after sale
customer service and professional technical support.
4)- Our product are recognized by global customers from USA, UK, Canada, Australia, Japan, Russia, and other countries.
Q1: How can I get your latest product and price list? |
A1: Please provide your contact information to us. We will contact you and send our quotation to you ASAP. |
Q2: Need sample? |
A2: We always welcome sample order for quality check. In sotck ready to ship! |
Q3: Have customization requirements? |
A3: We have our own engineers ,designers and molding injection workshop. So from logo and package design or whole new project customization, we can all meets your demands. |
Q4: How about the payment? |
A4: We mainly support T/T bank transfer, MoneyGram, Credit Card, Western Union, Cash. |
Q5: What is your shipping methods? |
A5: We use UPS, DHL, FedEx, EMS, TNT or the shipping agent as your request. |
