Submersible Pump Motor 10 INCH 175HP (129KW) (Cast Iron, Stainless Steel, Bronze, E Series Plus)
- Category: >>>
- Supplier: INNTURK DIJITAL PAZARLAMA ITHALAT IHRACAT SANAYI VE TICARET LIMITED SIRKETI
Share on (1600730569765):
Product Overview
Description
Product Description
Specification
item | value |
Warranty | 1 year |
Customized support | OEM, ODM |
Brand Name | INNTURK |
Model Number | INNSM10-175-MX |
Place of Origin | Turkey |
Sanliurfa | |
Application | Irrigation and Agriculture, Mining industry, Raw Water Intake, Water Distribution |
Horsepower | 175 HP |
Power Source | Electric |
Pressure | Other |
Structure | Multistage Pump |
Voltage | 380-415 |
Power | 129 kW |
motor | F |
Model-1 | Cast Iron |
Model-2 | Stainless Steel |
Model-3 | Bronze |
Model-4 | E-Series Plus |
Product Description

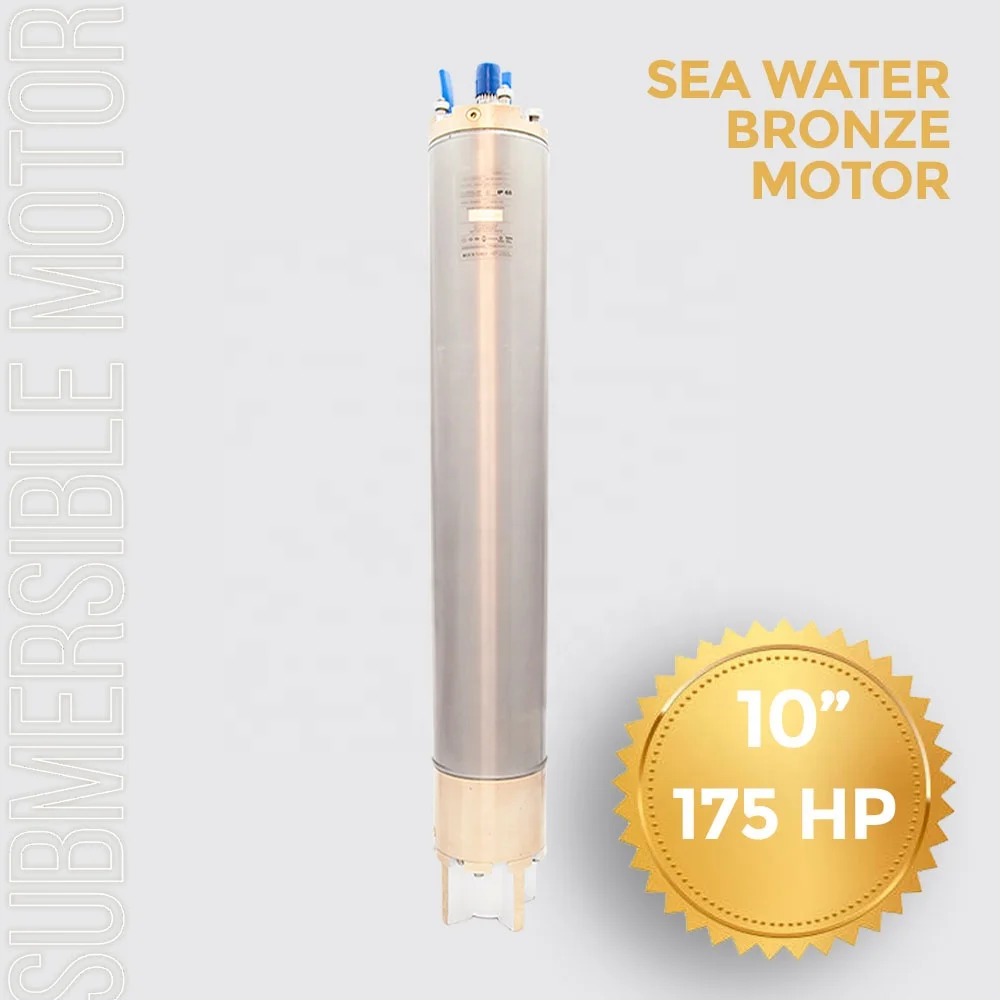

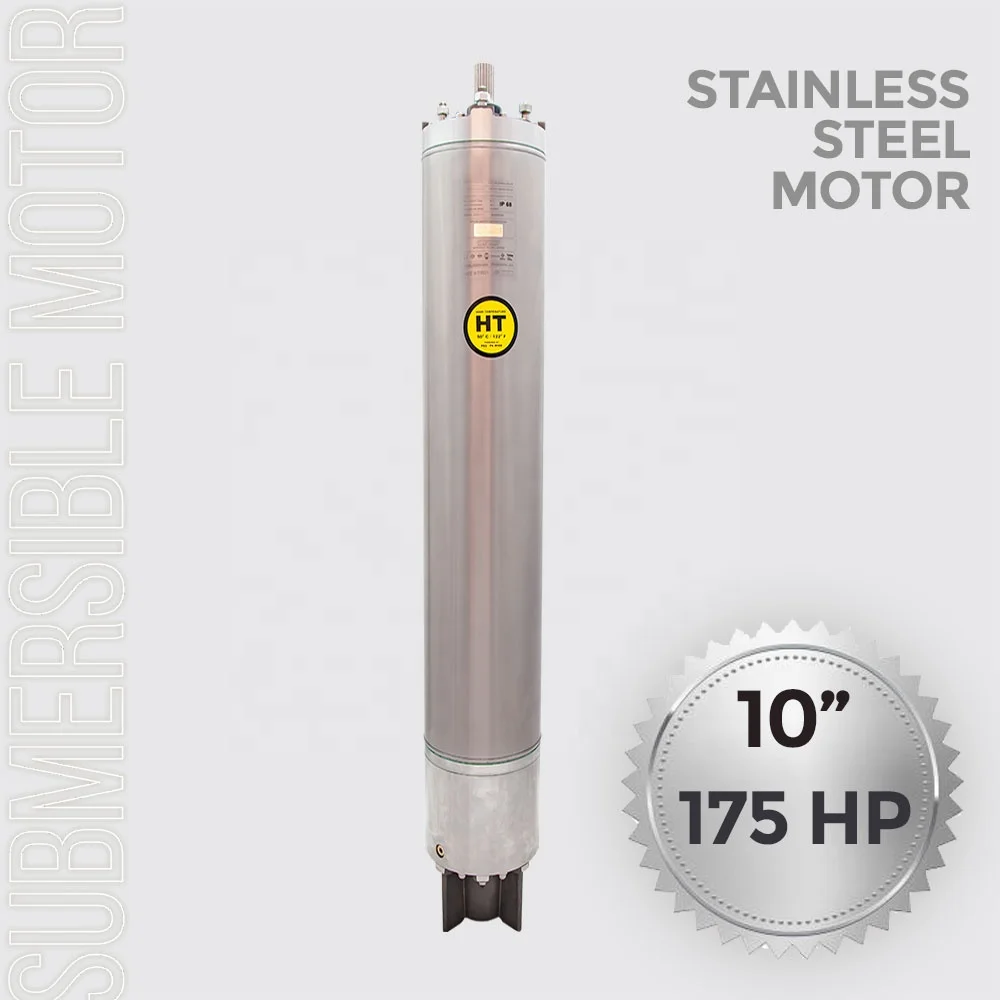

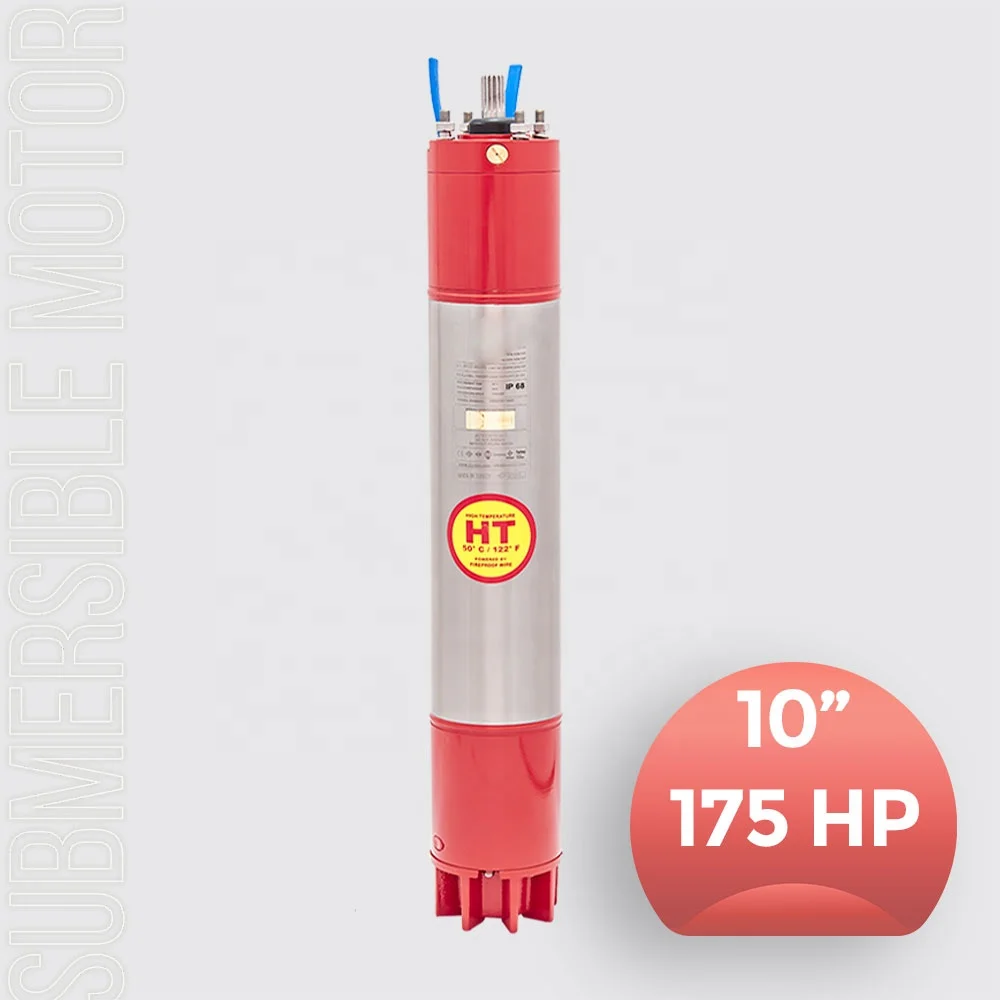

Submersible Pump Motor 10 inch 175HP (129KW)
Technicial Specifications
● Class: F
● Frequency: 50 Hz.

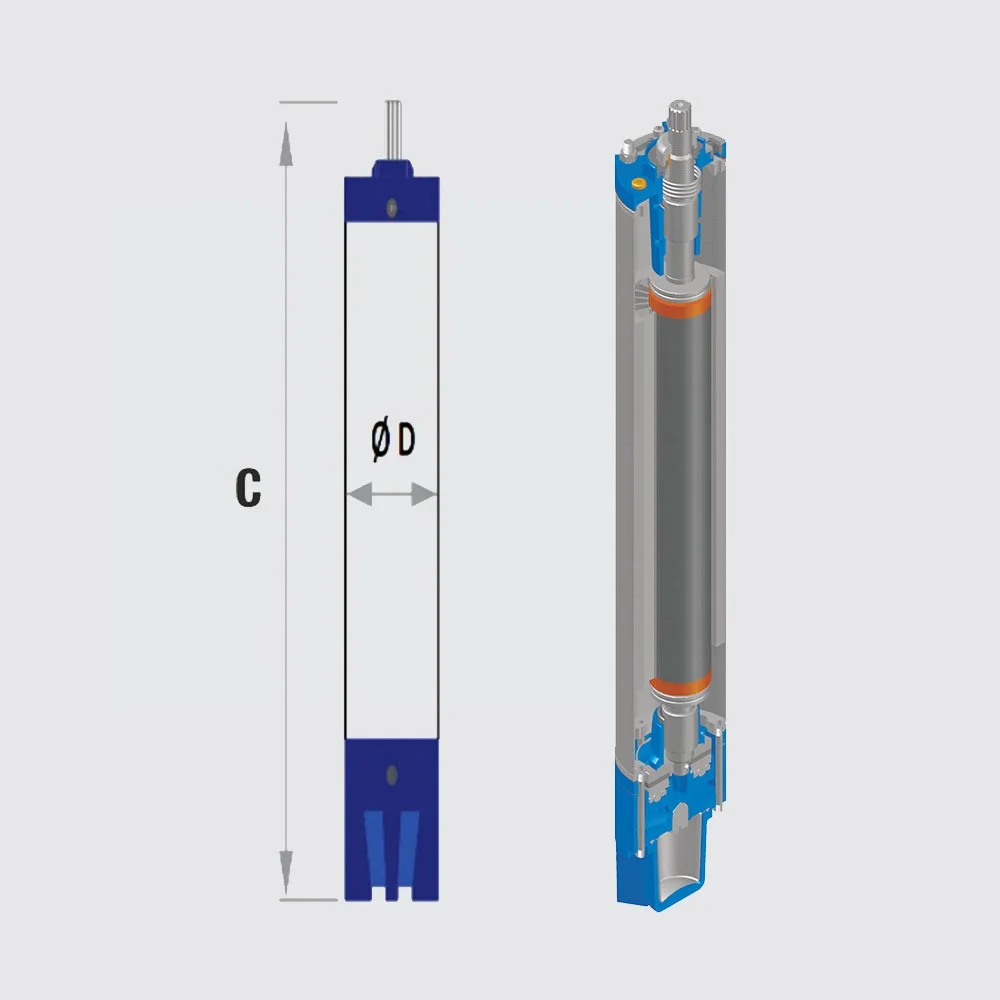

● Outer Diameter: 229 mm
● Motor Power Range: 100 HP - 350 HP
● Axial load carrying capacity: 75 kN
● Based on 10" NEMA standards
● Starting : S/M
● Supply voltage : ~3, 380/415 V (-6%+10%)
● Motor protection: IP 68 (Mechanical Seal)
● Immersion Depth: Standard Upper Limit
● Working ambient temperature : Max. 30º C
● The coolant velocity passing around the engine is minimum 16 cm/sec.
Usage Areas
City Networks
Drinking Water Wells
Agricultural watering
Geothermal Wells
Seawater Transport
FEATURES
Provides cooling and lubrication with direct water without a cooling unit
Motor mounting flange and shaft end conform to NEMA standard
The motor body tube is AISI 304 motor shaft 420 stainless steel.
The motors are standard steel sealed.
Submersible Pump Motor 10 inch 175HP (129KW)
Technicial Specifications
● Class: F
● Frequency: 50 Hz.
● Outer Diameter: 229 mm
● Motor Power Range: 100 HP - 350 HP
● Axial load carrying capacity: 75 kN
● Based on 10" NEMA standards
● Starting : S/M
● Supply voltage : ~3, 380/415 V (-6%+10%)
● Motor protection: IP 68 (Mechanical Seal)
● Immersion Depth: Standard Upper Limit
● Working ambient temperature : Max. 30º C
● The coolant velocity passing around the engine is minimum 16 cm/sec.
Usage Areas
City Networks
Drinking Water Wells
Agricultural watering
Geothermal Wells
Seawater Transport
FEATURES
Provides cooling and lubrication with direct water without a cooling unit
Motor mounting flange and shaft end conform to NEMA standard
The motor body tube is AISI 304 motor shaft 420 stainless steel.
The motors are standard steel sealed.
Packing & Delivery
Our products are packaged in accordance with international standards.
Company Profile
FAQ
1. Who are we?
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3. Why should you buy from us not from other suppliers?
- We are in Turkey which is at the center of all commercial networks.
- We are only a few hours away from the commercial port and this saves your logistics costs.
- We are with more than 450 manufacturers and this gives you the opportunity to supply a wide range of products.
- We offer the possibility of production with your own brand.
- Due to the government incentives provided to our region, the production costs are low and this allows you to buy high quality products at affordable prices.
Located in Turkey, INNTURK Global Trading is an autonomous trading company with internet distributorship in an organized industrial zone where there are more than 450 manufacturers. You can supply high quality wholesale products at affordible prices fast and safely from Turkey which is at the center of all commercial networks.
2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3. Why should you buy from us not from other suppliers?
- We are in Turkey which is at the center of all commercial networks.
- We are only a few hours away from the commercial port and this saves your logistics costs.
- We are with more than 450 manufacturers and this gives you the opportunity to supply a wide range of products.
- We offer the possibility of production with your own brand.
- Due to the government incentives provided to our region, the production costs are low and this allows you to buy high quality products at affordable prices.
