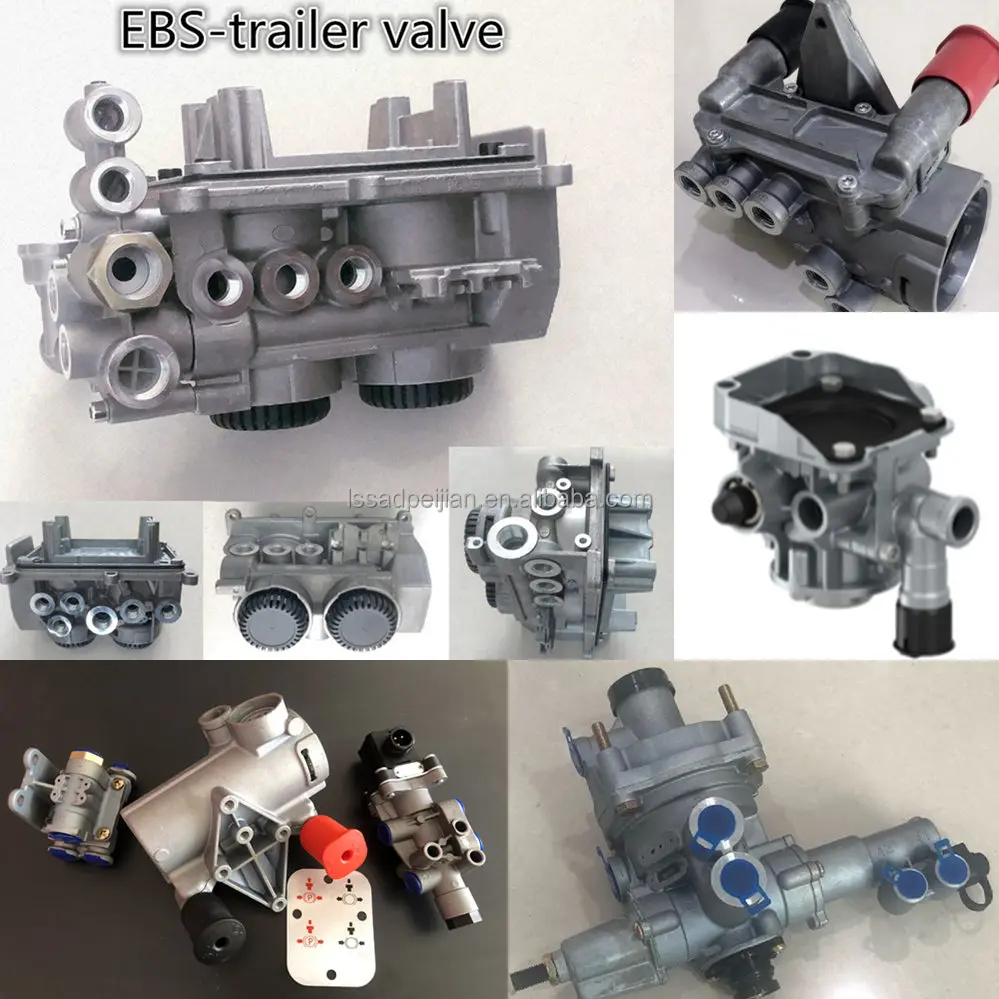

trailer ABS EBS Brake Valve anti lock braking system for wabco manufacturer 2s/1m,4s/2m,2s/2m 4005000810 4801020640
- Category: >>>
- Supplier: Shandong Shun Anda Automobile Technology Co. Ltd.
Share on (1600730698510):
Product Overview
Description

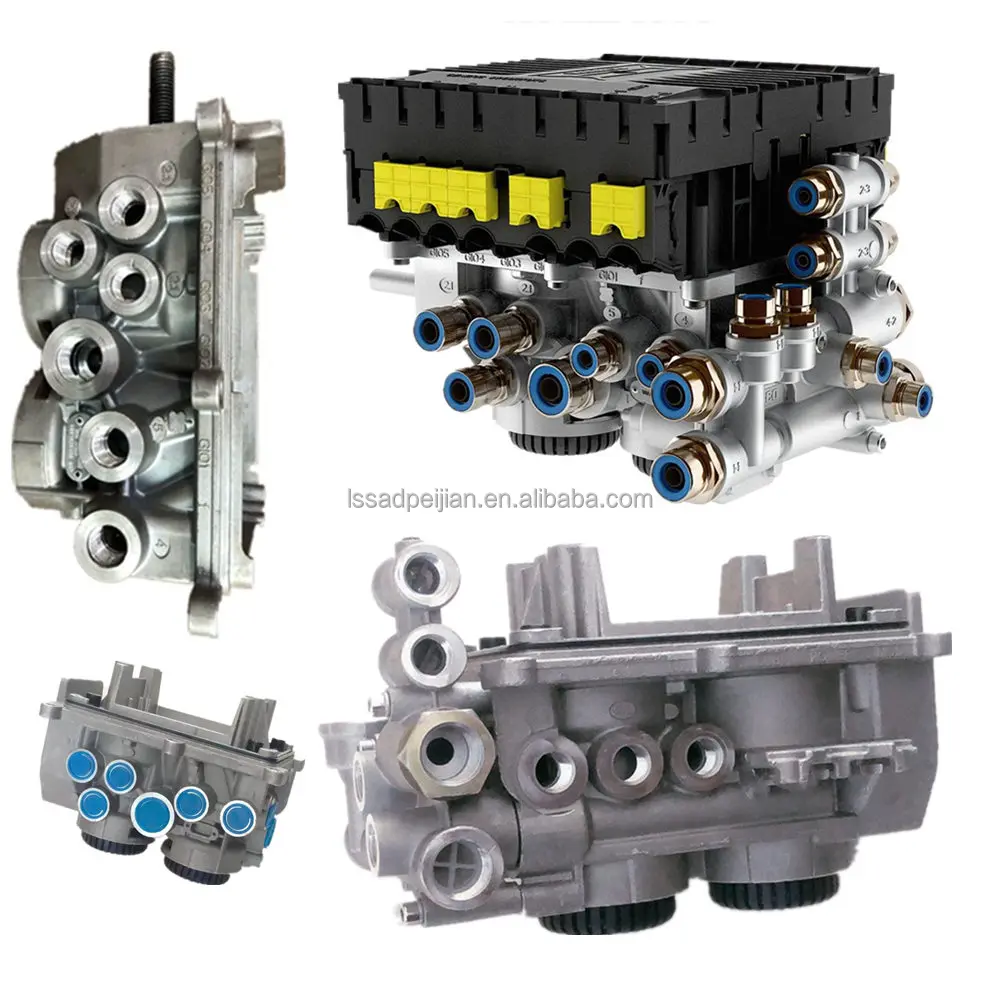

trailer ABS Brake Valve for wabco manufacuturer,wabco abs,2s/1m,4s/3m,2s/2m for anti lock braking system
ABS Brake System
ABS BRAKE SYSTEM FOR TRAILER AND TRUCKS
6S/4M,6S/3M,4S/4M,4S/3M,4S/2M,2S/2M,2S/1M
WABCO 400 500 101 0/400 500 102 0/400 500 103 0/400 500 104 0/400 500 106 0/400 500 081 0/400 500 082 0/400 500 070 0/4461080850
TEBS E+ AIR

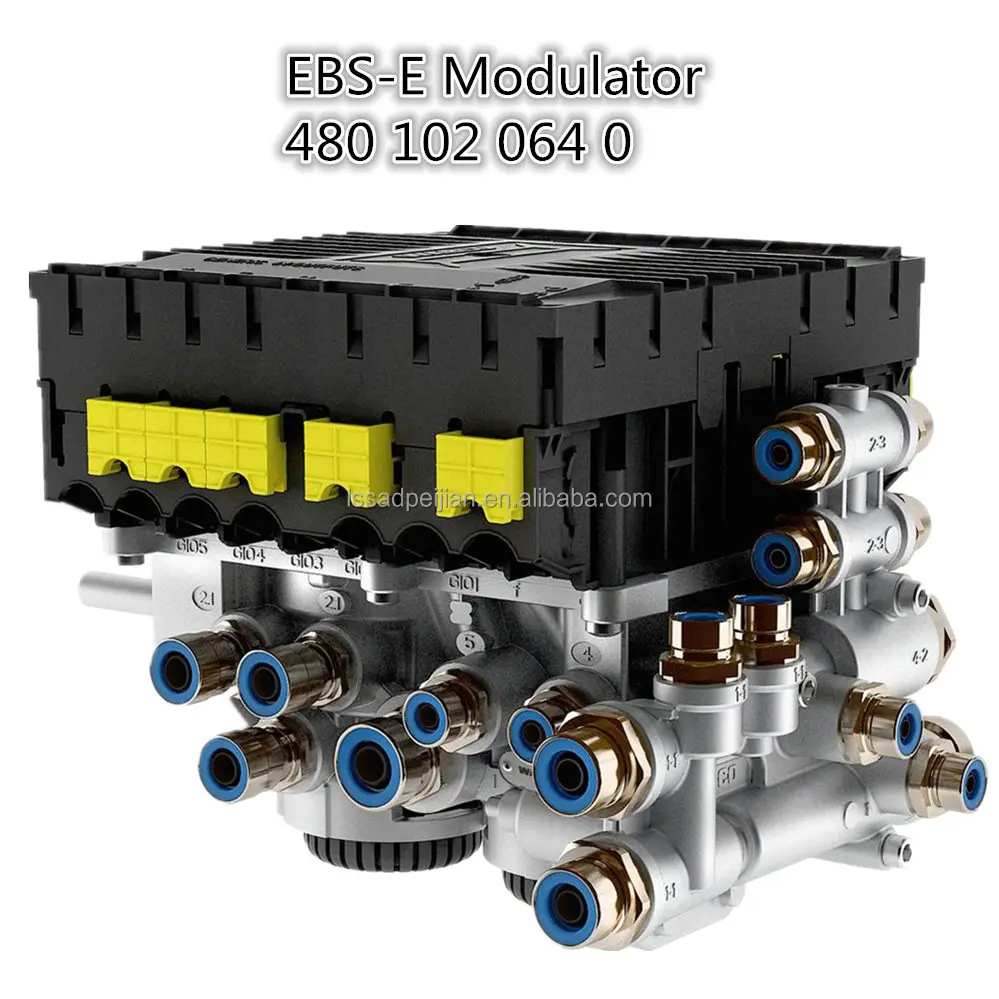

OEM 4801020640 4801020330 4801020630
9522010010
9522010020
9630010510
9710023000
9343000010
4006509500
4640060020
4334010030
OEM List
OEM List
ABS : 400 500 081 0/ 400 500 070 0/ 446 004 606 0/
Modulator: 472 195 018 0/ 472 070 628 0/ 472 250 000 0
Relay Valve: 971 002 150 0/ 973 011 000 0/ 473 017 007 0/ 971 002 152/ 102626 (R-12)/ 104574/ KN28500/ KN28520/ 281865/ 065145/065146/ KN 28601/ 11675/ 973 001 020 0/ 973 011 000 0/ 973 011 201 0/ 473 017 008 0/ 971 002 000 0/ 973 002 402 0/ 973 009 010 0/3522015-52A
Foot Valve: 461 315 042 0/ 4613152630/ 461 315 264 0/ 461 319 271 0/ 286171/ MC838211/ 229501/ 461 315 180 0/ 461 315 180 0/ 593 008 340 1
Hand Valve: DPM22A/ 961 722 151 0/ 961 722 314 0/ 961 722 262 0/ 976 722 252 0/ HB1154-176112/ 961 723 038 0
Unloader Valve: 975 303 085 0/ 975 300 014 0/ A4740/ 41210029 (24V)/ 1054
Multi Circuit Protection Valve: 972 702 250 0/ 934 702 240 0/ 934 714 123 0/ 934 714 740 0/ AE4613-1138802/ AE4604-1136012/ 934 700 040 0/ 934 705 002 0/ AE 4158/ AE 4404/ AE 4440/ 934 714 010 0/ 934 702 300 0
Air Dryer: 4324101020/ LA6100/ 9325000040/ 3543ZD2A-001/ 4324100880/ LA8016/ 4324100202/ 43249012452/LA6221/AD-9/4324251050/LA8229/ZB4587/ZB4512/9325990350/9325001100/3543010-K0200/ZB4424
Clutch Servo/Brake Booster: 970 051 124 0/ 970 051 137 0/ 970 051 159 0/ 970 051 192 0/ 970 051 406 0/ 626639AM/ 622199AM/627612AM629300AM/ 628493AM/ 626392AM/
Mainly apply for: MERCEDES, MAN, VOLVO, DAF, RENAUT, MACK, BPW, YORK, ROR SAF, FREHAUF, BENDIX, MERITOR, SPICER, EATON, HENDRICKSON and so on.
Product Description
Technical Sheet
| 1. | Comments: additionally required 894 601 132 2 |
| 2. | Max. operating pressure: 13 bar |
| 3. | Port threads: M 22x1.5 |
| 4. | Voltage: 24 V |
| 5. | Duty cycle: 20% / 5min |
| 6. | Electrical connection: Bayonet (DIN)72585-A1-3.1-Sn/K1 |
| 7. | Rated current: 1.65 A |
Detail Technical Data
| NO. | specification | data | ||
| 1 | Mounting | |||
| 1.1 | recommended installation place | on the vehicle frame;fitting on the axle is allowed, if the specificated limits are not exceeded | ||
| 1.2 | position of device | exhaust downwards ± 30 ° | ||
| 2 | Pneumatic | |||
| 2.1 | medium | air | ||
| 2.2 | operating pressure | 0-11bar | ||
| 2.3 | max. admissible pressure | 13bar | ||
| 2.4 | nominal width | inlet Φ7 mm | ||
| outlet Φ12 mm | ||||
| 2.5 | admissible residual pressure after exhausting the brake chamber (p=0 bar at port 1,Vc=23°C) | Pres≤0.1bar | ||
| 2.6 | admissible leakages at p=10bar | |||
| leakage [cm3/min] | ||||
| function | Vc=23 to 80°C | Vc=-40°C | place of leakage | |
| pressure increase | 10 | 1500 | total device | |
| pressure increase | 20 | --- | total device under vibration load 15g/50Hz | |
| pressure holding | 100 | 100 | port1 to port2 | |
| pressure holding | 5000 | 5000 | port1 to port3 | |
| pressure decrease | 10000 | --- | port 1 to port 3 (p=0bar at port 2) | |
| 3 | Electric | |||
| 3.1 | nominal voltage | 24 V DC | ||
| 3.2 | opreating voltage V=-40 to 80 °C | 17.5-28 V | ||
| 3.3 | coil resistance Rv20 | 14-15.5Ω | ||
| 3.4 | insulation | insulation resistance between coil and housing > 1MΩ; test voltage 500V/50Hz AC | ||
| 3.5 | method of operation | intermitted service | ||
| 3.6 | duty cycle (only one solenoid activated) | |||
| V=23±5°C and U=24V | 75%/5min | |||
| V=80±5°C and U=28V | 20%/5min | |||
| 3.7 | direction of coil winding | equal(no positive voltage has to be induced in the coil of the solenoid modulator valve by switching off the other coil of the solenoid.) | ||
| 4 | Connections | |||
| 4.1 | Pneumatic connection | |||
| port 1 and 2 | M22×1.5 | |||
| port 3 | exhausting by integrated silencer | |||
| 4.2 | Electrical connections | |||
| connector(male) | 3 poles, bayonet acc.to DIN 72585-A1-3.1-K1 pins with surface protection Sn | |||
| 5 | Characteristic Curve Evaluation | |||
| 5.1 | gradient of decreasing | Pdec≥25bar/s | ||
| 5.2 | total dead time for pressure | Tdec≤12ms | ||
| 5.3 | gradient of increasing | Pinc≥45bar/s | ||
| 5.4 | total dead time for pressure | Tinc≤12ms | ||
| 5.5 | pressure after 4 steps of pulsed | 3.0bar≤P4.stpinc≤4.0bar | ||
| 5.6 | pressure changing | |||
| 5.7 | at 3.step of pulsed decreased | ΔP3.stpdec≥0.7bar | ||
| 5.8 | at 7.step of pulsed decreased | ΔP7.stpdec≥0.3bar | ||
