Lampada Scialitica Shadowless Ot Led Celling Surgical Light Operating Room Surgery Lamps Prices Surgical Light
- Category: >>>
- Supplier: Shanghai Fepdon Medical Equipment Co. Ltd.
Share on (1600730757381):
Product Overview
Description
Product Description
Lamps Cialiticas For Operating Room Led Shadowless Operating Lamp Ot Light Led Surgical Medical Ceiling Surgical Lamp
Features:
1. An imported LED cold light source is adopted as operation lighting. As a genuine cold light source, there is almost no
temperature rise at the doctor’s head or the wound.
2.The white LED has a feature of color temperature which is different from the light source of common light for operation. It may enhance the chromatic aberration between blood, other body tissues and organs, and it thus helps the operating doctor to have a clearer view.
3. The LED light is pure-DC power supplied, without any strobe or harmonic interference with other equipment in the working area.
4.The imported switch power supply is adopted to control the voltage, making the work voltage permanently stable.
5. The removable handle sheath can be disinfected at the high temperature of 135 ℃.
6. A special optical system is adopted so that the light is evenly illuminated on the observed objects in 360°, without any
virtual image and with high definition.
7. The service life of LED light is long (50,000h), far longer than that of traditional tungsten halogen lamp (1,500h), and it is
over twenty times of the service life of energy saving lamp.
8. LED has high luminous efficiency and it is impact-resistant and strong to resist crumbling, without mercury contamination. The light it sends contains no infra-red or ultraviolet radiation pollution.
Geeta 650 model surgery lamp advantages:
Shadowless operation lamp：
- Imported LED cold light source for lighting devices as surgery.
- Geeta shadowless light series adopts high performance LED chips, which make sure the excellent
illumination performance.
- Max illumination 160000Ix &140000Ix with 10 grade adjustable, to satisfy precise illumination requirements.
- Geeta600 has 72 LED light sources
- It creates identical light sources, and it illuminates evenly and brightly when illumination depth reaches 1200mm.

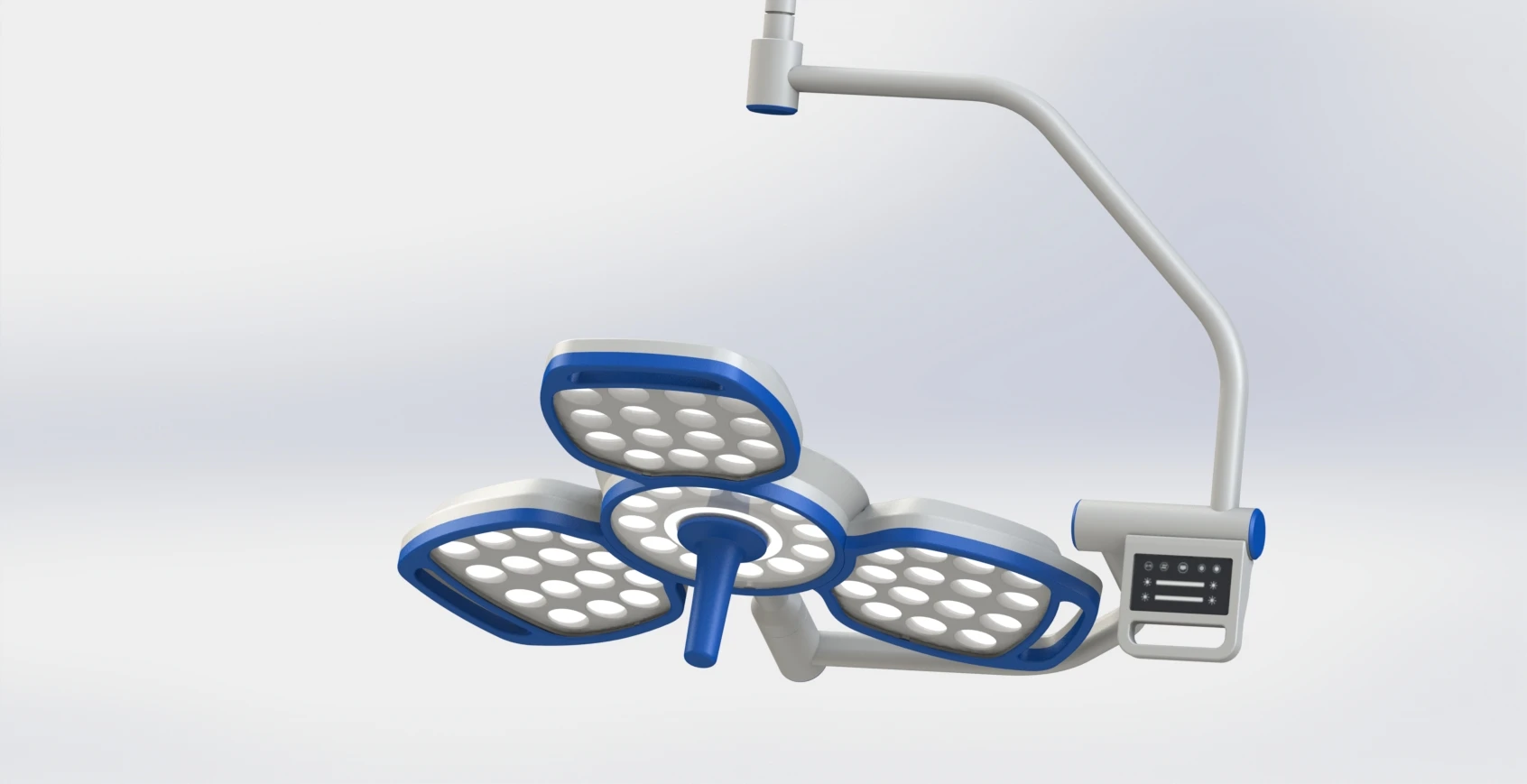

- Geeta500 has 57 LED light sources.
- It can satisfy illumination requirement of different surgical operations on the requirement of large light spot dimension and illumination depth.
- Imported LED cold light source for lighting devices as surgery.
- Geeta shadowless light series adopts high performance LED chips, which make sure the excellent
illumination performance.
- Max illumination 160000Ix &140000Ix with 10 grade adjustable, to satisfy precise illumination requirements.

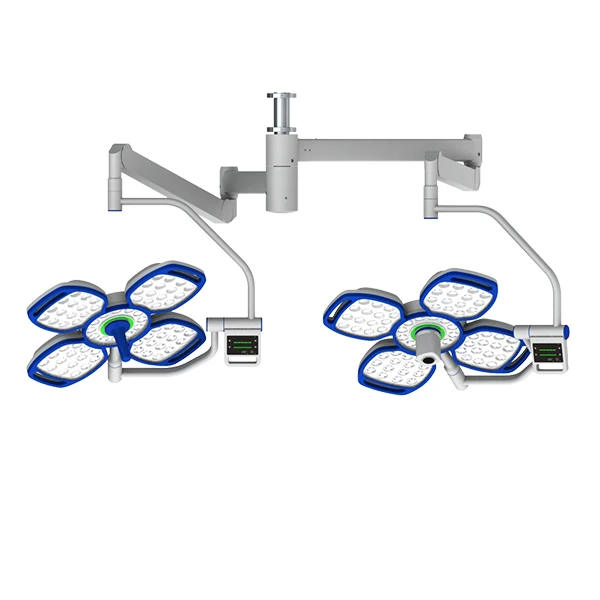

- Geeta600 has 72 LED light sources
- It creates identical light sources, and it illuminates evenly and brightly when illumination depth reaches 1200mm.

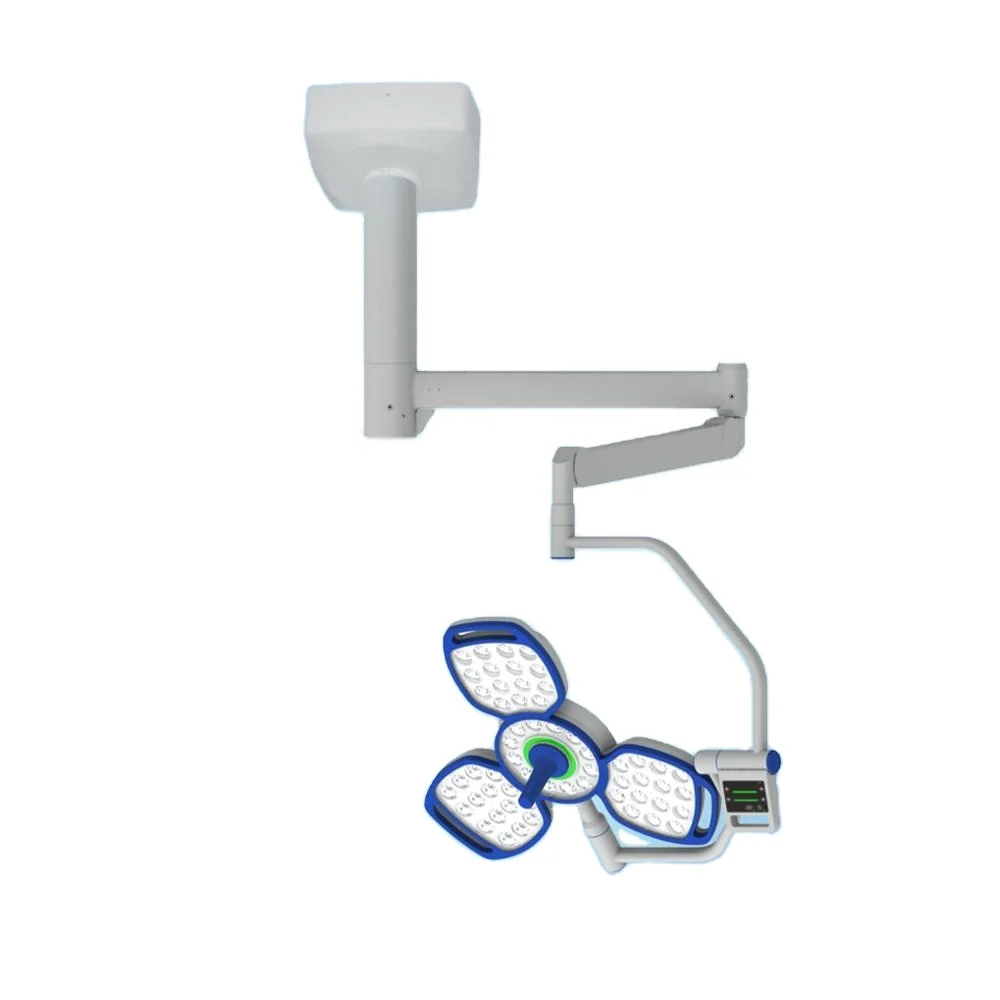

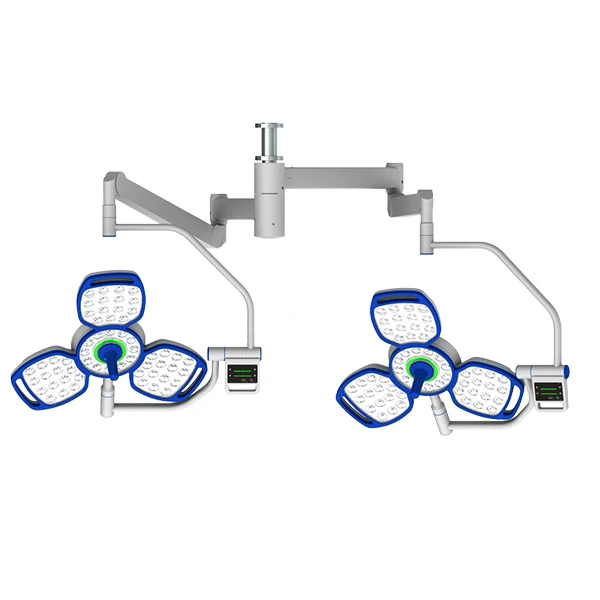

- Geeta500 has 57 LED light sources.
- It can satisfy illumination requirement of different surgical operations on the requirement of large light spot dimension and illumination depth.

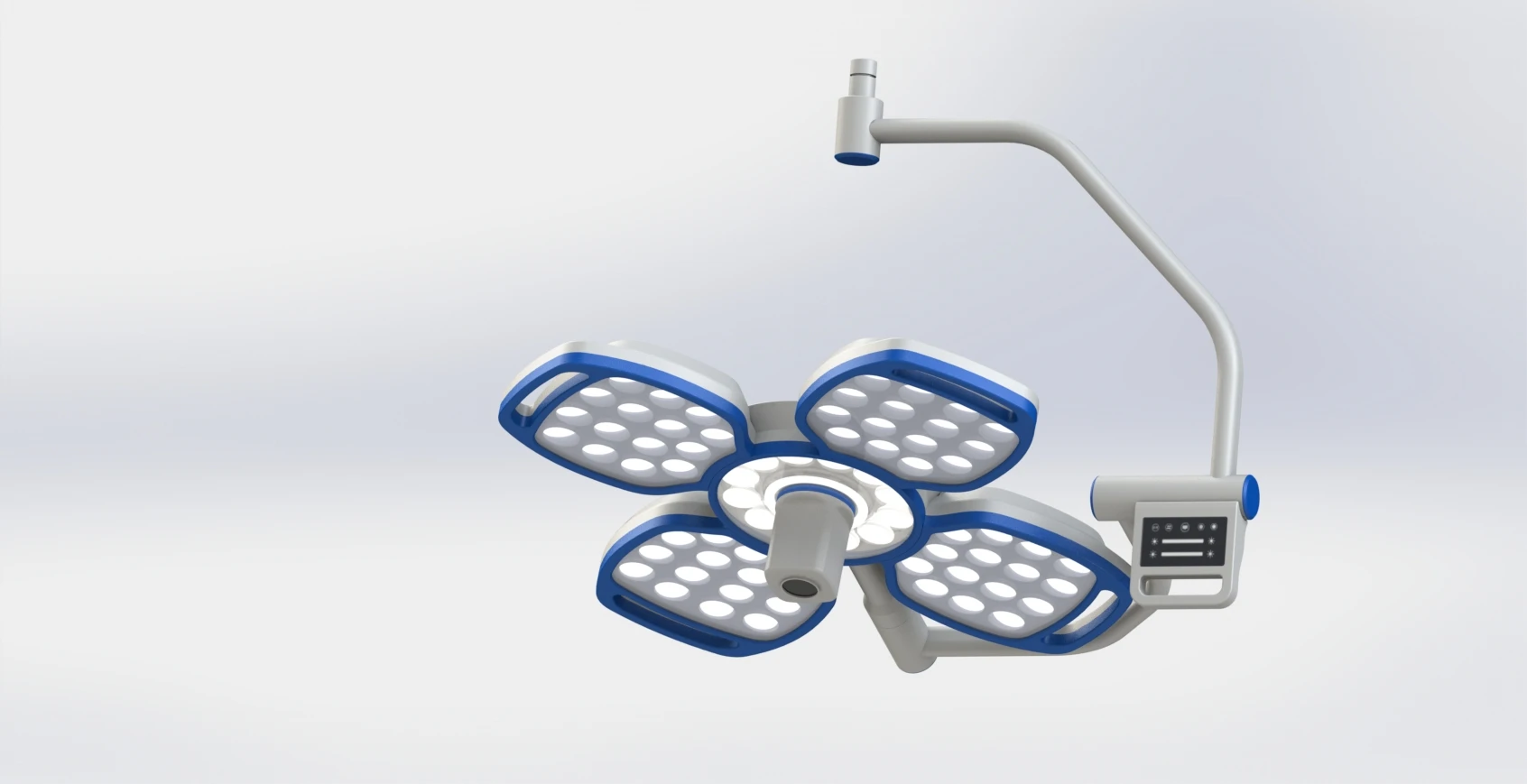

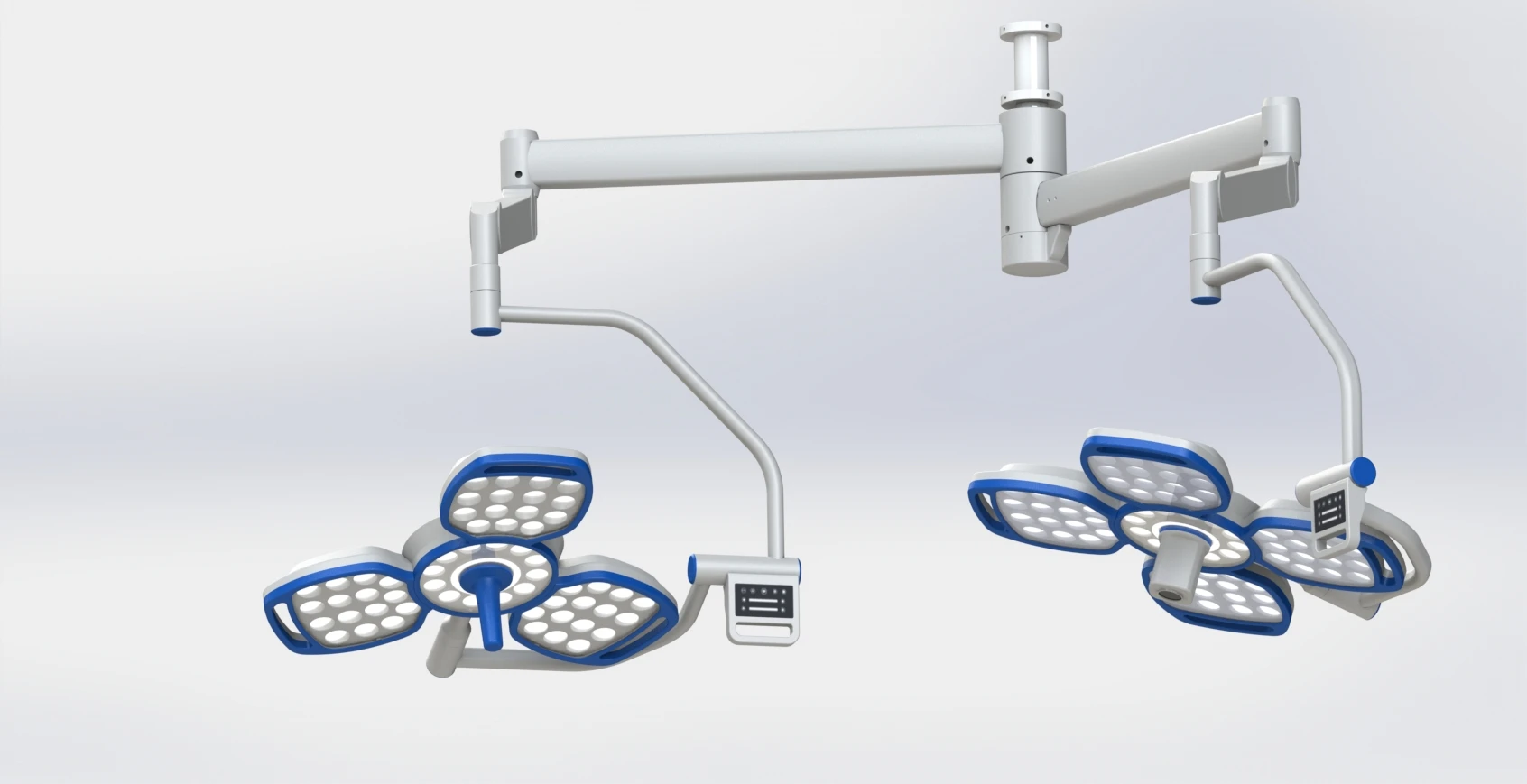

1. Verticalcurved arm
2. horizontal curved arm
3. Operation panel
4. light holder
4. light holder
5. Sterilized handle
1. Verticalcurved arm 2. horizontal curved arm
3. Operation panel
4. light holder
5. Sterilized handle
3. Operation panel
4. light holder
5. Sterilized handle
1.Surgery light spot adjustment-small.
2.Illumination adjustment of surgical lights-small
3. Surgery Lighting Spot Adjustment-Large.
4. Surgery Lighting Illumination Adjustment-Large
5. Surgical lights on / off.
2.Illumination adjustment of surgical lights-small
3. Surgery Lighting Spot Adjustment-Large.
4. Surgery Lighting Illumination Adjustment-Large
5. Surgical lights on / off.
Specification
Items | Geeta600 light head panel(4 parts type) | Geeta500light head panel(3 parts type) | |
lamp head diameter | 740mm | 740 mm | |
lamp max illumination: | 160000lx | 140000lx | |
Color - Rendering Index CRI（Ra） | ≥95 | ≥95 | |
Illumination adjusting range | 40000~160000lx | 40000~140000lx | |
Illumination temperature rising | ＜0.5℃ | ＜0.5℃ | |
color temperature | 4500K±10% | 4500K±10% | |
light spot diameter（d10） | 18~25cm | 18~25cm | |
Light spot diameter / light spot distribution（d10/d50） | 0.65 | 0.55 | |
Lighting depth | 120cm ±5% | 100cm ±5% | |
Deep Cavity Shadowless Rate | 100% -5% | 100% -5% | |
Single board shadowless rate | 80% -5% | 65% -5% | |
Single Board Deep Cavity Shadowless Rate | 75% -5% | 60% -5% | |
Single Board Shadowless Rate | 75% -5% | 60% -5% | |
Double Boards Deep Cavity Shadowless Rate | 65% -5% | 55% -5% | |
Radioactivity Ee/Ec（MW/m²lux） | ≤4.5MW/m²lux | ≤4.5MW/m²lux | |
Max Radioactivity（Ee) | ＜600w/m² | ＜500w/m² | |
Head warming rate | ＜1° | ＜1° | |
Lamp bead lifecycle | ＞60000h | ＞60000h | |
Input Power（VA） | 220VA | 180VA | |
Input voltage, frequency, fuse | AC 220V±10%, 50Hz±5%, F3AL 250V | ||
Packing & Delivery

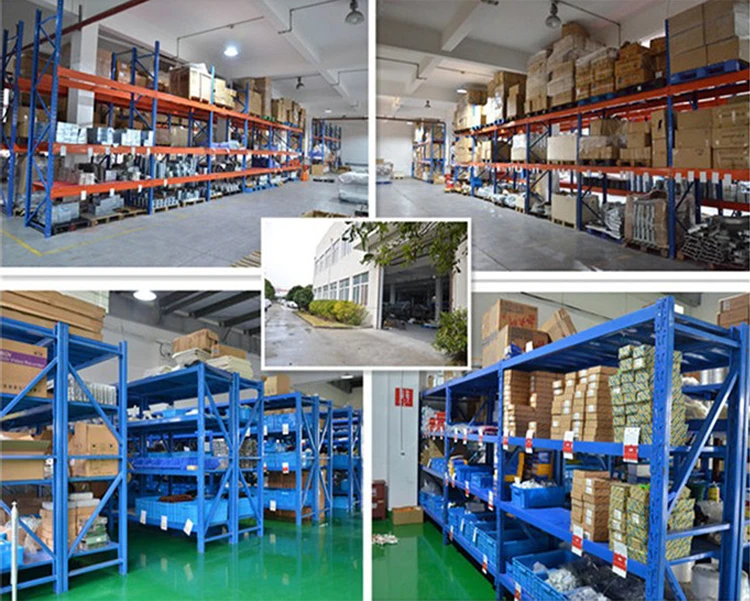

Company Profie

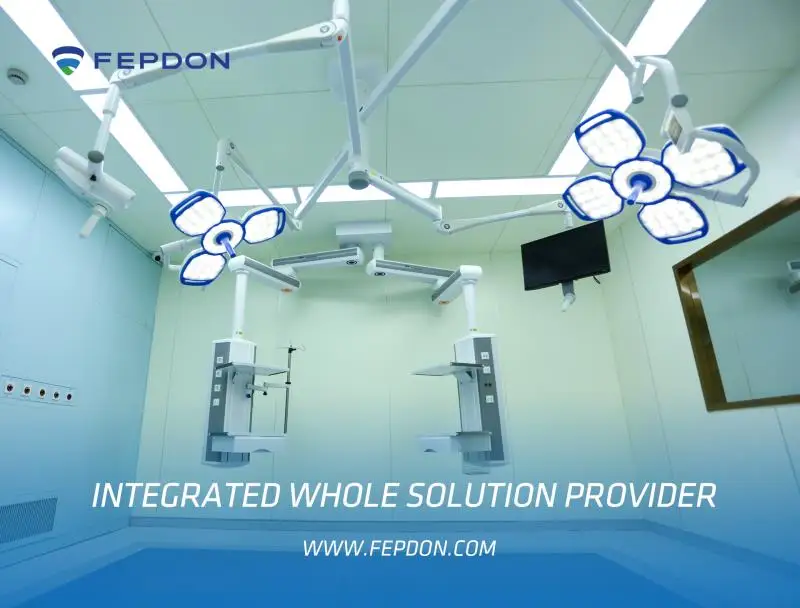

Established in 2009,Shanghai Fepdon Medical Equipment Co.,Ltd is a professional manufacturer engaged in the researches,development,production,sale and services of medical pendants,operation light,Operation table and Medical Gas system and other integerated medical equipments.
