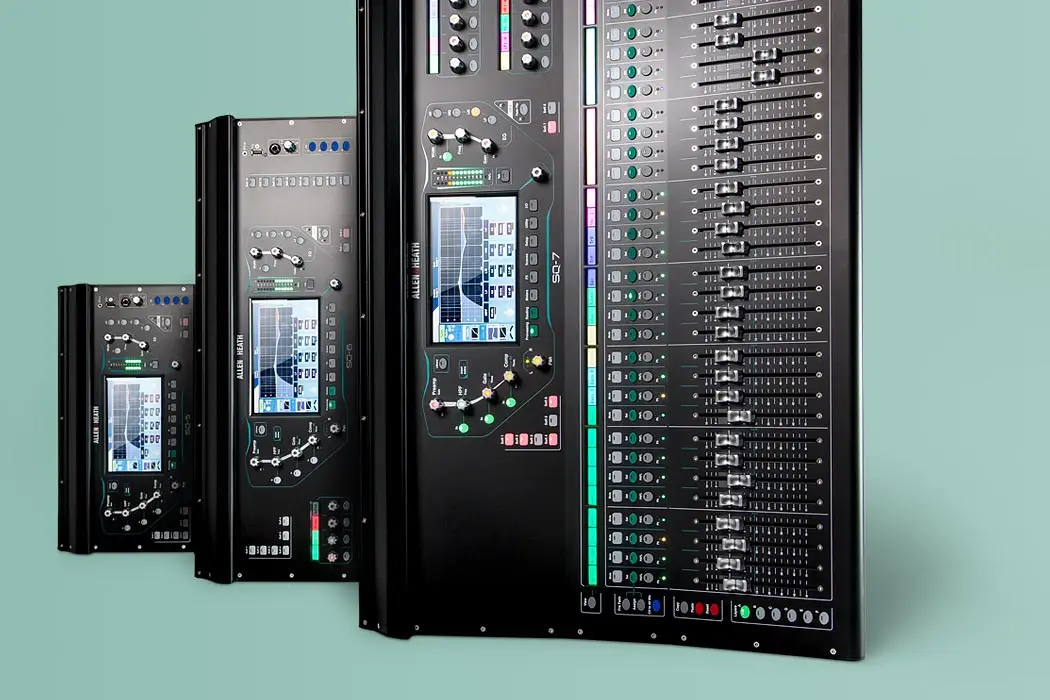

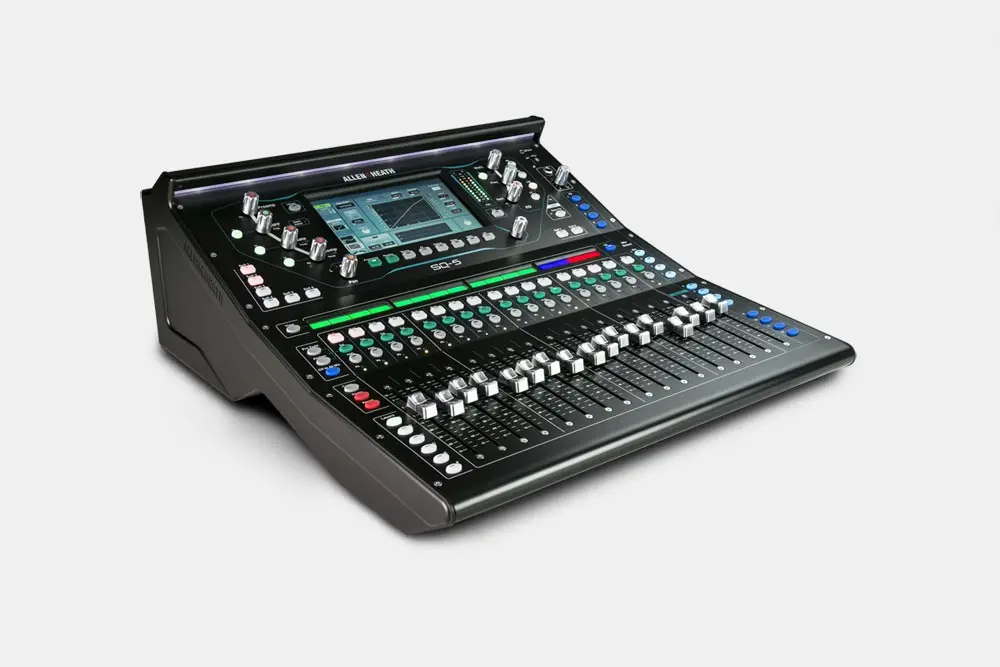

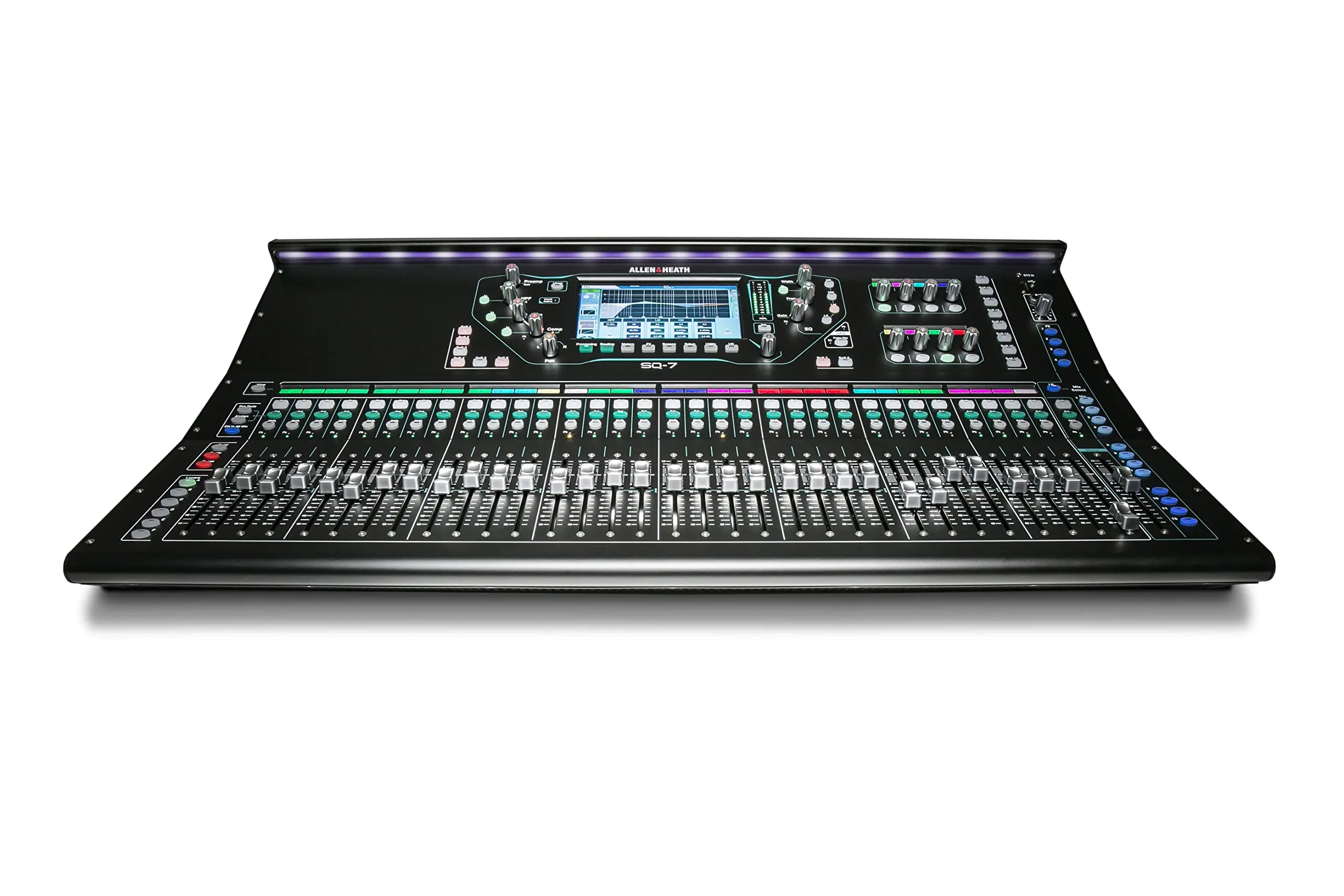

Alle & nHeath SQ 7 48 channel Digital Mixer

Product Overview

Description

Tech Specs

• Type: Digital Mixer


• Channels: 48


• Inputs - Mic Preamps: 32 x XLR (mic/line)


• Phantom Power: 32 channels, Talkback


• Inputs - Other: 2 x 1/4" (Stereo 1), 2 x 1/4" (Stereo 2)


• Outputs - Main: 2 x XLR, 2 x 1/4" (A out, B out)


• Outputs - Other: 16 x XLR (stereo mixes, L/R)


• Outputs - Digital: 1 x XLR (AES)


• Busses/Groups: 36 Bus


• Inserts: Internal Pre EQ/Compressor


• Talkback: 1 x XLR


• Computer Connectivity: USB (32 x 32), Ethernet


• Remote: 1 x 1/4" (footswitch)


• I/O Expansion Slots: 1 x Option card port (Dante, Waves)


• Faders: 33 x 100mm motorized

The console features 32 exceptional onboard mic preamps, plus 8 stereo FX engines with dedicated stereo return channels and access to the renowned RackExtra FX library. SQ is a natural choice for in-ear monitor setups, providing 12 stereo mixes (configurable as groups or auxes), whilst Automatic Mic Mixing makes it an excellent choice for conferences, panel talks and more



EQ	FX Returns: 4-Band Parametric
EQ Parameters	1 x HF Shelf: ±15 dB at 20 Hz to 20 kHz (Shelf or Bell Selectable) 2 x MF Notch/Peak: ±15 dB at 20 Hz to 20 kHz 1 x LF Shelf: ±15 dB at 20 Hz to 20 kHz (Shelf or Bell Selectable)
Graphic EQ	28-Band 1/3 Octave, ±12 dB 31 Hz to 16 kHz
Filters	High-Pass: 20 Hz to 2 kHz, 12 dB/Octave
Channel Output/Source Monitoring	AFL, PFL, Post-Preamp, Post-HPF, Post-Gate, Post-EQ, Post-Compressor, Post-FX, Insert Return
Built-In Effects	Reverb Stereo Delay (Tap) Reverb (Gated) ADT 2 x Chorus Flanger Phaser

.
