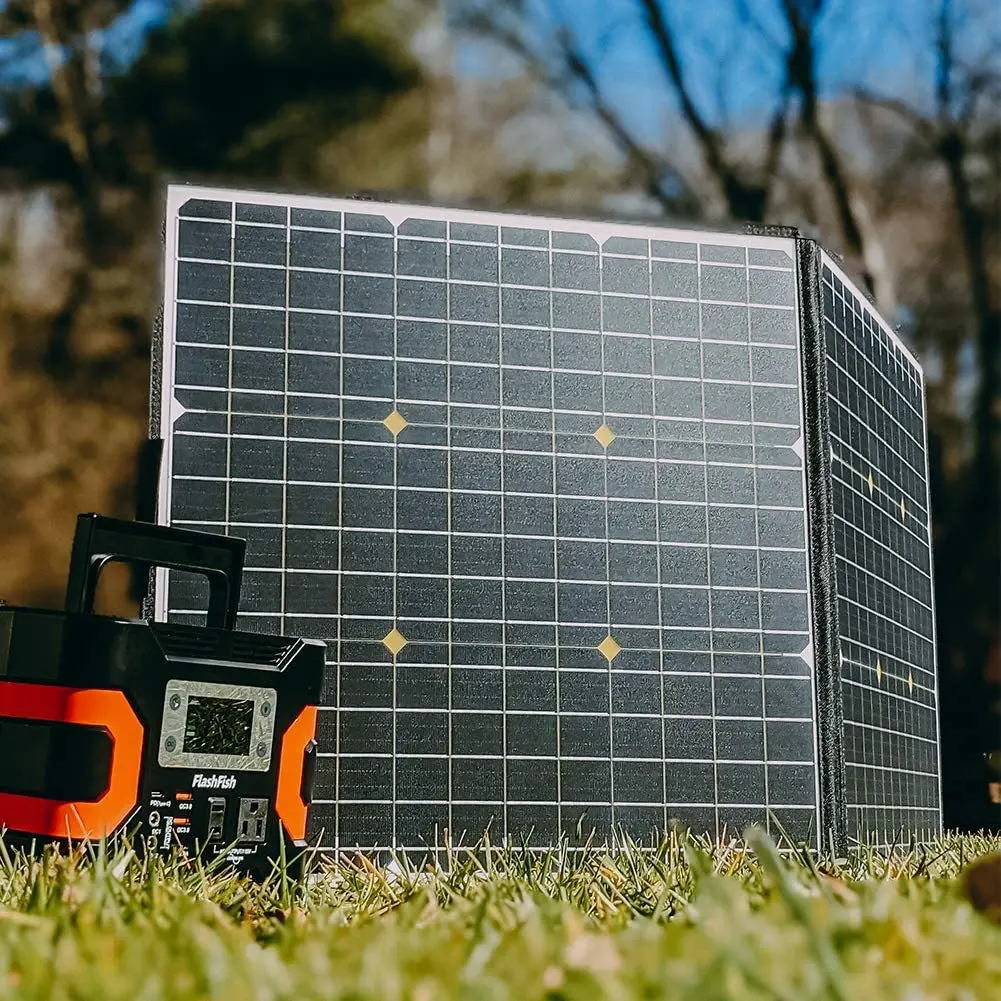

Manufacturer Waterproof 100W 120W 200W 300W Outdoor Camping Hiking RV Trip Portable Foldable Solar Panel
- Category: >>>
- Supplier: Shandong Sengy Intelligent Technology Co. Ltd.
Share on (1600730840165):
Product Overview
Description
Product Description
Professional customized solar folding bags, 10W 20W 30W 50W 60W 100W 200W 300W can be customized, the style is free of charge, and can accept customized services such as small batch of 100 printing logo, with guaranteed quality.
Product development size: 120x60x2cm; Product folded size: 60x59x4cm
Product package size: 63x61x6cm; Net weight: 3.3KG; Gross: 4KG
Three interfaces are available, and each price is different. After the order is placed, the payment will be made after consultation and confirmation:
1. MC 4 interface 30cm long; General configuration, default option shipment!
2. Anderson interface 30cm long; 1.8 USD/piece is required

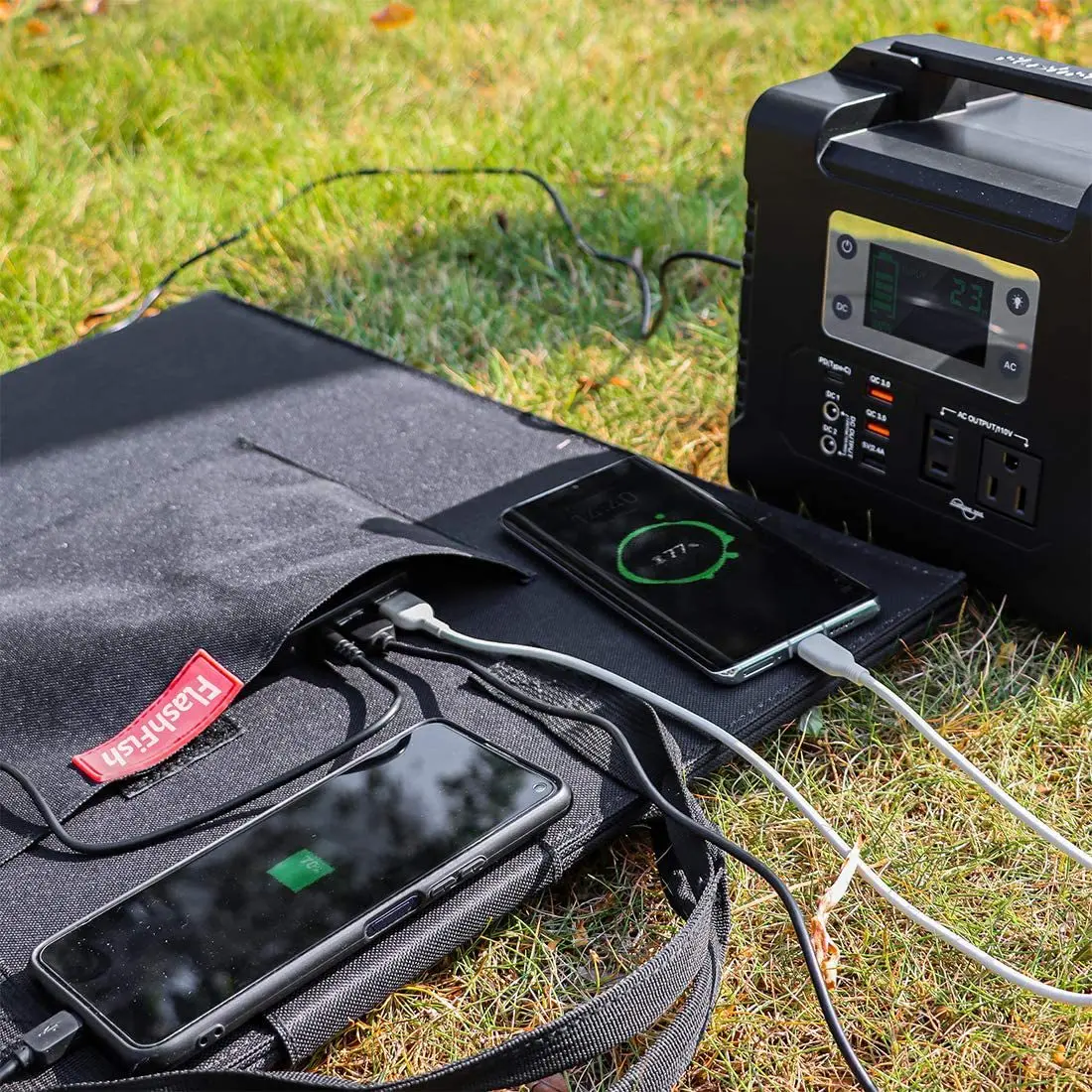

3. The voltage regulator is equipped with USB 3.0 fast charge+TYPE C iPhone, which can be fast charged+DC 18V/5.55A. The maximum is 8.5 USD/piece
4. One meter DC 5521 extension line is required, and the remark is 1.8USD/piece

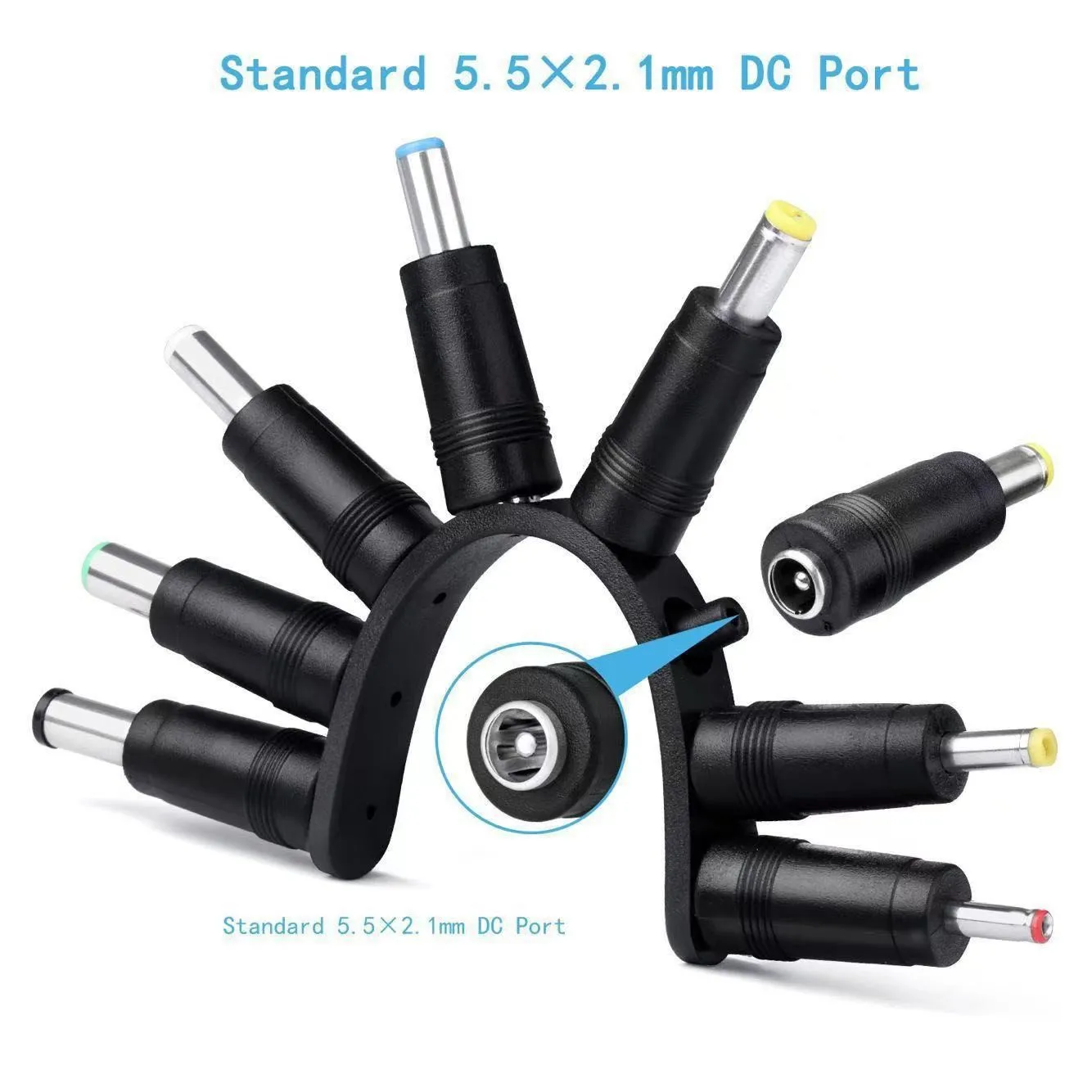

5. 8 DC adapters are optional, and the remarks to be added are 1.8USD/piece
Product development size: 120x60x2cm; Product folded size: 60x59x4cm
Product package size: 63x61x6cm; Net weight: 3.3KG; Gross: 4KG
Three interfaces are available, and each price is different. After the order is placed, the payment will be made after consultation and confirmation:
1. MC 4 interface 30cm long; General configuration, default option shipment!
2. Anderson interface 30cm long; 1.8 USD/piece is required
3. The voltage regulator is equipped with USB 3.0 fast charge+TYPE C iPhone, which can be fast charged+DC 18V/5.55A. The maximum is 8.5 USD/piece
4. One meter DC 5521 extension line is required, and the remark is 1.8USD/piece
5. 8 DC adapters are optional, and the remarks to be added are 1.8USD/piece
Specification
Model Type | JD-100W | |||
Peak Power(Pmax) | 100 | |||
Maximum Power Voltage(Vmp) | 18 | |||
Maximum Power Current(Imp) | 5.56 | |||
Open Circuit Voltage(Voc) | 21.24 | |||
Short Circuit Current(Isc) | 5.8 | |||
* STC: irradiance 1000 W/m2, AM 1.5,Gand cell temperature of 25°C | ||||
Outlet | RVV2*2mm2 10cm with MC4 Connector | |||
Cable | 30cm-RVV2*2mm2 | |||
Cable Connector | 30CM MC4 Connector | |||

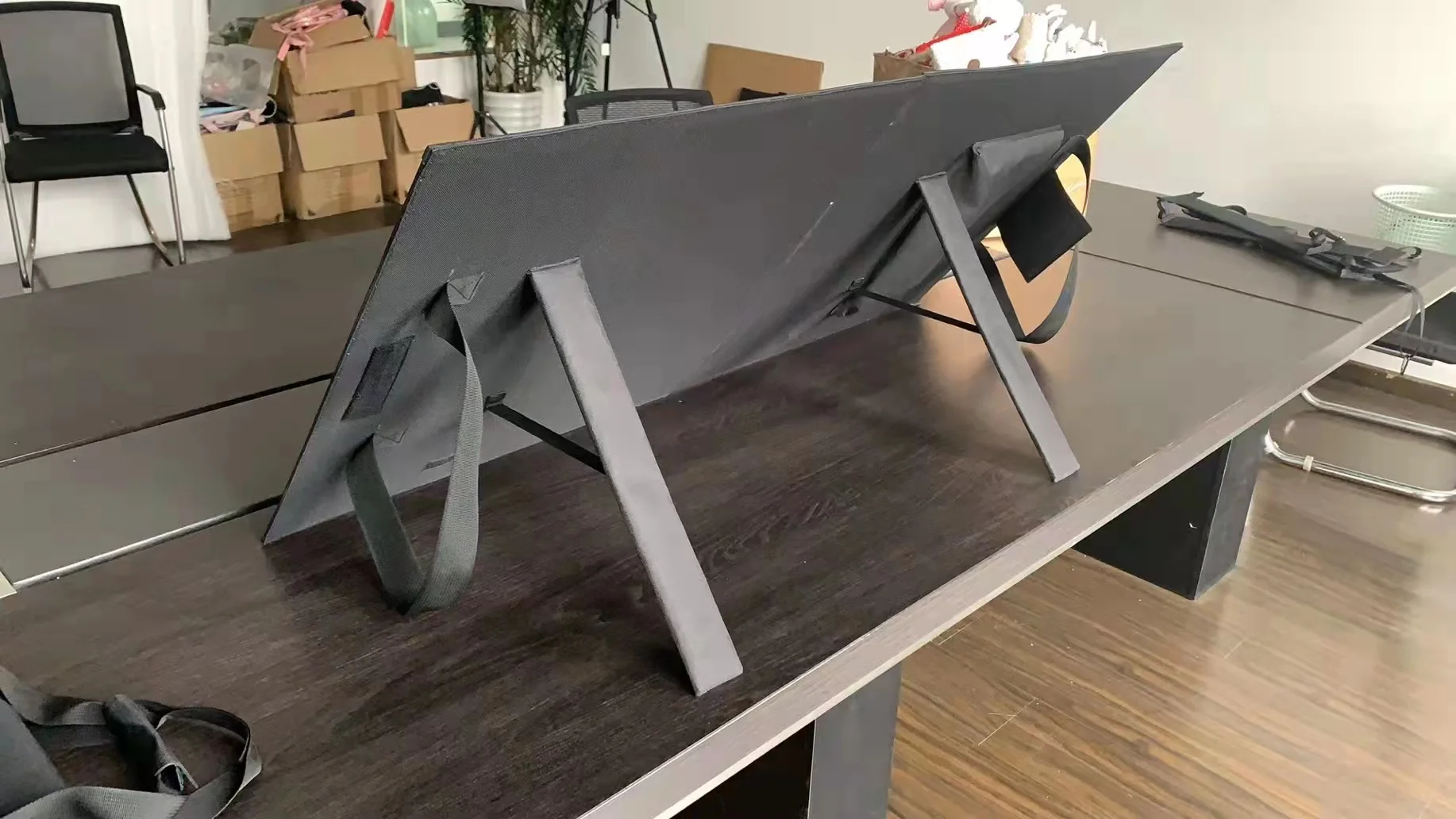

Suppport | 2 support brackets | |||
Power Tolerance | 0～+3﹪ | |||
Pmax Temperature Coefficients(W/℃) | -0.350﹪ | |||
Voc Temperature Coefficients(V/℃) | -0.250﹪ | |||
Isc Temperature Coefficients(A/℃) | +0.04﹪ | |||
NOCT Nominal Operating Cell Temperature(℃) | 45±2 | |||
Operating and Storage Temperature(℃) | -40～+85 | |||
Cell Type(mm) | 158*43（3*12） | |||
Array | 1*2 | |||
Folding Dimensions（mm) | 580*530*20 | |||
Unfold Dimensions(mm） | 580*1050*5 | |||
Carton box Size（mm) | 61*58*80 | |||
Packing | 1 unit/carton box | |||
N.W.(kg) | 3.5 | |||

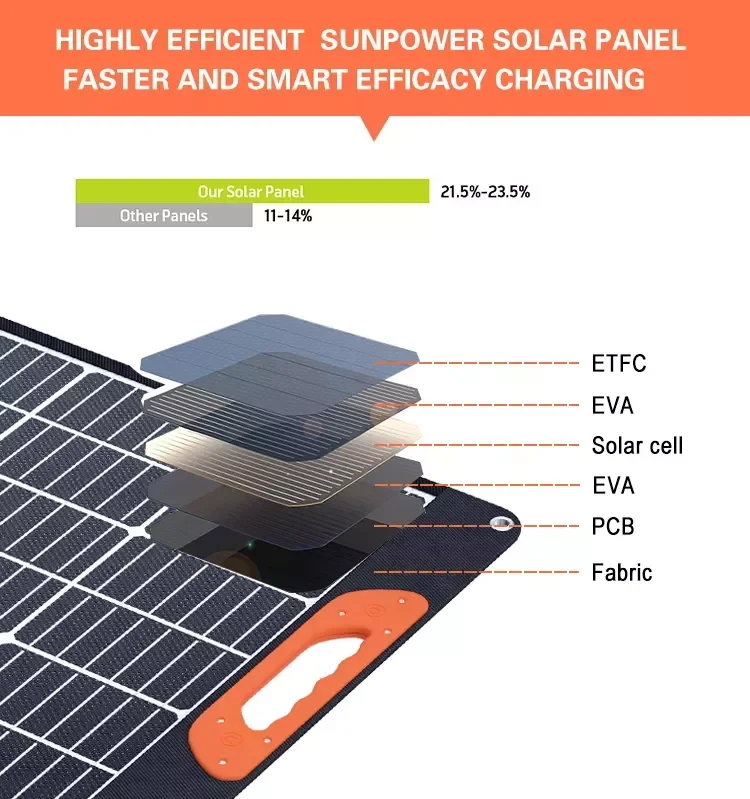

Surface Material | PET | |||
Our Advantages
FAQ
Q:How much is the shipping cost?
A:You can contact us before placing an order to get the latest and best shipping prices.
Q: What are the advantages of portable solar panel?

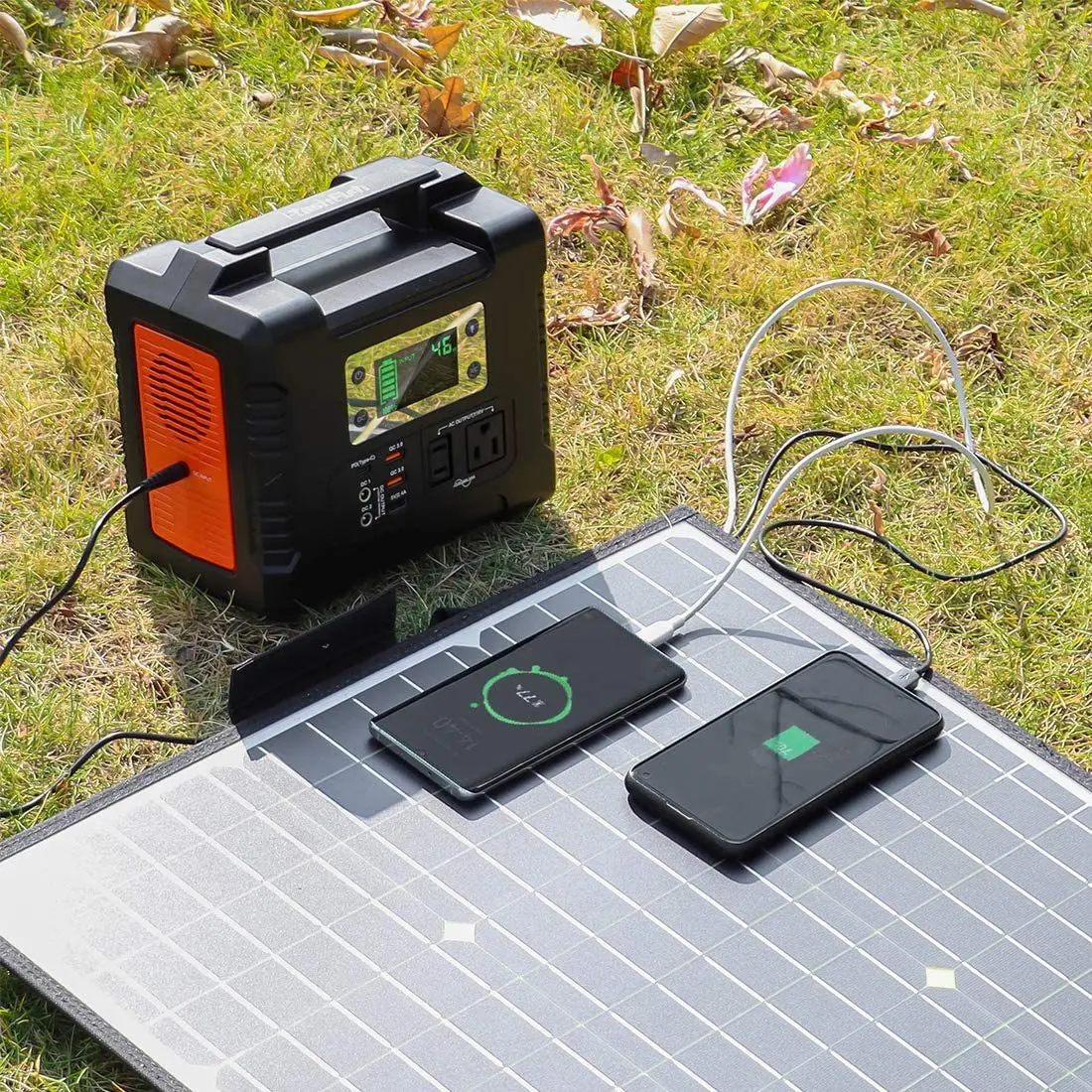

A: Portable solar panel are a new way of outdoor charging method. You can build a outdoor solar generator system by solar panel and power station. Now, we offer 60W 100W 120W 200W foldable solar panel. If you have requirements for other models, please contact us.
Q: Do you support OEM/Customized?
A: Yes, any wattage/folds panel can be customized, and also can print your LOGO on. We will produce samples according to your needs, and mass production will be carried out after your confirmation.
Q: What's the warranty of our products?
A: All our products have at least one year warranty.The warranty period of different products will be different, if you have any questions, please contact us.
Q: What's the lead time?
A: We have enough stock to meet your needs. Under normal circumstances, our delivery time is about 20 working days. Please contact us for more specific delivery time.
A:You can contact us before placing an order to get the latest and best shipping prices.
Q: What are the advantages of portable solar panel?
A: Portable solar panel are a new way of outdoor charging method. You can build a outdoor solar generator system by solar panel and power station. Now, we offer 60W 100W 120W 200W foldable solar panel. If you have requirements for other models, please contact us.
Q: Do you support OEM/Customized?
A: Yes, any wattage/folds panel can be customized, and also can print your LOGO on. We will produce samples according to your needs, and mass production will be carried out after your confirmation.
Q: What's the warranty of our products?
A: All our products have at least one year warranty.The warranty period of different products will be different, if you have any questions, please contact us.
Q: What's the lead time?
A: We have enough stock to meet your needs. Under normal circumstances, our delivery time is about 20 working days. Please contact us for more specific delivery time.
