Product Overview
Description
Product Overview

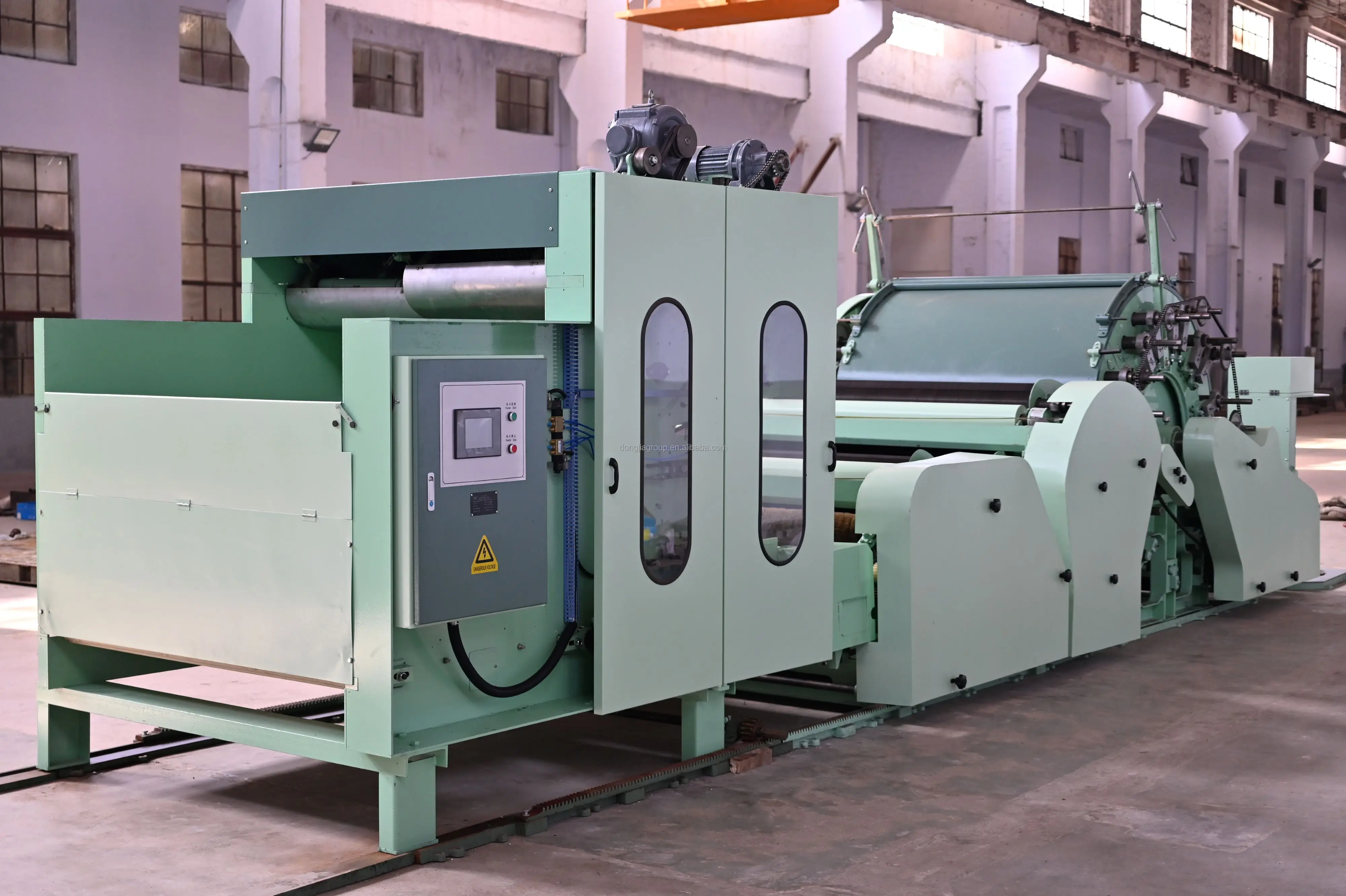

MD160 Automatic feeder
Machine use
This machine is mainly used to store the cotton, man-made fiber, wool andcashmere raw materials that have been initially loosened and mixed in the raw material
box, and rely on the slow movement of the flat curtain and the fine grasp of the inclined nail curtain to evenly transport the
appropriate amount of raw materials to the next process in a unit time.
This machine is mainly used to store the cotton, man-made fiber, wool andcashmere raw materials that have been initially loosened and mixed in the raw material
box, and rely on the slow movement of the flat curtain and the fine grasp of the inclined nail curtain to evenly transport the
appropriate amount of raw materials to the next process in a unit time.
FEATURES AT A GLANCE
Main technical features
1. Overall dimension of wool feeding hopper 2085X1360X2085mm
Flat curtain volume box about 980X920X980mm
2. Maximum capacity of feeding volume tank 210X500X970mm
3. Inclined nail curtain material: wooden curtain rod plus NBR sheet, flat curtain material is NBR curtain.
4. The frequency control of the inclined curtain motor controls the feeding speed.
5. The thickness of the rough bucket frame is 8mm, so that the frame is firm and shapeless.
6. The thickness of the outer protective shield steel plate is 1.5mm.
7. The frequency converter adopts Omron brand, and other electrical components adopt Chint.
8. A permanent magnet device is installed on the top of the inclined curtain to absorb the metal objects in the raw material so
as not to enter the feed and damage the needle cloth.
9. A pair of crimping rollers are made of aluminum alloy, light and smooth.
1. Overall dimension of wool feeding hopper 2085X1360X2085mm
Flat curtain volume box about 980X920X980mm
2. Maximum capacity of feeding volume tank 210X500X970mm
3. Inclined nail curtain material: wooden curtain rod plus NBR sheet, flat curtain material is NBR curtain.
4. The frequency control of the inclined curtain motor controls the feeding speed.
5. The thickness of the rough bucket frame is 8mm, so that the frame is firm and shapeless.
6. The thickness of the outer protective shield steel plate is 1.5mm.
7. The frequency converter adopts Omron brand, and other electrical components adopt Chint.
8. A permanent magnet device is installed on the top of the inclined curtain to absorb the metal objects in the raw material so
as not to enter the feed and damage the needle cloth.
9. A pair of crimping rollers are made of aluminum alloy, light and smooth.
Right elevation
Left elevation
Front elevation
PRODUCT SPECIFICATIONS
No | Item | Data | ||
1 | Width | 980mm | ||
2 | Feeding mode | volumetric automatic feeding | ||
3 | Gross feeding weight | 8-15 kg/h | ||
4 | Wool leveling mechanism | single rake reciprocating swing type | ||
5 | Peeling mechanism | roller type three-row rubber beater is adopted | ||
6 | Inclined curtain speed | variable frequency speed regulation | ||
7 | Motor model and power | BWY15-11-1.1 1.1 kW | ||
8 | Overall dimension | 2085 ×1360 ×2085mm |
PRODUCT CONFIGURATION
High quality conveyor belt
Minimalist structure
Stable and reliable transmission

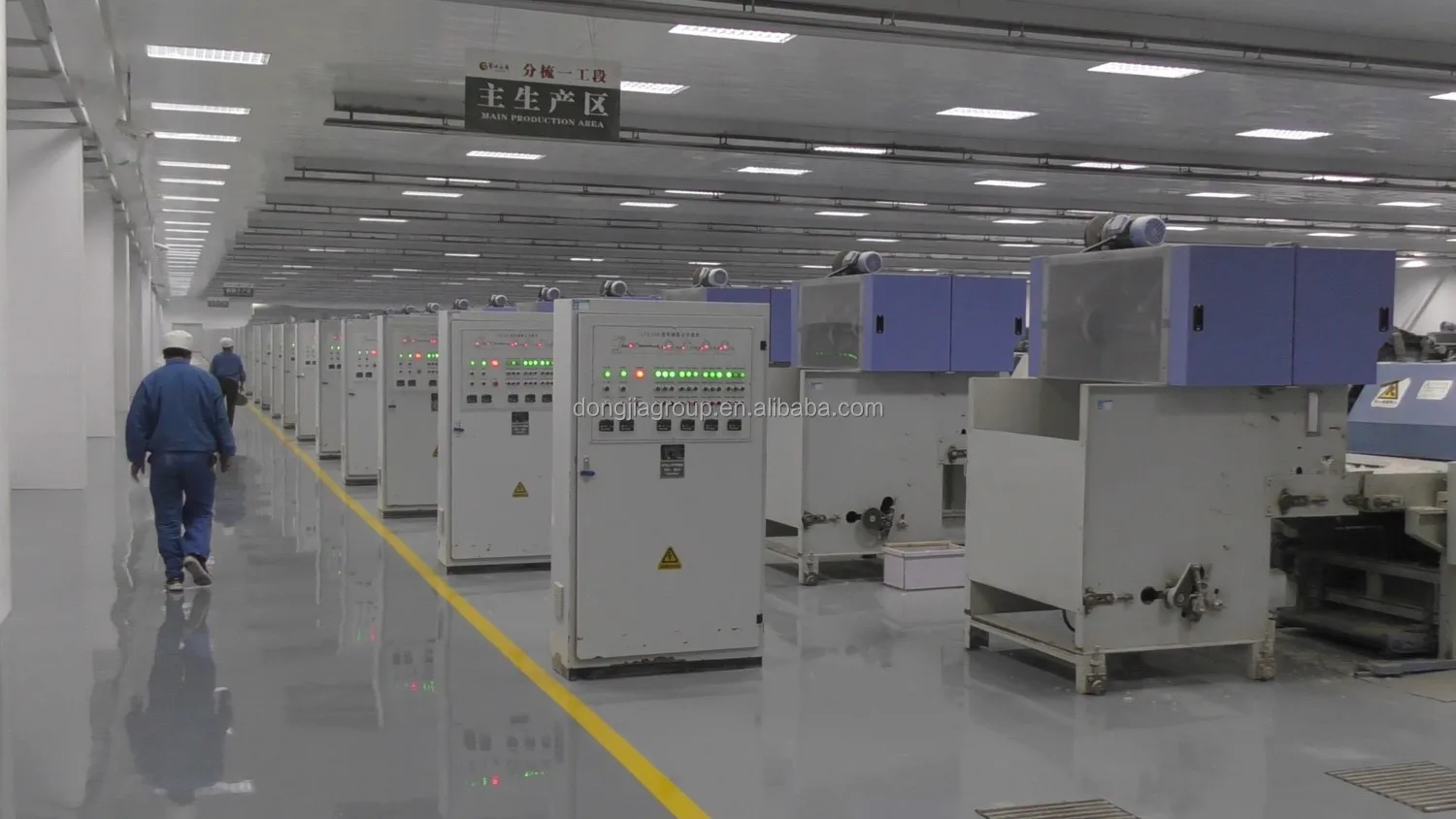

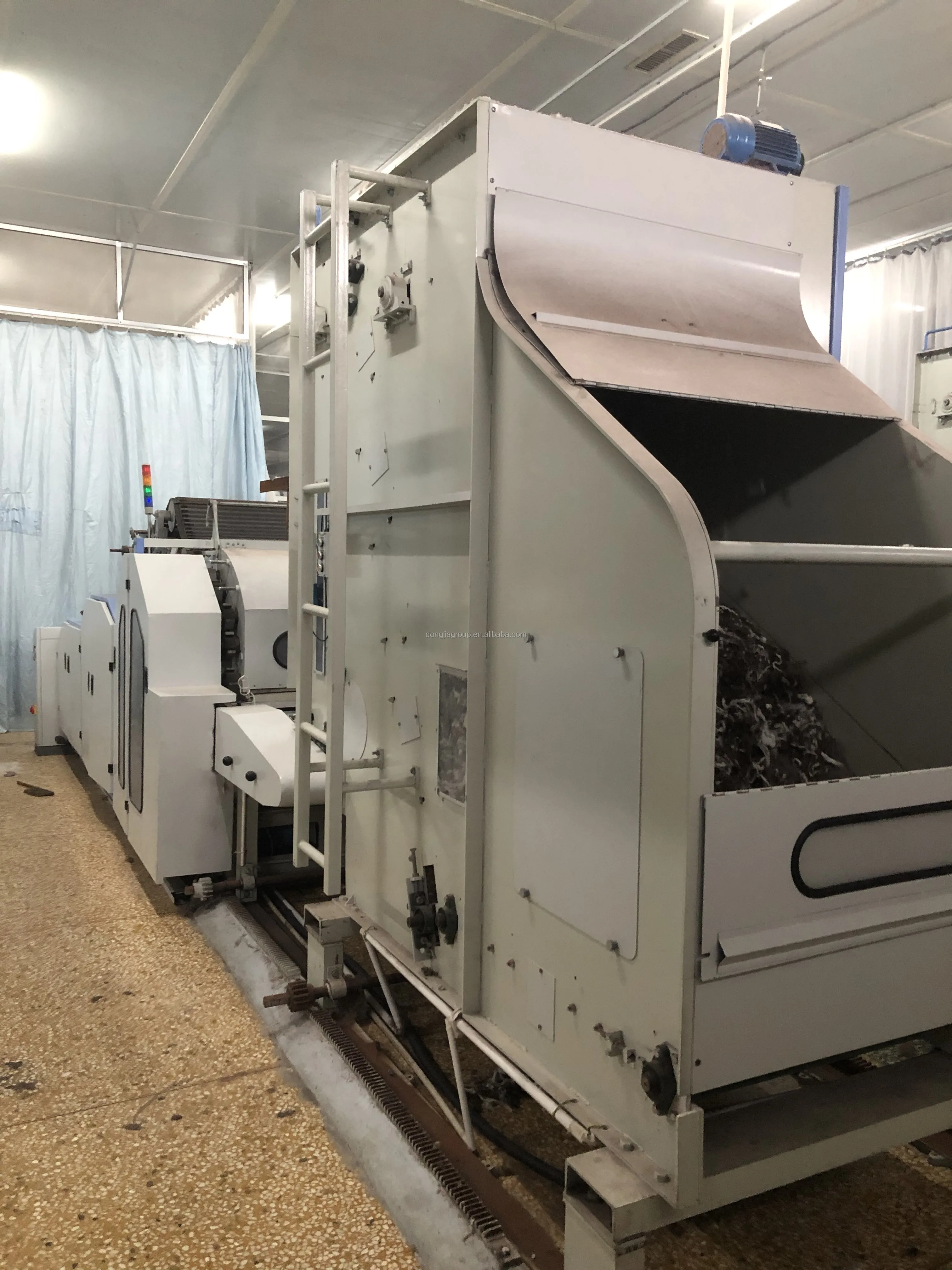

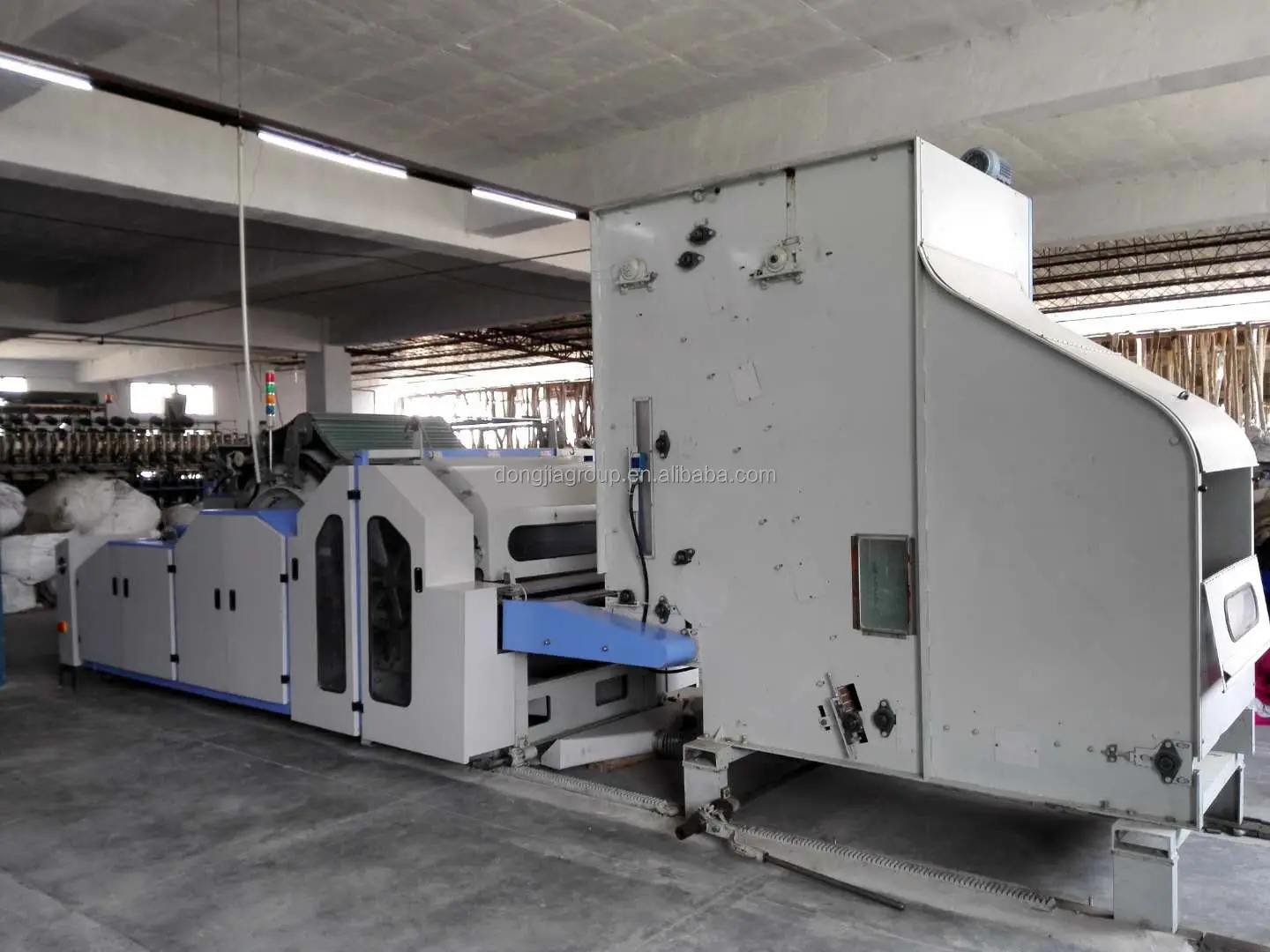

Successful Project
Project in Ordos, China
Project in India
Project in Mongolia
