Product Overview

Description



Products Description


Medium:
air and non-combustible, compatible gases (optional gas)
Housing:
cast aluminum housing or ABS shell, glass beveled panels. Dark gray coating, can withstand 168 hours salt spray test
Accuracy:
2% FS (mm units, and the range with the corresponding pa)
Pressure range:.
-20Hg To 15 psig (-0.677 bar to 1.034 bar)
Temperature range:
20 to 140 ° F (-6.67 to 60 ° C)
Hole size:
114mm
Mounting Orientation:
Diaphragm in vertical

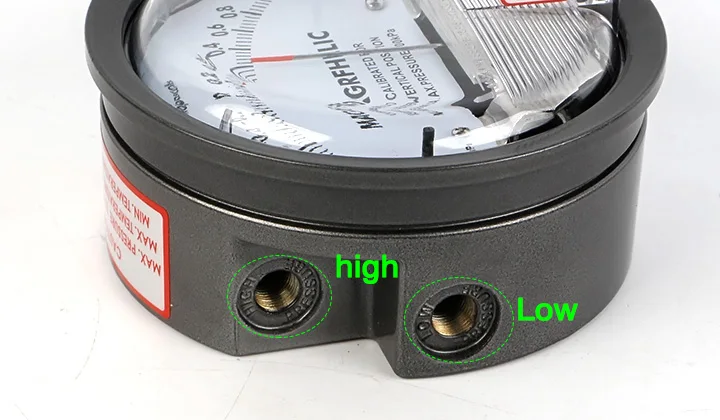

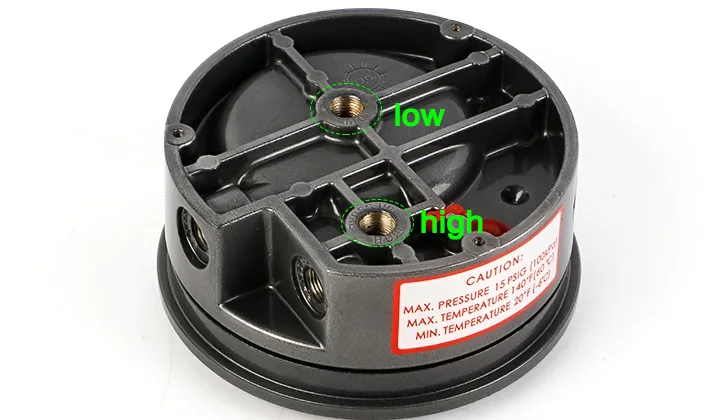

Connections:
same 1/8 "NPT high and low pressure fittings, one pair on the side, one pair in the back
Weight:
500g / only

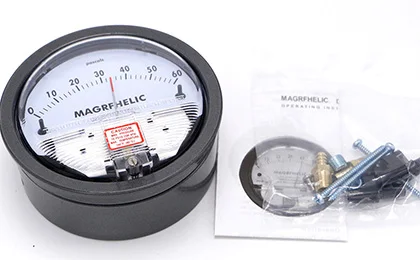

Standard accessories:
2pcs 1/8 "NPT threaded connectors for high and low pressure fittings can be connected with a rubber tube; two 1/8" NPT plug for
blocking the remaining two high and low pressure ports; three a threaded countersunk mounting coupling (mounting ring, according
to buckle holder for three interfaces to replace MP and count on attachments HP)


* Shell Material:Aluminum External
* Accuracy:+/- 2% FS(21oC)
* Dimensions:120mm Dia.X55mm Deep
* Finished:Baked dark gray enamel
* Pressure Rating:15PSI(1.03bar)
* Weight:510g




Packing




CARTON SIZE: 46.5*34.5*36.5 (CM)
NET WEIGHT: 446.5 G/PCS GROSS WEIGHT: 446.5 G/PCS
WEIGHT OF ACCESSORIES: 38.9 G/SET
PACKAGE: 24PCS/CTN


Type Selection


Model Number
Range Pa
Model Number
Range In wc
YD-2000-60PA
0-60
YD-2000-00
0-.25
YD-2000-125PA
0-125
YD-2000-0
0-.50
YD-2000-250PA
0-250
YD-2001
0-1.0
YD-2000-500PA
0-500
YD-2002
0-2.0
YD-2000-750PA
0-750
YD-2003
0-3.0
Zero Center Ranges
YD-2004
0-4.0
YD-2300-120PA
60-0-60
YD-2005
0-5.0
YD-2300-250PA
125-0-125
YD-2006
0-6.0
YD-2300-500PA
250-0-250
YD-2008
0-8.0
Model Number
Range kPa
YD-2010
0-10
YD-2000-1KPA
0-1
YD-2015
0-15
YD-2000-1.5KPA
0-1.5
YD-2020
0-20
YD-2000-2KPA
0-2
YD-2025
0-25
YD-2000-3KPA
0-3
YD-2030
0-30
YD-2000-4KPA
0-4
YD-2040
0-40
YD-2000-5KPA
0-5
Zero Center Ranges
YD-2000-8KPA
0-8
YD-2300-0
.25-0-.25
YD-T2000-10KPA
0-10
YD-2301
.5-0-.5
YD-2302
1-0-1
Zero Center Ranges
YD-2304
2-0-2
YD-2300-1KPA
.5-0-.5
YD-2310
5-0-5
YD-2300-3KPA
1.5-0-1.5
YD-2320
10-0-10
YD-2330
15-0-15
Model Number
Range MM wc
Model Number
Range CM wc
YD-2000-6MM
0-6
YD-2000-15CM
0-15
YD-2000-25MM
0-25
YD-2000-20CM
0-20
YD-2000-50MM
0-50
YD-2000-25CM
0-25
YD-2000-80MM
0-80
YD-2000-50CM
0-50
YD-2000-100MM
0-100
YD-2000-80CM
0-80
YD-2000-100CM
0-100
