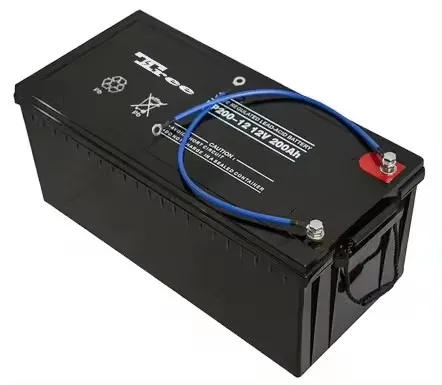

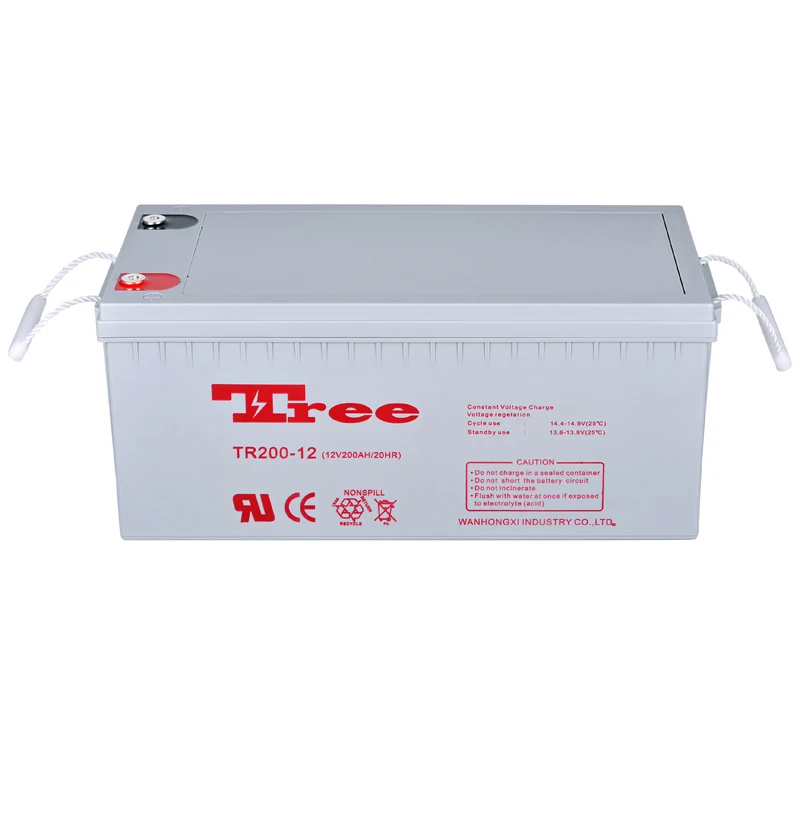

Rechargeable Deep Cycle Solar Gel Battery China Manufacturer 12V 250ah 200ah 100ah Solar Energy System Power Tools Tree

Parameter of 12v 200ah BATTERY:

Nominal Voltage

12V

Rated Capacity (10 hour rate)

200AH

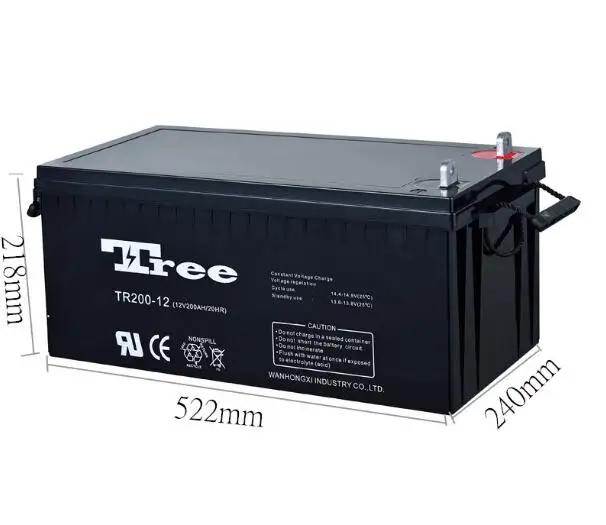

Size (Length*Width*Height*Total Height)

522*240*216*240MM

Weight Approx

57.0KG

Capacity 25°C

(77°F)

10 Hour Rate(9.0A)

200AH

5 Hour Rate(14.4A)

160AH

1 Hour Rate(54.0A)

120AH

1.5 Hour Discharge To 10.5V

80A

Internal Resistance

Full Charged Battery at 25°C(77°F)

3.8mΩ

Capacity Affected By Temperature

(10 Hour Rate)

40°C(104°F)

102%

25°C(77°F)

100%

0°C(32°F)

85%

-15°C(5°F)

65%

Self-Discharge at 25°C

(77°F)

Capacity after 3 Month Storage

91%

Capacity after 6 Month Storage

82%

Capacity after 12 Month Storage

64%

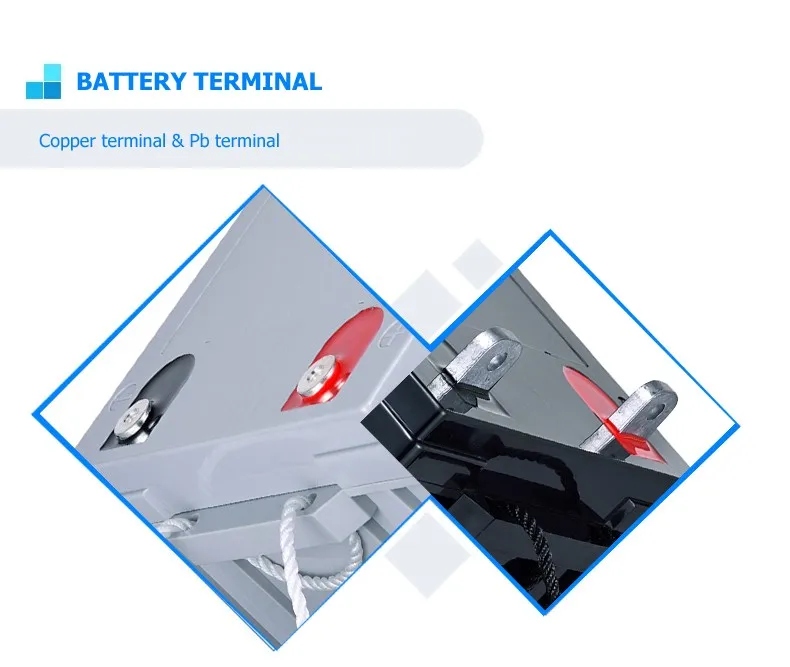

Terminal

T11

Cycle Charge

(Constant Voltage)

Initial Charging Current Less Than 80A

Voltage 14.40-14.80V (Time 14-16h)

Float Charge

(Constant Voltage)

Voltage 13.50-13.80V

Warranty

3 Years

OEM Service

Accept

Color

Black, Gray, white

Certificate

CE; ISO9001; MSDS
