Product Overview
Description

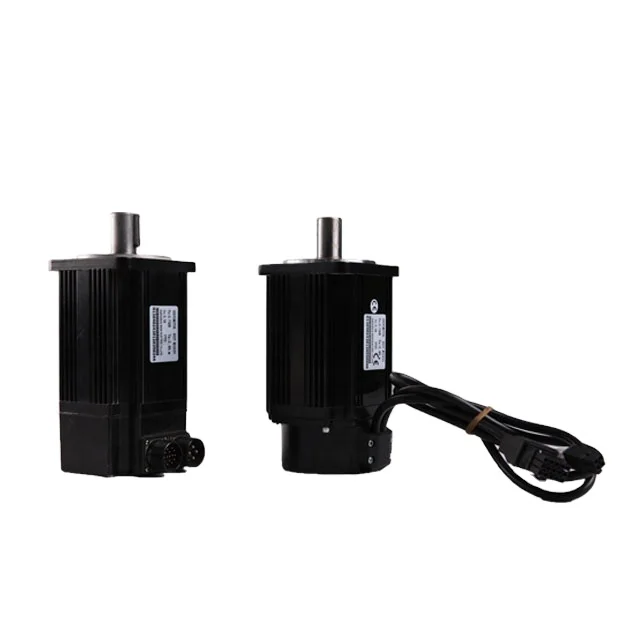

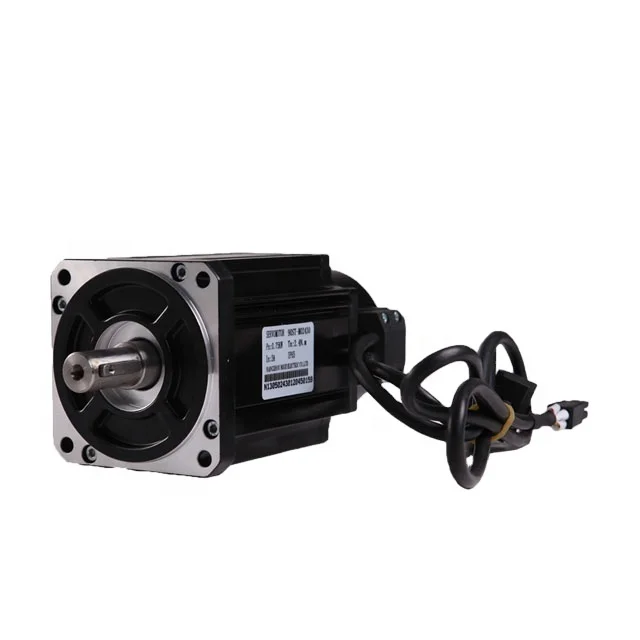

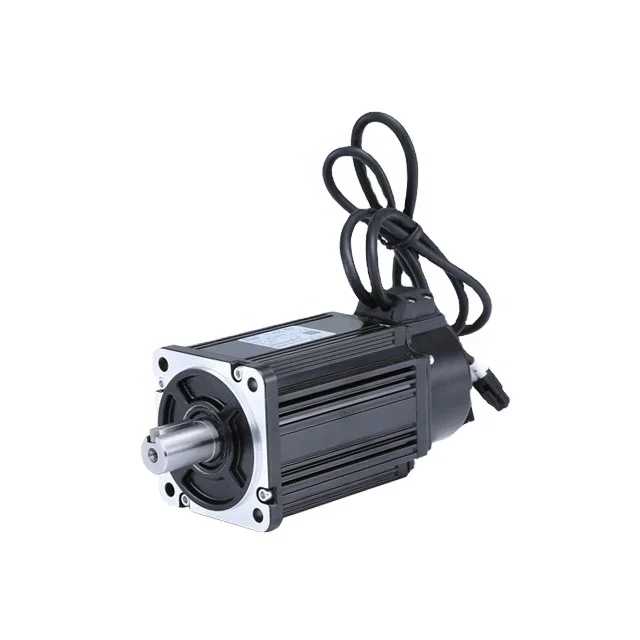

90mm 2500rpm 1kw ac servo moror for 3D printer cnc router
Motor model | 90ST-M04025 | |
Rated power(Kw) | 1.0 | |
Rated current(A) | 4 | |
rated speed(rpm) | 2500 | |
Rated voltage(v) | 220 | |
Rated torque(N.m) | 4 | |
Peak torque(N.m) | 12 | |
Voltage constant (V/1000r/min) | 60 | |
Moment coefficient(N.m/A) | 1.0 | |
rotor inertia(Kg.m2) | 3.7*10-3 | |
Resistance line-line (Ω) | 2.69 | |
Inductance line-line(m H) | 6.21 | |
Electrical time constant(ms) | 2.3 | |
Encoder line(PPR) | 2500 | |
Insulation class | Class F | |
Grade of Protection | IP65 | |
The operating of Evironmental conditions | Temperature | -20~ + 40 degree |
Humidity | Below 90%RH No dewing | |
Environment | Far away active gas,combustible gas, oil drop,ash. | |
FAQ
Q1. Are you factory?
Yes, we are factory and we produce stepper motor/driver, Servo motor/driver and spindle servo motor for more than 14 years in China. MIGE is our registered brand.
Q2. What are your products can be use to?
A: Our products can be use in CNC routers ,CNC milling machine ,engraving machine, packaging machine, filling machine, cutting machine, printing machine, laser machine, carving machine, labeling machine, textile machine and so on.
Q3: What kind of shipping methods do you use?
A:1)For samples or small batch , air shipping is recommended . (DHL,Fedex,TNT UPS ,EMS or Aramex) ,We will provide the tracking No. Once we get it after we ship out the products.
2)For mass production or big batch, ocean shippinga shipment is recommended .
Q4: What is the lead time of my products?
A: Lead time : For standard samples , 2-5 days will be OK .
For mass production , the lead time depend on the quantities you need .
Q5: What is your warranty time?
A:12 months. And we provide life-long technical service and after-sale service.
