Wholesale China Factory Automatic Grease Tube Filler Machine
- Category: >>>
- Supplier: Shanghai Boom Packaging Machinery Co. Ltd.
Share on (1600731156885):
Product Overview
Description
PRODUCT DESCRIPTION

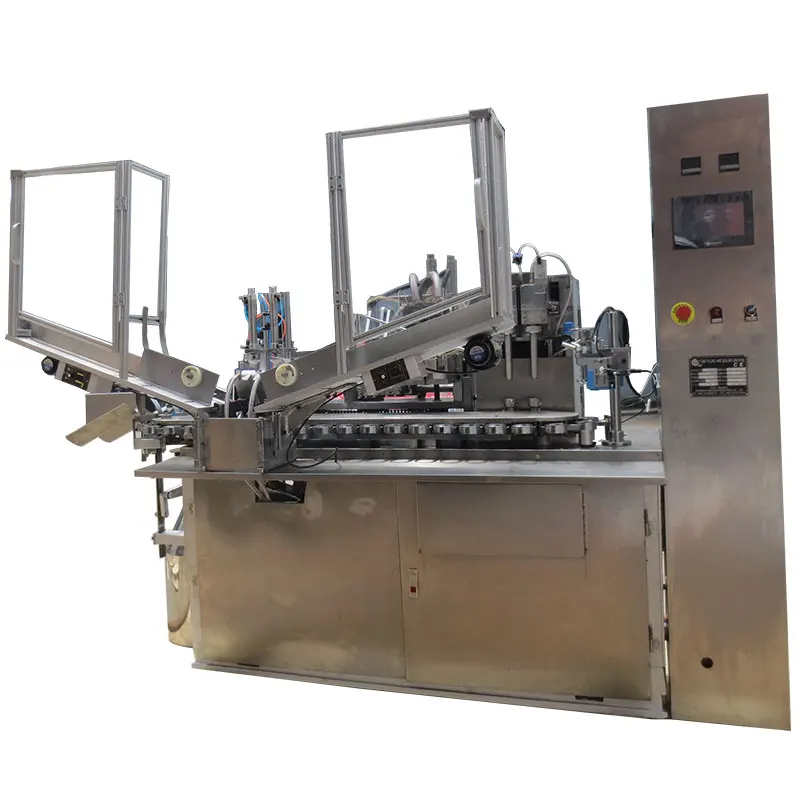

Wholesale China Factory Automatic Grease Tube Filler Machine
HTGF-100 Tube Filling Sealing Machine is a mechatronics mechanical-electrical integration, that uses multiple introduction technology and is controlled by PLC. It is widely used in toothpaste, ketchup, paste food, cosmetics, hair-dyeing paste, art palette, and industry. This also applies to the striped toothpaste filling, double color three-color, strip color clear, and lasting not dizzy catch, which is the best choice of the toothpaste factory.
SPECIFICATIONS
Parameters | Number Reference | ||
Item | Plastic Tube | Metal Tube | |
Sealing Type | Heating Sealing | Folding | |
Max Power | 7.5KW | 1.5KW | |
Model | HTGF-100 | ||
Productivity | 80-100pcs/min | ||
Tube Length | 50-230mm (customized) | ||
Tube Diameter | 11-38mm (change molds) | ||
Filling Volume | 5-200ml (change pump) | ||
Filling Accuracy | ±1% | ||
Voltage | AC380V/220V, 50Hz/60Hz | ||
Machine Dimension | 2150*1100*2100mm(L*W*H) | ||
Machine Weight | About 1300KGS | ||
FEATURES AT A GLANCE
HTGF-100 Tube Filling Machine Features
1. Anti-Leak: filling nozzle deep into the inside of the tube when filling, there is an end cap inside of the filling head, and also it has air blow after filling.
2. Stainless steel volumetric dozing syringe and Teflon piston seals for accurate dosage.
3. Hot air tool for plastic / laminated tubes (Leister make heater).
4. The machine speed control by converter control, can be adjustable.
5. Filling volume can be adjustable by hand wheel adjustment, it is convenient.
6. Preset counter.
7. No−Tube−No−Fill system.
2. Stainless steel volumetric dozing syringe and Teflon piston seals for accurate dosage.
3. Hot air tool for plastic / laminated tubes (Leister make heater).
4. The machine speed control by converter control, can be adjustable.
5. Filling volume can be adjustable by hand wheel adjustment, it is convenient.
6. Preset counter.
7. No−Tube−No−Fill system.
