paddy grain drying machine/rice milling

Product Overview

Description

Paddy Dryer Machine Applicable Materials:

Paddy Dryer Machine is suitable for efficient drying all cereals, such as grains, corn, wheat, rice, soybean, sorghum, rapeseed, cashew, barley, etc. It is suitable to all kinds of farm.

Paddy Dryer Machine Feature:

Low speed mixing, anti-broken elevator, grain broken rate low, good drying quality

Vertical large-size four-slot and large amount of air drying layer with high drying efficiency

Automatic intelligent electronic control system, the operation is easier

Optional imported online grain moisture meter to achieve accurate detection of grain moisture

Multiple heating method and fuels options with low drying costs

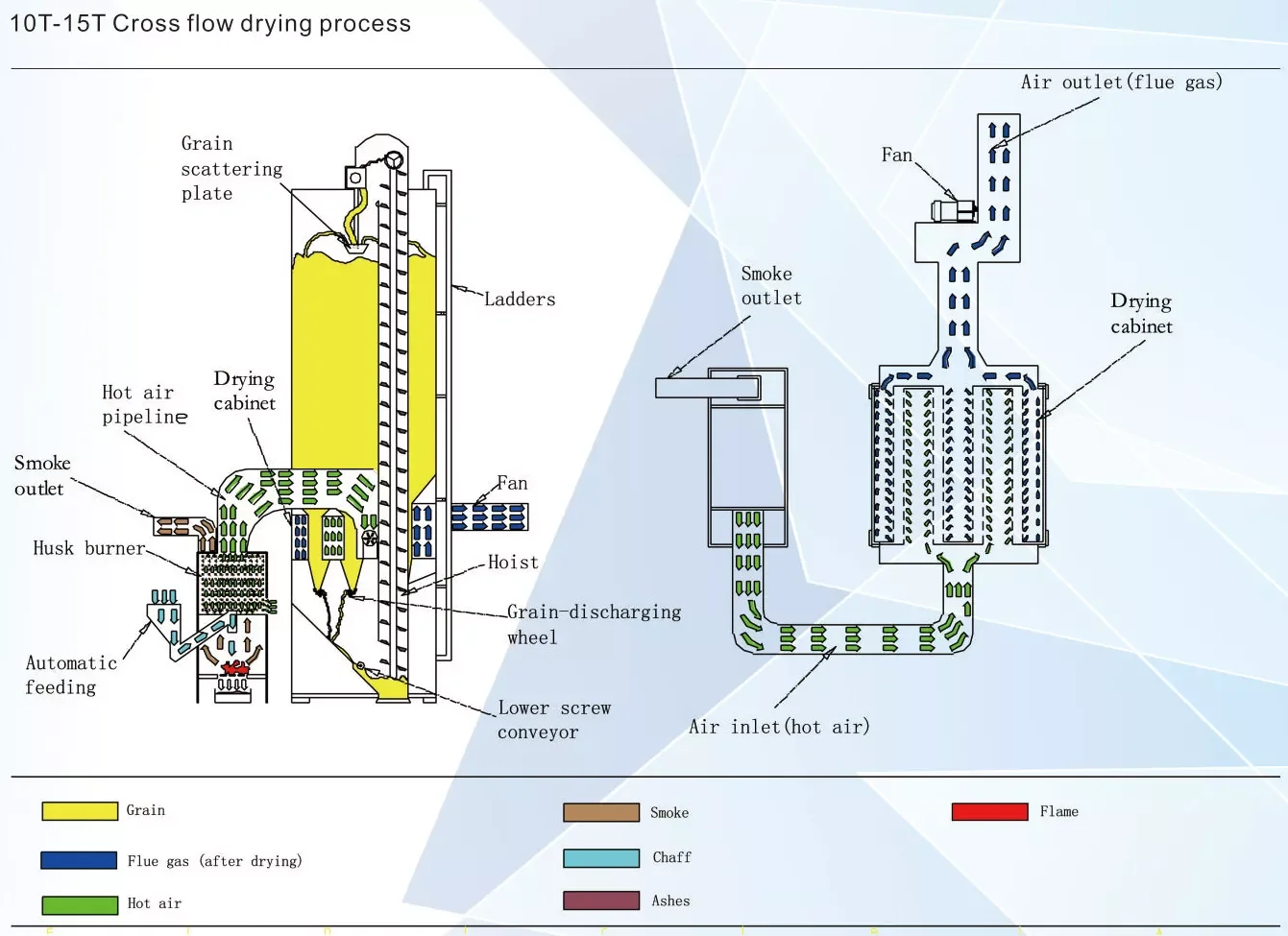

Paddy Dryer Machine Working Principle:
1. Paddy Loading

The Paddy is raised to the top of the main engine silo through the hoist, and the grain is put into the drying box through the agitating device until it is full.

2. Running:

The elevator is running all the time. When the Paddy reaches the bottom under the action of self-weight, the elevator raises the Paddy to the top and dries slowly from top to bottom

3. Drying:

The hot air passes through the drying layer horizontally. The grain is fully contacted with the drying layer after heating, and achieved drying effect.

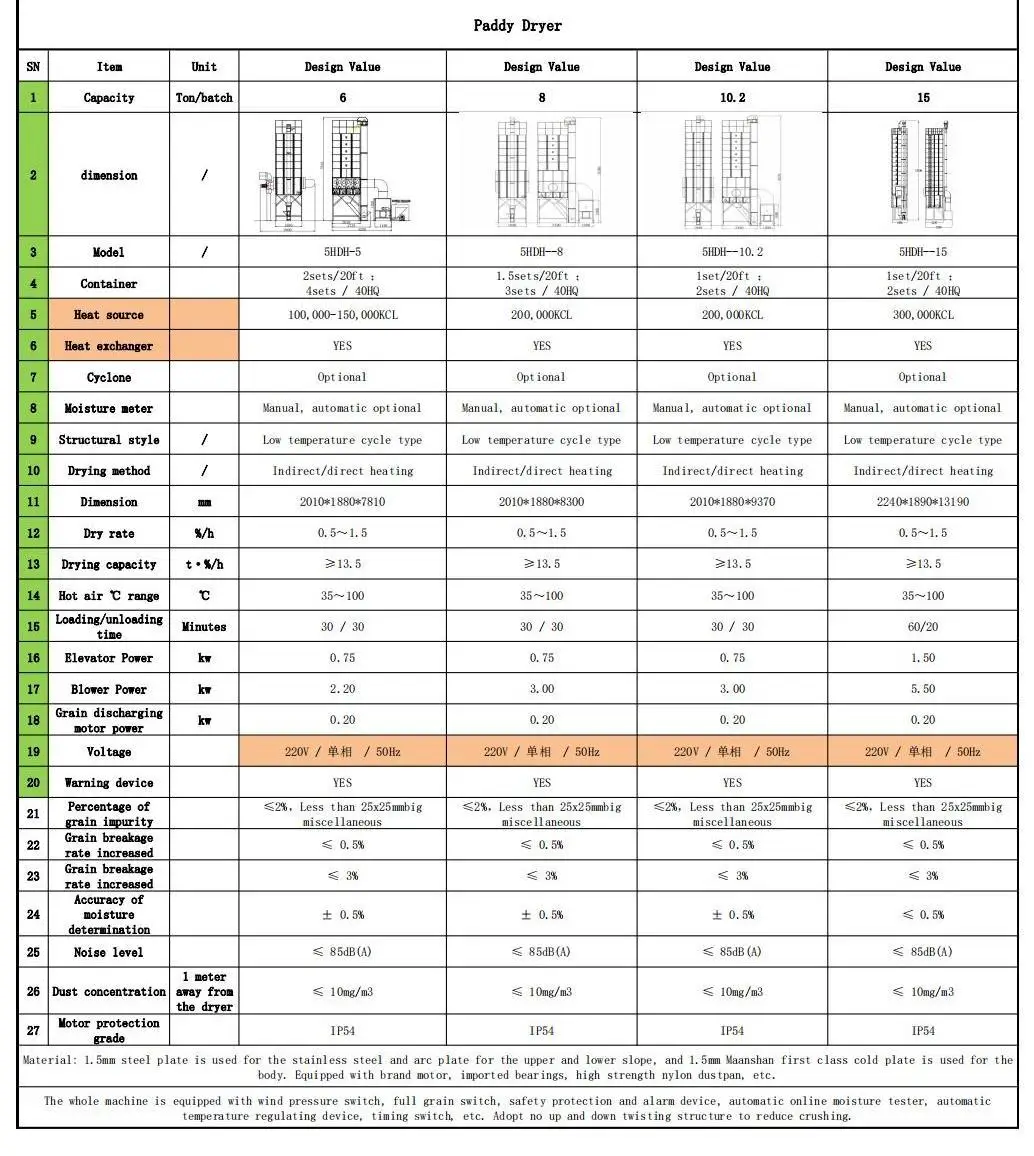

Technical Parameters:



Contact Number:

whatsApp/Wechat:008615391623988.

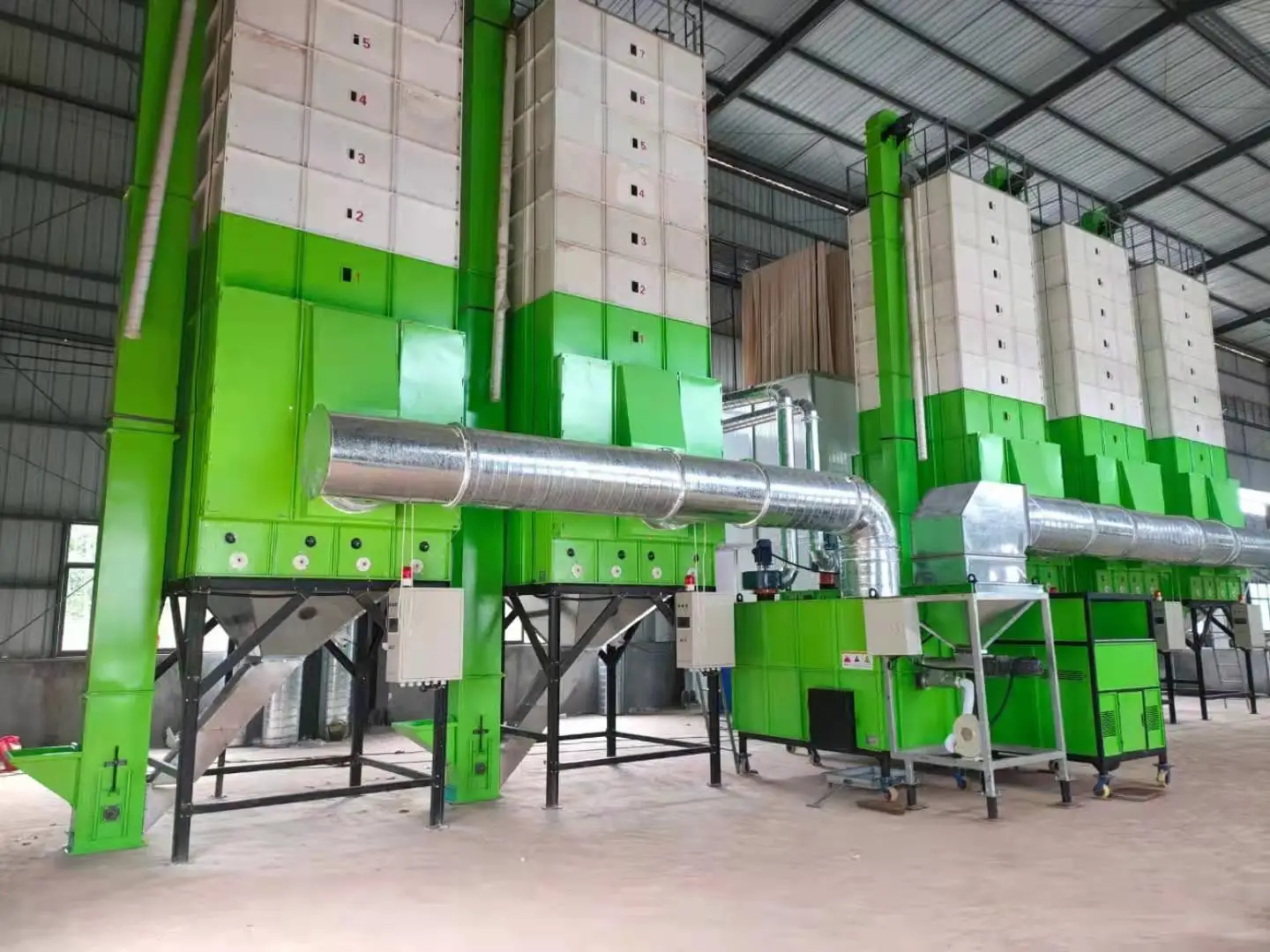

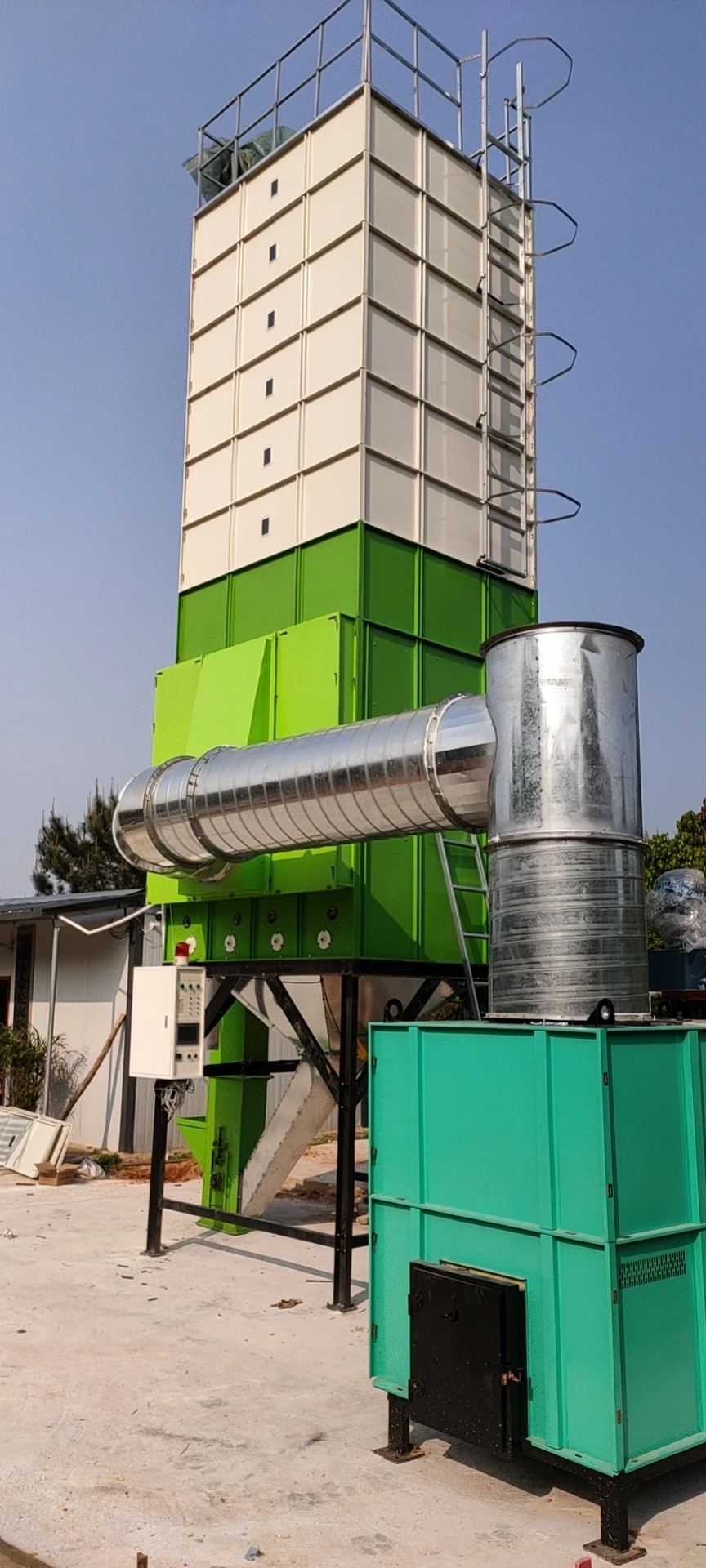

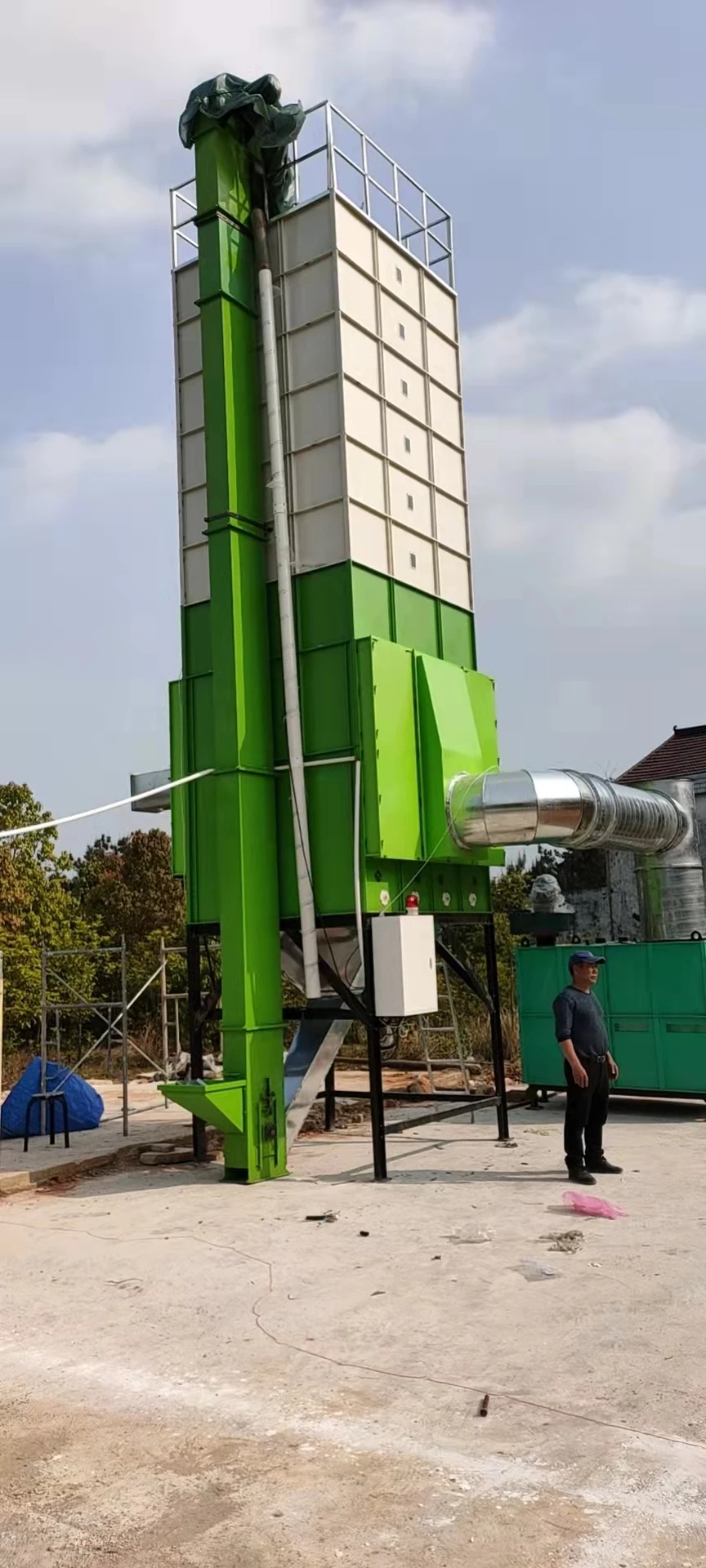

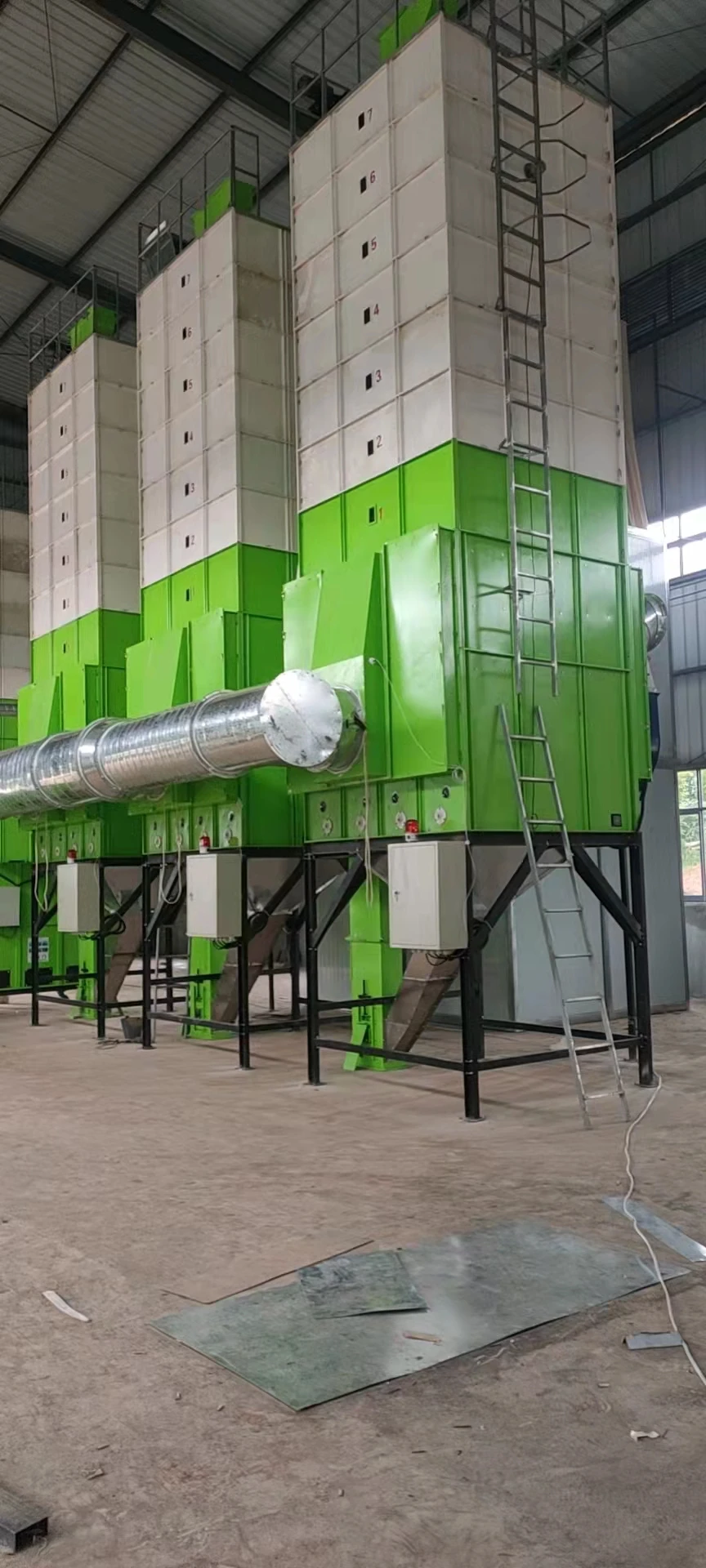

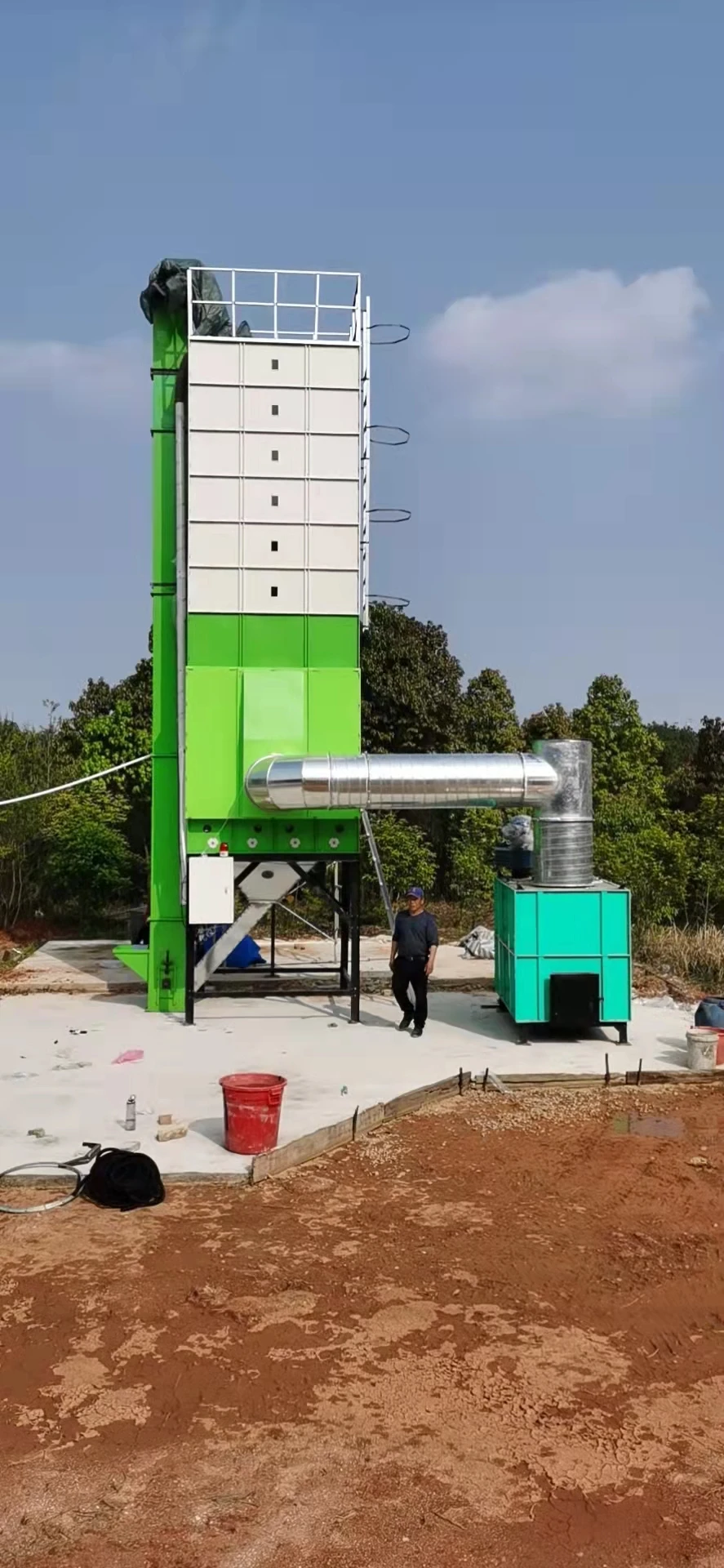

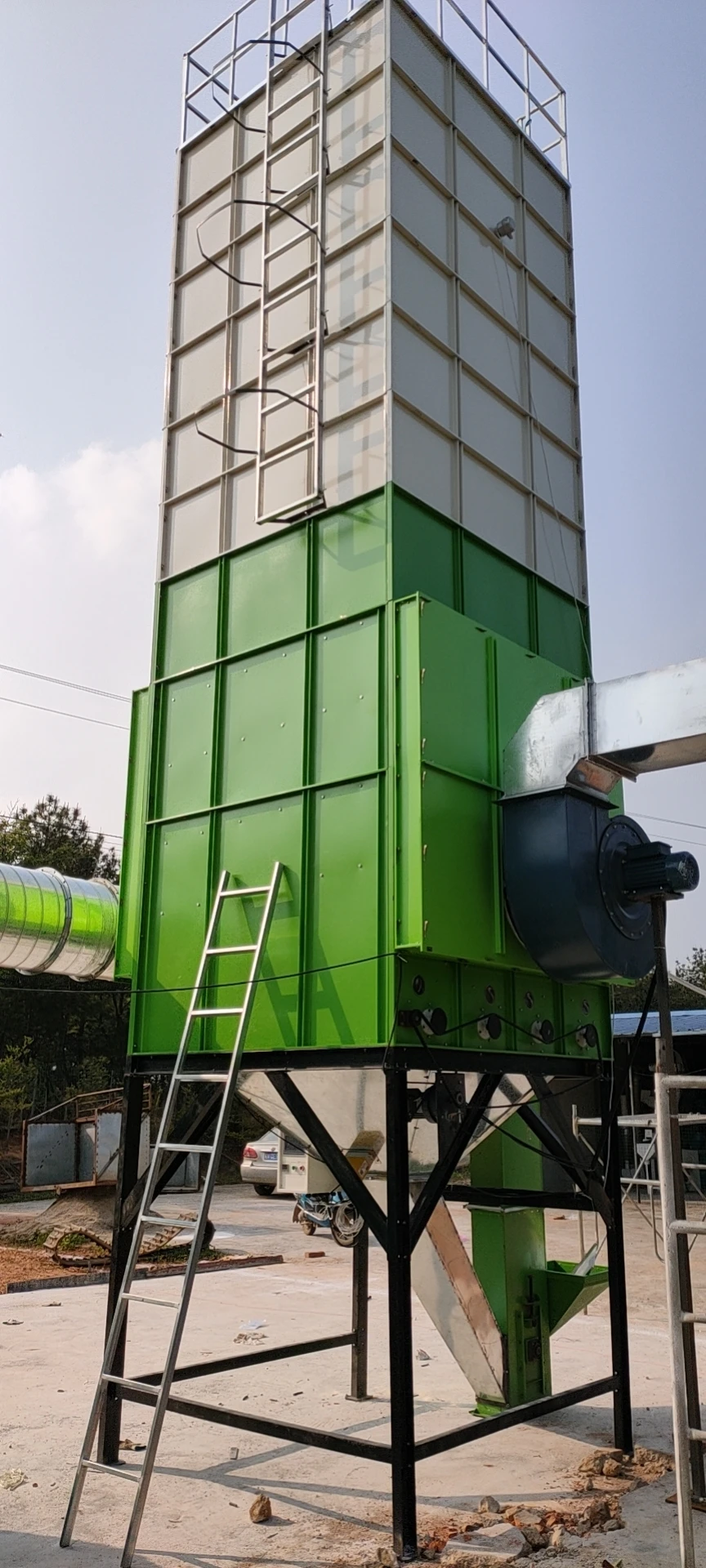

Machine Photoes:

High Quality Low Temperature Dryer Made in China / Rice Dryer / Small Grain Dryer / Grain Dryer
1. Multi-functional design which is applied to paddy, wheat, corn, soybean, rapeseed and other seeds. The dryer adopts indirect heating which is non-pollution and can remove the dust in the grain.
2. Adopt the circulation low drying technique which can improve the drying speed and quality.
3. New unloading design to avoid blocking, leakage, remaining of the grain and/or other seeds.
4. The grind proof design adopts a plate for scattering the grain in the top of the dryer. The blade of the plate is circular
which is processed with shape.
5. There is a short contact time between the grain and the plat, so it does not need too much driving power, which can radically solve the cracking and grinding problems.
6. The grain has increased crack percentage will be less than 1% and increased grinding rate will be less than 0.1%, which both superior to the international standard.

Advantages of the Dryer:
1. High quality grain / wheat / rice / corn and other seeds after drying for better selling at good price.
2. Large capacity, high efficiency and the cheapest product in the market.
3. Low drying cost, long service lift, easy operation and maintenance.
4. Full-automation in feeding, conveying, drying, moisture control and optional bagging after drying.
5. Advanced product layout and nice appearance.
