Прозрачный стеклянный боросиликатный плоский датчик уровня DIN7081 на заказ
- Category: >>>
- Supplier: Hengshui Aohong Special Glass Manufacturing Co. Ltd.
Share on (1600731249964):
Product Overview
Description
Product Description

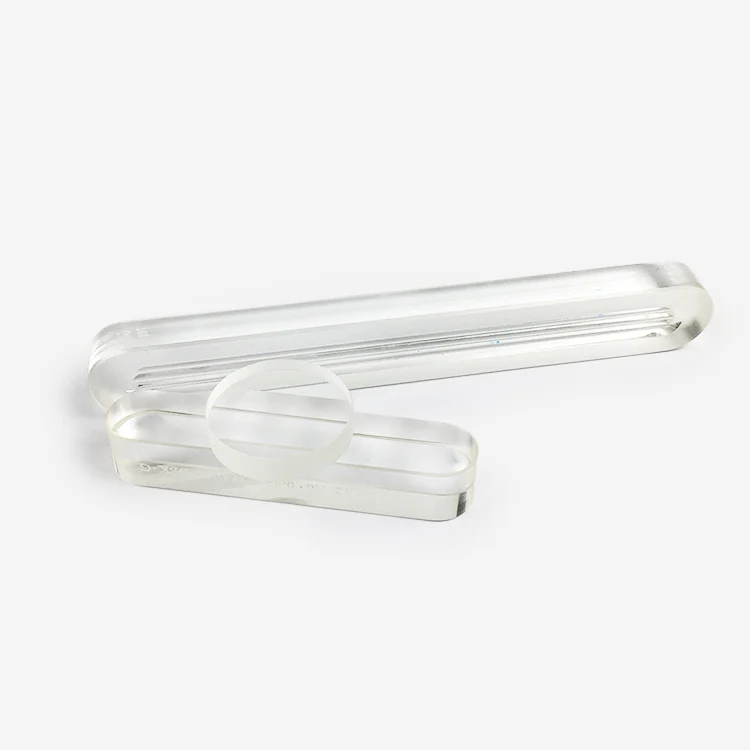

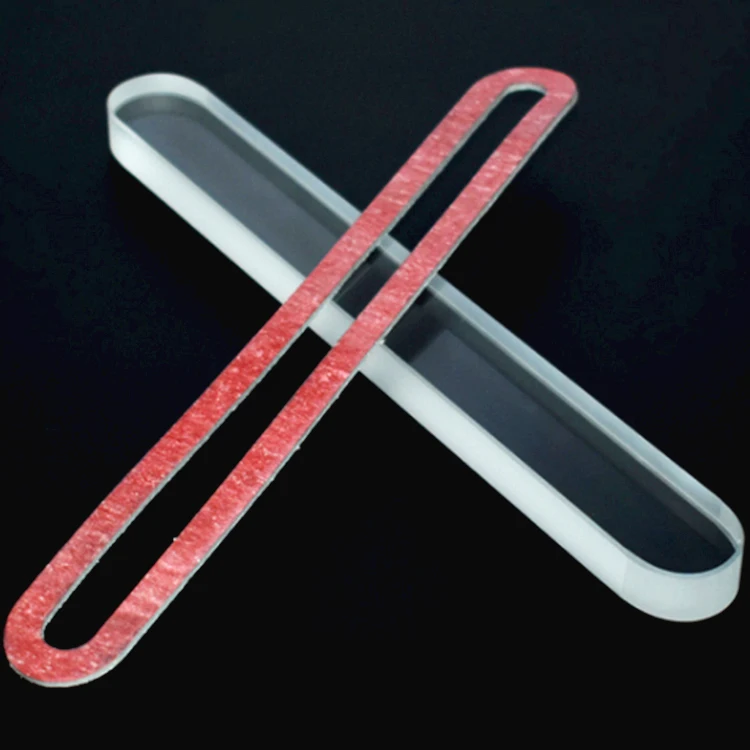

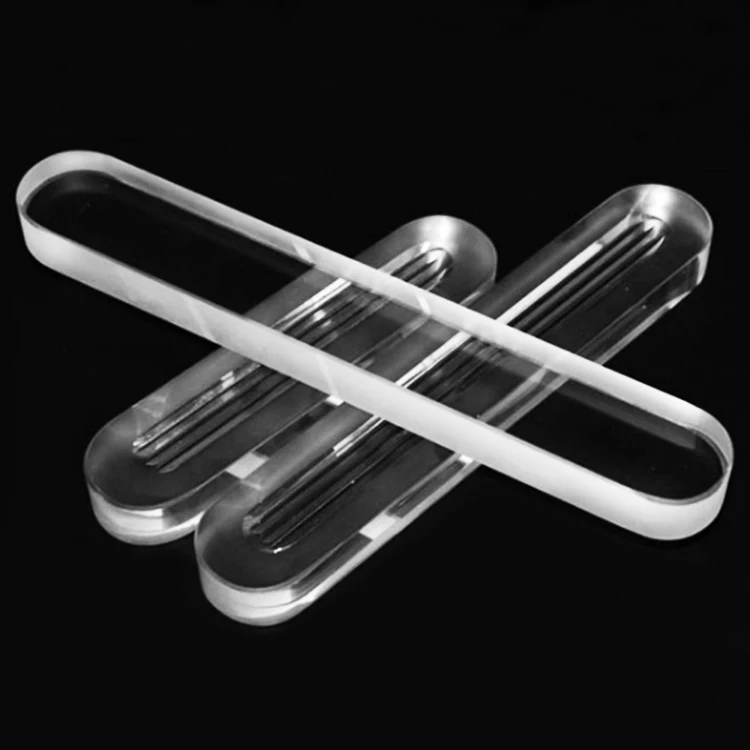

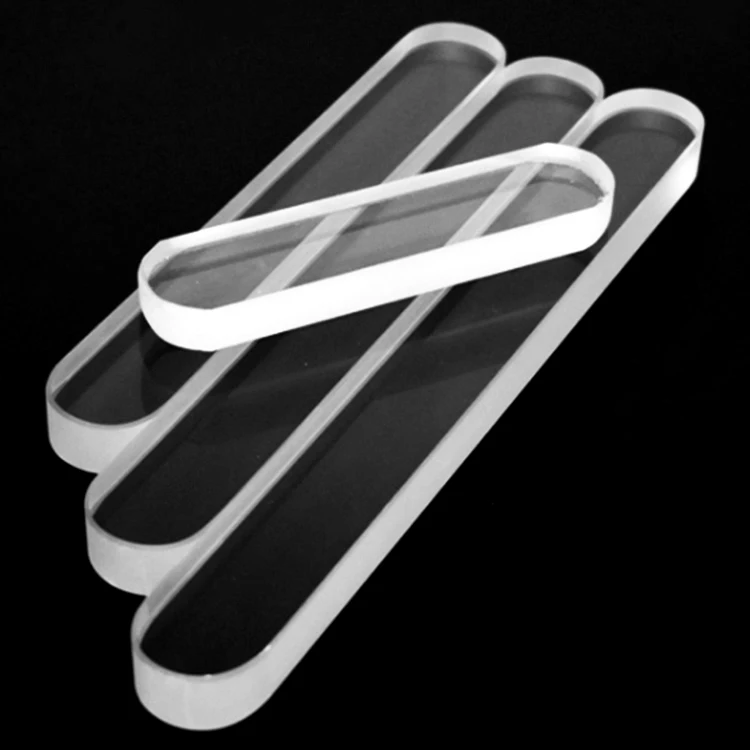

Transparent Level Gauge
Transparent level gauge glass are also manufactured from "extra-hard" borosilicate glass. The surfaces on both sides are finely smooth and ensure optimal transparency. Now we have two kinds manufacturing technique:
1.One is as same with reflex Gauge Glasses, use molds to make the semi-finished products, afterwards, ground and polish the two side to ensure optimal transparency. But by this manufacturing technique, the definition isn't good.2.The other manufacturing technique is: At first, we manufacture 17mm thickness glass sheet, then cut the glass sheet according the detailed size and polish the side face for the smooth. This manufacturing technique glass is very clear, but the goods cost is higher.
It can be used with all media except steam at service conditions up to 6MPa and temperatures up to 260 °C.

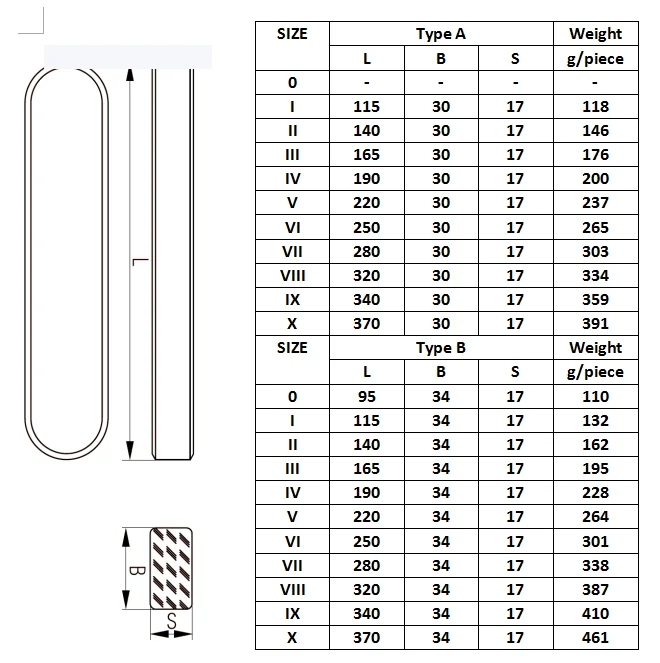

Size | Type A | ||||
L | B | S | |||
0 | 95 | 30 | 17 | ||
1 | 115 | 30 | 17 | ||
2 | 140 | 30 | 17 | ||
3 | 165 | 30 | 17 | ||
4 | 190 | 30 | 17 | ||
5 | 220 | 30 | 17 | ||
6 | 250 | 30 | 17 | ||
7 | 280 | 30 | 17 | ||
_ | 300 | 30 | 17 | ||
8 | 320 | 30 | 17 | ||
9 | 340 | 30 | 17 | ||
Size | TypeB | ||||
L | B | S | |||
0 | 95 | 34 | 17 | ||
1 | 115 | 34 | 17 | ||
2 | 140 | 34 | 17 | ||
3 | 165 | 34 | 17 | ||
4 | 190 | 34 | 17 | ||
5 | 220 | 34 | 17 | ||
6 | 250 | 34 | 17 | ||
7 | 280 | 34 | 17 | ||
- | 300 | 34 | 17 | ||
8 | 320 | 34 | 17 | ||
9 | 340 | 34 | 17 | ||
10 | 370 | 34 | 17 | ||
11 | 400 | 34 | 17 | ||
12 | 420 | 34 | 17 | ||

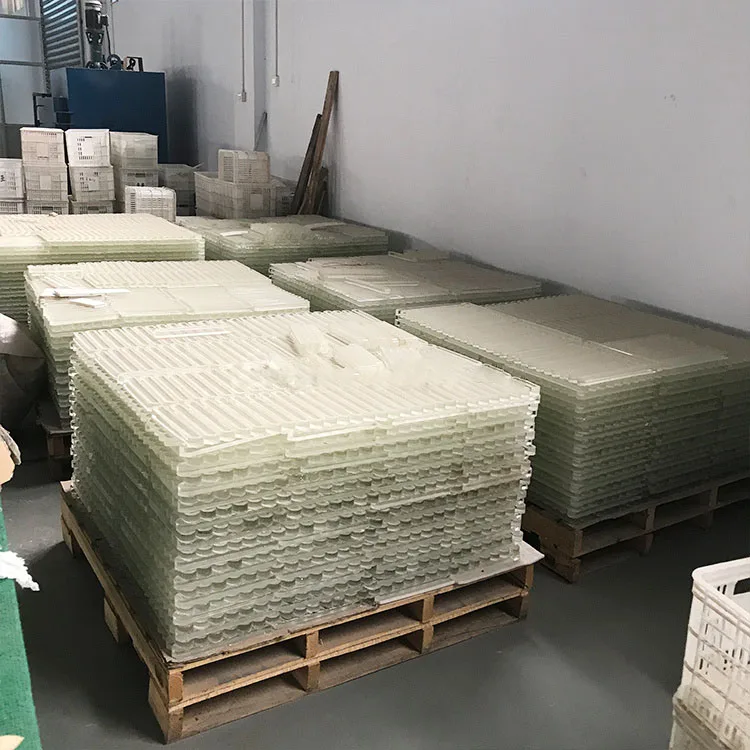

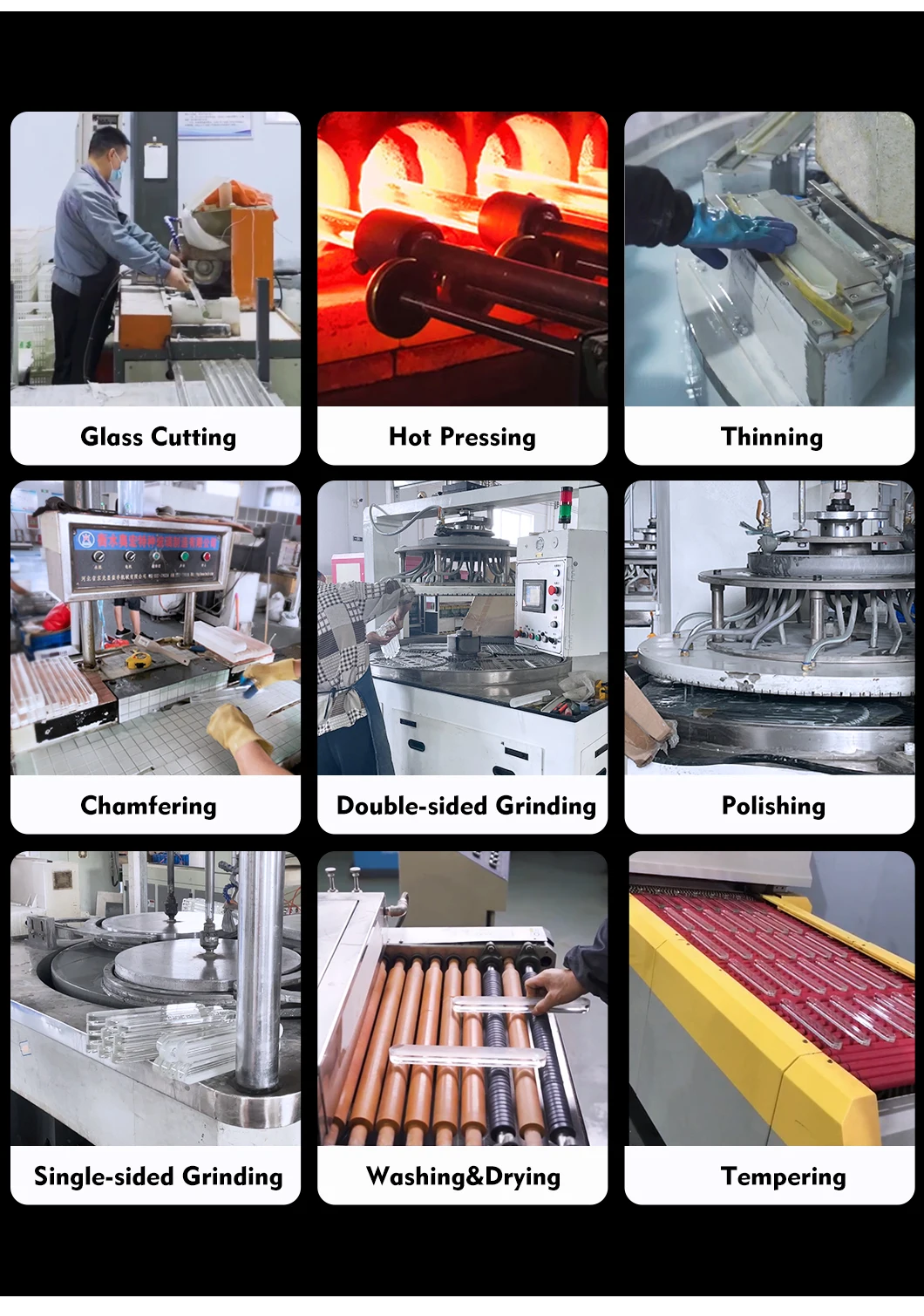

Production Process

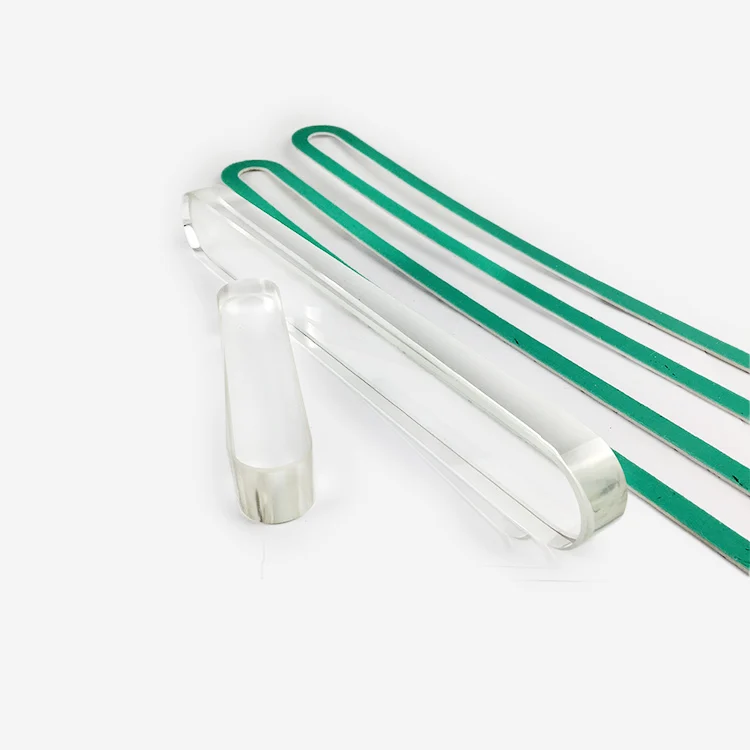

Product Display
Related Products
Company Profile
Hengshui Aohong Special Glass Manufacturing Co., Ltd.is an industrial company with an integration of industrial production and trade.
Our company specializes in producing level gauge glasses (plane,reflex),quartz glass products,etc
All of our products sell well in both domestic and international markets.
We have professional team，which can provide careful and meticulous service.
Our company specializes in producing level gauge glasses (plane,reflex),quartz glass products,etc
All of our products sell well in both domestic and international markets.
We have professional team，which can provide careful and meticulous service.
Certificates and Logistics

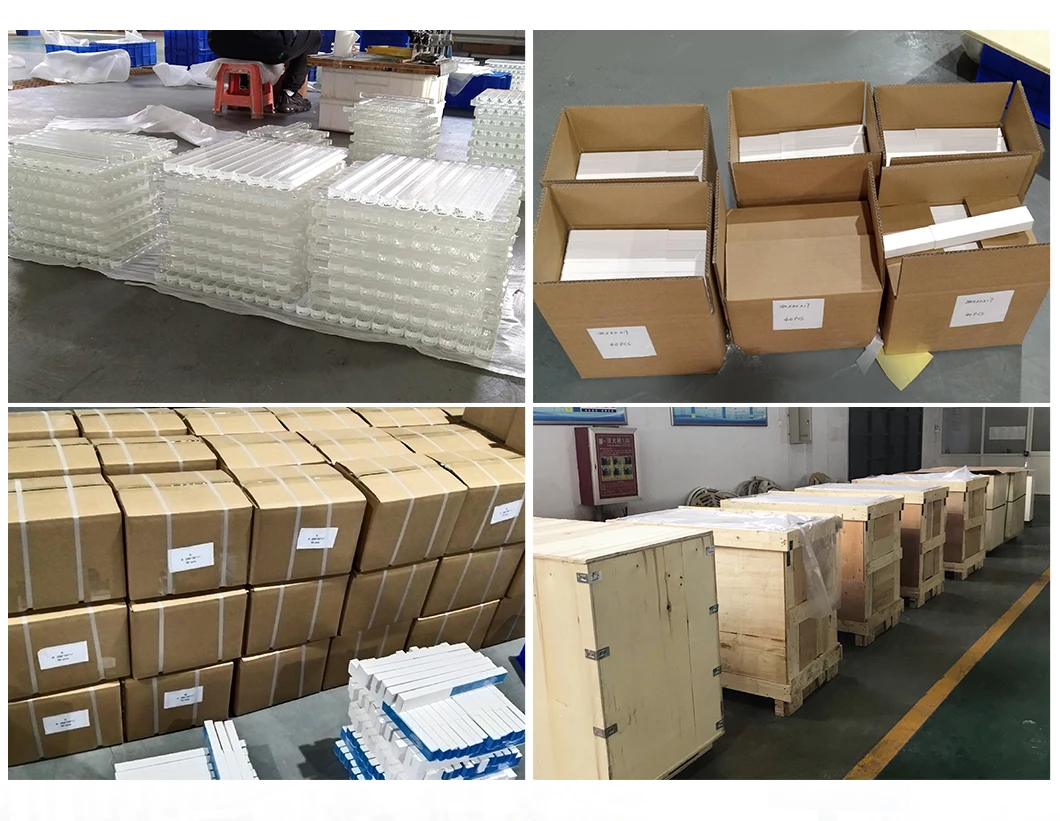

Packing
FAQ
Q: Are you factory, or only a trading company?
A: Factory, and our factory is located in Taocheng District, Jing county, Hengshui, Hebei
Q:Could I get some samples, and how?
A: No problem, we provide free samples, and it is only needed for you to pay for the shipping charge, your courier account is also ok(such as DHL).
Q: Can you give me some discount?
A: Usually the discount depends on the quantity. However we can discuss it.
Q: What's the payment terms?
A: Our normal practice: 30% deposit of total amount before production, and 70% balance payment before shippment. However this is open for discussion.
A: Factory, and our factory is located in Taocheng District, Jing county, Hengshui, Hebei
Q:Could I get some samples, and how?
A: No problem, we provide free samples, and it is only needed for you to pay for the shipping charge, your courier account is also ok(such as DHL).
Q: Can you give me some discount?
A: Usually the discount depends on the quantity. However we can discuss it.
Q: What's the payment terms?
A: Our normal practice: 30% deposit of total amount before production, and 70% balance payment before shippment. However this is open for discussion.
