Solidpack filling capping machine oil 1L bottle edible oil packing machine automatic
- Category: >>>
- Supplier: Beijing Solid Packing Machinery Co. Ltd
Share on (1600731275835):
Product Overview
Description
Our Advantages
Specification
Material | SUS304 and SUS316L | ||||||||
Filling heads | 4 | 6 | 8 | 10 | 12 | ||||
Filling range | 10-100ml/ 30-300ml/ 50-500ml/ 100-1000ml/ 250-2500mml/ 300-3000ml/ 500-5000ml (600-6000ml can be tailor made) for edible oil packing machine automatic | ||||||||
Filling speed (bottles/ hour & based on 500ml bottle) | 2000-2500 | 2500-3000 | 3000-3500 | 3500-4000 | 4000-4500 | ||||
Filling precision | ±0.5-1% | ||||||||
Power | 220/380V 50/60Hz 1.5Kw (Can be tailor made to suit different countries) | ||||||||
Air pressure | 0.4-0.6Mpa | ||||||||
Machine size (L*W*Hmm) | 2000*900*2200 | 2400*900*2200 | 2800*900*2200 | 3200*900*2200 | 3500*900*2200 | ||||
Weight | 450Kg | 500Kg | 550Kg | 600Kg | 650Kg | ||||
Product Description

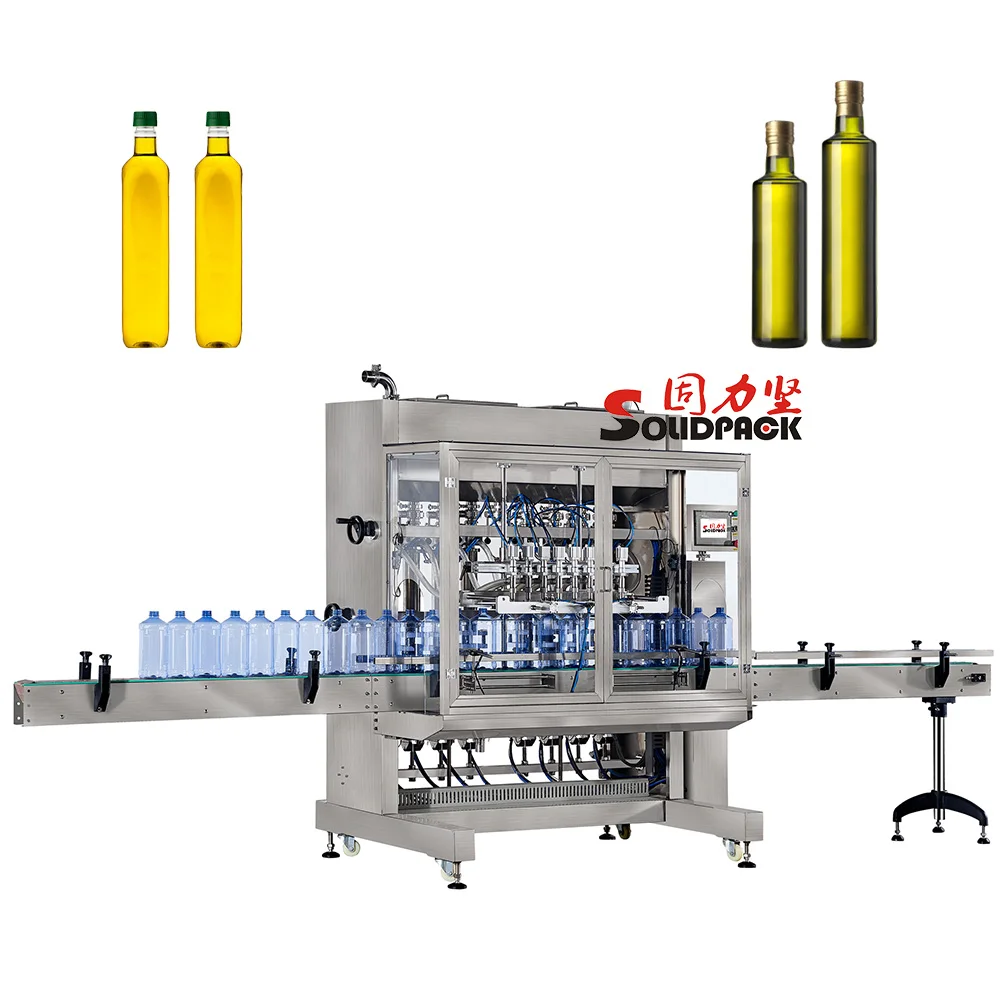

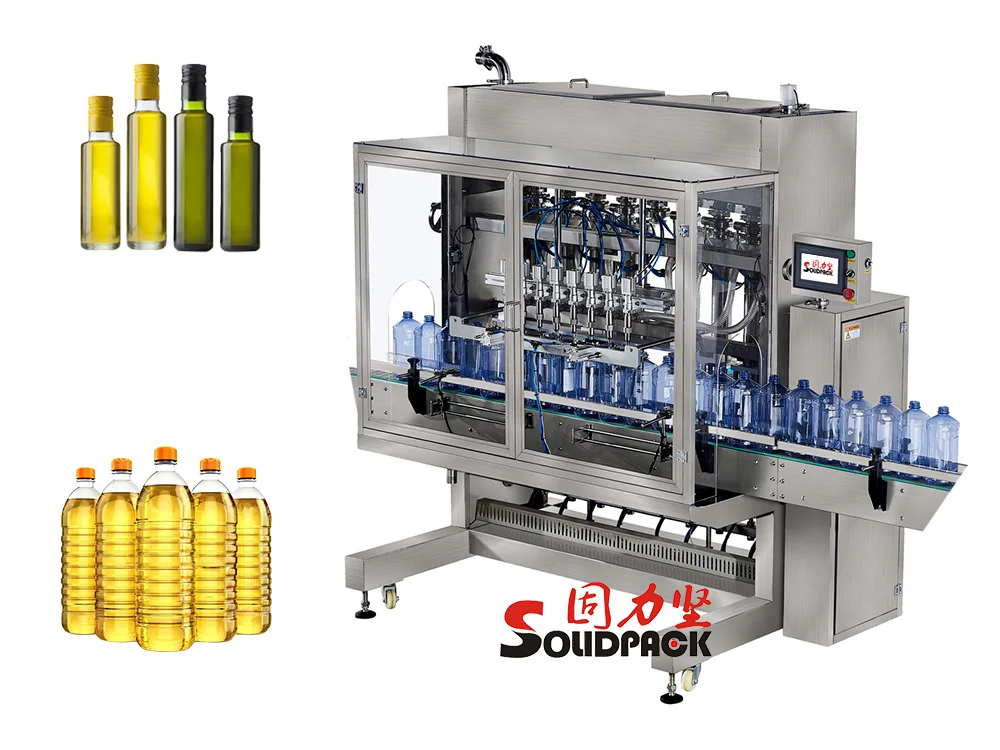

Edible Oil Packing Machine Automatic
The machine can be made with 4 filling heads/ 6 filling heads/ 8 filling heads/ 10 filling heads/ 12filling heads ,16 filling heads, 18 filling heads etc, according to the filling capacity customers needed.
Machine adopts Panasonic servo motor to drive piston pumps, with high speed and high filling accuracy
Can be adapted to different bottles of customers.
Machines can be made according to customer's filling capacity
Edible Oil Packing Machine Automatic Front Side Introduction:
Edible Oil Packing Machine Automatic Back Side Introduction:

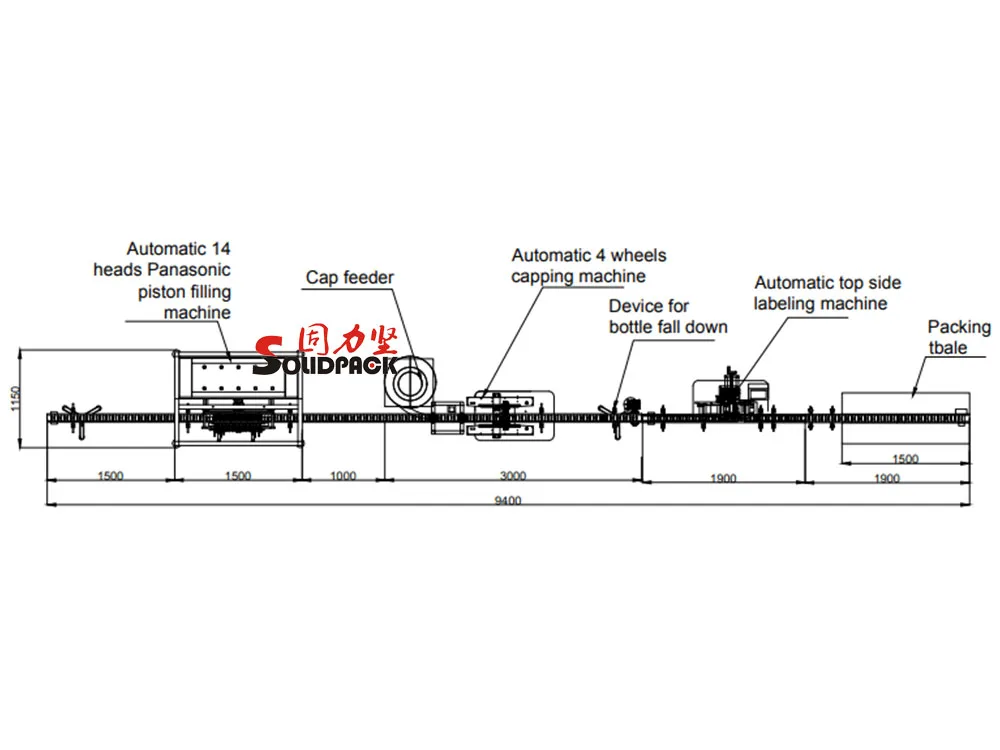

Edible Oil Packing Machine Automatic Whole Line Layout:
The overall layout of the filling and etiquette sunflower oil machine can be customized and designed for the customer according to the customer's plant area and the customer's placement of the machine.
Edible Oil Packing Machine Automatic Details Show

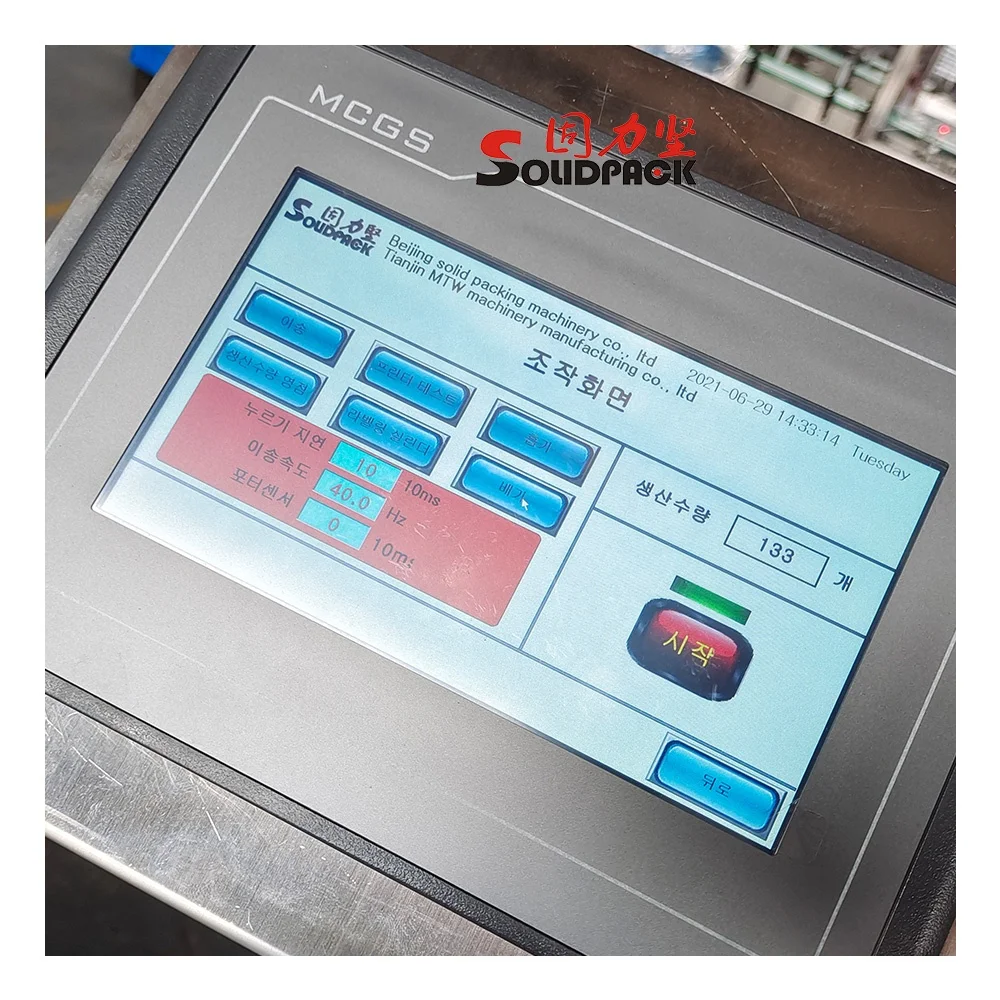

This is the PLC of cooking oil filling machine.The touch screen system can set different parameters to facilitate you to better operate the machine.
Our company can set the system interface into languages of different countries according to your requirements
Our company can set the system interface into languages of different countries according to your requirements

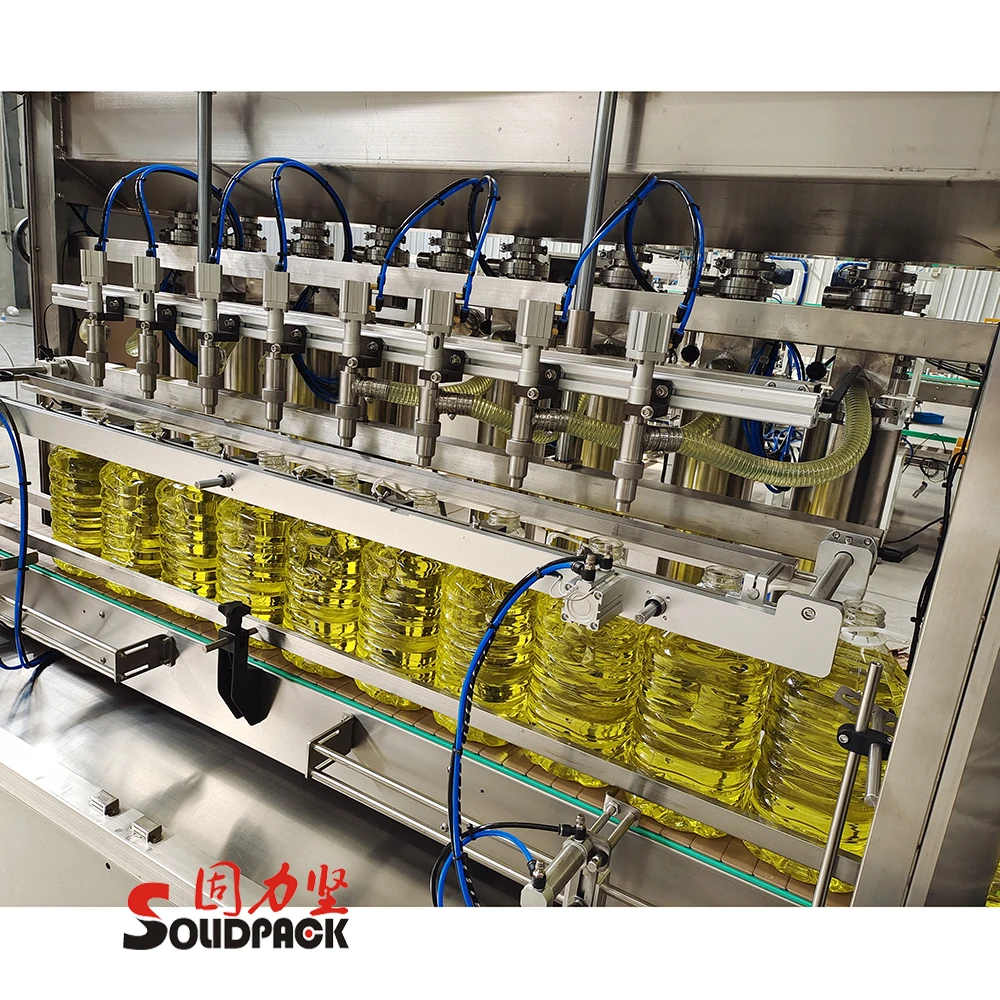

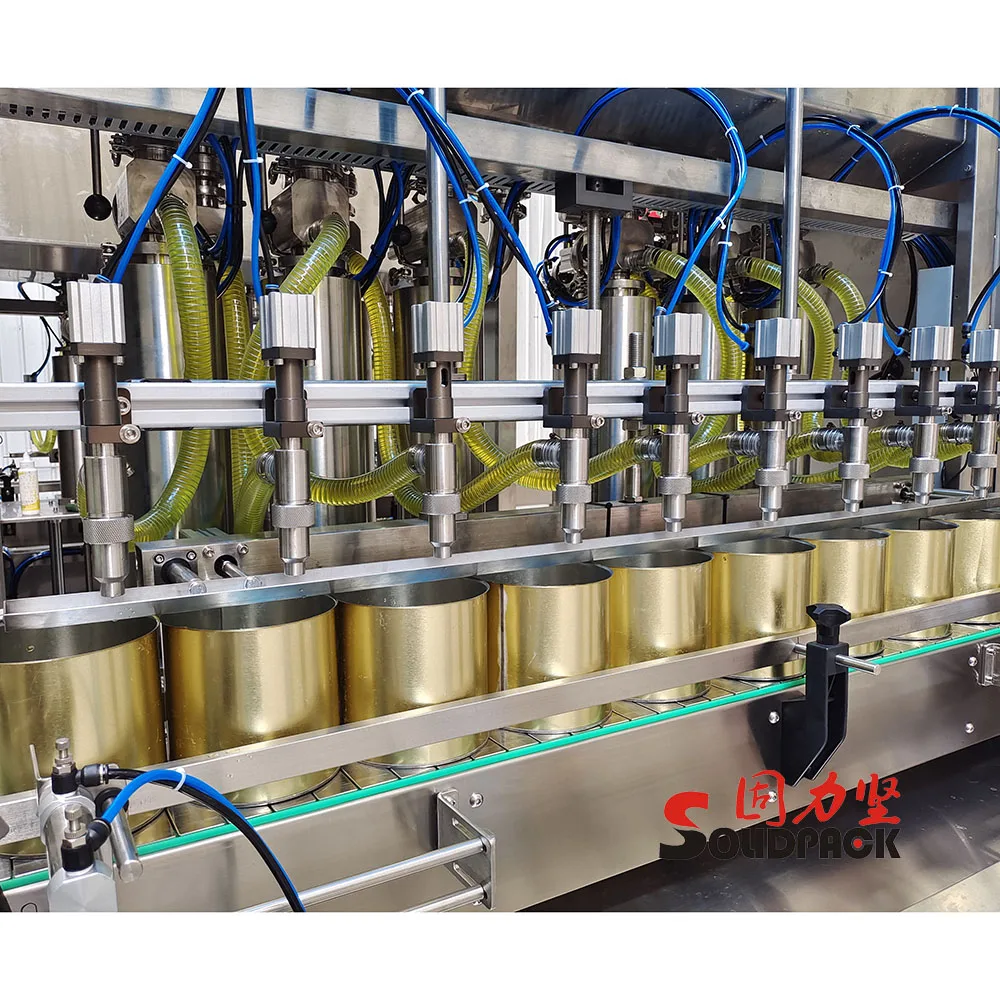

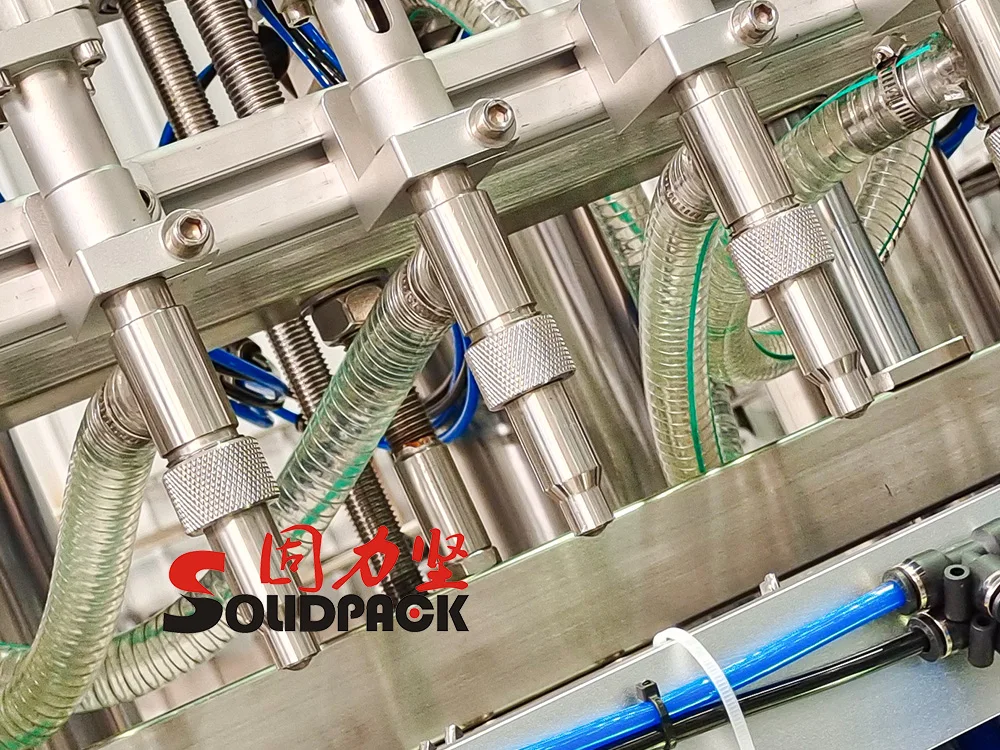

These are filling heads of cooking oil filling machine. the filling heads all have anti-drop function,Prevent liquid dripping and keep the machine clean.the filling heads all can adjustable up and down,left and right to fit customers needs.

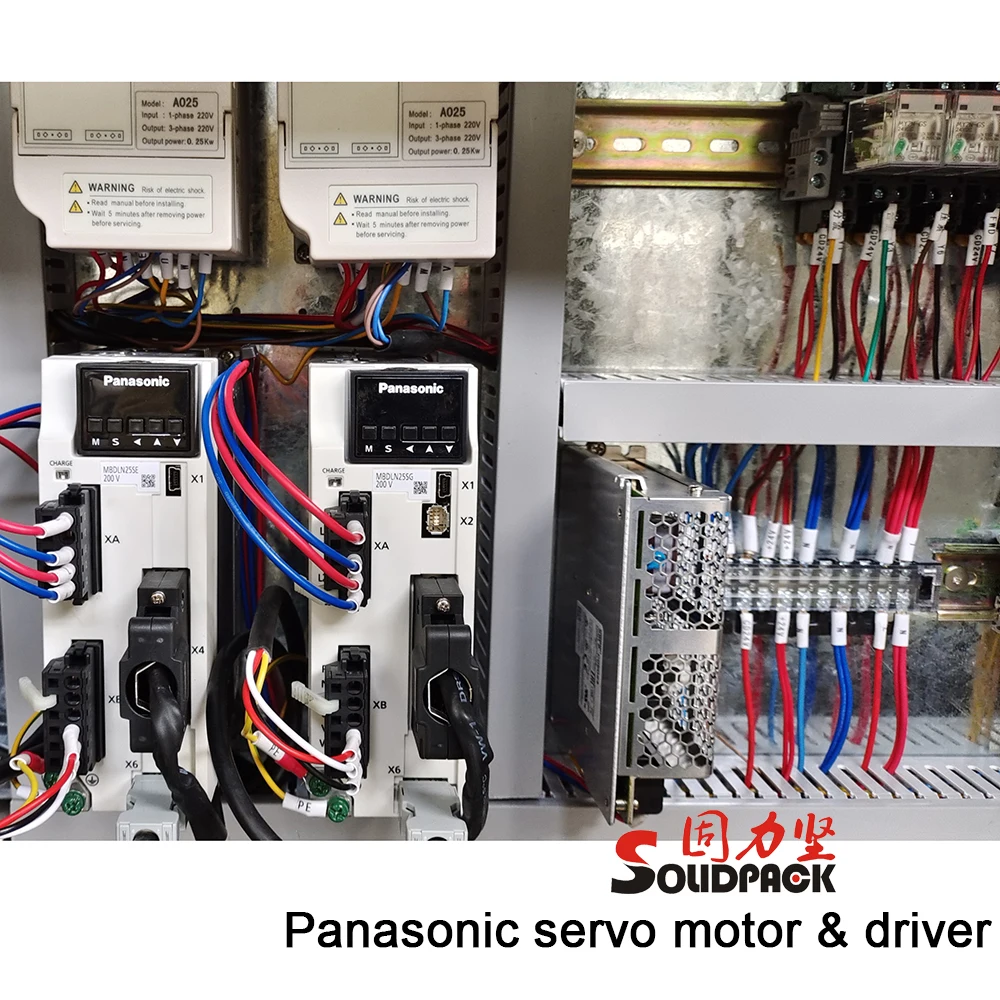

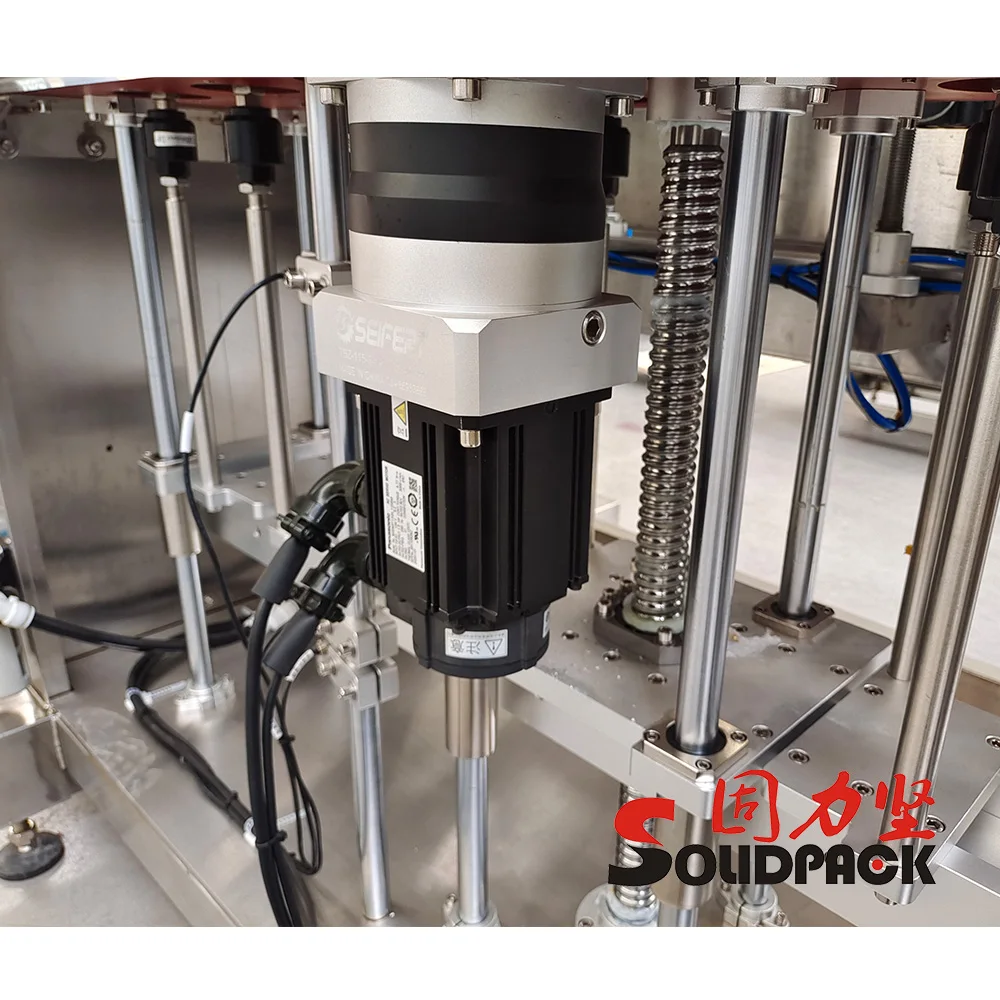

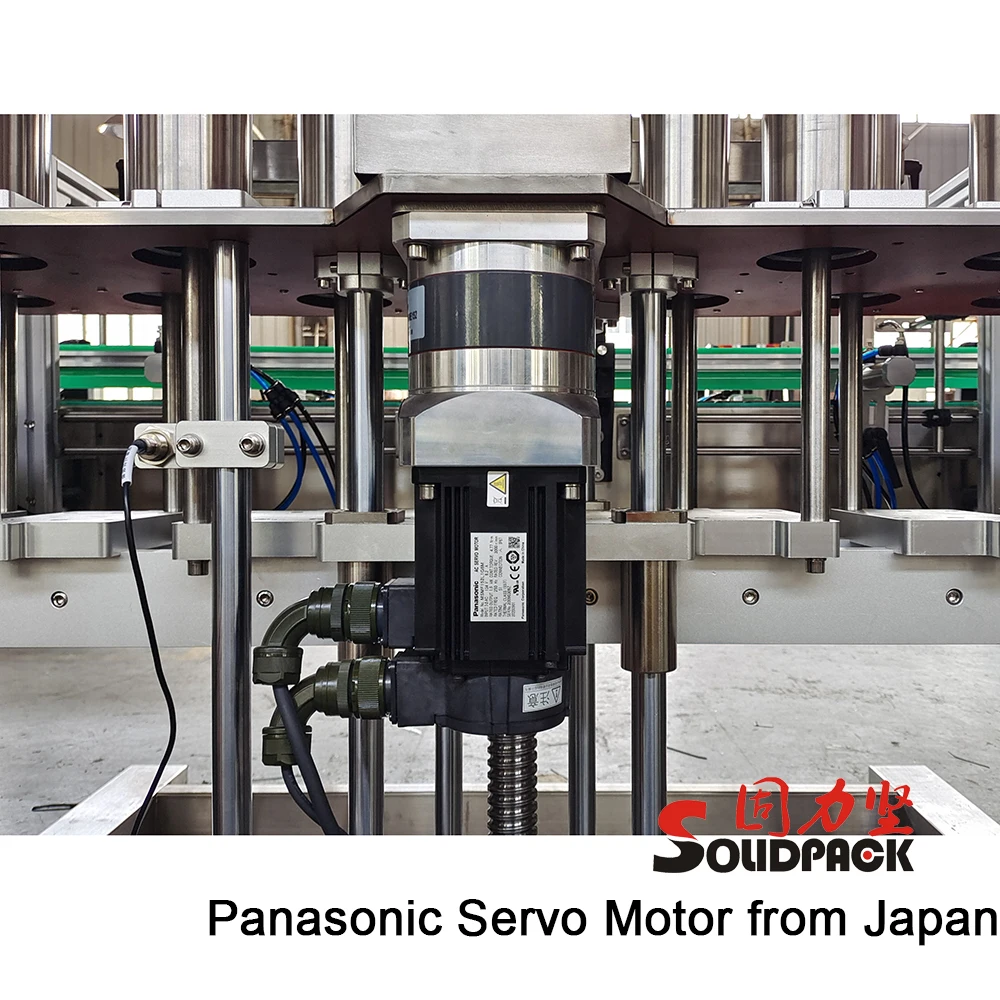

This cooking oil filling machine use Panasonic servo motor. this motor is high quality, good performance, fast speed and high efficient！help customers save costs and increase productivity.

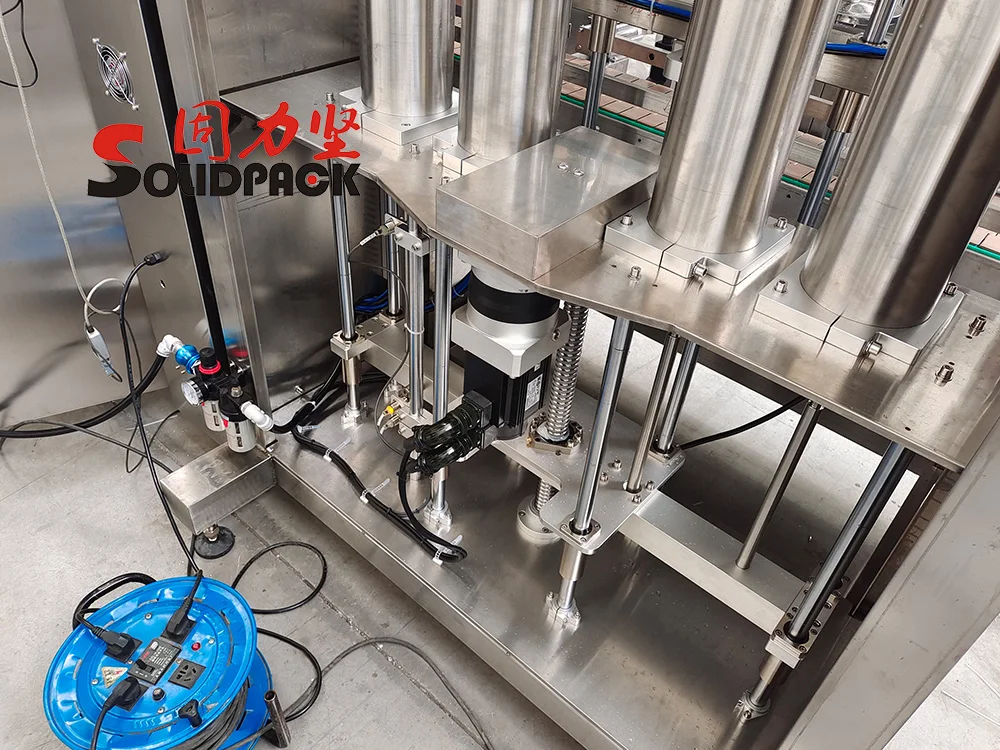

These are piston pump of the cooking oil filling machine. the machine use these to account the filling value.this can making according customer's filling range, very precise and efficient.
Transaction process
Company Profile
Our company is a professional manufacturer of all kinds of packing machines,including: filling machines, sealing machine, capping machines, labeling machines etc
We supply all kinds of bottle packing machines for food industry, chemical industry, pharmacy industry, etc.Our company has been established for ten years.
We are good at designing and tailor-making products. Solid pack makes more perfect packing, and more efficient production
So much stock
Other filling machine shows
Delivery & Shipping
Why Choose Us
Our logistics
FAQ
1.Can I visit your factory?
A:Sure, Our factory address :Plant No 6, No.77 Fuyuan Road, Wuqing Development Area, Tianjin City, China.
2.If we have samples of new products, can you help to analysis and design the machine?
Yes, Our technical staff can help to analysis, design and test the new products you offered.
3.What can you buy from us?
Filling Machine,Capping Machine,Labeling Machine
4.How about the spare parts?
After we deal down all the things , we will offer you a spare parts list for your reference.
5.What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW；
Accepted Payment Currency:USD,EUR;
Accepted Payment Type: T/T,L/C,PayPal,Western Union;
Language Spoken:English,Chinese
