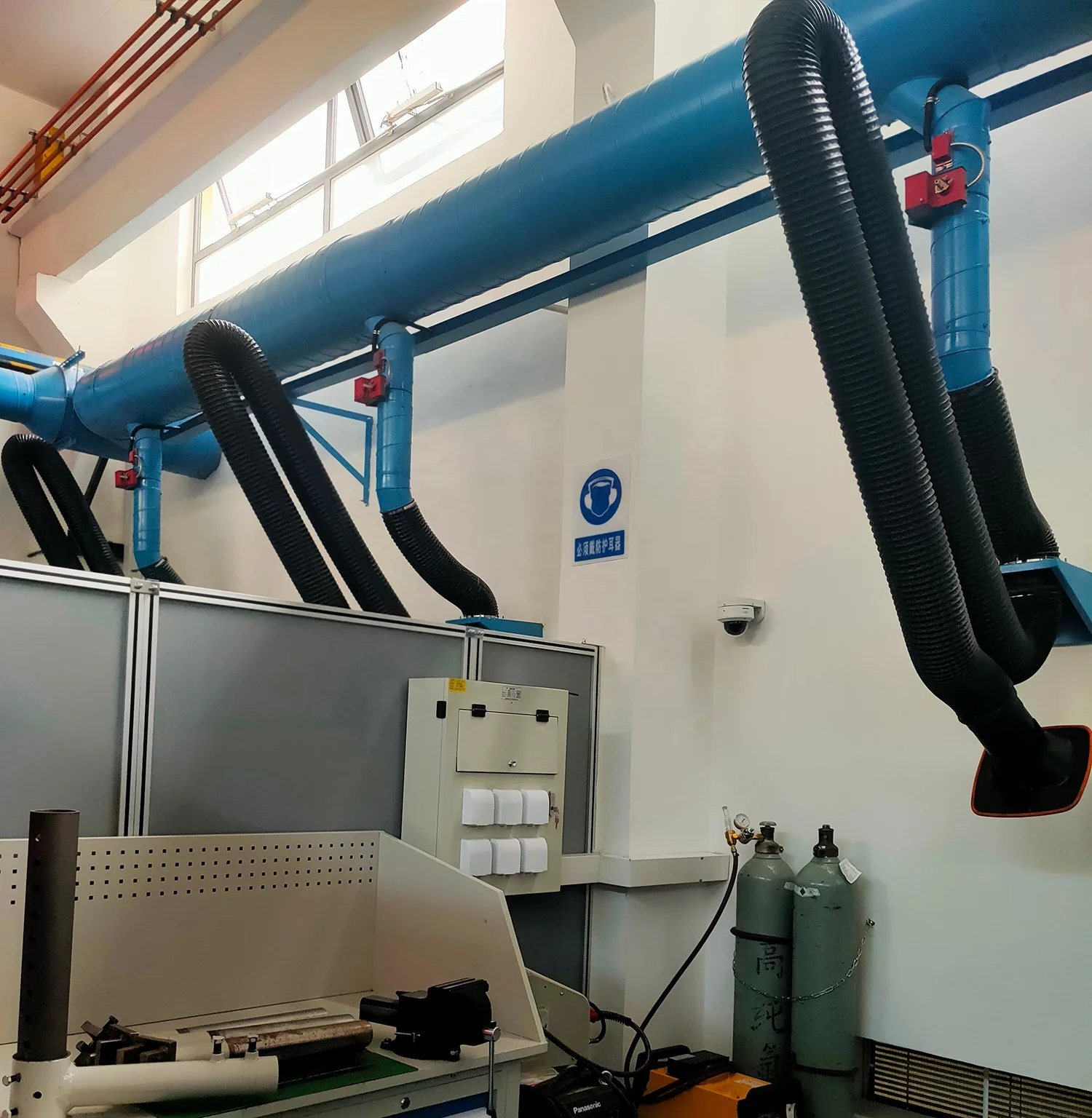

Welding fume and dust flexible extraction arm on the wall mounted or pillar

Product Overview

Description

Welding fume and dust flexible extraction arm on the wall-mounted or pillar



Features



1. Persistent tightness



2. Multiple inlet diameter optional



3. Arm keeps position due to self-supporting design



4. Fast operation due to particularly flexible adjustment



5. User-friendly due to particularly smooth movement of the hood with one hand



6. Various options to connect the exhaust arms to fans, stationary devices or via duct work to central extraction

    and filtration systems



 Technical data



No.	Item	Parameter
1	Model	XQBN-2/3/4
2	Suction arm length	2/3/4 m
3	Flexible hose material	PVC +Steel wire
4	Flexible hose diameter	160/200/250 mm
5	Suction hood	PP Material plastic hood with adjustable valve
6	Fixing bracket	200x250x400mm
7	Support bar	Stainless steel +spring
8	If it needs 5m/7m/9m suction arm, we will increse the extension rod, then the arm length is 2/3/4m extension rod + 2/3/4m arm.
