Cooling Tower Air Intake Louver 130mm Thick Air Inlet Louver

Category: Cooling Towers >>>
Supplier: Hebei,Long,Zhuo,Trade,Co.,Ltd.

Price:$30.00 - $78.00

Price in USD:Details

Quantity:

Product Overview

Description

Product Description

Hot Selling PVC Air Louvers For Cooling Tower 65mm Air Inlet Louvers

Air Inlet Louvers or cellular louvers is an important part for cooling tower cooling process. It is designed to improve air flow into the cooling tower, keep out debris, eliminate water splash-out (which can cause icing, near-site water damage, and water treatment loss), restrict the amount of sunlight into the cooling tower (to impede algae growth), reduce noise from the tower, and improve the tower working efficiency.

Width	67mm, 135mm
Length	meet your request
Thickness	0.28-0.38mm
Sheet space	20mm
Material	PVC, PP , FRP
Working temperature	65°C~-35°C

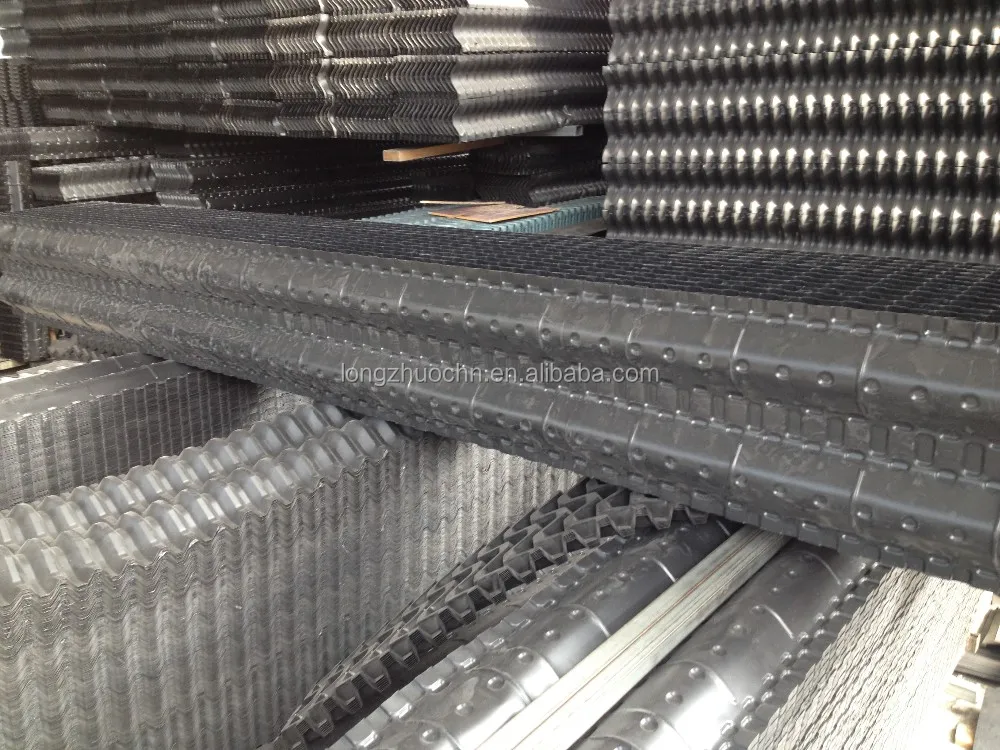

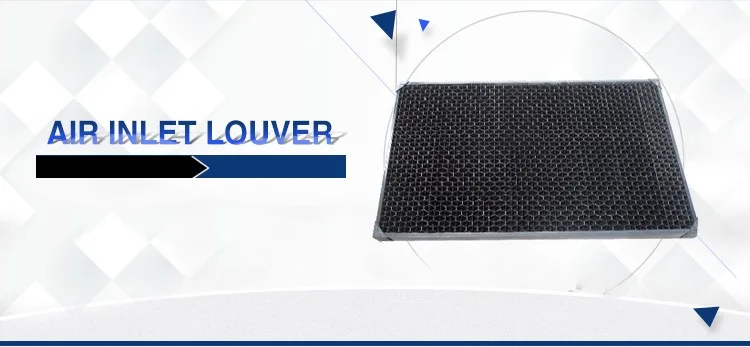

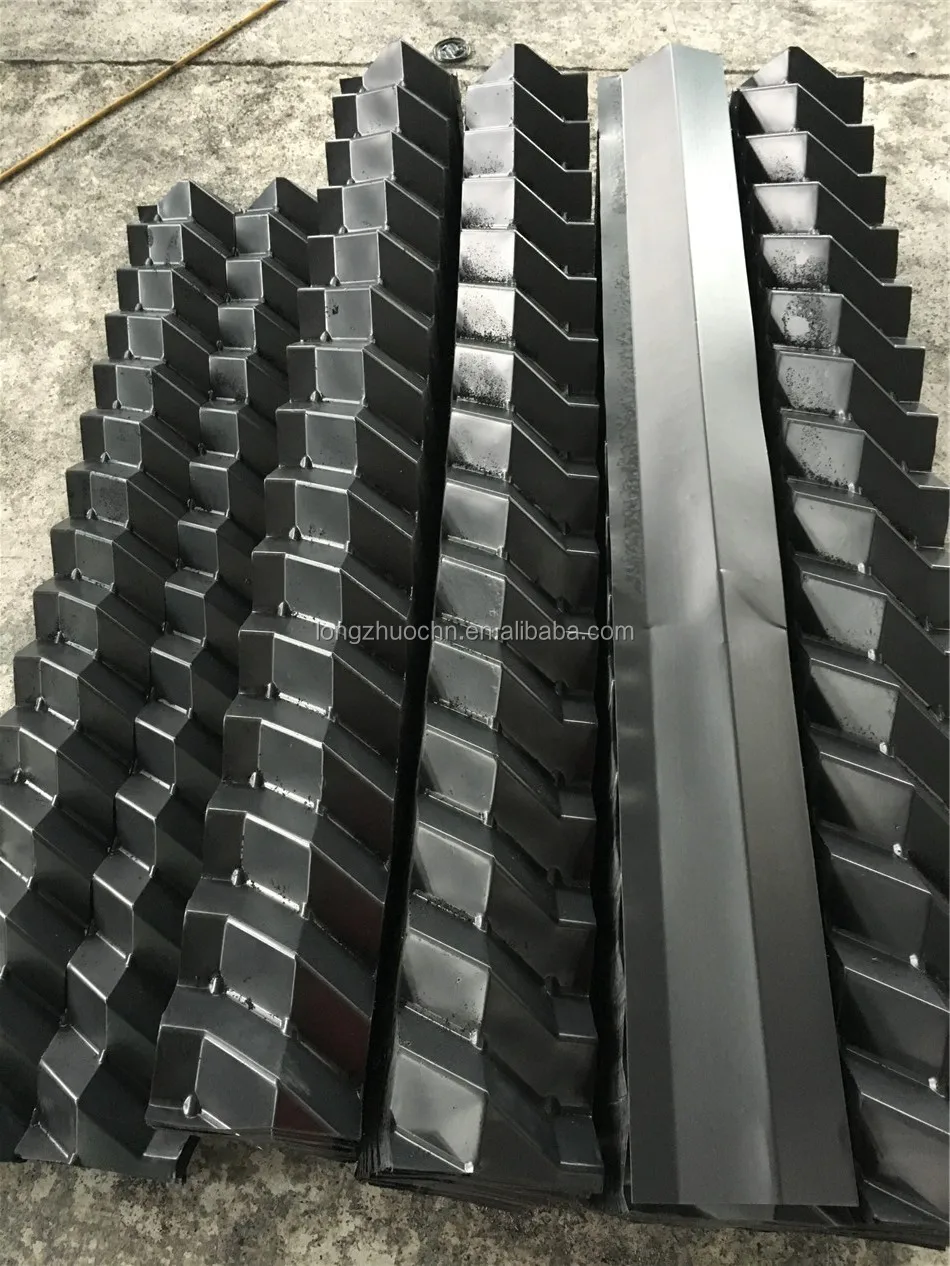

Product show

M type air inlet louver

Width: 130mm

Sheet space: 20mm

S type air inlet louver
Width: 65mm 130mm
Sheet space: 20mm

Click here to get our detailed quotation list.

Product features

Air inlet louver advantages:

1. Significantly block sunlight to reduce algae growth on interior surfaces of the cooling tower system, thus reducing the cost of algae-removal chemicals and labor.
2. Reduces noise leaving the tower through the louver modules by approximately three decibels.
3. Achieves very low pressure drop results.
4. Assembled modules available in a variety of lengths.
5. Optional assembly frames made of extruded PVC available for easy installation and access for cleaning and maintenance.
6. Rigid, UV-stabilized PVC

Applications

Where can air inlet louver use?

Air Inlet louvers are used in a wide variety of new and retrofit cooling towers, including air inlets for both package and field-erected counter flow and straight-sided cross flow towers, fresh air make-up systems and air pollution control scrubbers.

Packing & Delivery

Click here to know more about air inlet louver packaging and delivery.

Air inlet louver material:

Air intake louvers are constructed of UV-stabilized PVC. This compound has outstanding resistance to weather exposure and is nearly impervious to chemical degradation by alkalis, acids, greases, fats, oils, and biological attacks. It also has an excellent fire rating due to its self-extinguishing characteristics. We also have PP and CPVC material which can meet the water high temperature requirement.
