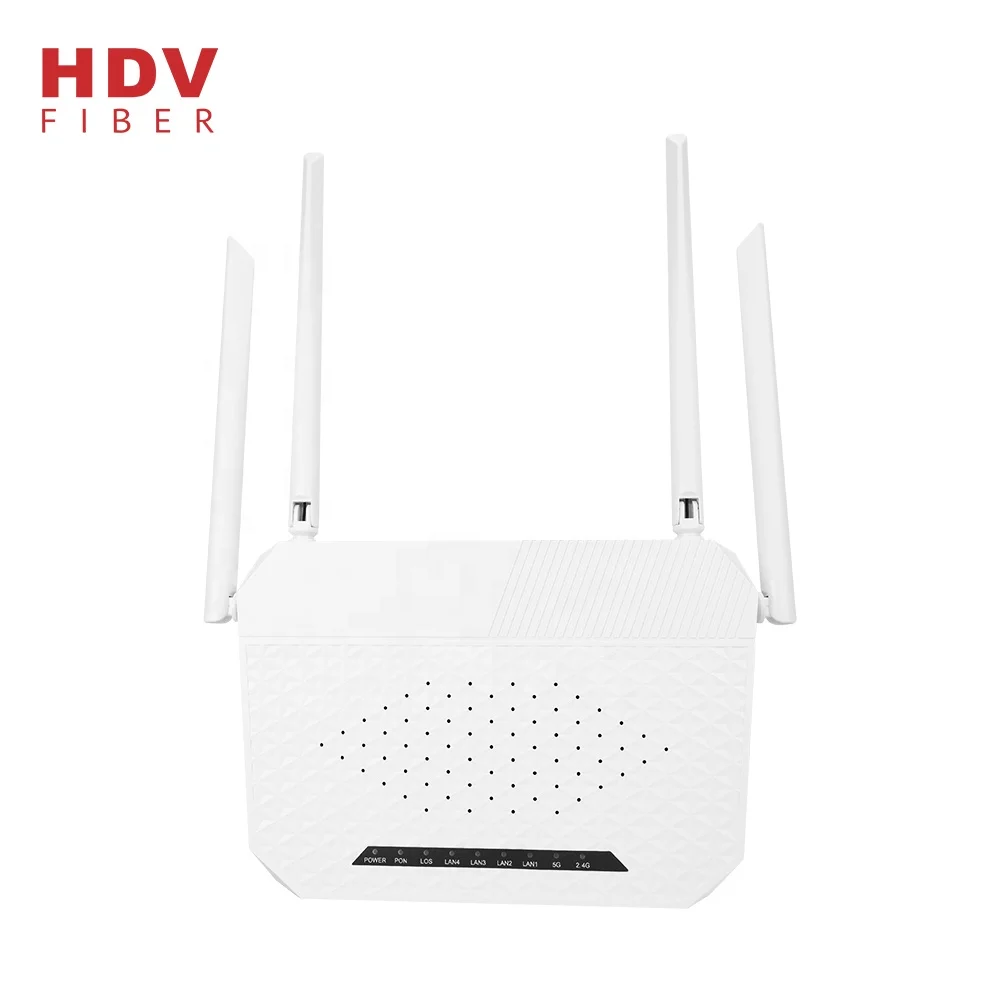

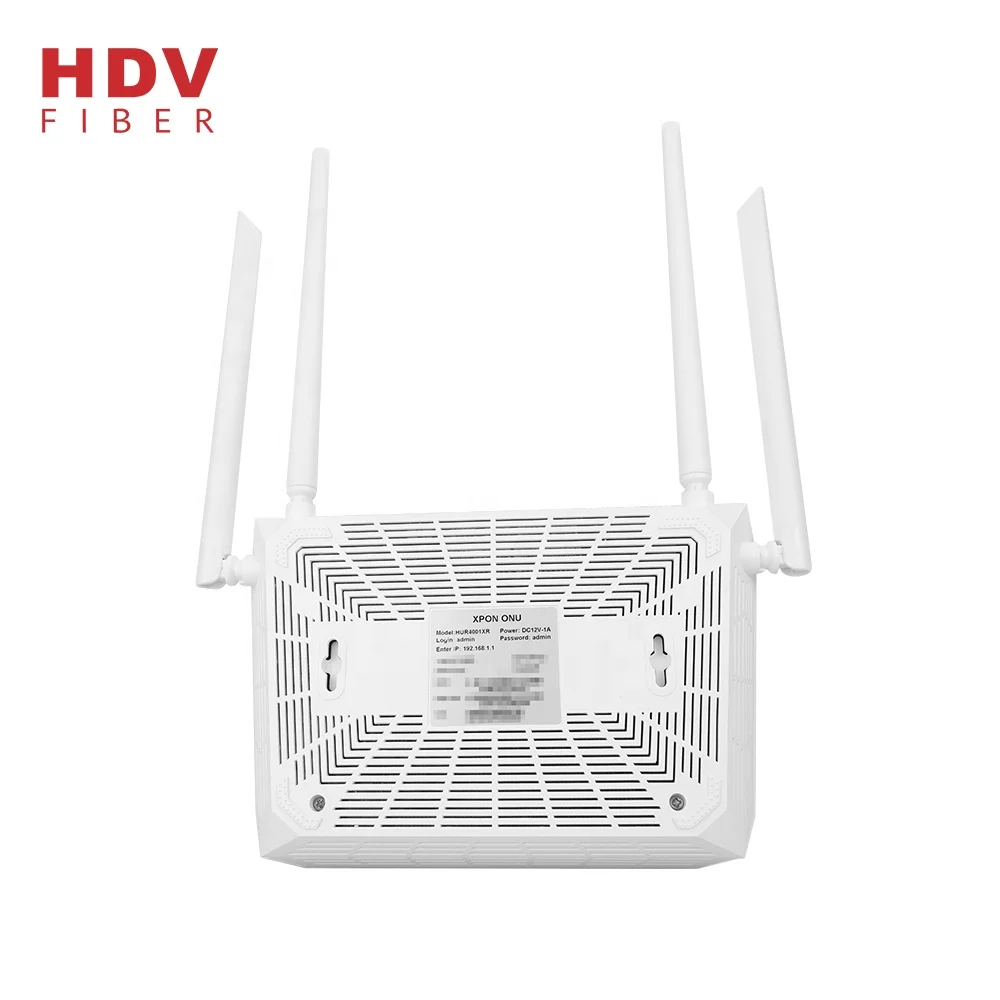

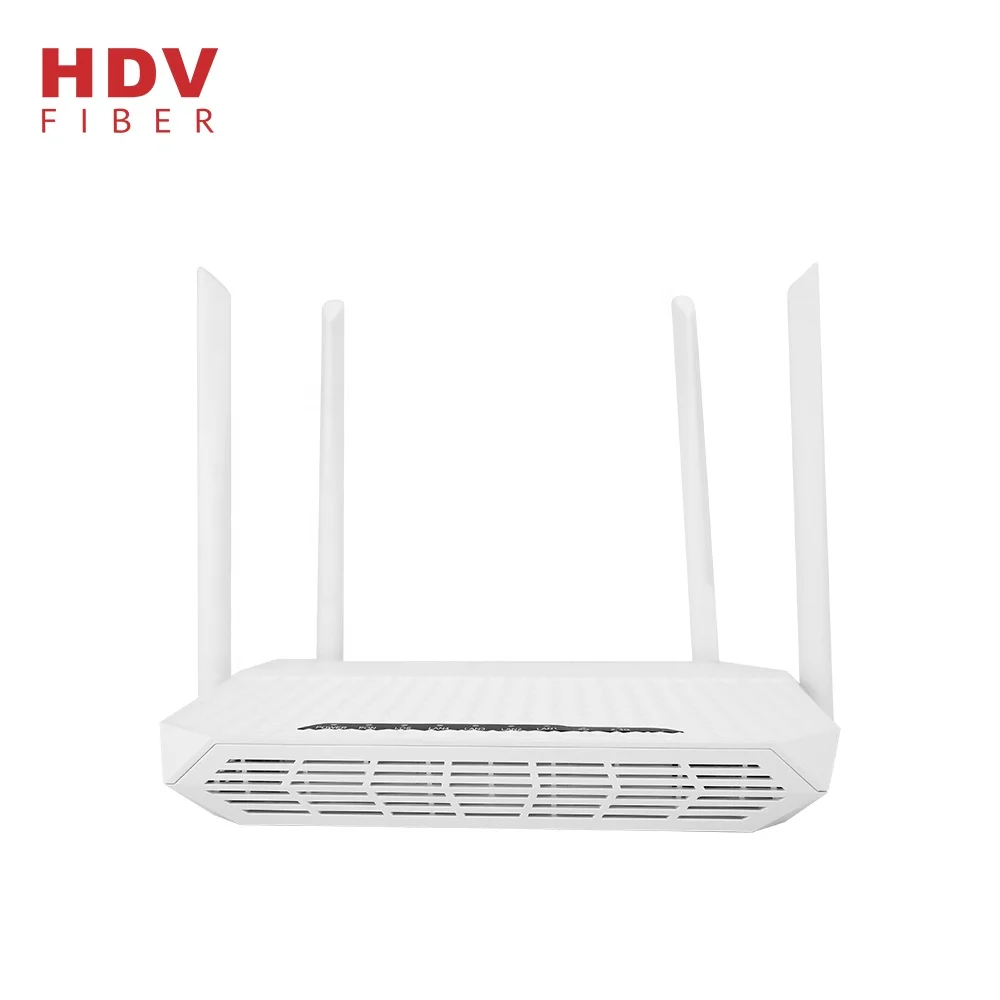

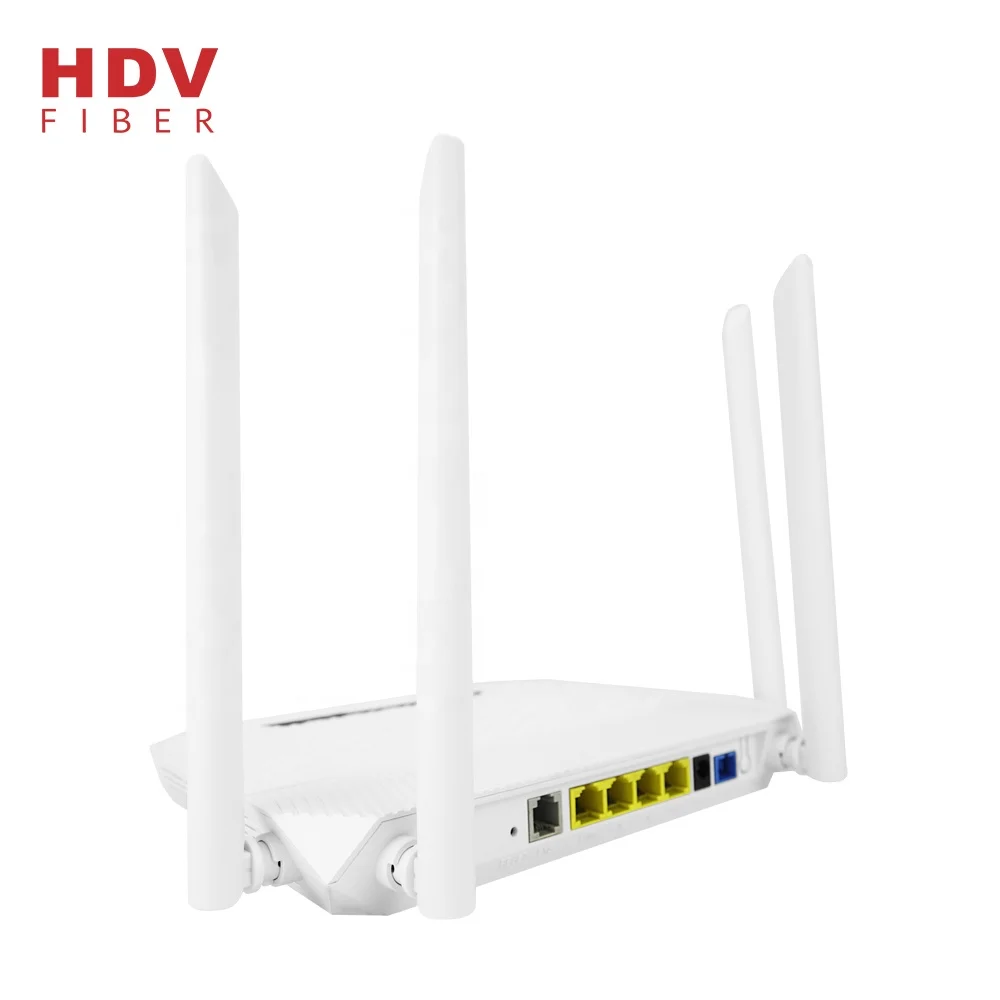

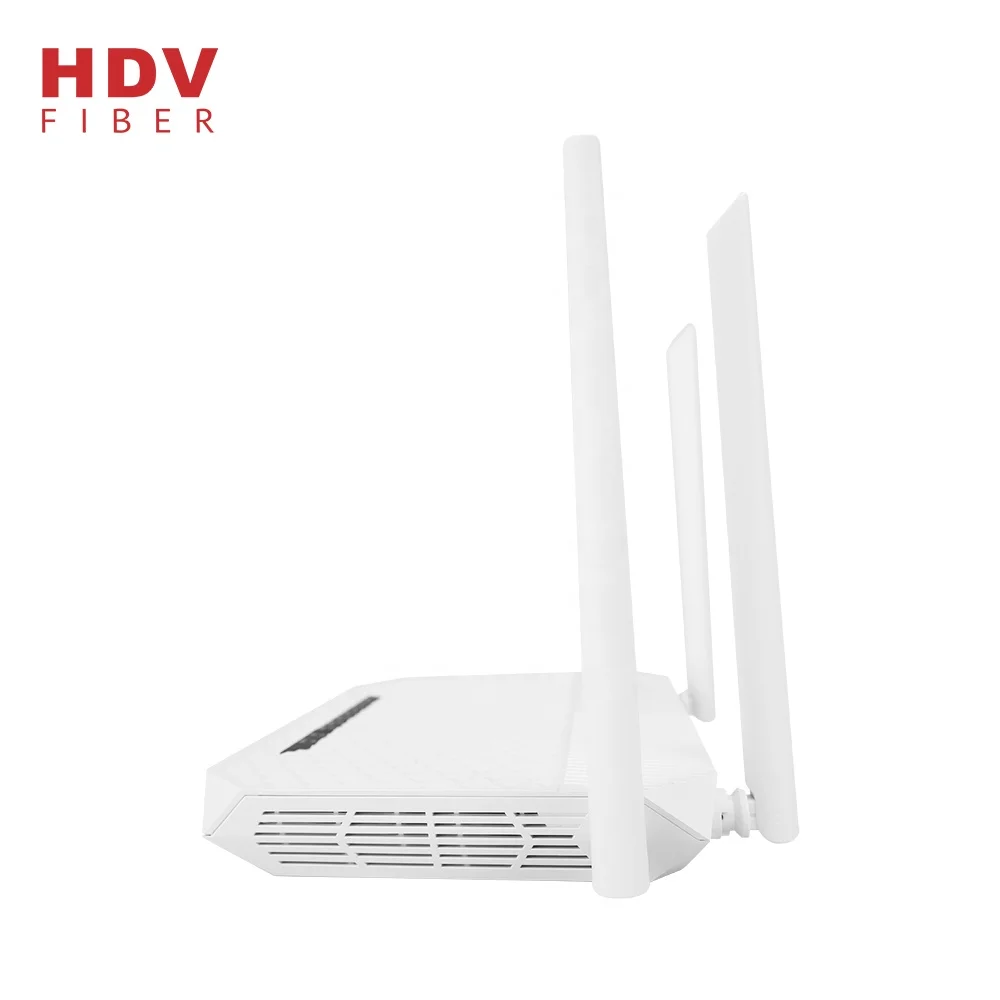

FTTH solutions Dual Band AC Wifi 4GE 4WIFI 1POTS 1USB Dual Band 2.4G&5G 4 Antennas XPON EPON GPON ONU
- Category: >>>
- Supplier: Shenzhen Hdv Photoelectron Technology Ltd.
Share on (1600731859778):
Product Overview
Description
FTTH solutions Dual Band AC Wifi 4GE+4WIFI+1POTS+1USB Dual Band 2.4G&5G 4 Antennas XPON EPON GPON ONU

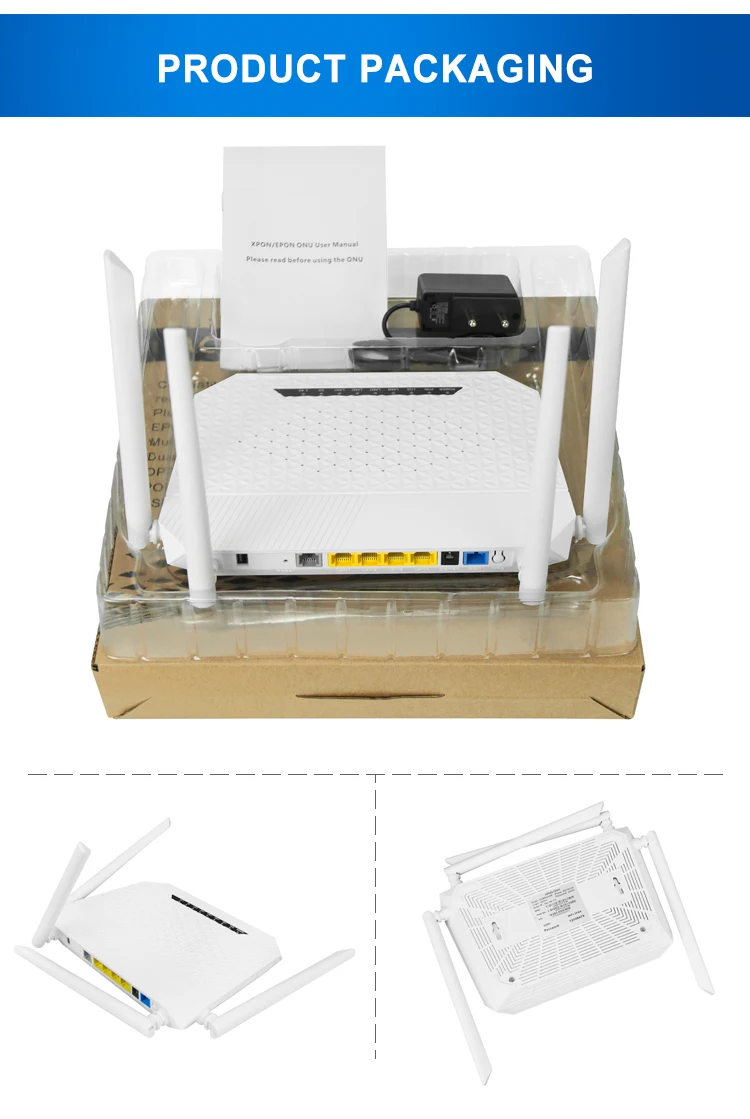

Packing
Power adapter
Product Description
1. Overview
* HUR4001XR is designed as HGU (Home Gateway Unit) in different FTTH solutions.The carrier-class FTTH application provides data and video service access .
* HUR4001XR is based on mature and stable, cost-effective XPON technology. It could switch automatically into EPON mode or GPON mode when access to the EPON OLT and GPON OLT.
* HUR4001XR adopts high reliability, easy management, configuration flexibility and good quality of service guarantees to meet the technical performance of EPON Standard of China Telecom CTC3.0 and GPON Standard of ITU-TG.984.X
2. Functional Feature
* Support EPON/GPON mode and switch mode automatically
* Support Route mode for PPPoE/DHCP/Static IP and Bridge mode
* Support IPv4 and IPv6
* Support 2.4G&5.8G WIFI and Multiple SSID
* Support SIP Proctol for Voip Service
* Support LAN IP and DHCP Server configuration
* Support Port Mapping and Loop-Detect
* Support Firewall function and ACL function
* Support IGMP Snooping/Proxy multicast feature
* Support TR069 remote configuration and maintenance
* HUR4001XR is based on mature and stable, cost-effective XPON technology. It could switch automatically into EPON mode or GPON mode when access to the EPON OLT and GPON OLT.
* HUR4001XR adopts high reliability, easy management, configuration flexibility and good quality of service guarantees to meet the technical performance of EPON Standard of China Telecom CTC3.0 and GPON Standard of ITU-TG.984.X
2. Functional Feature
* Support EPON/GPON mode and switch mode automatically
* Support Route mode for PPPoE/DHCP/Static IP and Bridge mode
* Support IPv4 and IPv6
* Support 2.4G&5.8G WIFI and Multiple SSID
* Support SIP Proctol for Voip Service
* Support LAN IP and DHCP Server configuration
* Support Port Mapping and Loop-Detect
* Support Firewall function and ACL function
* Support IGMP Snooping/Proxy multicast feature
* Support TR069 remote configuration and maintenance
* Specialized design for system breakdown prevention to maintain stable system
3. Hardware Specification | ||
Technical item | Details | |
PON Interface | 1 GPON BoB（Class B+/Class C+） | |
Receiving sensitivity: ≤-27dBm/≤-29dBm | ||
Transmitting optical power: +0.5~+5dBm/+2~+7dBm | ||
Transmission distance: 20KM | ||
Wavelength | TX: 1310nm, RX: 1490nm | |
Optical Interface | SC/UPC Connector | |
Design Scheme | RTL9607C+RTL8192FR(2.4G)+RTL8812ER(5G)+Si32192 BOB(RTL8290B) | |
Chip Spec | CPU 950MHz,DDR2 128MB | |
Flash | SPI NAND Flash 128MB | |
LAN Interface | 4 x 10/100/1000Mbps auto adaptive Ethernet interfaces. Full/Half, RJ45 connector | |
Wireless | Compliant with IEEE802.11b/g/n,ac | |
2.4G Operating frequency:2.400-2.4835GHz | ||
5.8G Operating frequency:5.150-5.825GHz | ||
2.4G 2*2 MIMO, rate up to 300Mbps | ||
5.8G 2*2 MIMO ,rate up to 867Mbps | ||
4 external antennas 5dBi | ||
Support Multiple SSID | ||
POTS interface | FXS, RJ11 connector | |
Support: G.711/G.723/G.726/G.729 codec | ||
Support: T.30/T.38/G.711 Fax mode, DTMF Relay | ||
Line testing according to GR-909 | ||
USB | Standard USB2.0 | |
LED | 9 LED, For Status of PWR、LOS、PON、LAN1~LAN4、2.4G、5.8G | |
Push-Button | 2 ,For Function of Reset and WPS | |
Operating Condition | Temperature: 0℃~+50℃ | |
Humidity: 10%～90%（non-condensing） | ||
Storing Condition | Temperature: -30℃~+60℃ | |
Humidity: 10%~90%（non-condensing） | ||
Power Supply | DC 12V/1.5A | |
Power Consumption | ≤6W | |
Dimension | 248mm×158mm×192mm（L×W×H） | |
Net Weight | 0.3Kg | |
Storing Condition | Temperature: -30℃~+60℃ | |
4. Panel lights Introduction | ||||
Pilot Lamp | Status | Description | ||
PWR | On | The device is powered up. | ||
Off | The device is powered down. | |||
LOS | Blink | The device doses not receive optical signals or with low signals. | ||
Off | The device has received optical signal. | |||
PON | On | The device has registered to the PON system. | ||
Blink | The device is registering the PON system. | |||
Off | The device registration is incorrect. | |||
LAN1~LAN4 | On | Port (LANx) is connected properly (LINK). | ||
Blink | Port (LANx) is sending or/and receiving data (ACT). | |||
Off | Port (LANx) connection exception or not connected. | |||
2.4G | On | 2.4G WIFI interface up | ||
Blink | 2.4G WIFI is sending or/and receiving data (ACT). | |||
Off | 2.4G WIFI interface down | |||
5.8G | On | 5G WIFI interface up | ||
Blink | 5G WIFI is sending or/and receiving data (ACT). | |||
Off | 5G WIFI interface down | |||
5.Application
* Typical Solution：FTTH(Fiber To The Home)
* Typical Business：INTERNET、IPTV、WIFI 、VOIP etc
* Typical Solution：FTTH(Fiber To The Home)
* Typical Business：INTERNET、IPTV、WIFI 、VOIP etc
