Product Overview
Description
Product Description

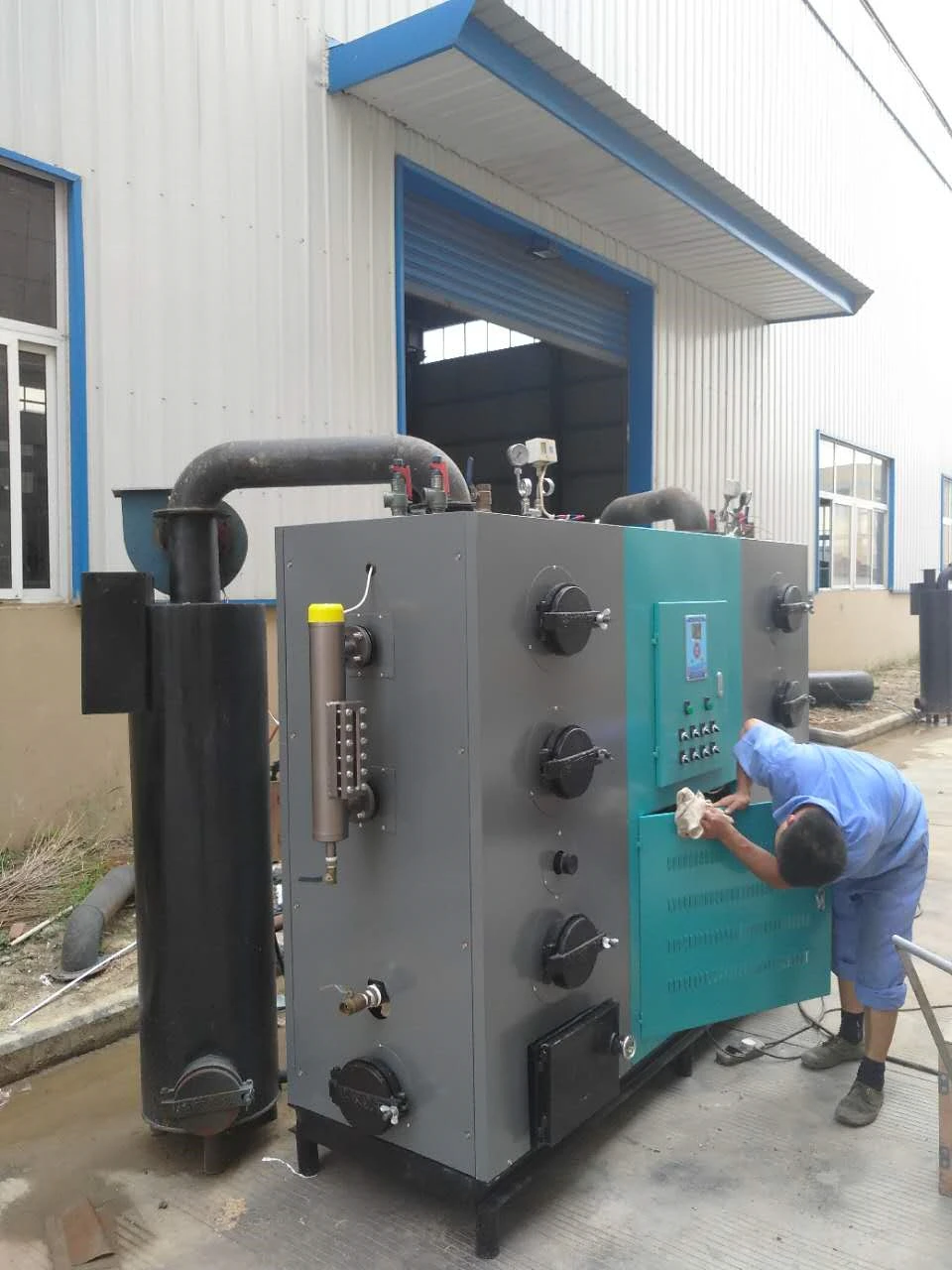

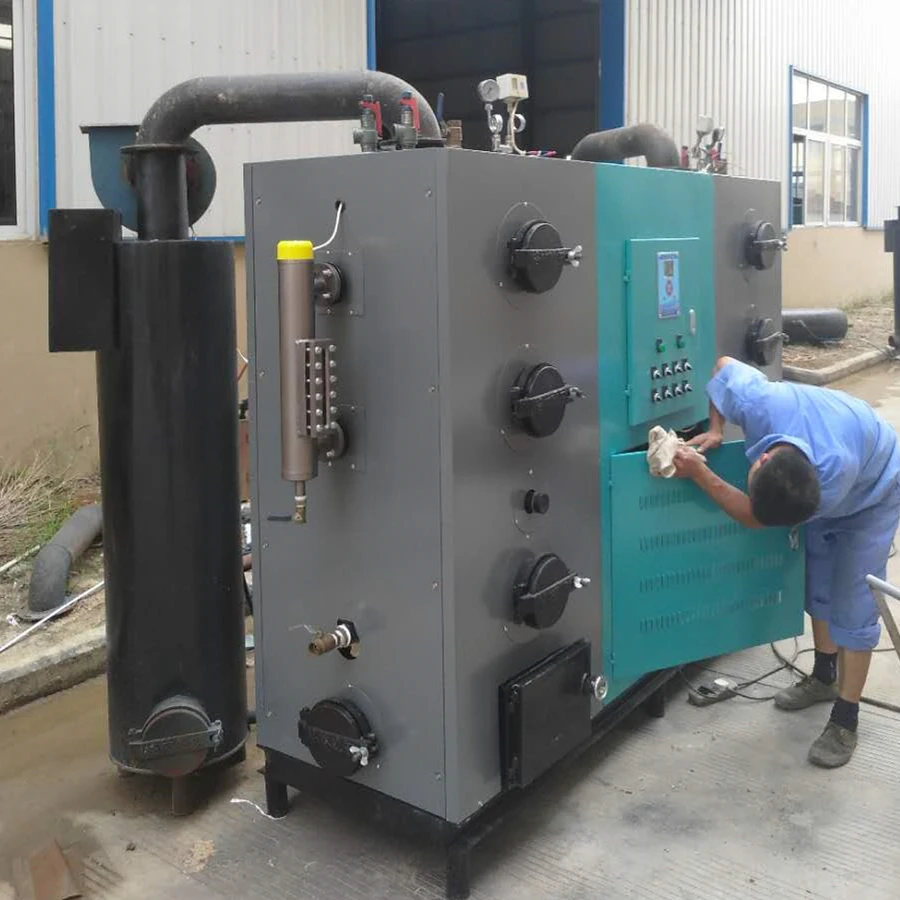

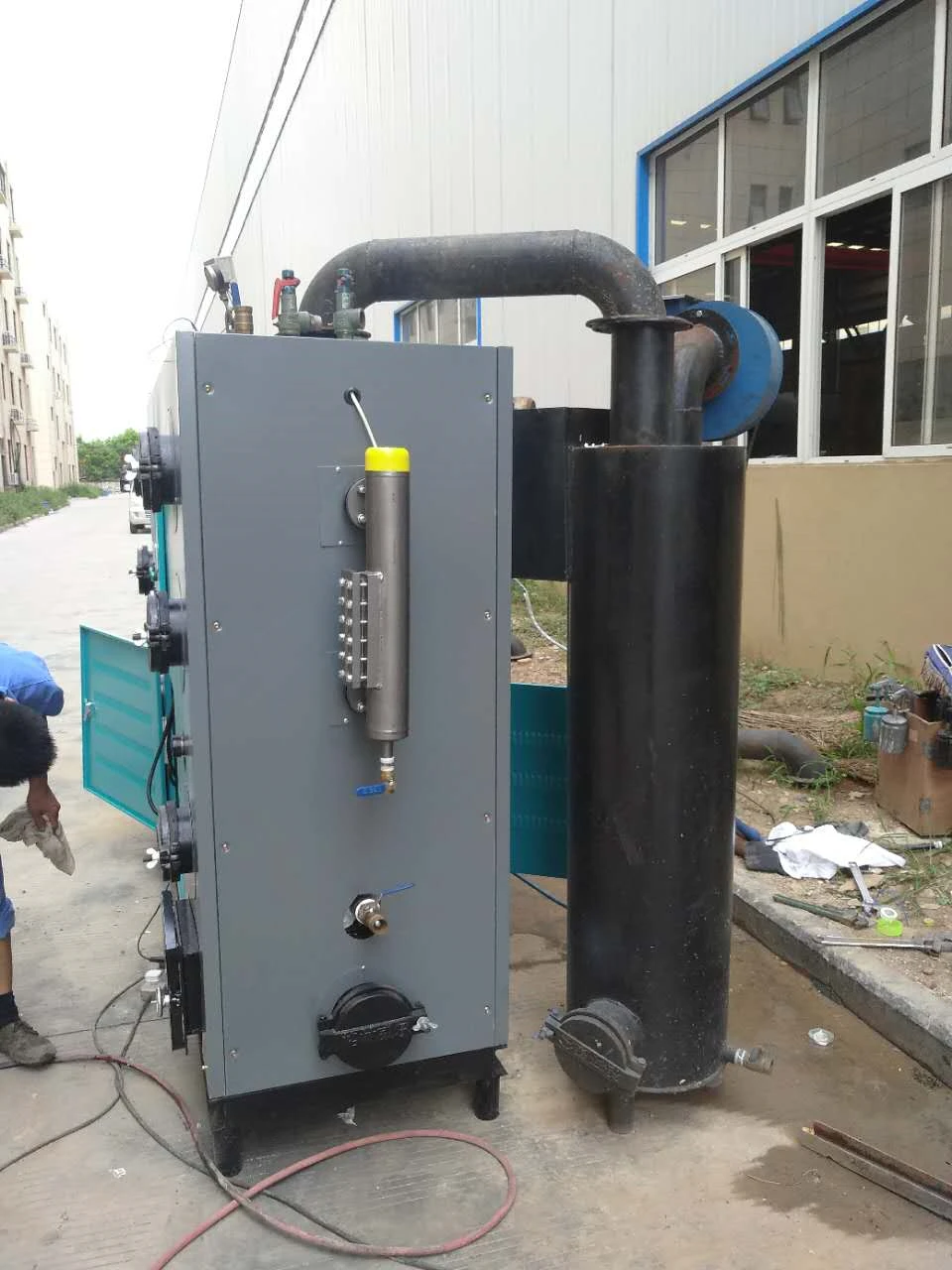

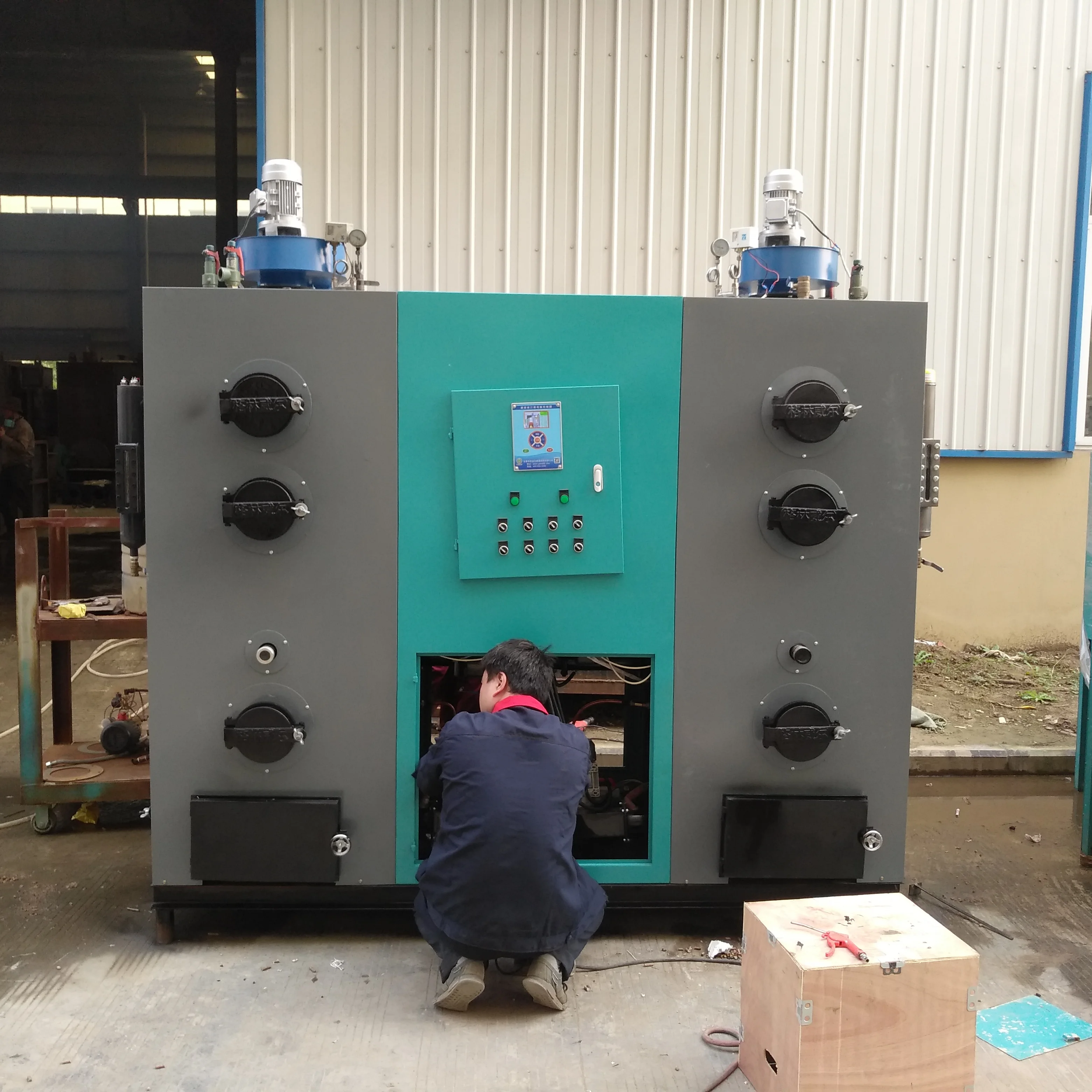

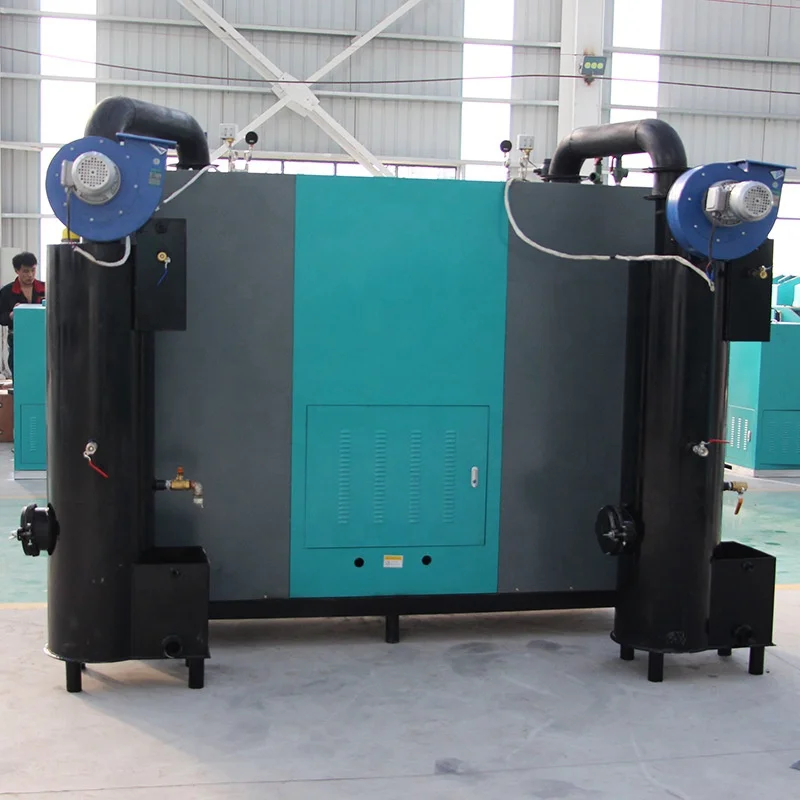

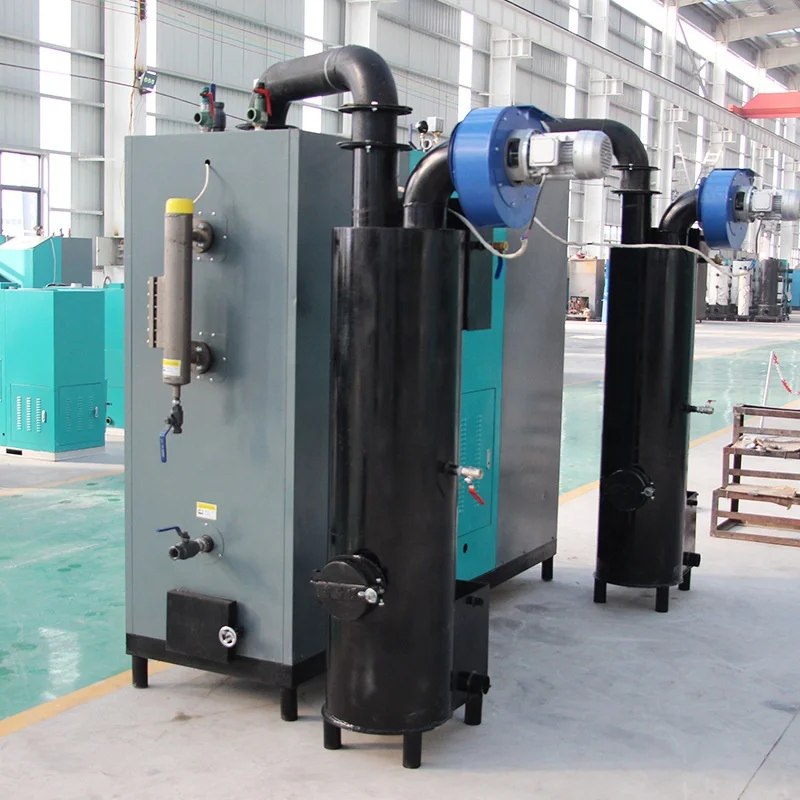

Professional Price Home Central Heating 500kg per hour Biomass Pellet Steam Generator
Biomass steam generator adopts multi-tempering pipe structure, which has longer service life and lower maintenance cost than ordinary water pipe structure.It is equipped with energy-saving devices,make full use of flue gas waste heat, thermal efficiency up to 90%, steam production speed greatly improved. Furnace bile adopts high quality silicate insulation material to prevent heat dissipation;The overall appearance design adopts spraying technology,which is beautiful and generous.
Biomass steam generator adopts multi-tempering pipe structure, which has longer service life and lower maintenance cost than ordinary water pipe structure.It is equipped with energy-saving devices,make full use of flue gas waste heat, thermal efficiency up to 90%, steam production speed greatly improved. Furnace bile adopts high quality silicate insulation material to prevent heat dissipation;The overall appearance design adopts spraying technology,which is beautiful and generous.
Structure and parameters:
PLC intelligent control system can realize automatic operation of feeding, grate operation, fan start-up and stop, water feeding and slag discharging.
Safety valve, water level alarm, pressure gauge and pressure controller ensure safe operation.
The boiler drum is equipped with limit low water level sensing safety device to avoid water shortage accident.
Type | LHG0.1-0.7-M | LHG0.2-0.7-M | LHG0.3-0.7-M | LHG0.5-0.7-M | LHG0.6-0.7-M | ||||
Rated Evaporation(kg) | 100 | 200 | 300 | 500 | 600 | ||||
Rated Steam Pressure(MPa) | 0.4/0.7/1.0 | ||||||||
Thermal Efficiency | 98% | ||||||||
Power Supply | 220v/380v | ||||||||
Main Body Dimension(mm) | 1500*700*1750 | 1700*850*18500 | 1800*900*2100 | 2500*900*1900 | 2700*900*2100 | ||||
Fuel Storage Capacity | 110 | 90 | 140 | 180 | 220 | ||||
Consumption per hour(kg) | 12-19 | 26-33 | 38-42 | 33-70 | 42-84 | ||||
Weigh(kg) | 650 | 850 | 980 | 1900 | 2100 | ||||
Waste heat recovery dimensions(mm) | Diameter400, Length2000 | ||||||||

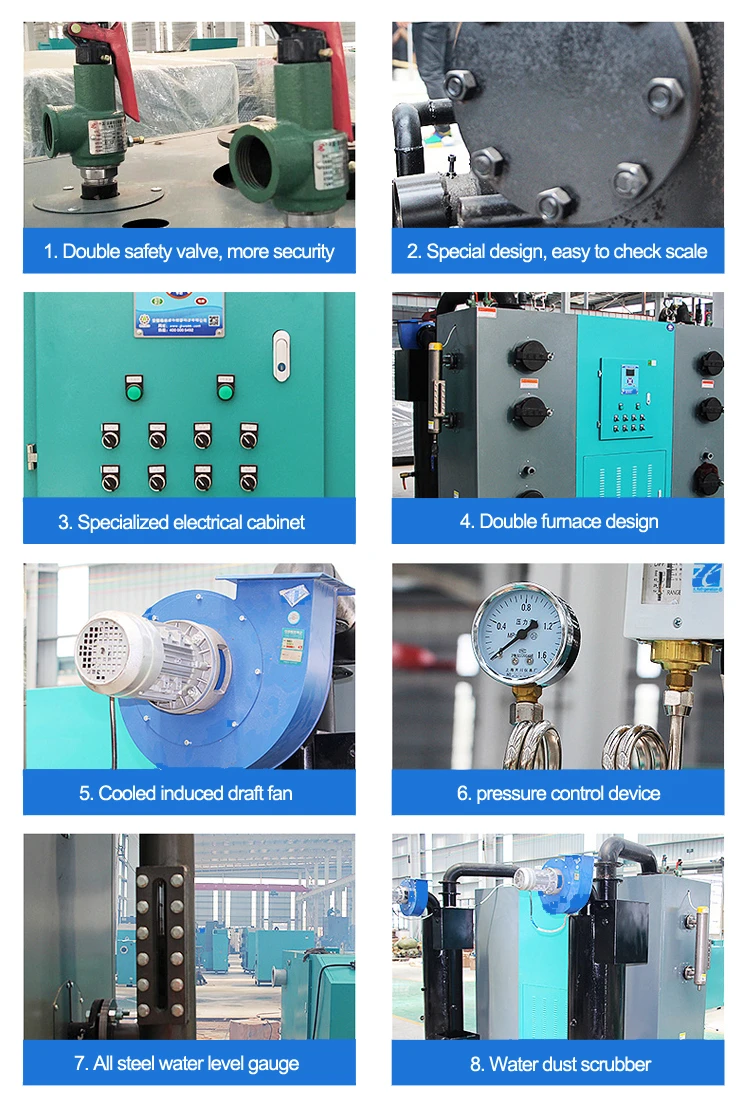

Accessories
Application

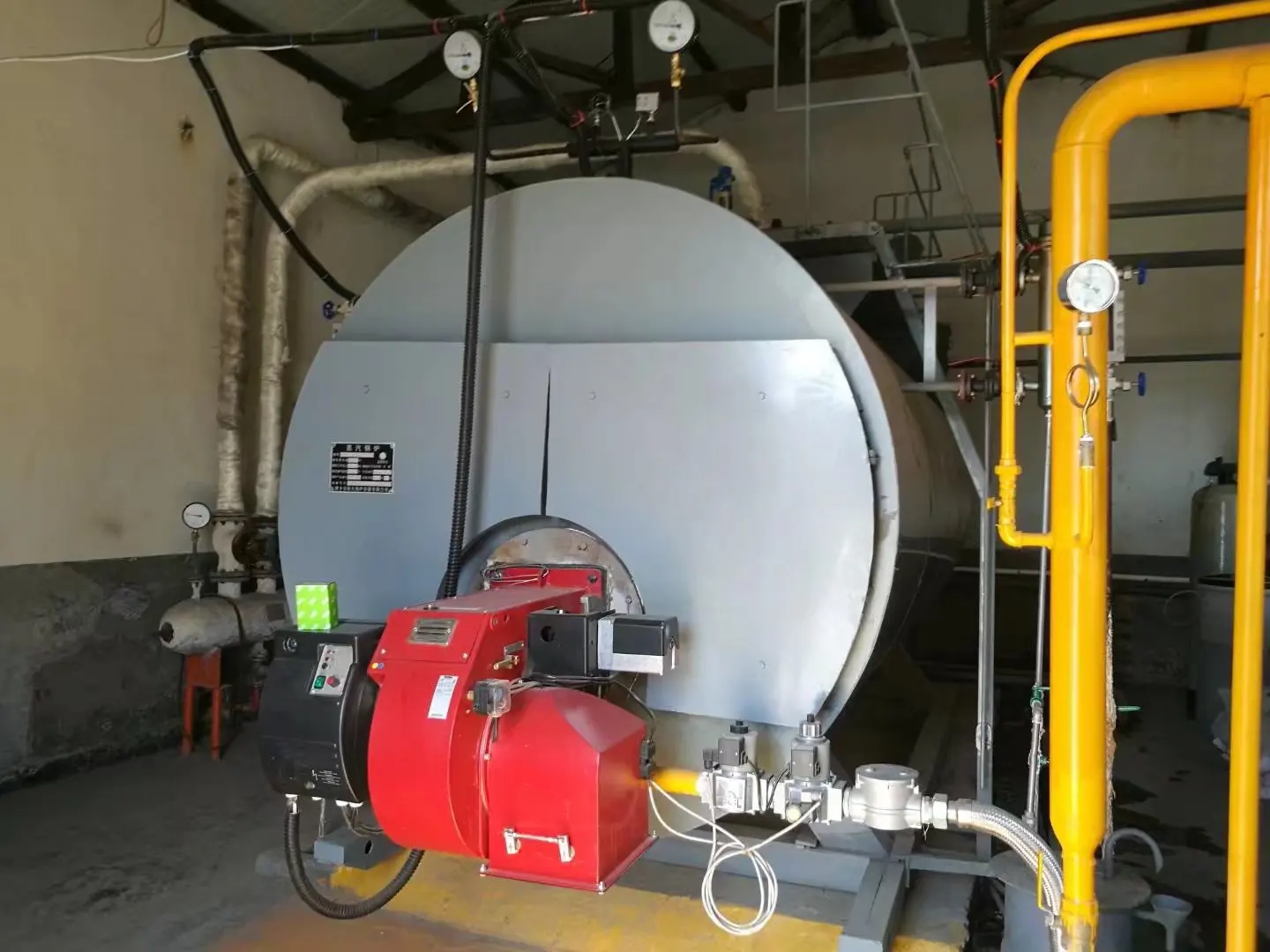

Successful Cases
