5 axis Horizontal CNC gear hobbing machine
- Category: >>>
- Supplier: Push Ningjiang Machine Tool Co. Ltd.
Share on (1600731994190):
Product Overview
Description
Product Overview

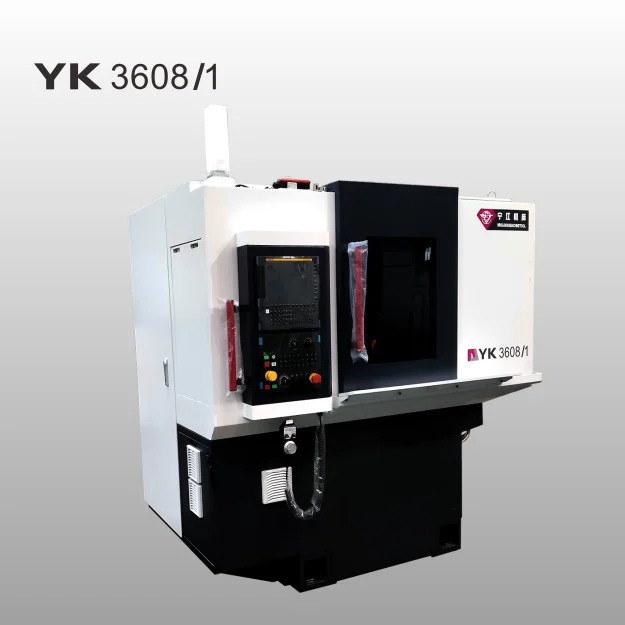

YK3608/1 CNC gear hobbing machine
YK 3608/1 is a 5-axis CNC gear hobbing machine with a working module up to 1.5 mm designed for spur, bevel, worm gear machining for various industries.
FEATURES AT A GLANCE
Compact structure
FANUC 0i MF/H control.
Human-machine communication interface
2000rpm hob spindle
Automatic hob shift at 30mm range.
5-axes
Working zone
Structure
Parameter
PRODUCT SPECIFICATIONS
No | Item | Data | ||
1 | Max. working diameter | 80mm | ||
2 | Max. working module | 1.5 mm | ||
3 | X/Y/Z travel | 65mm/60mm/150mm | ||
4 | Hob head swing | -40～+65 degree | ||
5 | hob spindle rpm | 2000 | ||
6 | Max. Hob O.D | 63mm | ||
7 | X, Z rapid feed | 6m/min | ||
8 | workpiece spindle rpm | 500 |
