Allman CE Approved M4 500Kg Industrial Construction Works Use Heavy Duty Electric Winch

Brief Introduction :

Allman Company , one of the professional electric winch machine manufacturers in China , has its own factory , and new designed and manufactured AME series Industrial Construction Works Use Electric Winch , capacity include 500kg , 1 Ton , 2 Ton,  3 Ton and 5 Ton . Wire rope length of the construction winch can be customized as per customer request . Power voltage can be 220V , 380V , 415V , 440V , 460V and 480V , 3 phase . For small capacity like 500kg and 1000kg , 1 phase electric power winch is also available .  Allman electric winch machines have passed CE certificate , are widely used for lifting and pulling in building construction site .

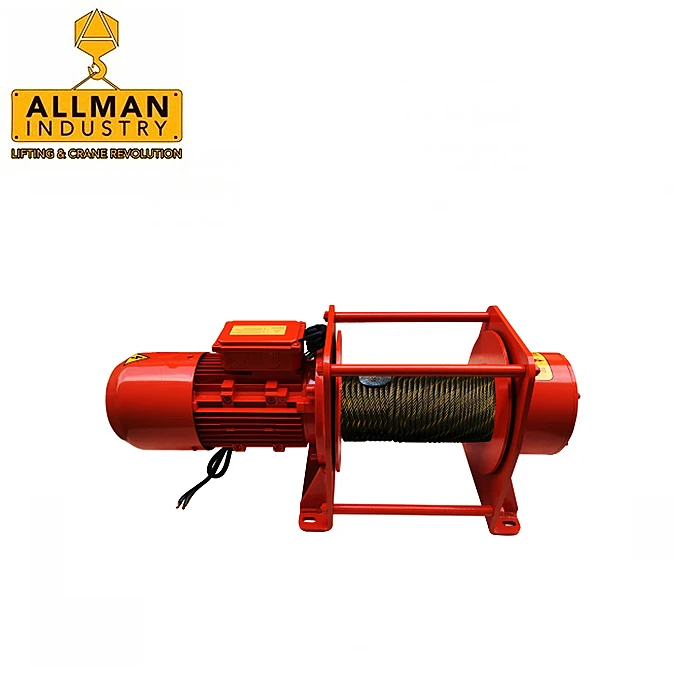

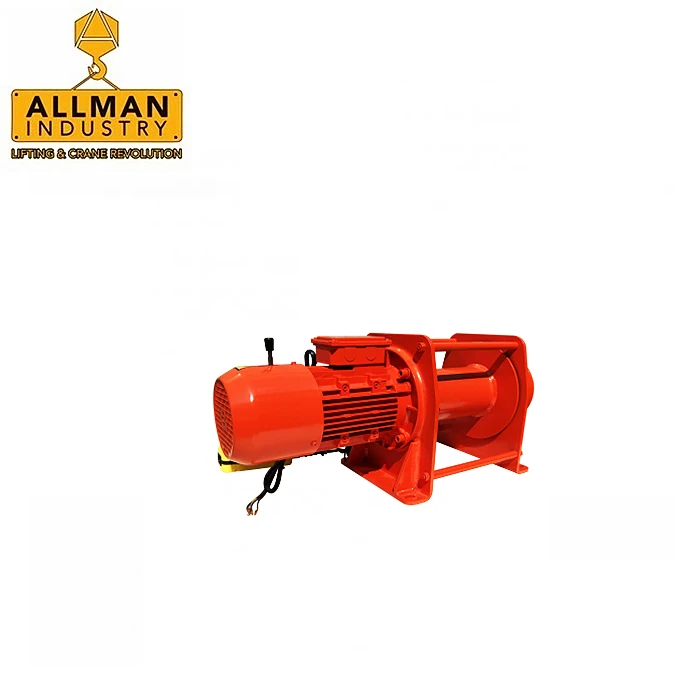

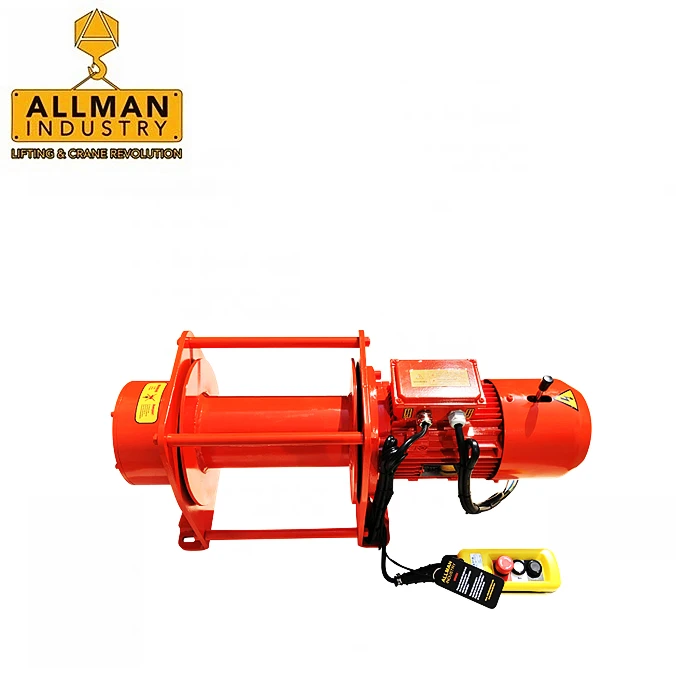

ALLMAN Industrial Construction Electric Winch Machine Photo Overview :

Product Information :

Technical Parameters of ALLMAN AMESeries  Electric Winch Machine  :

 ALLMAN Electric Winch Machine Structure Features :

• Electric winch mounting plate : using welded channel steel , with fixed holes , very easy for the wire rope winch installation .


• Winch frame structure and gear box : using high quality ductile cast iron FCD-45# steel , with good extension and strong .


• Transmission gear : using superior quality steel and heat treated , processed by CNC machine to reach high precise level ,  wearable , low noise and drive smoothly .


• The electric winch motor : Equipped with Chinese top quality level motor , protection grade IP55 , warranty 2 years .


• Brake type  : Using electromagnetic brake , which can automatic braking once power off .


• The drum driving mechanism : ALLMAN's electric heavy duty wire rope electric winch drum driving adopts planetary gear transmission mode. Which make the winch drum small in size, light in weight, compact in structure and high in carrying capacity.


• Wire rope : Allman electrical winches use high strength hemp core wire rope. The function of the hemp core is to store lubricating oil, so that the oil on the surface of the steel wire rope can be replenished permanently, make the wire rope durable and anti-corrosion .


• Electrical components : Using world famous brand Schneider contactor . Hand Switch IP 65 .

Applications :

ALLMAN self -factory new designed and manufactured high quality heavy duty construction electric winch machine ,  also called electric winch, industrial winch ,  construction winch , electric winch hoist , lifting winch , electric utility winch , electric construction lift . With high configuration and good performance , long wire rope length . Allman construction winch machine are quite suitable for the high and vertical lifting as well as horizontal pulling site . It is the best choice for construction and mining project use .

ALLMAN Supply More Lifting Hoist and Winches :

1. Q : Are you manufacturer or trading company ?

    A : We are a professional electric winch manufacturer , the unique one manufacturer who produce M5 grade heavy duty electric winches .

2.Q : What power supply can be done  ?

    A :  1 phase 220V , or 220V ~ 480V 3phase are both available . You need to tell us the requirement .

3. How many meters of the winch wire rope length ?

     A : For 500kg and 1 Ton electric winch machine , the wire rope is usually 50mtrs or 100mtrs. For 2 ton and 3 ton winch ,  the wire rope is usually 100mtrs or 150mtrs . For 5 ton winch , wire rope usually 100mtrs or 200mtrs . Just tell us your demand length .

4. What's the brake type used for this winch machine ?

     A: Allman AMW and AME series electric winches adopt electro-magnet brake for high efficiency and safety consideration .

5. Q : How about your product quality ?

    A : " Quality is our company's life , Safety always comes first ."  It's our business principle and our promise to customers . Based on this , we focuse on every details about the products , from the raw material to the procession till the complete products finishing , we have stricty quality control system . At least 5 steps inspection during the whole procession .

6. Q: How about the warranty ?

    A : Usually for the electrical wearing parts , 1 years warranty . Others parts 3 years for the electric winches.

7. Q : Any after-sales service ?

    A: Sure , 24×7 online after-sales service .

8. Q: Can we have our OWN brand on the products ?

    A : Sure , OEM is totally acceptable .

9. Q : What’s the MOQ ?

    A : Sample order is acceptable , MOQ is 1 set .

10. Q : How about the lead time ?

    A : Lead time depends on the order quantity , If less than 10 units ,it will about 10 days . If one container , it will take around 20 days .

11.  Q : Which sea port is the nearest ?

     A :  Shanghai Port is the nearest for us , But we can ship the products as your request .

12. Q : How about the payment term ?

    A : For new customers , the first order amount less than $5000.00, 100% by TT before production . Amount over $5000,00 , 30% in advance , 70% before delivery .
