Direct Factory Wholesale 900 Flat Top Modular Plastic Conveyor Belt High Quality Wide Range Of Application
- Category: Power Transmission Parts >>>
- Supplier: Changshuo,Converyor,Equipment,(wuxi),Co.,Ltd.
Share on:
Product Overview
Description
Short Description

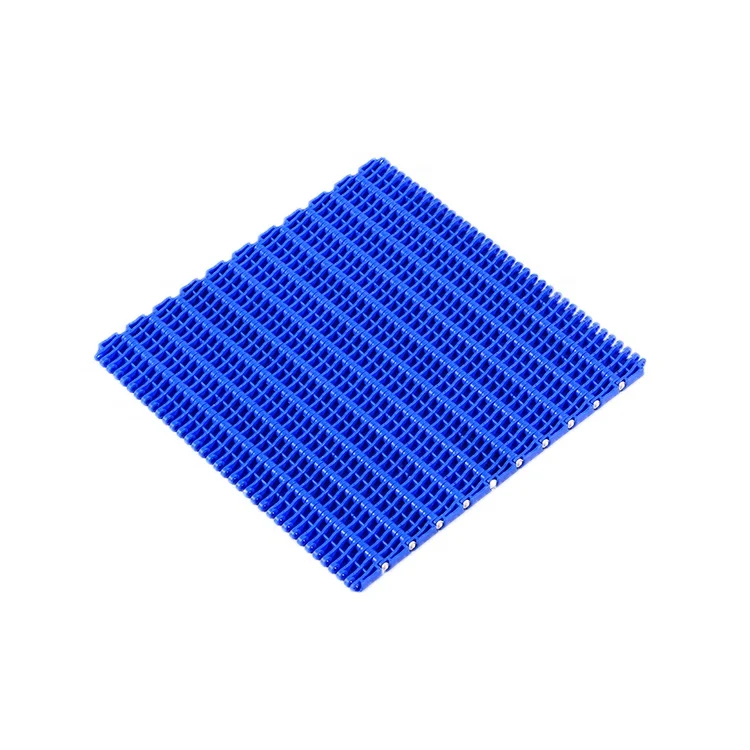

900 flat top modular plastic conveyor belt suitable for container treatment (especially glass treatment)
Product Parameters
Modular Type | 900 Flat Top | ||
Standard Width(mm) | 152.4 304.8 457.2 609.6 762 914.4 1066.8 152.4N | (N,n will increase as integer multiplication; due to different material shrinkage,Actual will be lower than standard width) | |
Non-standard Width | W=152.4*N+8.4*n | ||
Pitch | 27.2 | ||
Belt Material | POM/PP | ||
Pin Material | POM/PP/PA6 | ||
Pin Diameter | 4.6mm | ||
Work Load | POM:21000 PP:11000 | ||
Temperature | POM:-30℃~ 90°C PP:+1°C~90°C | ||
Open Area | 0% | ||
Reverse Radius(mm) | 50 | ||
Belt Weight(kg/㎡) | 7.0 | ||
Injection Moulded Sprockets
Machined Sprockets | Teeth | Pitch Diametet(mm) | Outside Diameter | Bore Size | Other Type | ||||
mm | Inch | mm | Inch | mm | Available On request By Machined | ||||
3-2720-9T | 9 | 79.5 | 3.12 | 81 | 3.18 | 40*40 | |||
3-2720-12T | 12 | 105 | 4.13 | 107 | 4.21 | 30 40*40 | |||
3-2720-18T | 18 | 156.6 | 6.16 | 160 | 6.29 | 30 40 60 | |||
Application Industries
1. Container manufacturing
2. Pharmaceutical
3. Automotive
4. Battery
5. Other industries
2. Pharmaceutical
3. Automotive
4. Battery
5. Other industries
Advantage
1.convenient to assembly and maintain
2.Smooth, closed upper surface
3.Stable operation
4.Low maintenance cost
5.Easy to clean
6.Safe design
7.High quality
8.Widely usage
9.Can withstand low friction coefficient,
10.High impact resistance, tensile strength and other instant impact
2.Smooth, closed upper surface
3.Stable operation
4.Low maintenance cost
5.Easy to clean
6.Safe design
7.High quality
8.Widely usage
9.Can withstand low friction coefficient,
10.High impact resistance, tensile strength and other instant impact
Physical and chemical properties
Polyoxymethylene (POM), also known as acetal polyacetal, and polyformaldehyde,It is an engineering thermoplastic used in precision parts requiring high stiffness, low friction and excellent dimensional stability. As with many other synthetic polymers, it is produced by different chemical firms with slightly different formulas and sold variously by such names as Delrin, Kocetal, Ultraform, Celcon, Ramtal, Duracon, Kepital, Polypenco, Tenac and Hostaform. POM is characterized by its high strength, hardness and rigidity to −40 °C. POM is intrinsically opaque white because of its high crystalline composition but can be produced in a variety of colors.POM has a density of 1.410–1.420 g/cm3.
Polypropylene (PP), also known as polypropene, It is a thermoplastic polymer used in a wide variety of applications. It is
produced via chain-growth polymerization from the monomer propylene.
Polypropylene belongs to the group of polyolefins and is partially crystalline and non-polar. Its properties are similar to
polyethylene, but it is slightly harder and more heat-resistant. It is a white, mechanically rugged material and has a high
chemical resistance.
Polypropylene (PP), also known as polypropene, It is a thermoplastic polymer used in a wide variety of applications. It is
produced via chain-growth polymerization from the monomer propylene.
Polypropylene belongs to the group of polyolefins and is partially crystalline and non-polar. Its properties are similar to
polyethylene, but it is slightly harder and more heat-resistant. It is a white, mechanically rugged material and has a high
chemical resistance.
Nylon 6(PA6) or polycaprolactam is a polymer, in particular semicrystalline polyamide. Unlike most other nylons, nylon 6 is not a condensation polymer, but instead is formed by ring-opening polymerization; this makes it a special case in the comparison between condensation and addition polymers.
Acid and alkali resistance (PP): 900 flat top modular plastic conveyor belt using pp material in acidic environment and alkaline environment has better transport capacity.
Antistatic: 900 flat top modular plastic conveyor belt resistance value is less than 10E11Ω are antistatic products. Good antistatic products ts resistance value is 10E6 to 10E9Ω,it’s conductive and can release static electricity due to their low resistance value. Products with resistance greater than 10E12Ω are insulated products, which are easy to generate static electricity and cannot be released by themselves.
Wear resistance: Wear resistance refers to the ability of a material to resist mechanical wear. Attrition per unit area per unit time at a certain grinding speed under a certain load.
Corrosion resistance: The ability of a metal material to resist the corrosive action of the surrounding media is called corrosion resistance.
Wear resistance: Wear resistance refers to the ability of a material to resist mechanical wear. Attrition per unit area per unit time at a certain grinding speed under a certain load.
Corrosion resistance: The ability of a metal material to resist the corrosive action of the surrounding media is called corrosion resistance.
