400v 100kwh ev truck car lifepo4 battery pack, 540v 100ah ev truck battery 40kwh 60kwh lithium ion battery for bus
Module & Pack System - Electric Vehicle Batteries - CTS Battery
Our standard module widely used in the public bus, industry vehicle, like mining truck, Tunnel vehicle, large capacity AGV, Skyline crane. We have 5 star ★★★★★ experience in different market. lf you have any question,please contact us, we will provide the proper solution for you!

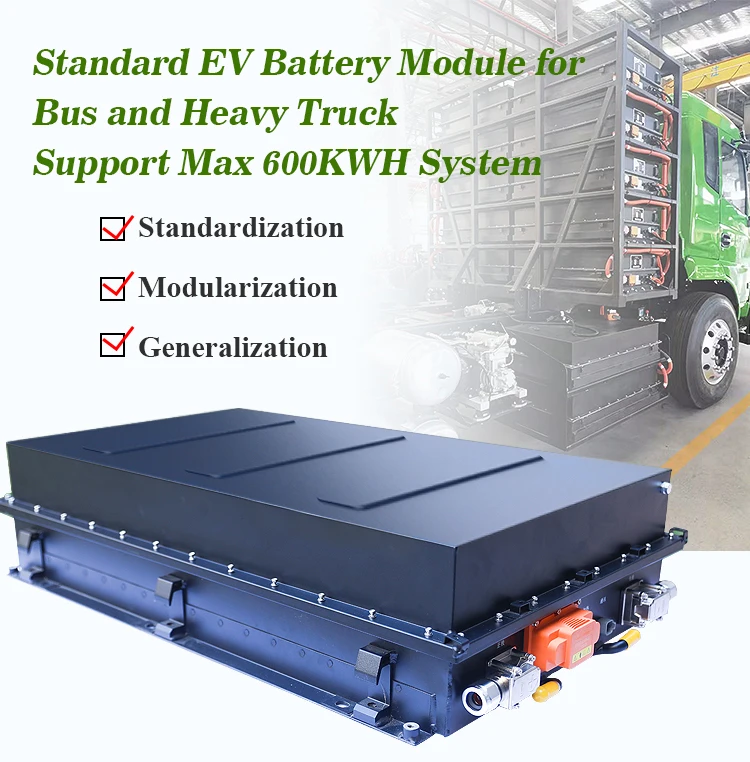

\\uD83D\\uDC4DStandard EV Battery Module for
\\uD83D\\uDC4DBus and Heavy Truck
\\uD83D\\uDC4DSupport Max 600KWH System
\\uD83D\\uDC4DBus and Heavy Truck
\\uD83D\\uDC4DSupport Max 600KWH System
✅Multiple voltage and capacity choices:
Support the max connection of 12 module(4S3P) in one system.
Below are modules available, which can be connected freedomly, max 656V, 600KWH.
✅Longer life:
Support the max connection of 12 module(4S3P) in one system.
Below are modules available, which can be connected freedomly, max 656V, 600KWH.
✅Longer life:

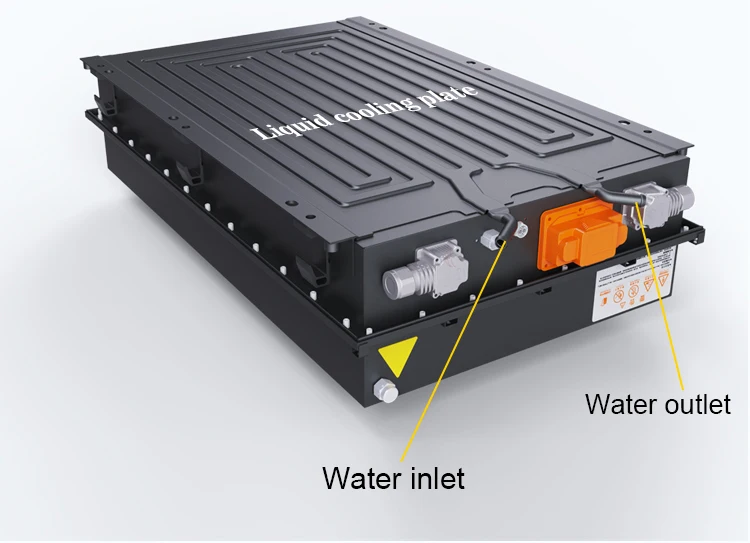

Redesigned liquid cooling system for improved thermal consistency and longer life.
✅Safer EV Battery Module:
Reliable lifepo4 cells, multi-tiered safety system.
✅Safer EV Battery Module:
Reliable lifepo4 cells, multi-tiered safety system.
What is an EV battery module?

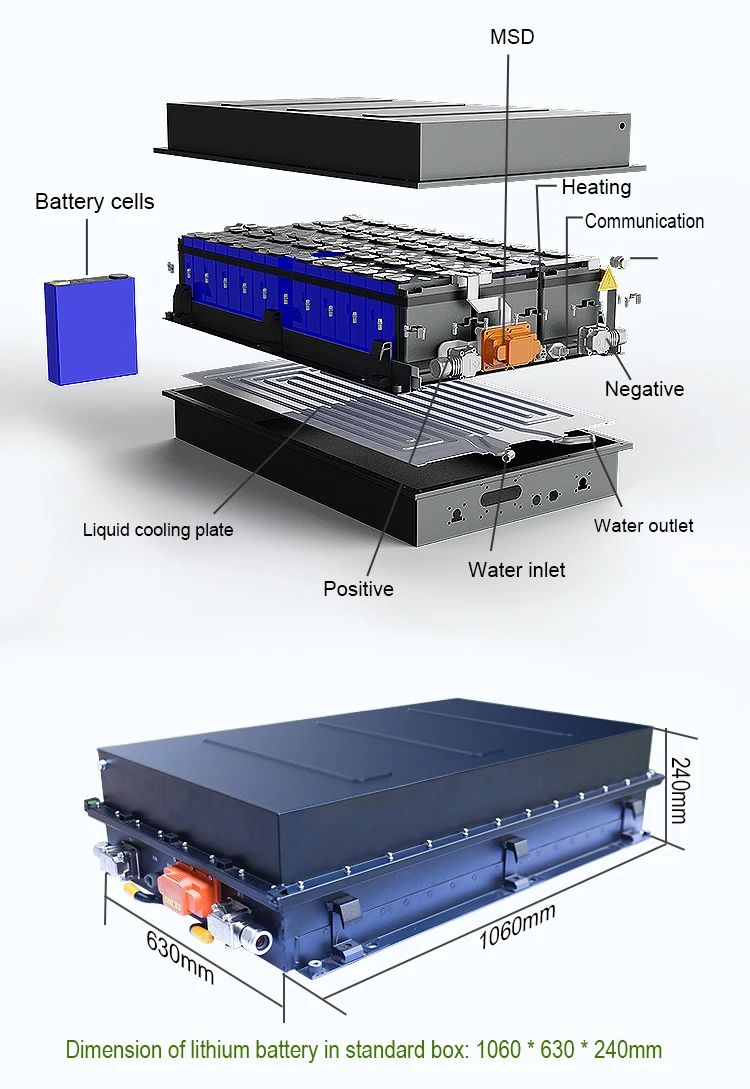

How big is a standard EV battery module?
dimensions: 1060 x 640 x 240mm (l x w x h).
dimensions: 1060 x 640 x 240mm (l x w x h).
You may also like
4 stars and above:
MODEL | F128206 | F128230 | F153206 | F153230 | ||||
ELECTRICAL SPECIFICATIONS | ELECTRICAL SPECIFICATIONS | |||||||
Cell Type -Chemistry | 3.2V 206ah | 3.2V 230ah | 3.2V 206ah | 3.2V 230ah | ||||
Rated Voltage | 128V | 128V | 153.6V | 153.6V | ||||
Energy | 26.386kWh | 29.44kWh | 31.16kWh | 35.328kWh | ||||
IP Protection | IP67 | |||||||
Cycle life | >3000cycles(90%DOD, 0.5C) | |||||||
Standard EV Battery Module facts:
\\uD83D\\uDC77PACK System Core Technology
\\uD83D\\uDC77Compact + Lightweight Design
\\uD83D\\uDC77Patented Smart Thermal Liquid Technology
\\uD83D\\uDC77Modular Design + Single Module Drivable
\\uD83D\\uDC77The all parts in the module is standard parts which are molded parts
\\uD83D\\uDC77Cell Core Technology
\\uD83D\\uDC77Power type Li-ion battery has long cycle life and fast charging-discharging. It can keep the mobility of electric vehicles.
\\uD83D\\uDC77Compact + Lightweight Design
\\uD83D\\uDC77Patented Smart Thermal Liquid Technology
\\uD83D\\uDC77Modular Design + Single Module Drivable
\\uD83D\\uDC77The all parts in the module is standard parts which are molded parts
\\uD83D\\uDC77Cell Core Technology
\\uD83D\\uDC77Power type Li-ion battery has long cycle life and fast charging-discharging. It can keep the mobility of electric vehicles.
Why choose this Standard EV Battery Module?
✅SOC Calculation:
Real time dynamic calibration
Vehicle operation condition wasconsidered
Multi-method combination
High accuracy measurement of thecell Voltage /temperature/pack current
Amount of data from experiment
✅Faults Diagnosis:
Insulation & water leakage
Cell voltage out of range
High/low temperature
Communication faults
Contactor weld
Power connection
Temperature sensor faults
Real time dynamic calibration
Vehicle operation condition wasconsidered
Multi-method combination
High accuracy measurement of thecell Voltage /temperature/pack current
Amount of data from experiment
✅Faults Diagnosis:
Insulation & water leakage
Cell voltage out of range
High/low temperature
Communication faults
Contactor weld
Power connection
Temperature sensor faults
Electric vehicle lithium-ion battery - CTS battery
Electrical diagram of lithium battery system in standard box
Two way high voltage input, doublegun charging Two way hight voltage output-water cooling compressor output; motor driving output;Single way low voltage output ,communicate with the whole vehicle!
Two way high voltage input, doublegun charging Two way hight voltage output-water cooling compressor output; motor driving output;Single way low voltage output ,communicate with the whole vehicle!
