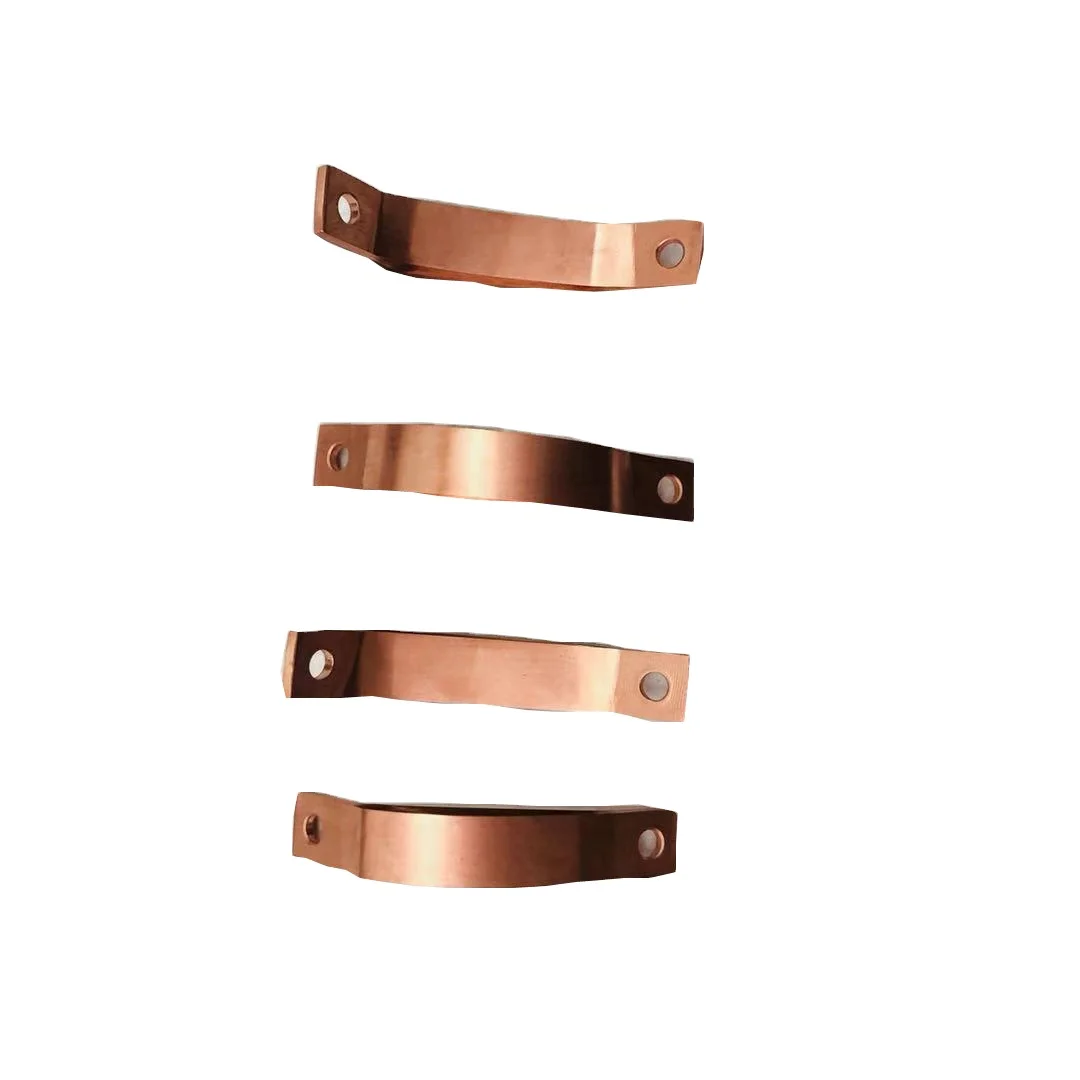

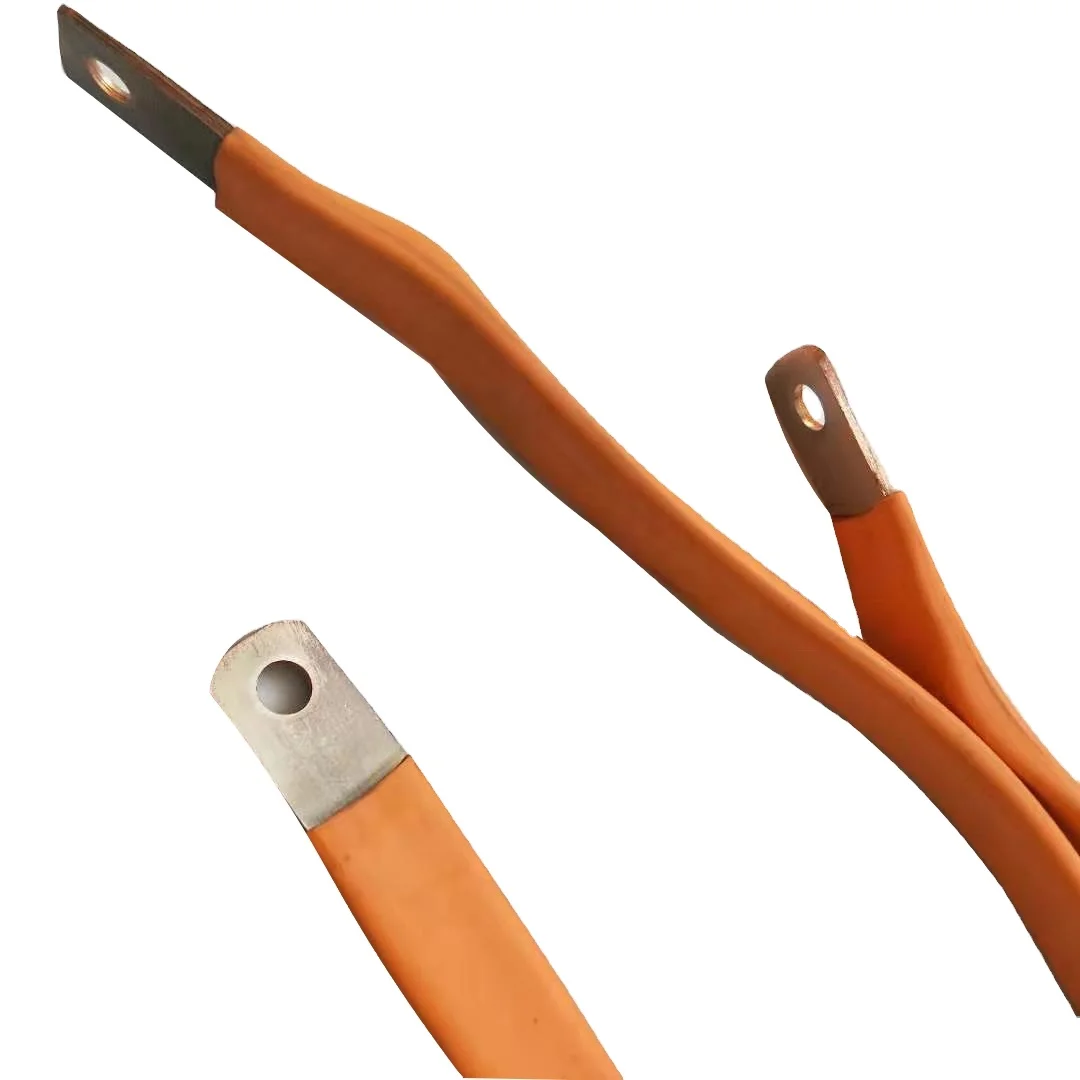

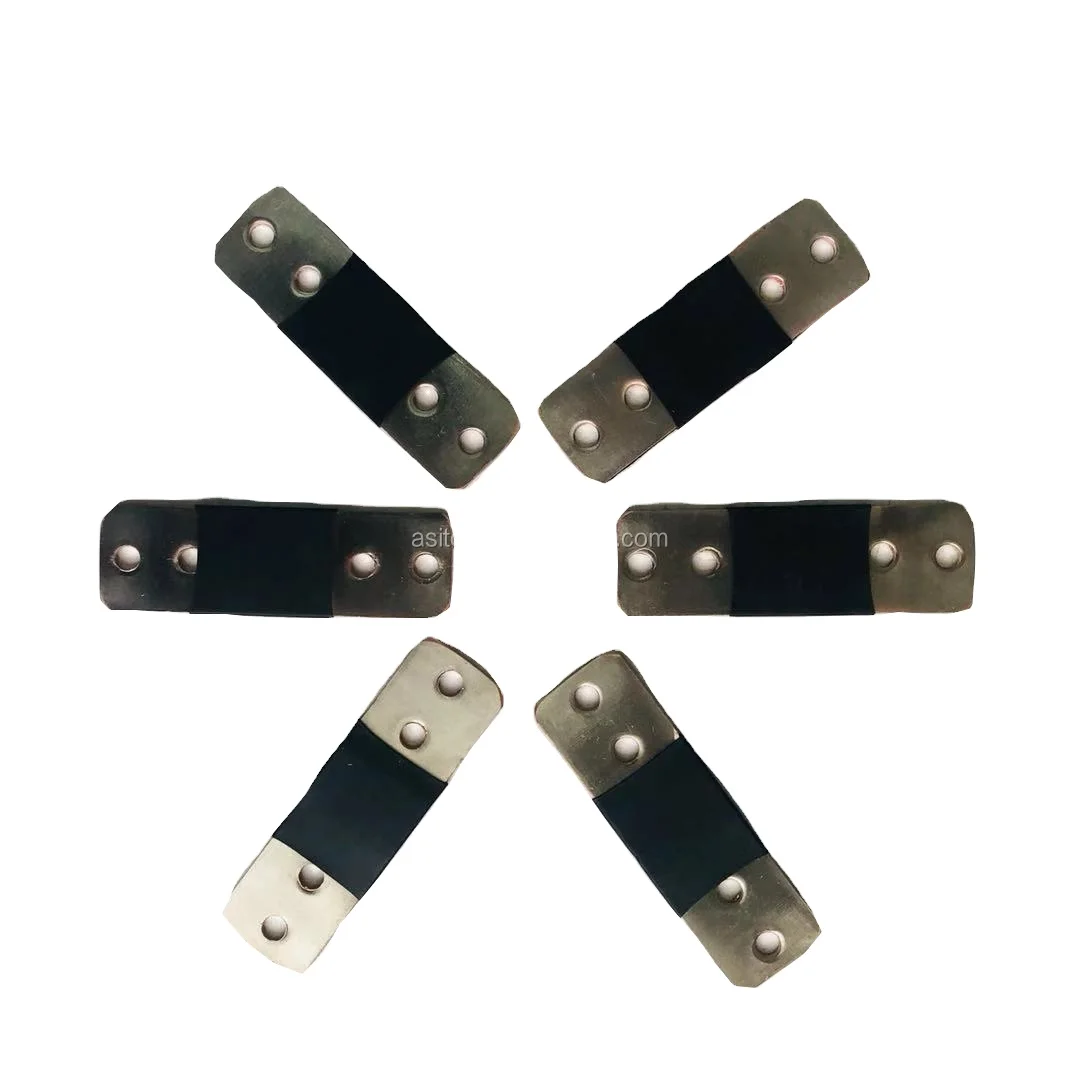

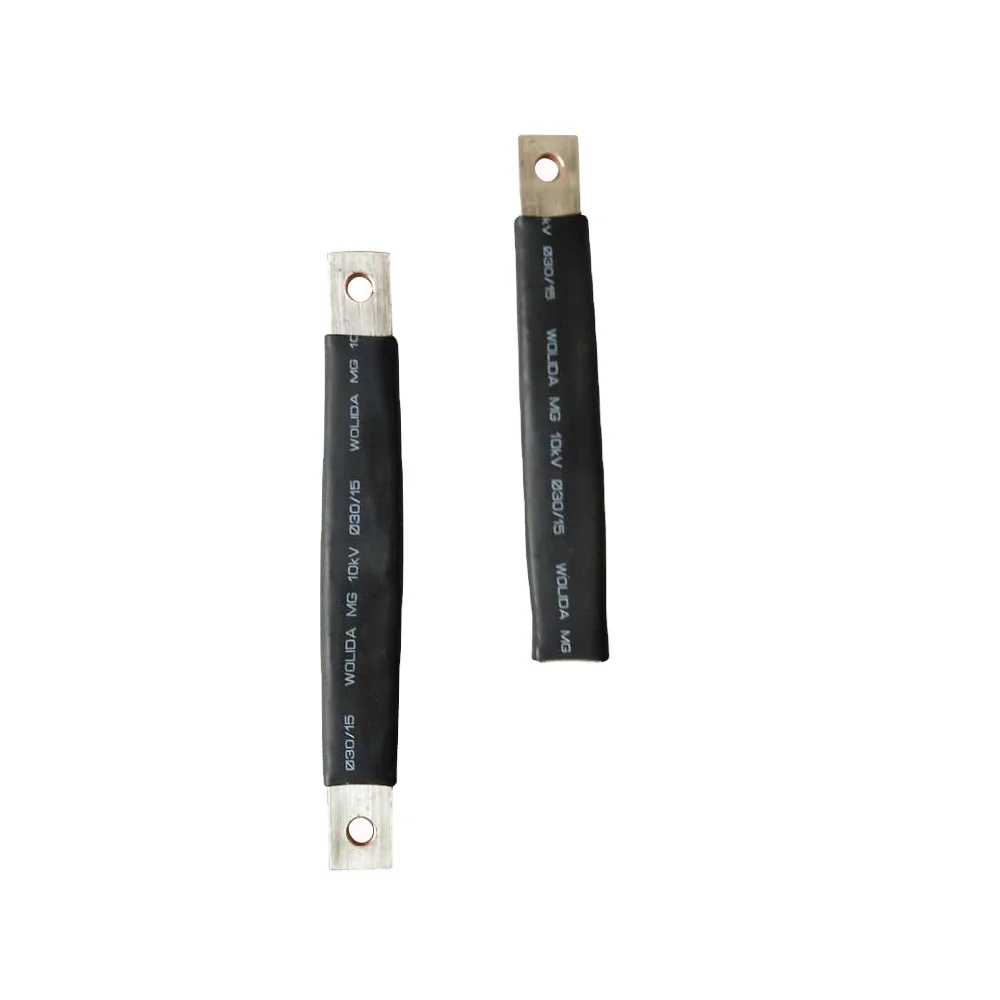

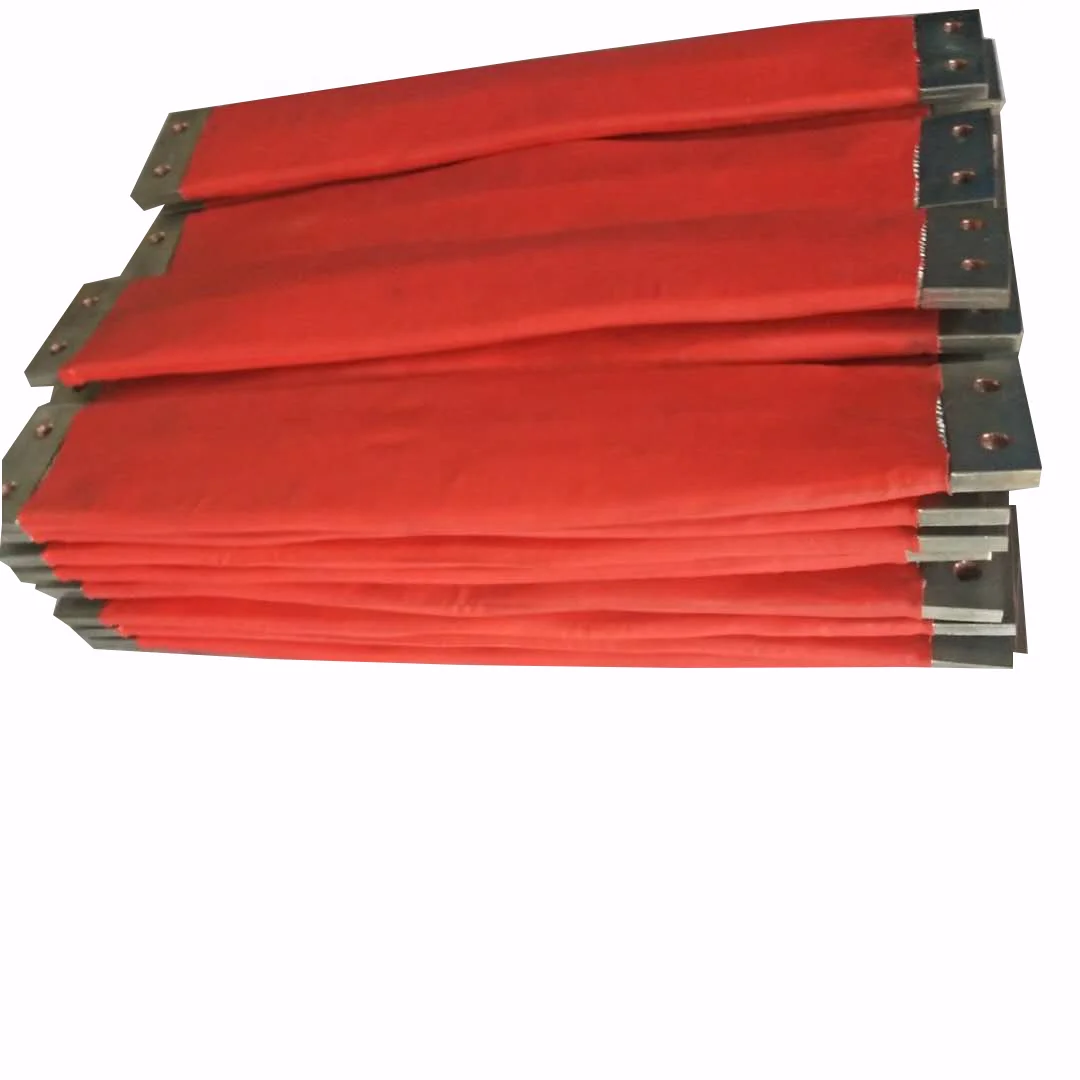

CMP 200A electrical shunt flexible copper bus bars for lithium ion batteries

Product Overview

Description

C11000 electrical shunt flexible copper bus bars for lithium ion batteries CMP 200A

Pressure welding soft connector



The pressure welding is to press the copper foil laminations together, using molecular diffusion welding, and forming by high-current heating and pressure welding.

Copper foil: 0.03mm to 0.3mm thick.
The contact surface can be tinned or silver plated according to users’ requirements.

Description of pressure welding / brazing

In order to ensure the flatness of the contact surface,

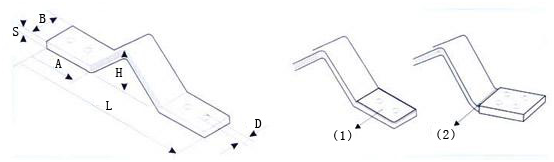

When A is greater than 90mm and B is greater than 60mm; use the contact surface paste copper friend (1mm thick) pressure welding process, see the scheme (I) shown in the figure.
When A is greater than 140mm and B is greater than 130mm: Brazing process is used, see the scheme (II) shown in the figure.

Technical parameters



See the table below.

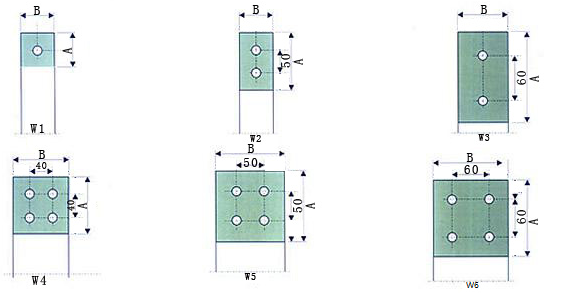

The width, length and drilling holes not included in the table below can be processed according to user requirements.
The allowable current carrying capacity is a reference value. This value is related to the installation and use conditions of the soft connector.

Scheme (II)

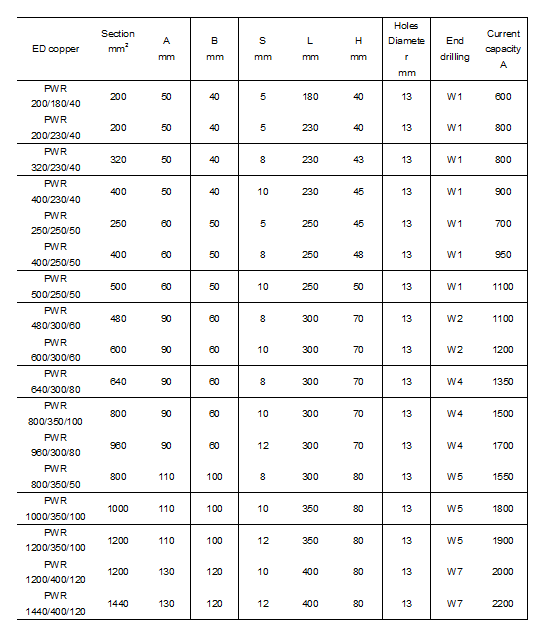

Technical parameter table of pressure welding / brazing









Our Services

1. Perfect management systems: Implement ISO9001 & IATF16949 and provide PPAP document.

2. Professional sales team: More than 5 years export experience and 24-hour service line to meet customers’ need.

3. Premium quality: Test from raw material to packaging and many advanced testing equipment, like loop resistance tester, electrical conductivity tester.

4. High production efficiency and low cost : 5 years experience of production and complete production chain.

5. Highly intelligent production workshop: Robot production lines and high-precision machines.

FAQ

 1. Q: Are you factory or trading company?

     A: We are factory.

2. Q: Can I get samples before making an order?

    A: We can send you free samples if you offer the model and size you need, or you send us your drawing. Btw, we need you to bear the freight cost for the free samples.

3. Q: Do you accept small order or trial order?

    A: Small order and trial order is acceptable.

4. Q: How long can I get a sample?

    A: For sample we have in stock, we can send it in one day.

5. Q: How do you inspect goods?

    A: We have inspection department. All goods will be inspected before packing.

6. Q: What's your payment term?

    A: For small order, we suggest 100% before production to save time and bank charge. For bulk order, payment is 30% TT before production 70% TT before delivery.
