Sell KLINGERSIL asbestos free board asbestos free gasket
- Category: >>>
- Supplier: Langfang Yapai Sealing Material Co. Ltd.
Share on (1600732105264):
Product Overview
Description
Product Description
Sales of full series of klingersil asbestos free board :

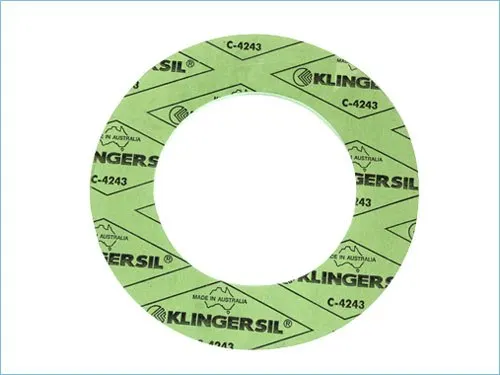

C4243-1500*2000*2mm
C4243-1500*2000-3mm

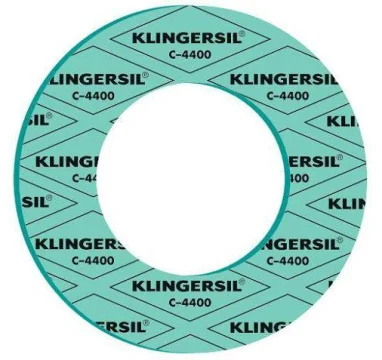

C4400-1500*2000-2mm
C4400-1500*2000-3mm
C4500-1500*2000-2mm
C4500-1500*2000-3mm
Discount for large quantity, can be processed and customized
Standard thickness: 1.0 in common use; 1.5; 2.0; 3.0mm ; In addition, please call to inquire about ultra-thin or ultra-thick parts
technical parameter
Maximum operating temperature 400 ° C
Maximum operating pressure 100 bar
Compressibility ASTM F36A 11%
Rebound rate ASTM F36A (min) 55%
KLINGER hot press test 25 MPa 300 ° C
Thickness reduction 23 ° C 10%
Thickness reduction 300 ° C 22%
Tensile strength ASTM F152 15 MPa
Gas leakage DIN 3535/6 0.2 ml/min
Pressure relaxation BS7531 23 MPa
Pressure relaxation DIN 52913 (16h, 300 ° C) 25 MPa
Weight increase ASTM F146
ASTM oil No. 3 (5h/150 ° C) 3%
ASTM fuel oil B (5h/23 ° C) 5%
Thickness increase ASTM F146
ASTM oil No. 1 (5h/150 ° C) 0 - 5%
ASTM oil No. 3 (5h/150 ° C) 0 - 5%
ASTM fuel oil A (5h/23 ° C) 0 - 5%
ASTM fuel oil l B (5h/23 ° C) 0 - 5%
Density 1.6 g/cm3
Maximum operating temperature 400 ° C
Maximum operating pressure 100 bar
Compressibility ASTM F36A 11%
Rebound rate ASTM F36A (min) 55%
KLINGER hot press test 25 MPa 300 ° C
Thickness reduction 23 ° C 10%
Thickness reduction 300 ° C 22%
Tensile strength ASTM F152 15 MPa
Gas leakage DIN 3535/6 0.2 ml/min
Pressure relaxation BS7531 23 MPa
Pressure relaxation DIN 52913 (16h, 300 ° C) 25 MPa
Weight increase ASTM F146
ASTM oil No. 3 (5h/150 ° C) 3%
ASTM fuel oil B (5h/23 ° C) 5%
Thickness increase ASTM F146
ASTM oil No. 1 (5h/150 ° C) 0 - 5%
ASTM oil No. 3 (5h/150 ° C) 0 - 5%
ASTM fuel oil A (5h/23 ° C) 0 - 5%
ASTM fuel oil l B (5h/23 ° C) 0 - 5%
Density 1.6 g/cm3
| brand | yapai |
| provinces | Hebei |
| Size | 1 to 5 mm thick |
| color | black, red, green or as request |
Company Information
Our Services
1. We believe to supply you our best services within 24 hours.
2. We can design and produce products based on the client's requirements.
3. The size packaging meshod and finishing methodcan be based on clients' requirements too.
Packaging & Shipping
FAQ
1. Delivery date?
Usually 10-15days after receiving deposit, specific delivery date based on order quantity.
2. What will you do for quality control?
Our will supervise all the processes before & after production,until shipped our from factory.
3. What is your MOQ?
MOQ may vary by customer's special requirement; we try our best to meet your business requirement.
4.What kind of products do you have to offer?
The company can provide a variety of fire sealing materials. For example: metal spiral wound gasket, non-asbestos gasket, industrial rubber plate, PTFE plate, PTFE gasket, ceramic fiber cloth, fireproof cloth, glass fiber cloth, rubber gasket, non-asbestos gasket, PTFE rod, graphite paper, graphite gasket, graphite packing, PTFE packing, aramide packing, carbon fiber packing and other products.
5.Can we have a visit to your factory ?
Yes! Of course,welcome to visit our factory at anytime on site or online!
