7 inch Touch screen video intercom system with face access control terminal and IP Camera VI01
- Category: >>>
- Supplier: Vanshui Enterprise Company Limited
Share on (1600732145222):
Product Overview
Description
Products Description
7 inch Touch screen video intercom system with face access control terminal and IP Camera
VI01 is a Linux-based video intercom which is an ideal solution to apartment and office buildings.
VI01 provides various functions including audio and video intercom, support door station and indoor
monitor communication via TCP/IP, can control main door release.

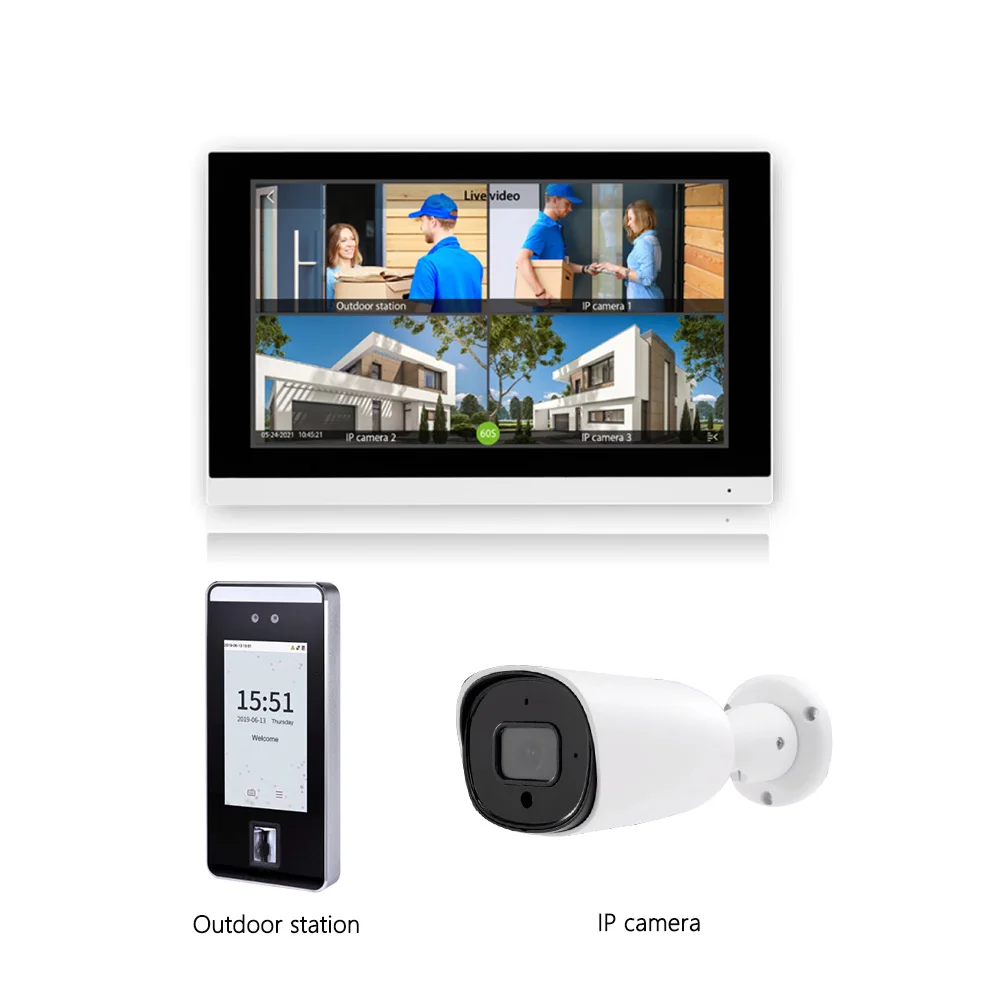

VI01 is mainly used with access control terminals, to achieve access control + video intercom integration.
At the same time can also access IPC (support ONVIF protocol).

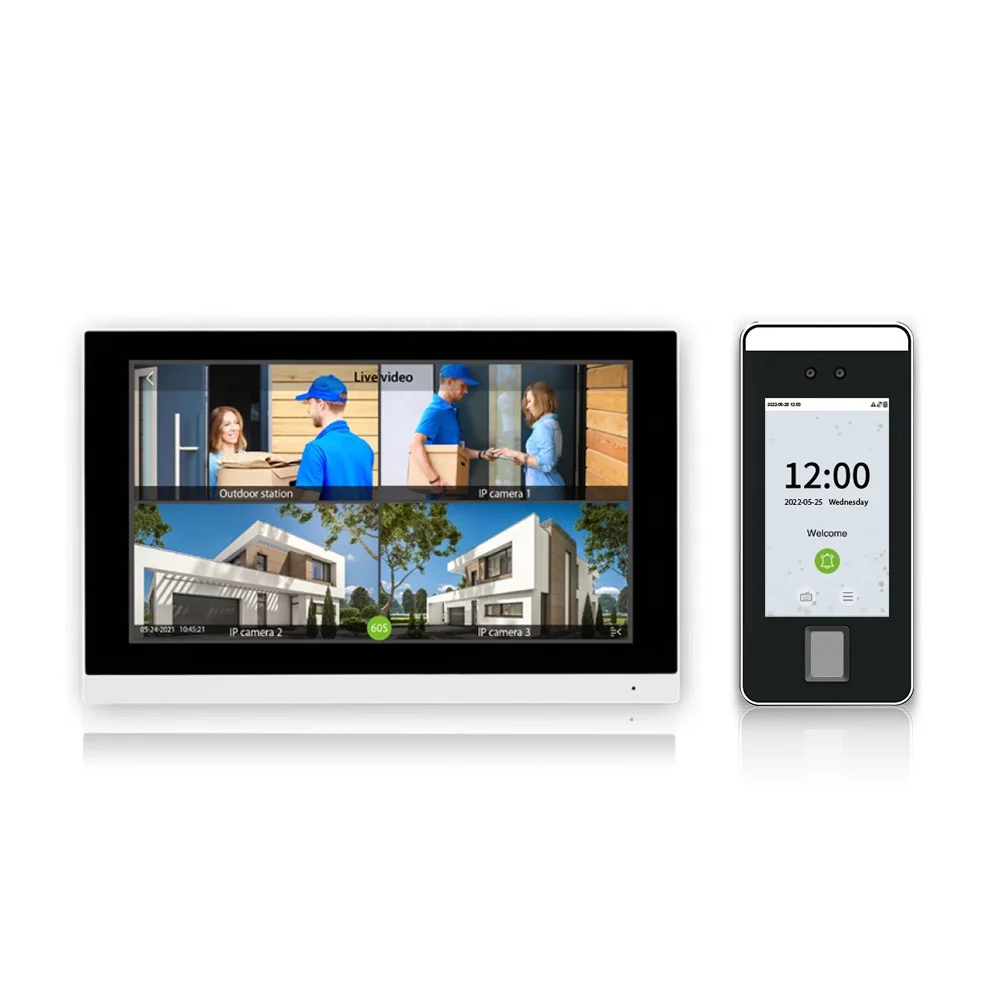

When access control terminal calls in, VI01 will automatically display 4 split screen video, including access
control video and 3-way IPC videos at the same time, users can observe the outdoor environment in more detail.
VI01 provides various functions including audio and video intercom, support door station and indoor
monitor communication via TCP/IP, can control main door release.
VI01 is mainly used with access control terminals, to achieve access control + video intercom integration.
At the same time can also access IPC (support ONVIF protocol).
When access control terminal calls in, VI01 will automatically display 4 split screen video, including access
control video and 3-way IPC videos at the same time, users can observe the outdoor environment in more detail.
Features
Features
* Support video intercom, connected with access control terminal
* Support IPC access, support ONVIF protocol
* Support SIP protocol, support access sip device
* 7“ LCD HD touch screen
* Support 4-way video display on the same screen
* Support remote door opening
* Support video recording, playback and other basic functions of security NVR
* Support micro TF card, maximum support 128G capacity
* Support IPC access, support ONVIF protocol
* Support SIP protocol, support access sip device
* 7“ LCD HD touch screen
* Support 4-way video display on the same screen
* Support remote door opening
* Support video recording, playback and other basic functions of security NVR
* Support micro TF card, maximum support 128G capacity
Specification & Additional Models
Specification
Description | Model Name | VI01 |
System Parameters | OS | Linux System |
DDR | 2G | |
FLASH | 1G | |
Display Parameters | Display | 7“ LCD HD touch screen |
Resolution | 1024*768 | |
Video Display | Support 4 split screen/full screen | |
Network Parameters | Wired Network | Support RJ45 network port |
Wireless Network | Optional | |
Electrical and external interfaces | TF card slot | Support up to 128G micro TF card |
Network Interface | RJ45 Network Port | |
Power | DC12V 2A | |
Operating Temperature | -10°C to 55°C | |
Other parameters | Dimension | 185*117*22 mm |
Weight | 410g |
Details Images
