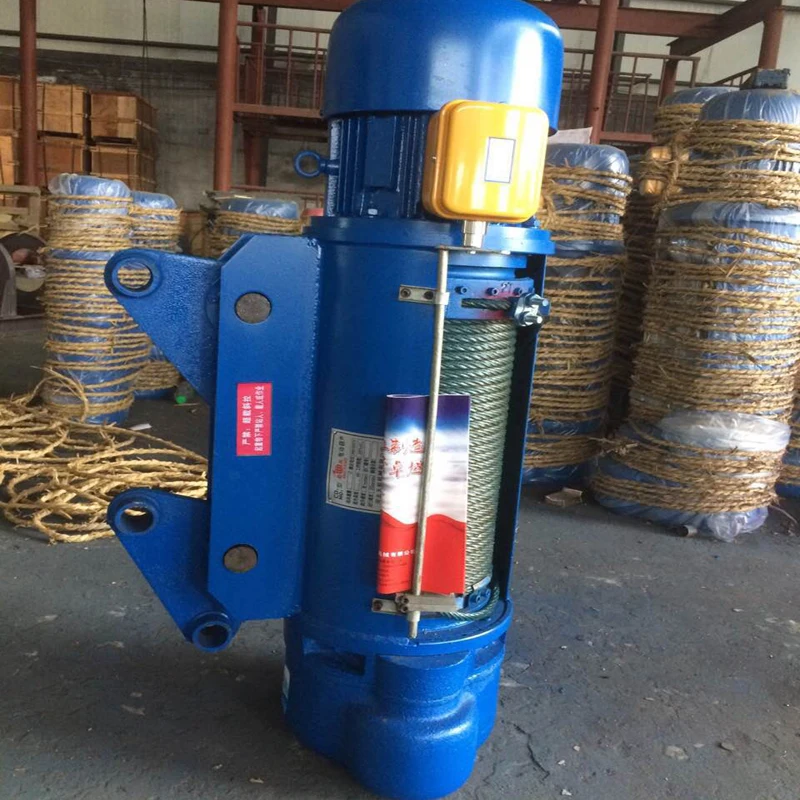

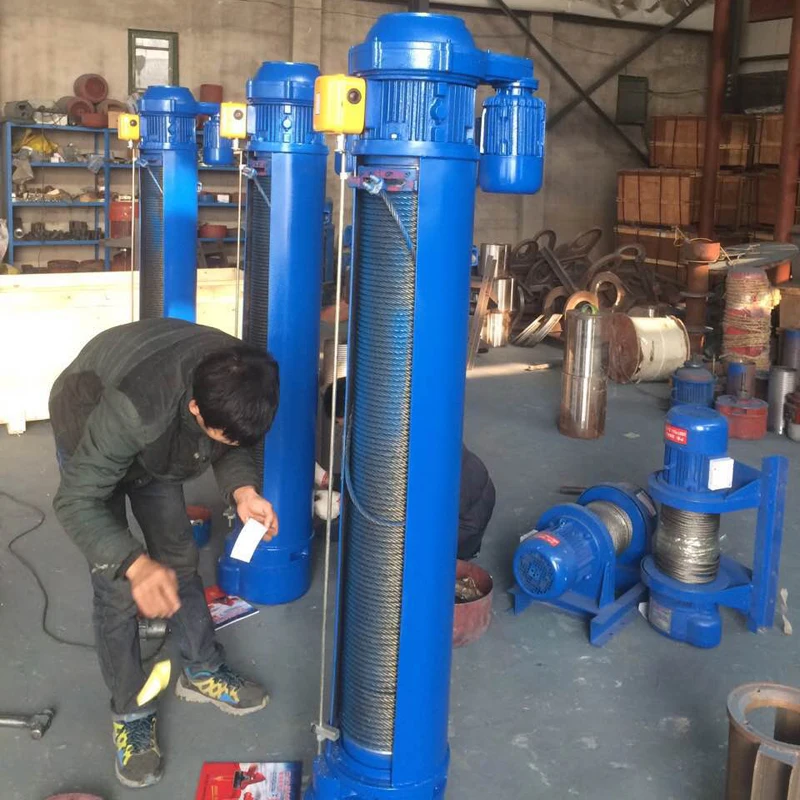

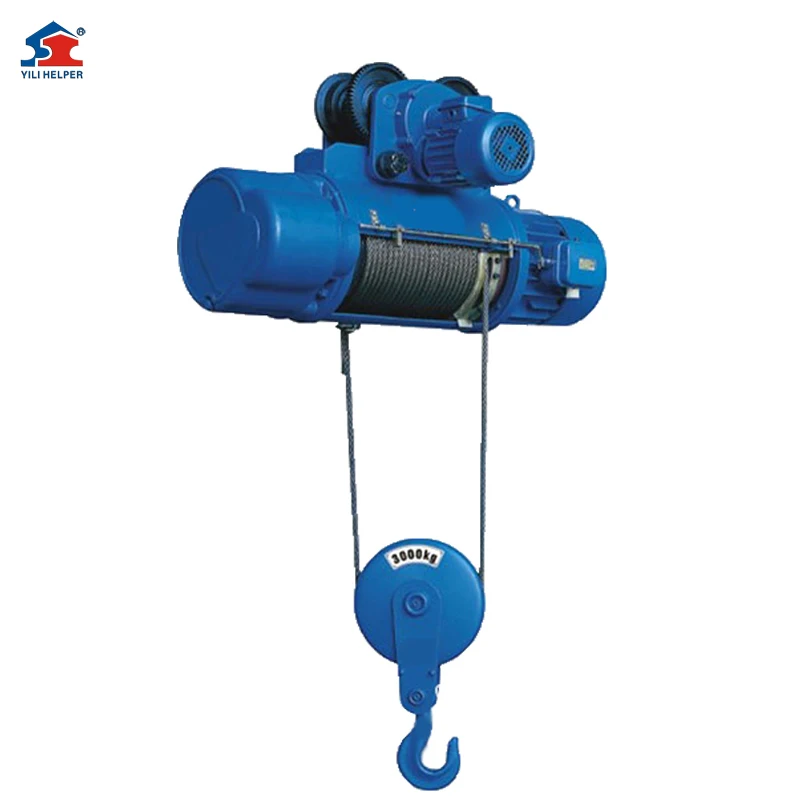

High Quality Electric Winch Wire Rope Hoist 1ton Electric Wire Rope Pulling Hoist

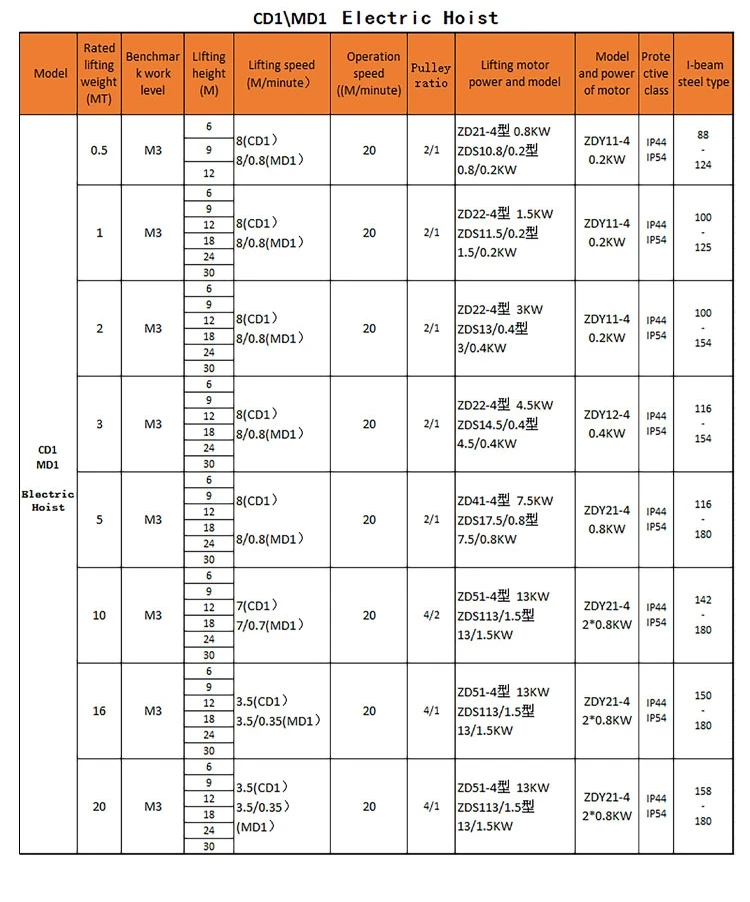

According to the lifting speed, it can be divided into:

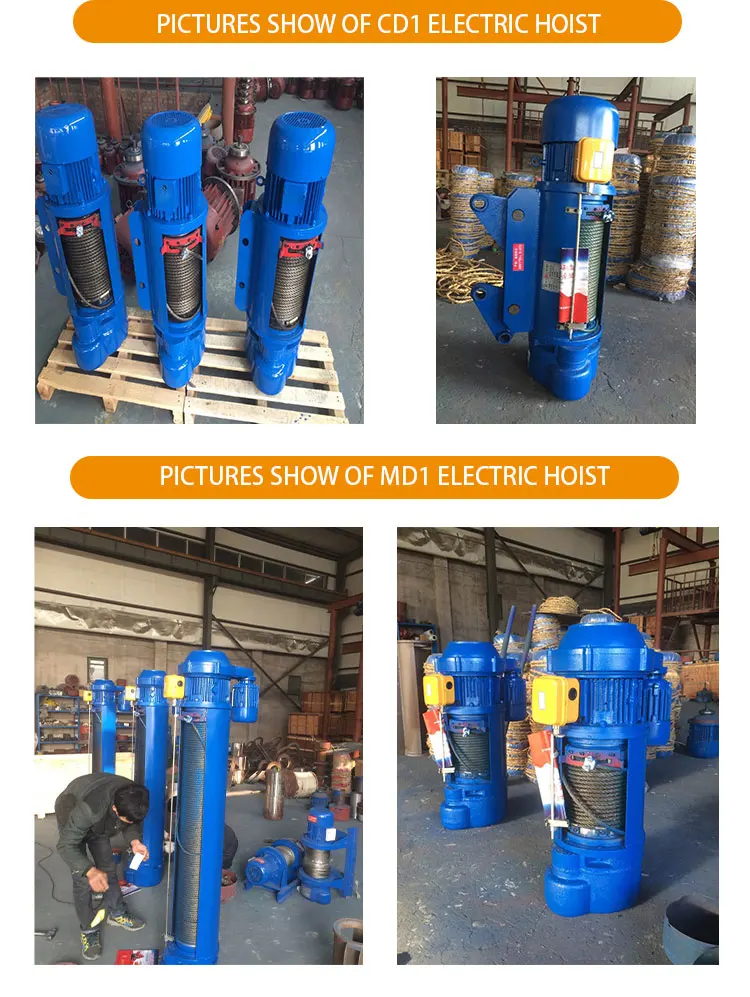

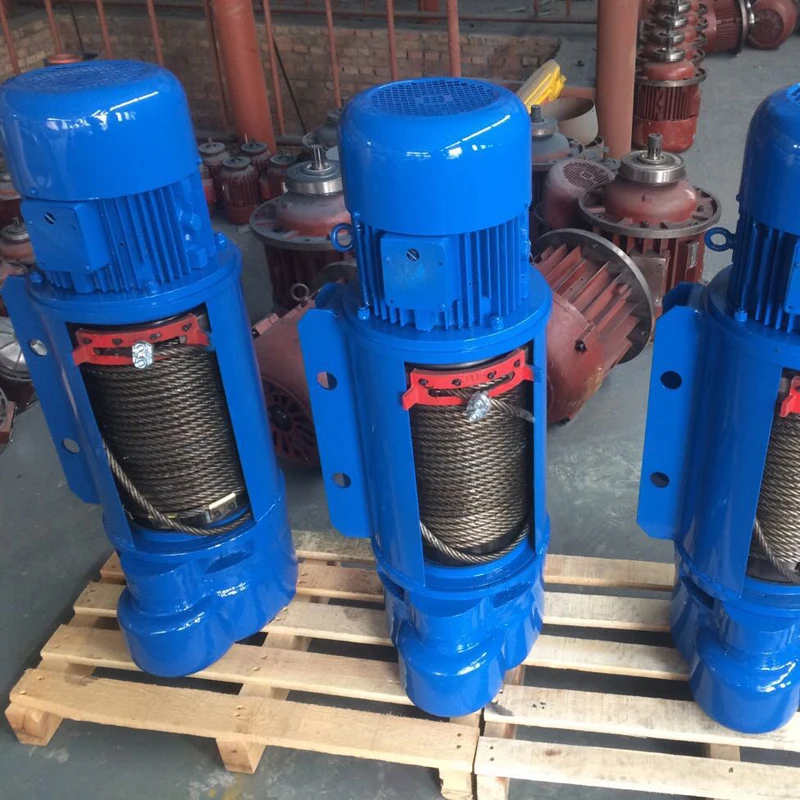

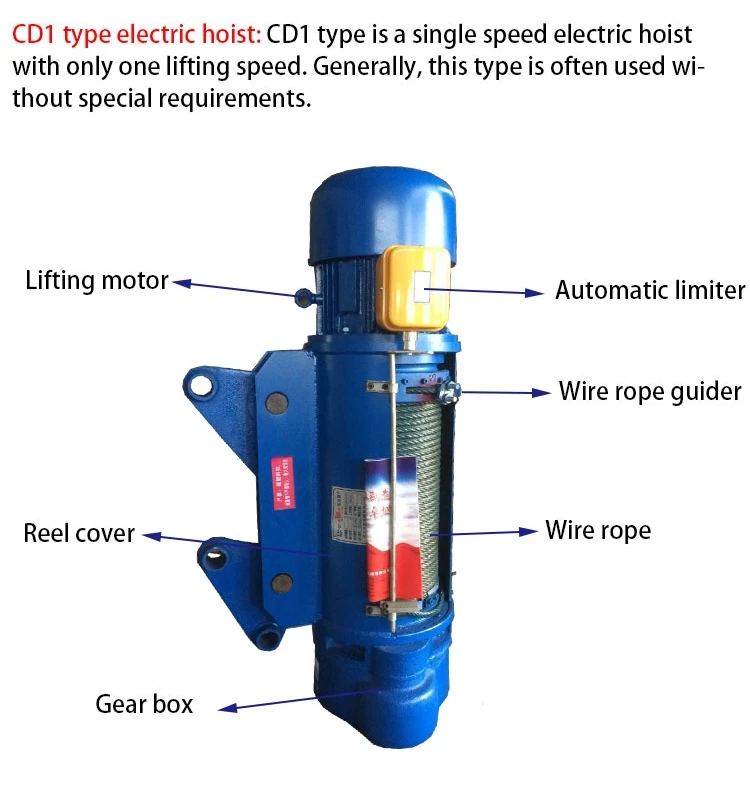

CD1 type electric hoist( single speed)

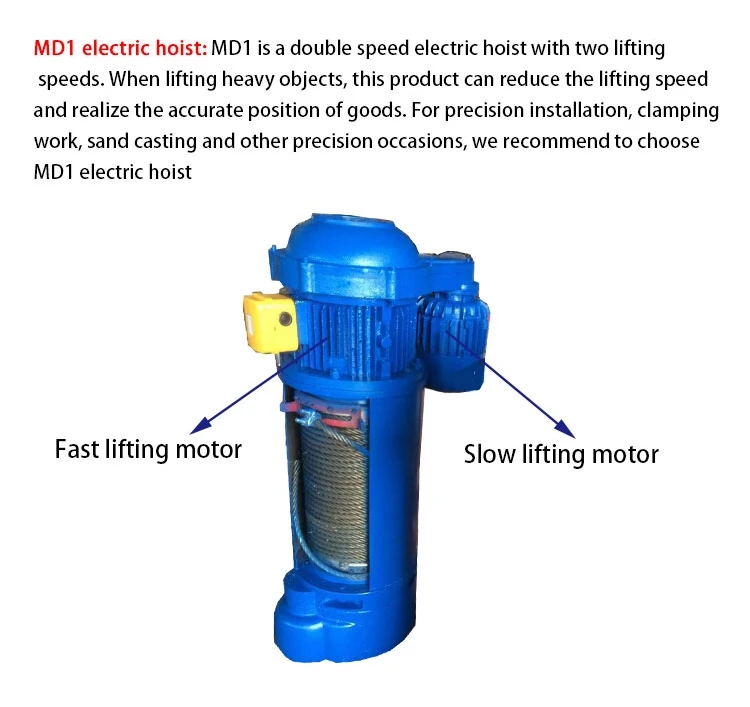

MD1 type electric hoist (double speed)
Installation method of electric hoist:

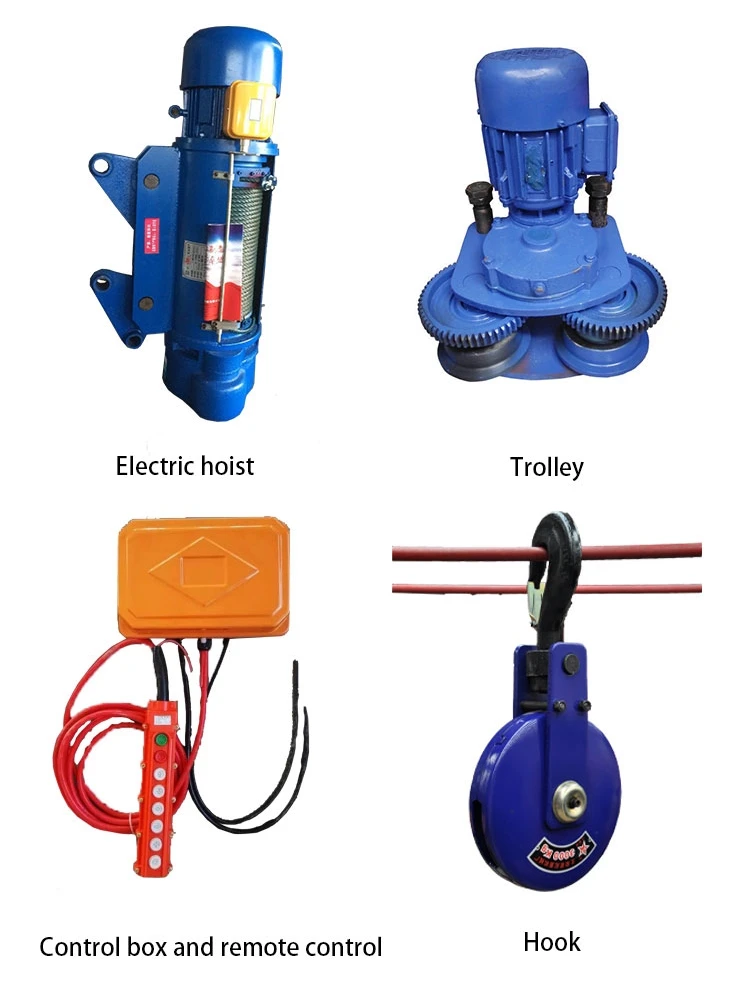

1. Electric hoist is divided into electric trolley type (that is, electric hoist can lift heavy objects up and down, It can also move left right.)
2. Fixed type( only lifting heavy objects up and down) . Users can choose the electric hoist suitable for your installation mode according to your request

1. For the newly installed or disassembled electric hoist, the first step is to run the hoist several times. However, before the installation is completed, do not power on and test run.
2. Before normal operation, the static load test should be carriedout at the rated load of 125%, lifting about 100 mm from the ground and 10 minutes to check whether it's normal.
3. The dynamic load test is based on the rated load weight for repeated lifting and moving test. After the test, check whether the mechanical transmission part, electrical part and connection part arenormal and reliable.
4. In use, it is absolutely forbidden to use in the environment that is not allowed, and when it exceeds the rated load and the rated closing times per hour (120 times).

5. During installation, commissioning and maintenance, it is necessary to strictly check whether the limit device is flexible and reliable. When the hook is raised to the upper limit position, the distance between the hook shell and the reel cover must be more than50 mm( 10MT, 16MT, 20MT must be more than 120 mm). When the hook is lowered to the limit position, the safety circles of the wire
rope on the reel should be ensured, and the effective safety circles must be more than 2circles.
6. It is not allowed to press two hand switch buttons that make the electric hoist move in the opposite direction at the same time.
7. After operation, the main switch of power supply must be swithed to cut off the power supply.
8. The electric hoist shall be operated by a specially assigned person, and the operator shall fully follow the safety operation procedures, and it is strictly prohibited to pull and lift the hoist askew.

9. In use, the electric hoist must be checked regularly by special personnel,and timely measures shall be taken in case of any fault, and records shall be made carefully.
10. When adjusting the brake sliding amount of electric hoist, it should be ensured that the brake sliding amount s V/ 100 underrated ( V is the stable lifting distance within one minute under load).

Baoding Zhuoheng Machinery Manufacturing Co,.Ltd. is a modern group enterprise specializing in R & D and production of automobile maintenance equipments , lifting equipment and agricultural equipment.

Established in 2004, The company has a registered capital of 10 million yuan, covers an area of more than 25000 square meters, and has more than 360 employees.

What advantages do we have

Brand effectiveness

1.The brand has a history of more than 20 years

2. The company's products are exported to Europe, America, South Africa, Singapore, Japan and other more than 70 regions and countries

3. Cooperation with Tesla, great wall and other well-known enterprises

Technical team

1. The company has a professional R & D and design team of 25 people,

2. More than 50 R & D or innovation patents

3. Focus on the research and development of mechanical equipment for more than 20 years

4.recognized as a provincial high-tech enterprise in 2018.

Service team

1. More than 20 professional after-sales experienced employees

2. Provide online technical support within one year

1. What about the payment term&price term?

As usual, we normally accept T/T, L/C for payment term, price term can be FOB&CIF&CFR etc.

2. What's the delivery time?

Usually, we shipthe goods within 7-20 days. If you need big quantity, we will try to finish in shortest time for you.

3. Are we a manufacturer&factory or trading Company?

We are absolute manufacturer in Hebei province, China, we have specialized in crane&hoist over 20 years.
