Pressure Sensitive Adhesive (PSA) Tape Static Shear Adhesion Tester
- Category: >>>
- Supplier: Labthink Instruments Co. Ltd.
Share on (1600732300959):
Product Overview
Description
Product Description

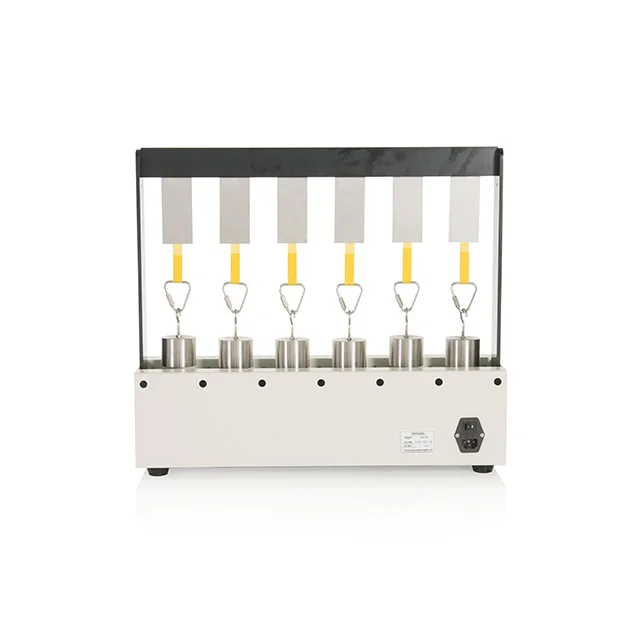

CZY-8SA Lasting Adhesive Tester can be used to test the holding power of pressure-sensitive tapes, pressure-sensitive labels and protective films, etc.
Features
* Time method and displacement method
* Standard test plates and weights ensure the accuracy of test data
* Automatic timing, inductance type large area sensor and fast locking functions guarantee the accuracy of test data
* Automatic statistics of maximum value, minimum value, average value and logarithmic reduction value
* Testing environment temperature and humidity curves are displayed and recorded automatically in real time for data comparison
under the same conditions
Standards
GB/T 4851-2014, ASTM D3654, JIS Z0237
Applications
Including various adhesives, e.g. pressure-sensitive tapes, medical patches, adhesive labels and protection films
Specifications | |
Standard Roller | 2000 g ± 50 g |
Weight | 1000 g ± 5g (with hook) |
Test Plate A | 125 mm (L) × 50 mm (W) × 1.3 mm (D) |
Timing Range | 0 ~ 9999 hrs 59 min 59 sec |
Number of Stations | 8 |
Instrument Dimension | 900mm(L)×315mm(W)×544mm(H) |
Power Supply | 220VAC±10% 50Hz / 120VAC±10% 60Hz |
Net Weight | 25 kg |
Net Weight | 20 kg |
Packing Details
Note: this is just a sample packaging. We Labthink cares all instruments that we are sending to customers.
Our Service
Romote Service
Lifelong free of charge! unpacking, Installation, debugging, training, maintainance, etc
Field Service
Include installation, debugging, operation and application training, calibration, repairing
Local Service Centers
More than 30 International service providers give you promote services.
Our Company
Labthink China
Founded in 1989, Located in Ji'nan, Shandong, has 200+ empolyees and self owned laboratory
Labthink USA
Located in Medford, MA; has 30+ employees, including sales team, after-service team and shown room.
Labthink Labotary
360 m2 test area, 120 testing instruments, 20+ experienced lab technicians. Provide test data as well as soluction services
Debugging Department
Each Lathink instrument are carefully checked and debugged by the engineers.
Labthink has taken the lead in proposing & drafting 14 national standards and has been granted more th-an 109 patents.
