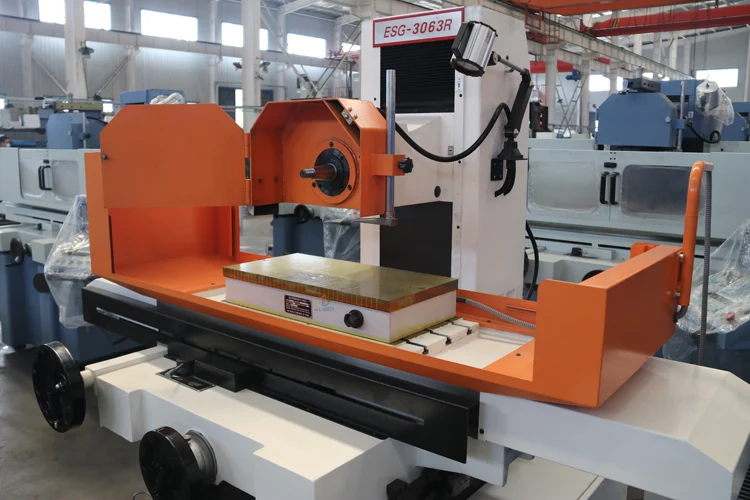

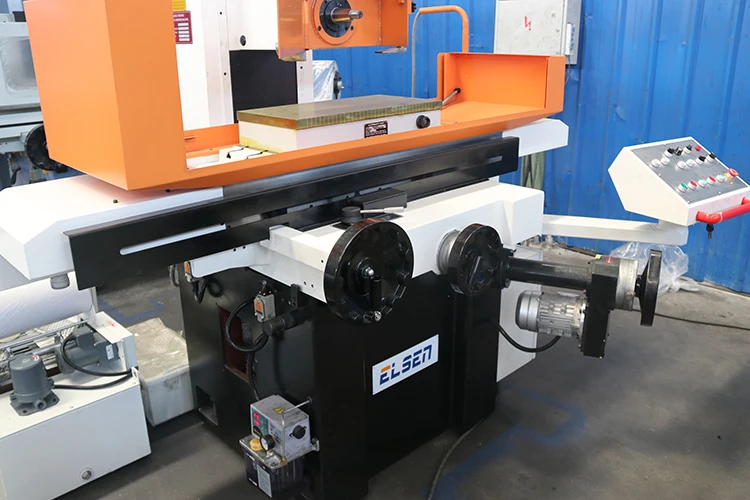

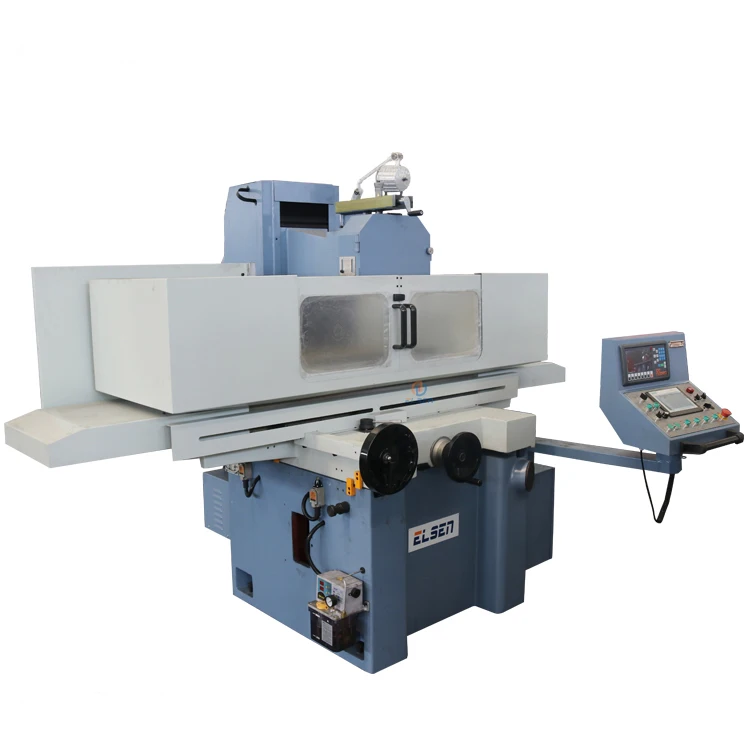

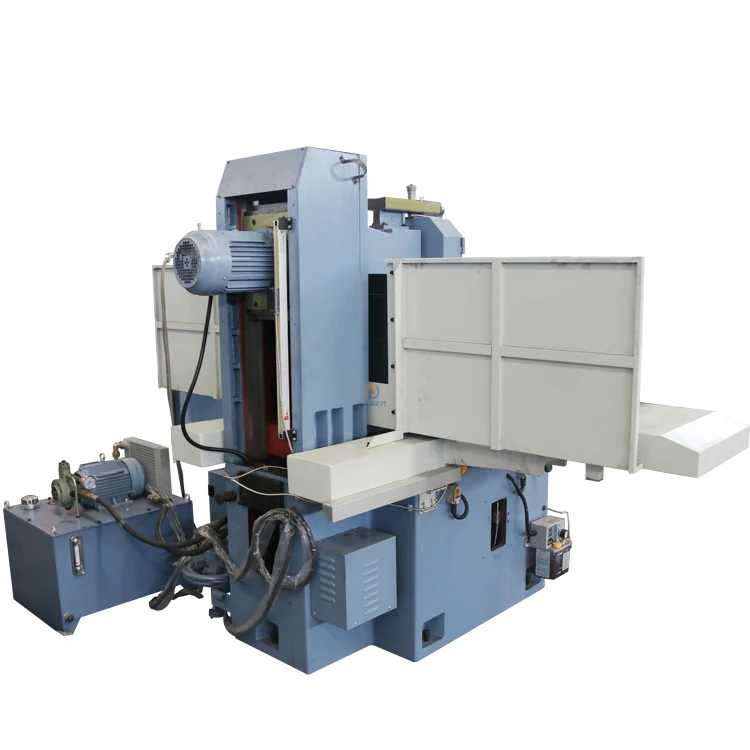

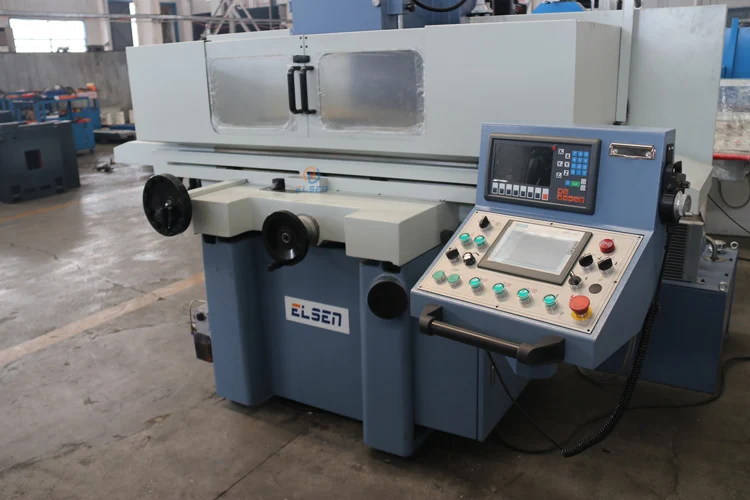

ESG 3063M factory price vertical spindle rotary table surface grinding machine
- Category: >>>
- Supplier: Xuzhou Elsen Machine Tool Co. Ltd.
Share on (1600732394767):
Product Overview
Description
Product Description
ESG Series saddle moving grinder, the table size covers 200*500, 250*500, 300*630, 300*1000, 400*800, 400*1000.
Well designed perfect symmetrical structure insure the machine is very suitable for precision grind. Saddle makes cross movement driven by AC motor, work table make reversing movement driven by hydraulic, and spindle make elevating movement and is driven by manual (M series), AC motor (R series), or AC servo motor (A series).
Model | ESG-3063M | ESG-3063R | ESG-3063A | |||||
Table size | mm | 305*635 | 305*635 | 305*635 | ||||
Magnetic chuck size | mm | 300*600 | 300*600 | 300*600 | ||||
Max.distance from spindle center to table | mm | 580 | 580 | 580 | ||||
Table cross travel | mm | 340 | 340 | 340 | ||||
Table longitudinal travel | mm | 765 | 765 | 765 | ||||
Max.loading capacity (include chuck) | kg | 270 | 270 | 270 | ||||
Speed of table longitudinal move | m/min | 5-25 | 5-25 | 5-25 | ||||
Cross motion | ||||||||
Intermittent feed rate | mm/t | 0.1-8 | 0.1-8 | 0.1-8 | ||||
Rapid speed | mm/min | 990 | 990 | 990 | ||||
Feed of handwheel | mm/div | 0.02 | 0.02 | 0.02 | ||||
Vertical Motion | ||||||||
Auto down feed rate | mm/t | - | - | 0.005-0.05 | ||||
Rapid down speed | mm/div | - | 650 | 480 | ||||
Feed of handwheel | mm/div | 0.005 | 0.005 | 0.005 | ||||
Spindle rotating speed | r/min | 1450 (50HZ) / 1750 (60HZ) | ||||||
Grind wheel size | mm | 350*40*127 | ||||||
Spindle motor power | kw | 4 | ||||||
Machine size | mm | 2900*2200*1900 | ||||||
Gross weight | kg | 2800 | ||||||
Package size | mm | 2350*2220*2210 | ||||||
Standard Accessories Operation manual Magnetic chuck controller Working lamp Coolant tank Balancing arbor Wheel flange and extractor Standard grind wheel Wheel dresser stand Magnetic chuck Leveling wedge and screw | Optional Accessories Balancing stand Dust exhaust Magnetic separator Parallel wheel dresser Paper filter 2 axis digital readout Oil tank guard Extra wheel flange | ||||||

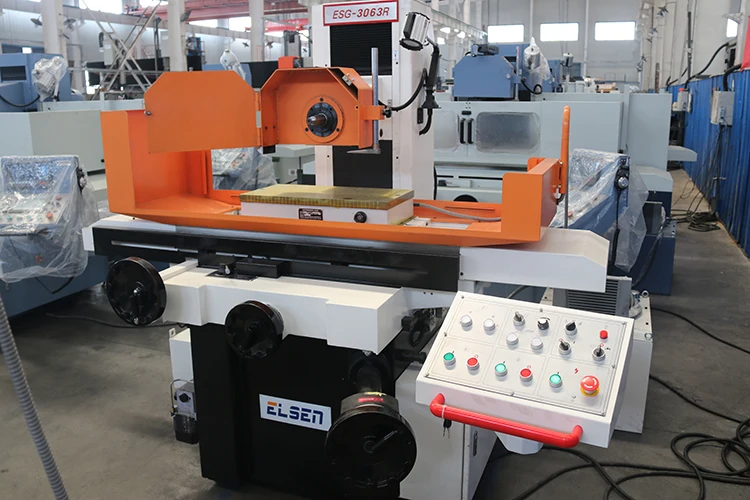

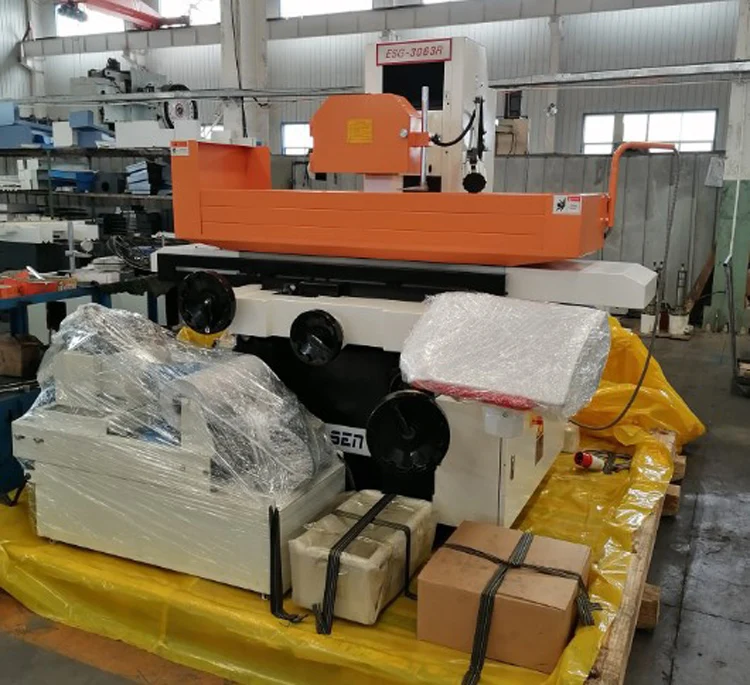

Machine Details
Recommend Products
Company Introduction
Package and Shipping
FAQ
1: Are you a manufacture?
A: Yes,we are a real manufacture.Welcome to visit our factory!
2: What is your payment terms?
A: Our payment terms is 30% T/T in advance,70% balance T/T before shipment.
3: Can you offer customized service ?
A: Machines listed on our website are just part of our conventional models,we can also provide customized service according to your requirements.
4: How can I choose the most suitable machines ?
A: Please tell me your need specifications ,we can introduce the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will introduce the most suitable machines for you .
5: Can you offer the training ?
A: Yes,we can provide a cost-free training,Teach you how to operate our machine,some common problems,and how maintain the machine etc. It would be great honor to us.
6: How about your after-sales service ?
A: Machines overall warranty is two years.During the normal using,we can send you the machine's components for free,not damaged on purpose.Our engineers are available to service overseas, we will offer lifetime service for machine.
