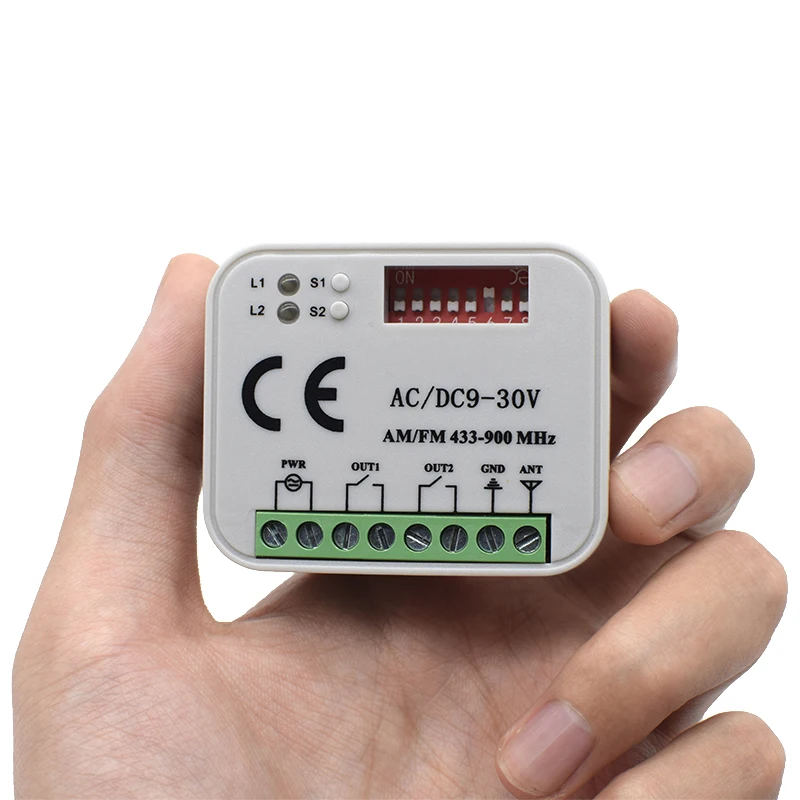

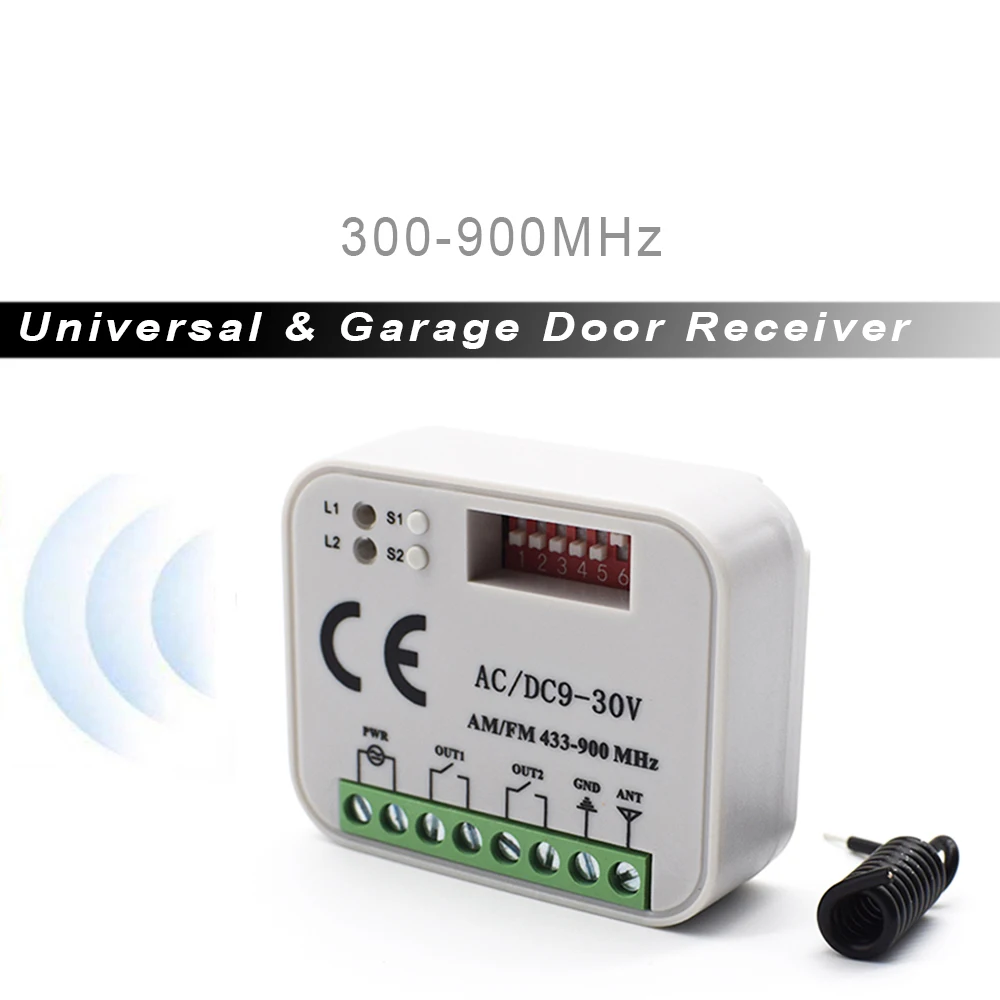

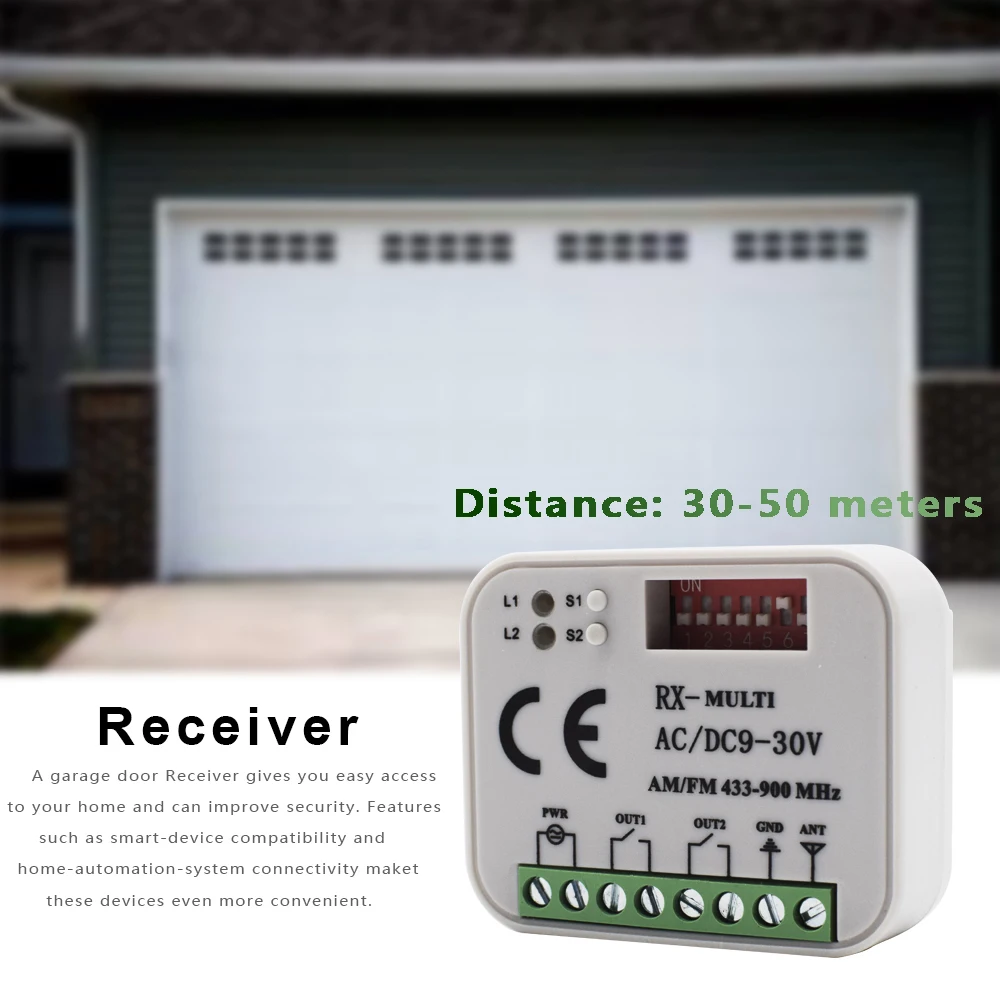

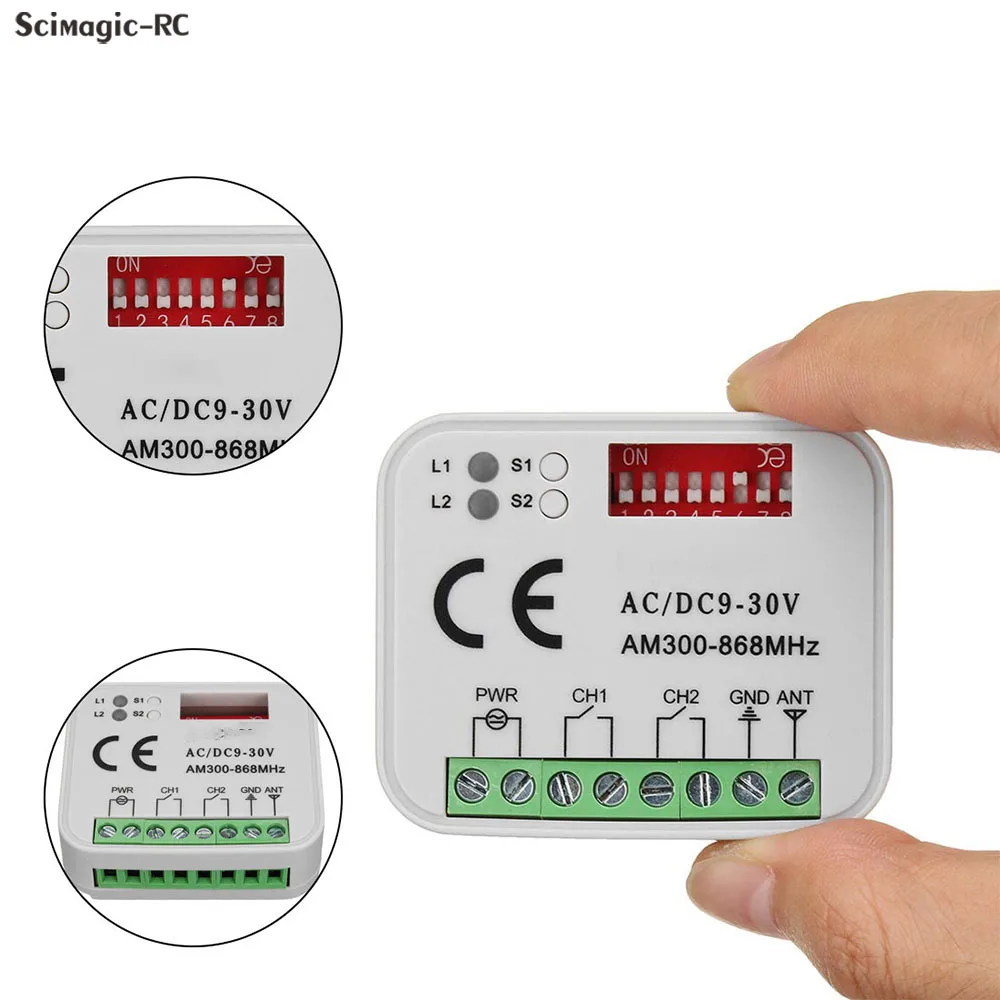

RX Multi Frequency 300 900MHz Universal Garage Door Receiver Remote Control 2CH Controller Switch For 433 868MHz Transmitter
- Category: >>>
- Supplier: Shenzhen Mixiyou Technology Co. Ltd.
Share on (1600732492236):
Product Overview
Description
Product Description

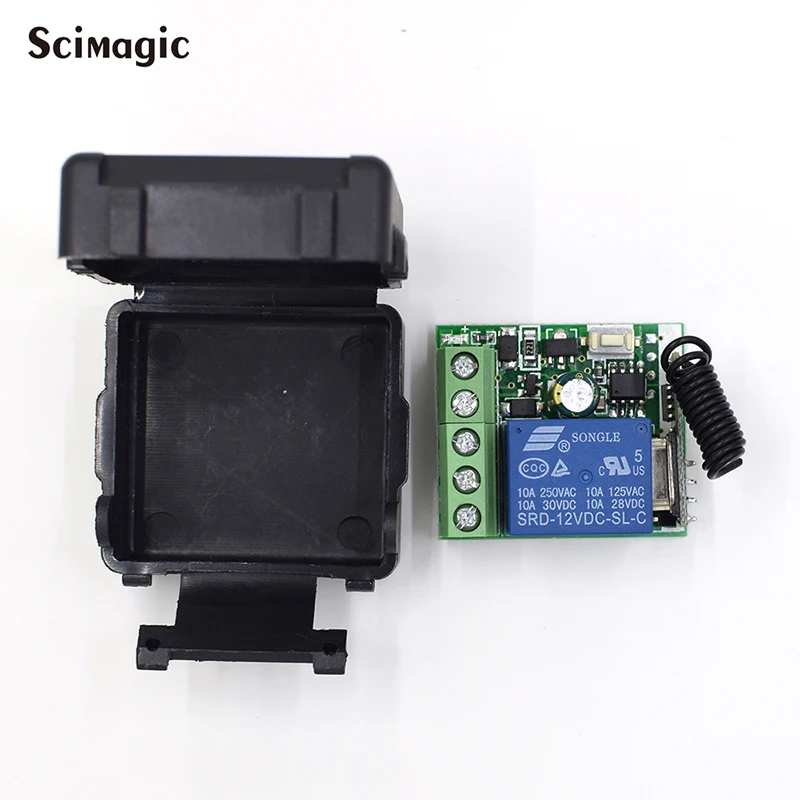

433mhz Wireless Remote Control Switch DC 24V 1ch Relay Receiver Module
About Working mode:
Momentary:Push the remote button , the relay connects, release the remote button , the relay dis-connects. Toggle:Push once the
remote button , the relay connects , push twice the remote button , the relay dis-connects . Latching:Push the remote button A,
the relay connects, push the remote button B, the relay dis-connect. Tiem delay mode :Push the remote control button , the relay
connects , from when release the remote button , after 5s or 10s or 15s , the relay disconnect automatically.
Clearing the code :
Method 1： Push the learning button on the receivers for 8 times , the codes will be cleaned; Method 2： Keeping press the Learning
Button on the receiver until the LED indicator ON and then flash,until it flash for 8 times. it mean the code have been cleared
successfully; After clearing the code, all the remote control cannot work any more.
Learning the code :(Momentary)
Push the learning key on the receiver 1 time , it comes into momentary setting mode . Wait for a moment , the LED will be off , it
comes into learning state . Push the remote button , LED indicator on the receiver board will flash then come off . After 3
seconds, the LED indicator will be on again , learning successfully .
Learning the code : ( Toggle )
Push the learning key on the receiver 2 times , it comes into toggle setting mode Wait for a moment , the LED will be off , it
comes into learning state . Push the remote button,LED indicator on the receiver board will flash then come off. After 3 seconds ,
the LED indicator will be on again , learning successfully .
Learning the code :( Latching )
Note: When you choose for latching mode , in order to learn more remote control , you need to learn two different button , the
first time learnt is for “ON”, the second time learnt for “OFF”. For example : button A = ON , button B = OFF Push the learning
key on the receiver 3 times , it comes into latching mode . Wait for a moment , the LED indicator on the receiver board will flash
then come off. Push the remote button A . LED flash for 5 times . Push the remote button B . Led flash for 5 times . After 3
seconds , the LED indicator will be on again , learning successfully. A = ON , B = OFF .
Learning the code :( Time delay mode )
Push the learning key on the receiver 4 times , the time dealy for 5 seconds . Push the learning key on the receiver 5 times , the
time delay for 10 seconds . Push the learning key on the receiver 6 times , the time delay for 15 seconds . The LED indicator will
be off . Push the remote button , LED flashes and off . After 3 seconds , the LED indicator will be on again , learning
successfully .
NOTE: The system can store for 25 pcs of remotes , if the remote get more than 25 pcs , the initial remote control will be lost .
Momentary:Push the remote button , the relay connects, release the remote button , the relay dis-connects. Toggle:Push once the
remote button , the relay connects , push twice the remote button , the relay dis-connects . Latching:Push the remote button A,
the relay connects, push the remote button B, the relay dis-connect. Tiem delay mode :Push the remote control button , the relay
connects , from when release the remote button , after 5s or 10s or 15s , the relay disconnect automatically.
Clearing the code :
Method 1： Push the learning button on the receivers for 8 times , the codes will be cleaned; Method 2： Keeping press the Learning
Button on the receiver until the LED indicator ON and then flash,until it flash for 8 times. it mean the code have been cleared
successfully; After clearing the code, all the remote control cannot work any more.
Learning the code :(Momentary)
Push the learning key on the receiver 1 time , it comes into momentary setting mode . Wait for a moment , the LED will be off , it
comes into learning state . Push the remote button , LED indicator on the receiver board will flash then come off . After 3
seconds, the LED indicator will be on again , learning successfully .
Learning the code : ( Toggle )
Push the learning key on the receiver 2 times , it comes into toggle setting mode Wait for a moment , the LED will be off , it
comes into learning state . Push the remote button,LED indicator on the receiver board will flash then come off. After 3 seconds ,
the LED indicator will be on again , learning successfully .
Learning the code :( Latching )
Note: When you choose for latching mode , in order to learn more remote control , you need to learn two different button , the
first time learnt is for “ON”, the second time learnt for “OFF”. For example : button A = ON , button B = OFF Push the learning
key on the receiver 3 times , it comes into latching mode . Wait for a moment , the LED indicator on the receiver board will flash
then come off. Push the remote button A . LED flash for 5 times . Push the remote button B . Led flash for 5 times . After 3
seconds , the LED indicator will be on again , learning successfully. A = ON , B = OFF .
Learning the code :( Time delay mode )
Push the learning key on the receiver 4 times , the time dealy for 5 seconds . Push the learning key on the receiver 5 times , the
time delay for 10 seconds . Push the learning key on the receiver 6 times , the time delay for 15 seconds . The LED indicator will
be off . Push the remote button , LED flashes and off . After 3 seconds , the LED indicator will be on again , learning
successfully .
NOTE: The system can store for 25 pcs of remotes , if the remote get more than 25 pcs , the initial remote control will be lost .
Name | Universal Rf DC 24V 1CH Wireless Receiver 433.92Mhz Transmitter |
Frequency | 433MHz |
Code | Learning code |
Voltage | 12V |
Channels | 1 |
Include | 1pcs receiver + 1pcs transmitter |
PCB Size | 35*30*18mm (L,W,H) |
Description
Technical Data:
Input Power: DC10V-14V
Input Power: DC10V-14V
Standby Current: <5MA
Working mode: superheterodyne Receive sensitivity: >105dbm
Transmitting distance: 20-100m ( open space) Remote storage: 25pcs
Transmitting distance: 20-100m ( open space) Remote storage: 25pcs
Support remote type: Learning code, Fixed code ,
Working mode: Momentary, Toggle, Latching Time delay (5s ,10s ,15s )

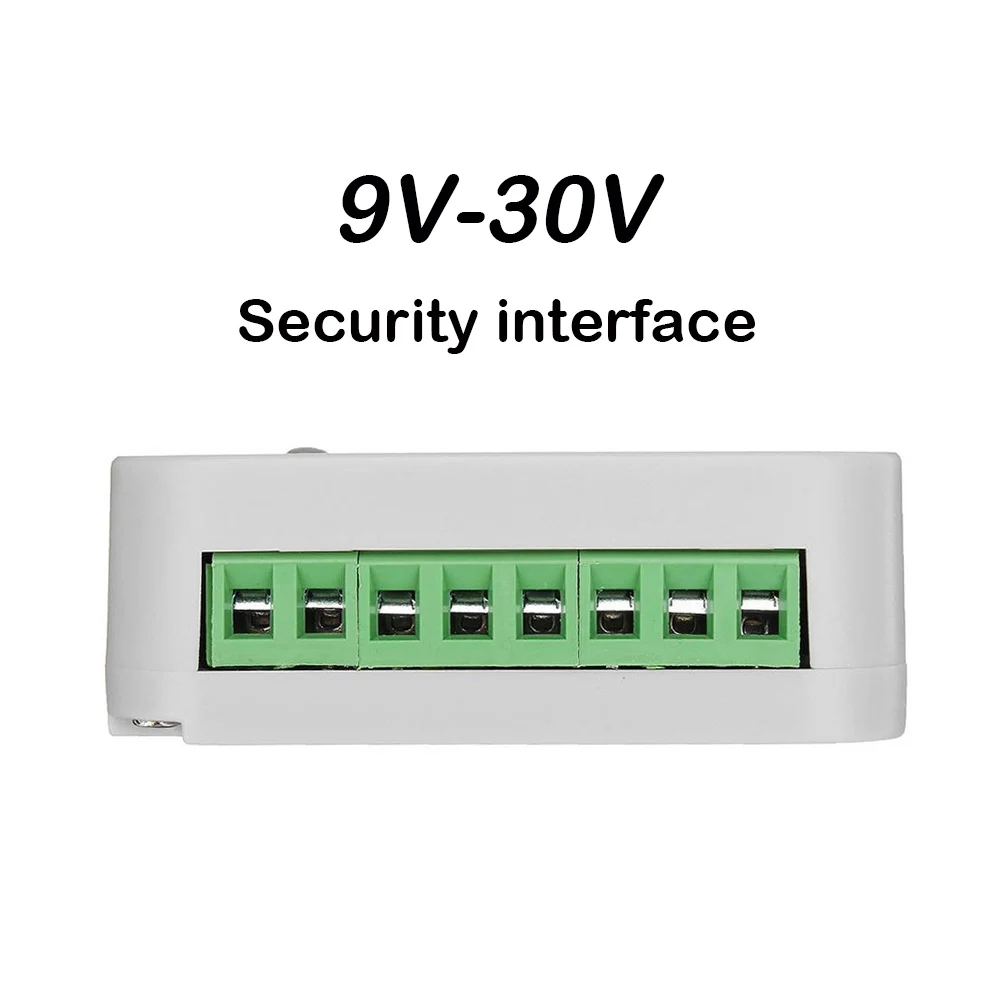

Wiring type: fixed terminal
Output Terminal : NO , NC , COM
Output Terminal : NO , NC , COM
