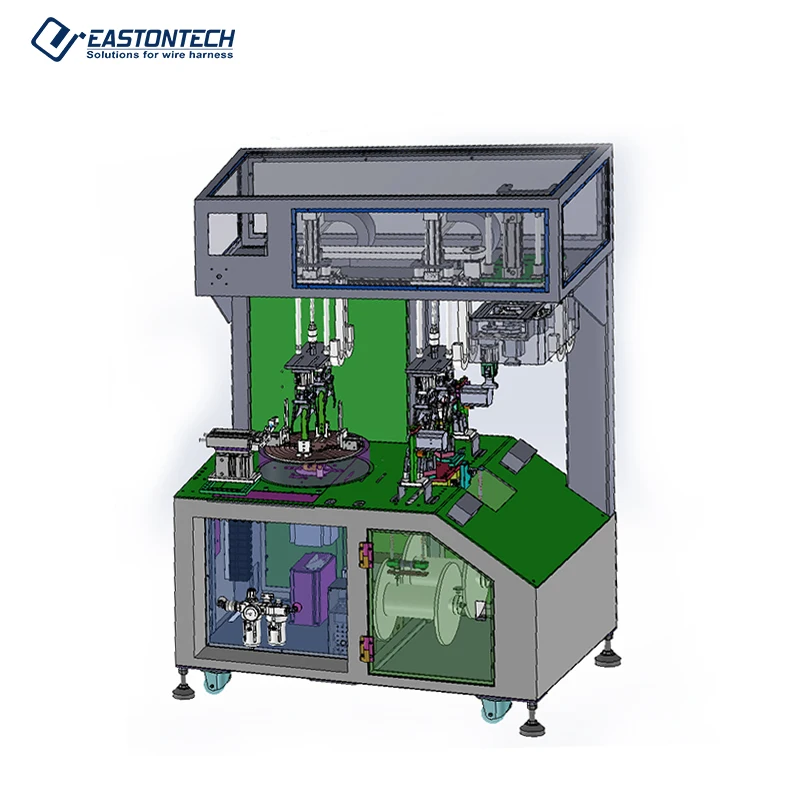

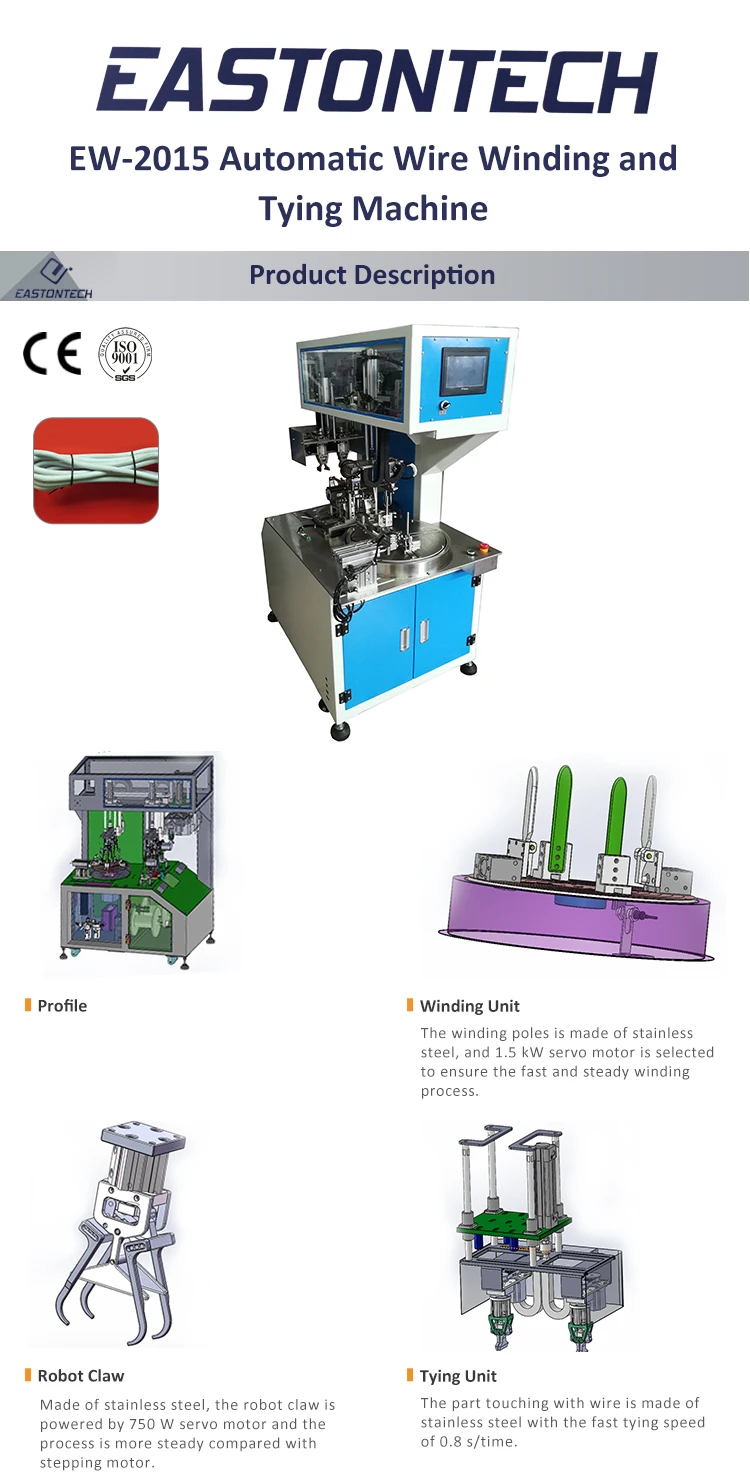

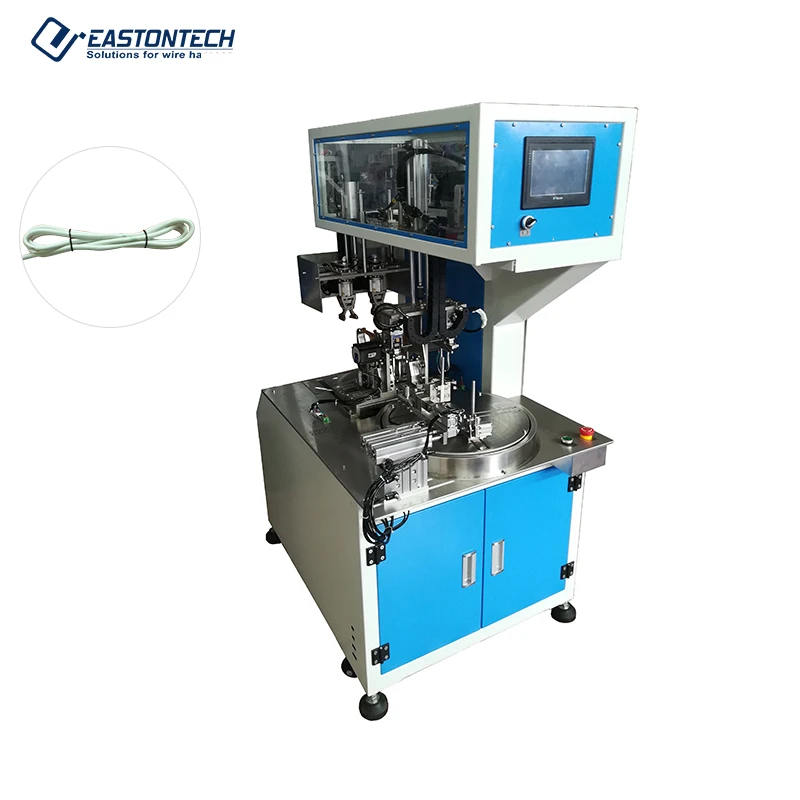

EW 2015 Automatic Wire Winding and Bundling Machine Cable Coiling Tying machine for 8 Shape double tying machine

Model

EW-2015

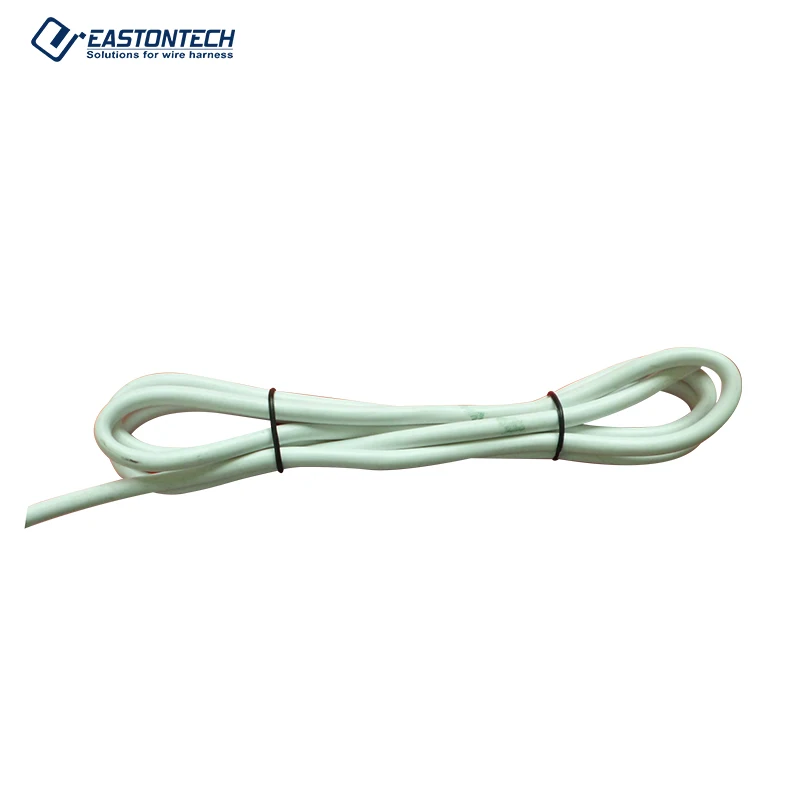

Finished product

8 shape, double tying

Wire / cable type

AC / DC / USB etc.

Wire outer diameter

≤ 10 mm

Winding part distance

140 - 230 mm

Winding length

≤ 8 m (depending on wire size)

Winding speed

Adjustable

Tying outer diameter

≤ 40 mm

Wire head length

0 - 100 mm

Wire tail length

> 0 mm

Productivity

1000 pcs./h (winding length = 1 m, number of turns = 3)

Compressed air connection

0.55 - 0.65 MPa

Power supply

110, 220 V (50 - 60 Hz)

Power

≤ 2000 W

Dimension

1030 * 720 * 1540 mm

Weight

180 kg
