Product Overview
Description
Product Overview
ZTCF-30B mini
In comparison Zetin ZTCF-30B mini is relatively small and light, its internal chamber used compact design, meanwhile it was designed with special security lock which is effectually prevent of sintering fail because of someone open its door during sintering phase.
Zetin ZTCF-30B mini configuration with 7inch color touchscreen which makes the operation more simple, its heating element use the high pure silicon molybdenum which is specificaly design for dental, and use of dual platinum and rhodium （type B）thermocouples has a long service life, basically no maintenance, and worry-free.
Zetin ZTCF-30B mini can set 40 program and it has been set 1 general sintering program, don’t change the general program, you can use the rest program to set whatever you need program.
Our Advantages
Max.Temperature | 1730℃ |
Temperature control accuracy | ±1℃ |
Touch screen | 7"TFT |
Power Output | 3KW |
Electrical connected value | 220V 50/60HZ ＆ 110V 50/60HZ |
Heating element | High purity heater specially for dentistry |
Sensor | Type B |
Capacity | Ø110mm×120mm |
Conventional sintering program | No.1 |
Cleaning program | No.40 |
Program | Stored 40 programs ,with power-off memory function |
Size (L*W*H) | 450× 500×850 mm3 |
Net weight | 60 KG |
▪ T-max 1730 °C
▪ High-quality heating elements made of Silicon molybdenum rods which offer very good protection to against chemical interaction between charge and heating elements
▪ Good looking appearance, Double-layer painted high temperature resistance housing
▪ Only use the not be classified into carcinogenic fiber materials
▪ PID intelligent temperature controller ensure the actually temperature error within +/-1.
▪ Using German insulation materials, it has good insulation effect and no pollution, which can keep the temperature in a balanced state and is also environmentally friendly and energy-saving
▪ Drying function: When the program start the table will go into the furnace chamber and automatically enter in dry model and the chamber temperature will raise up to about at 500 °C
▪ Type B thermocouple
▪ Controller system can memory 40 programs, even accident happen and cause the machine power off, once you return on it，you can continue operating it from any phase and any point of you need.
▪ High-quality heating elements made of Silicon molybdenum rods which offer very good protection to against chemical interaction between charge and heating elements
▪ Good looking appearance, Double-layer painted high temperature resistance housing
▪ Only use the not be classified into carcinogenic fiber materials
▪ PID intelligent temperature controller ensure the actually temperature error within +/-1.
▪ Using German insulation materials, it has good insulation effect and no pollution, which can keep the temperature in a balanced state and is also environmentally friendly and energy-saving
▪ Drying function: When the program start the table will go into the furnace chamber and automatically enter in dry model and the chamber temperature will raise up to about at 500 °C
▪ Type B thermocouple
▪ Controller system can memory 40 programs, even accident happen and cause the machine power off, once you return on it，you can continue operating it from any phase and any point of you need.
Specification
Model | Tmax | Inner dimensions in mm | Maximum | Outer dimensions in mm1 | Outer dimensions in mm1 | Connected | Weight | |||||||||||
ZTCF-30B | °C | Ø | units | W | D | H | load kW | in kg | ||||||||||
mini | 1730 | 110 | 120 | 50 | 450 | 500 | 850 | 3 | 60 | |||||||||
*These furnaces are available for main voltage of 220 V 50/60H or 110 V 50/60HZ | ||||||||||||||||||
Packaging & Shipping

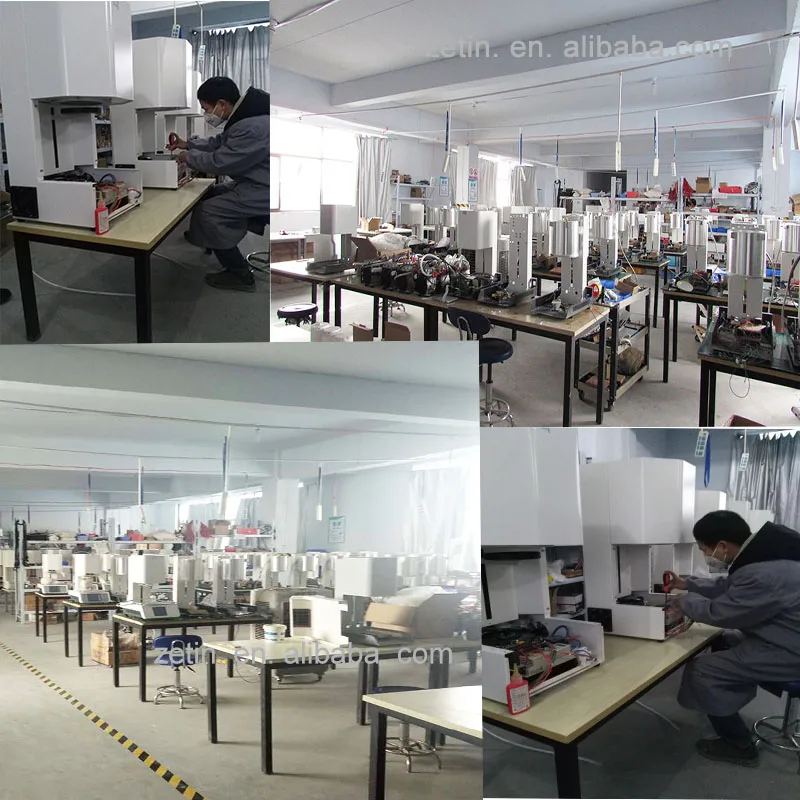

Company Profile
