2023 Hot Sale Latest Electric Water Boiler for Bathroom Industrial Electric Laundry Steam Boiler
- Category: Boilers >>>
- Supplier: Zhangjiagang,Future,Boiler,Manufacture,Co.,Ltd.
Share on:
Product Overview
Description
Products Description

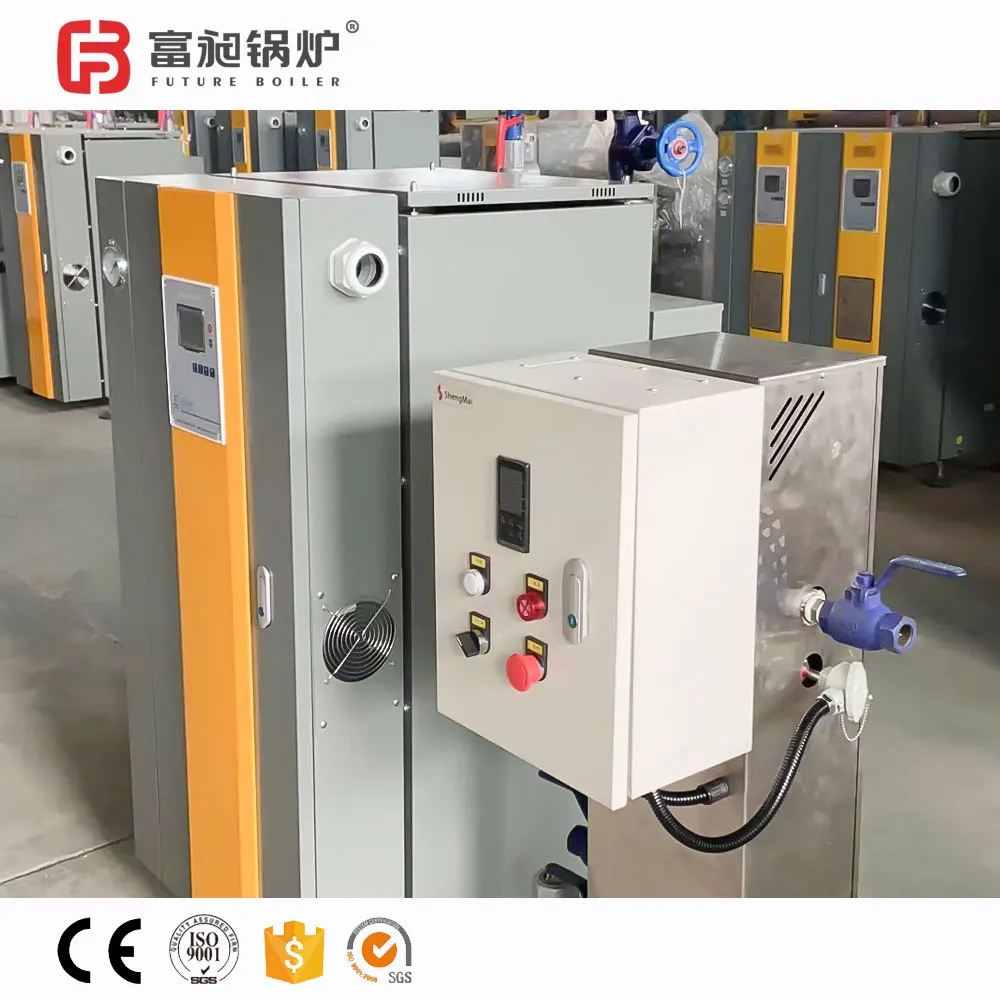

Vertical Electric Steam Boiler
Product Introduction:Future Electric Steam Boiler has a higher thermal efficiency while radiation loss is minimal. With a carefully calculated heat to steam ratio, operating pressure is achieved quickly with maximum efficiency. Electric boiler has no exhaust going out the stack as associated with fossil fuel; therefore, electric boiler will be environmentally friendly. There is no NOx emission to the atmosphere.
The item is excellent absorption of similar products from Europe and USA, the new design is based on domestic actual situations. Specifications from 144KW-360KW will satisfy different usages and needs.
By use of titanium alloy heating elements, high temperature resistance of electric wire is more than 1000°C, the service life is 8-12 times than traditional types, the application of magnesium rod anode technology, it ensures that heating tube difficult to be formed scale, so any other product is incomparable.
Unique built-in steam-water separator solved a problem of steam with water which brought by similar products. And it's also the most significant difference compared with domestic similar products.
All internal piping and boiler control system has been connected before delivering the factory. One-touch automatic control,safety, energy saving, environmental protection, durability, high output and low consumption, meanwhile thermal efficiency as high as 99%.
Product Paramenters
Model | LDR0.2-0.8 | LDR0.25-0.8 | LDR0.3-0.8 | LDR0.4-0.8 | LDR0.5-0.8 | |||||
Item | Unit | |||||||||
Rated steam capacity | Kg/h | 200 | 250 | 300 | 400 | 500 | ||||
Rated working pressure | MPa | 0.8 | ||||||||
Saturated steam temp. | °C | 175 | ||||||||
Input power | KW | 144 | 180 | 216 | 288 | 360 | ||||
Input current | A | 169.2 | 235 | 270 | 329 | 547 | ||||
Thermal efficiency | % | 99 | ||||||||
Water inlet dia. | DN | 20 | 25 | 25 | 25 | 25 | ||||
Steam outlet | DN | 25 | 32 | 32 | 32 | 40 | ||||
Blowdown valve dia. | DN | 25 | 32 | 32 | 32 | 32 | ||||
Safety valve dia. | DN | 25 | 25 | 25 | 32 | 40 | ||||
Overalldimension （L×W×H） | mm | 1130×750×1780 | 950×900×1830 | 1320×1040×1920 | 1380×1040×2070 | 1020×890×2350 | ||||
Net weight | kg | 450 | 650 | 760 | 890 | 1020 | ||||
Recommend Products
Certifications
After Sales Service
AFTER SALES SERVICE
All our services have one thing in common. We make your business run better.
Guide Installation Service
Service Content: Check the customer's on-site goods, complete the whole process of installation, commissioning, trial operation and official operation. Term setting: Execute according to the contract. Service details: Our company guides the installation and commissioning of the boiler to ensure the boiler installation quality and commissioning smoothly (service fees are strictly in accordance with our company's charging standards).
Regular Return Visit Service
Service Content: Meet the customer's requirements to carry out the necessary repairs, and collect the feedback information period
setting: the first half of the purchase after the use, return once a month; purchase and use within two years; quarterly return visit; purchase for two years After that, return once a year. Service details: return visits by means of regular door-to-door and telephone calls, to understand the customer's use of the product, to listen to the customer's opinions; to provide quality services to the customer in a timely manner.
setting: the first half of the purchase after the use, return once a month; purchase and use within two years; quarterly return visit; purchase for two years After that, return once a year. Service details: return visits by means of regular door-to-door and telephone calls, to understand the customer's use of the product, to listen to the customer's opinions; to provide quality services to the customer in a timely manner.
Free Training Service
Service Content: Train user side staff time limit: according to the training situations, the trainees are skilled in operation,can only be allowed to operation. Service details: Regularly hold training courses every year, freely train boiler operation management personnel for users to ensure stable and safe operation of boilers. (A separate training course is provided for users with a large number of staff.)
Lifetime Protection Service Content
Provide various types of furnace accessories, respond to the user's maintenance, transformation requirements set: permanent
service details: outside the product quality assurance period, our company still undertakes the after-sales service obligation,that is, to provide customers with product sets and accessories, for customers Solve the problem (the corresponding fee is charged at the cost price).
service details: outside the product quality assurance period, our company still undertakes the after-sales service obligation,that is, to provide customers with product sets and accessories, for customers Solve the problem (the corresponding fee is charged at the cost price).
Our Customer
Our Customer
Future Boiler specializes in compact steam generators, electric steam boilers, oil (gas) fired steam boilers, electric hot water boilers, oil (gas) fired hot water boilers, organic heat carrier boilers, marine boilers and Boiler accessories & auxiliary machines. We satisfy the requirements of different customers to a maximum extent. In the last few years, we brought products development and sales into the field of high-tech energy conservation and environmental protection.
Customer Case
Packing & Delivery
Company Profile
Zhangjiagang Future Boiler Manufacture Co., Ltd is a high-tech enterprise engaged in design and manufacture of boiler. The company
holds the manufacturing license of Grade C, which is approved by the General Administration of Quality Supervision, Inspection and
Quarantine of the People's Republic of China(AQSIQ), and certified the quality management system certification of ISO9001.
Future Boiler specializes in Electric steam boiler, Oil (Gas) fired steam boiler, Electric hot water boiler, Oil (Gas) fired hot water boiler, Organic heat carrier boiler, Marine boiler and Boiler accessories & auxiliary machines. We satisfy the requirements of different customers to a maximum extent. In the last few years, we brought products development and sales into the field of high-tech energy conservation and environmental protection.
The company enjoys a good reputation in domestic and foreign-funded enterprises by the outstanding quality, the consummation service, our products already exported to more than 50 countries and regions, including American, European and other developed countries. Continues growing market needs numerous innovative product concepts.
"Chariness, Carefulness, Patience and Permanent fine quality" is our company's entrepreneurial spirit, which is embodied in our sustainable progress, embodied in getting along with customers, partners, internal staff and competitors.
holds the manufacturing license of Grade C, which is approved by the General Administration of Quality Supervision, Inspection and
Quarantine of the People's Republic of China(AQSIQ), and certified the quality management system certification of ISO9001.
Future Boiler specializes in Electric steam boiler, Oil (Gas) fired steam boiler, Electric hot water boiler, Oil (Gas) fired hot water boiler, Organic heat carrier boiler, Marine boiler and Boiler accessories & auxiliary machines. We satisfy the requirements of different customers to a maximum extent. In the last few years, we brought products development and sales into the field of high-tech energy conservation and environmental protection.
The company enjoys a good reputation in domestic and foreign-funded enterprises by the outstanding quality, the consummation service, our products already exported to more than 50 countries and regions, including American, European and other developed countries. Continues growing market needs numerous innovative product concepts.
"Chariness, Carefulness, Patience and Permanent fine quality" is our company's entrepreneurial spirit, which is embodied in our sustainable progress, embodied in getting along with customers, partners, internal staff and competitors.
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your lead time ?
A: Generally it is 5-10 days if the goods are in stock, or it is 15-30 days if the goods are not in stock, it is according to quantity & requirements.
Q: What are the shipping terms ?
A: Ocean shipment to the harbor near from your city; Air freight to the airport near from your company;
Door to door service by international express.
Q: What is your warranty peroid ?
A: 24 months dated from shipment or 18 months dated from installation in user site, whichever occurs earlier.
Q: Will you test the equipment before shipment ?
A: YES! We will test EACH BOILER before shipment, remember each!
If you have another question, pls feel free to contact us as below:
