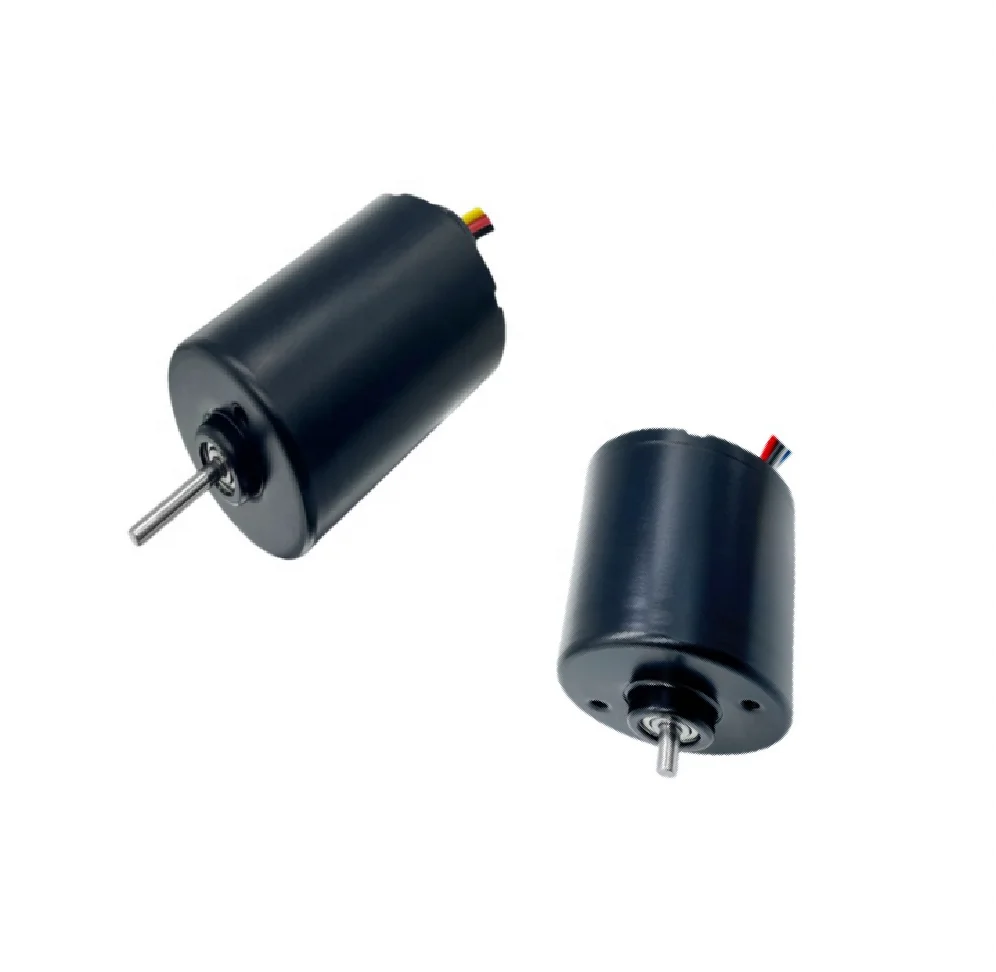

Inside driver PWM control 36mm Brushless Motor BL3650 2440 BLDC motor with 3 phase 4 polar
- Category: >>>
- Supplier: Changzhou Spark Motor Tech Co. Ltd.
Share on (1600732735322):
Product Overview
Description
Product Description
√ Inside driver
√ Hall sensor
√ 3 phases 3 pairs of poles
√ 3 phases 3 pairs of poles
Motot Technical Data/电机性能表 | ||||||
Model | Model | BL3650-1265 | BL3650-2440 | |||
Rated Voltage (VDC) | 12 | 24 | ||||
No-load | Current (A) | 0.3 | 0.1 | |||
Speed (rpm) | 6500 | 4000 | ||||
At max efficienty | Current (A) | 1.5 | 0.43 | |||
Speed (rpm) | 5452 | 3400 | ||||
Torque (g.cm) | 261 | 202.5 | ||||
Power (W) | 14.6 | 7.06 | ||||
At max performance | Current (A) | 4.08 | 1.24 | |||
Speed (rpm) | 3246 | 2000 | ||||
Torque (g.cm) | 816 | 675 | ||||
Power (W) | 27.18 | 13.85 | ||||
CAN BE PAIRED WITH PLANETARY GEAR BOX, PLEASE CONTACT US FOR CUSTOMIZATION！ | ||||||

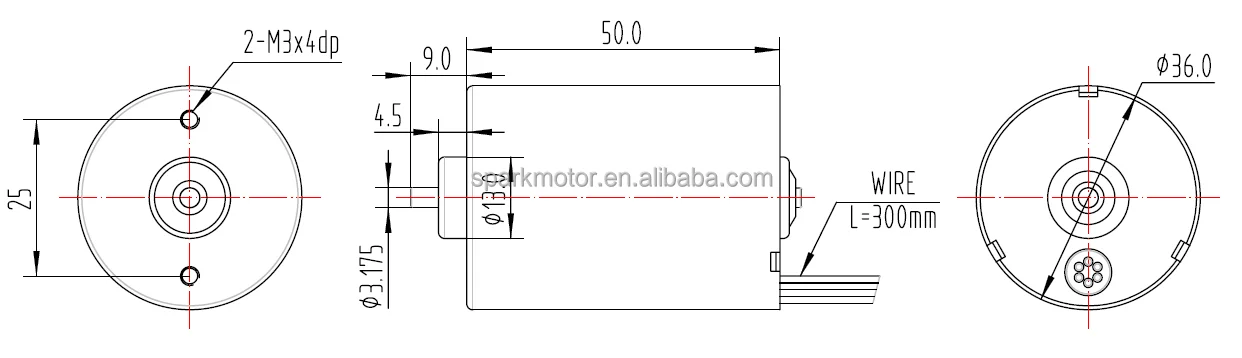

Mechenical Dimensions/机械尺寸:
Motor Function Interface/功能接口说明 | ||||
Pin No. | Signal | Functions | ||
P1/Red | Vcc | Voltage range: 8.5V - 26V | ||
P2/Yellow | FG | 6 pulses/cycle, low level: 0.6V Max, high level: 4V - 5.6V | ||
P3/White | CCW/CW | The motor switches direction of rotation at low level (0.6V) | ||
P4/Black | GND | Ground | ||
P5/Blue | PWM | Negative Duty Cycle, the motor starts at low level, suggested frequency between 10kHz - 30kHz | ||
P6/Green | BRAKE | Brake at low level (0.6V) | ||
ADVANTAGES of Brushless DC motor, etc.:
(1) Hall sensor insides, easy to drive and regulate.
(2) Can run at low speed and high power, save the reducer, and directly drive the large load.
(3) No brush and collector ring structure, suitable for public places, anti-interference, good safety performance.
(4) Excellent torque performance, medium, and low-speed torque performance large start torque, small start current.
(5) Step-less speed regulation, wide speed range, strong overload capacity. (6) Small volume, light weight, large output.
(7) Soft start, soft stop, and good braking characteristics .
(8) No excitation loss and brush loss, high efficiency, and a good comprehensive power-saving effect.
(9) High reliability, good stability, strong adaptability, and simple repair and maintenance.
(10) Vibration resistance, low noise, smooth operation, and long life.
(1) Hall sensor insides, easy to drive and regulate.
(2) Can run at low speed and high power, save the reducer, and directly drive the large load.
(3) No brush and collector ring structure, suitable for public places, anti-interference, good safety performance.
(4) Excellent torque performance, medium, and low-speed torque performance large start torque, small start current.
(5) Step-less speed regulation, wide speed range, strong overload capacity. (6) Small volume, light weight, large output.
(7) Soft start, soft stop, and good braking characteristics .
(8) No excitation loss and brush loss, high efficiency, and a good comprehensive power-saving effect.
(9) High reliability, good stability, strong adaptability, and simple repair and maintenance.
(10) Vibration resistance, low noise, smooth operation, and long life.
Application
Wide applications of BLDC motor:
Spark three-phase BLDC products are designed to benefit customers with optimized designs for noise reduction, vibration reduction, and longer working life. BLDC motors can be widely used in FA, pumps, valves, solar energy, automotive, and other fields.
