7 axis worm screw grinding machine
- Category: >>>
- Supplier: Push Ningjiang Machine Tool Co. Ltd.
Share on (1600732826328):
Product Overview
Description
Product Overview

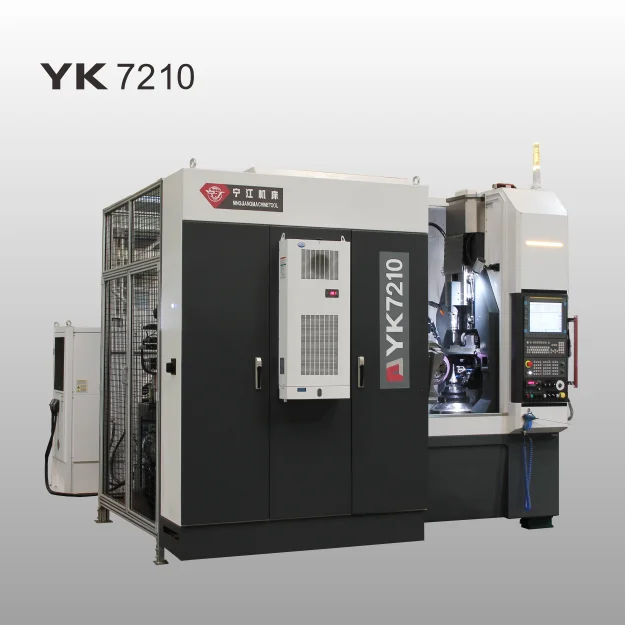

YK7210 CNC worm screw gear grinding machine
YK7210 is CNC worm screw gear grinding machine with a working module up to 3mm designed for drum gear, bevel gear and worm grinding for various industries.
FEATURES AT A GLANCE
Integrated structure
FANUC 31iB control
Human-machine communication interface
7000rpm grinding wheel spindle
2000rpm workpiece sindle
7-axes
Working zone
Structure
Parameter
PRODUCT SPECIFICATIONS
No | Item | Data | ||
1 | Max. grinding diameter | 100mm | ||
2 | Max. working module | 2mm | ||
3 | Z travel | 300mm | ||
4 | grinding head swing | +/-45 degree | ||
5 | grinding spindle rpm | 7000 | ||
6 | Max. Hob O.D | 110mm | ||
7 | X, Z, Z1 rapid feed | 10m/min | ||
8 | workpiece spindle rpm | 2000 |
