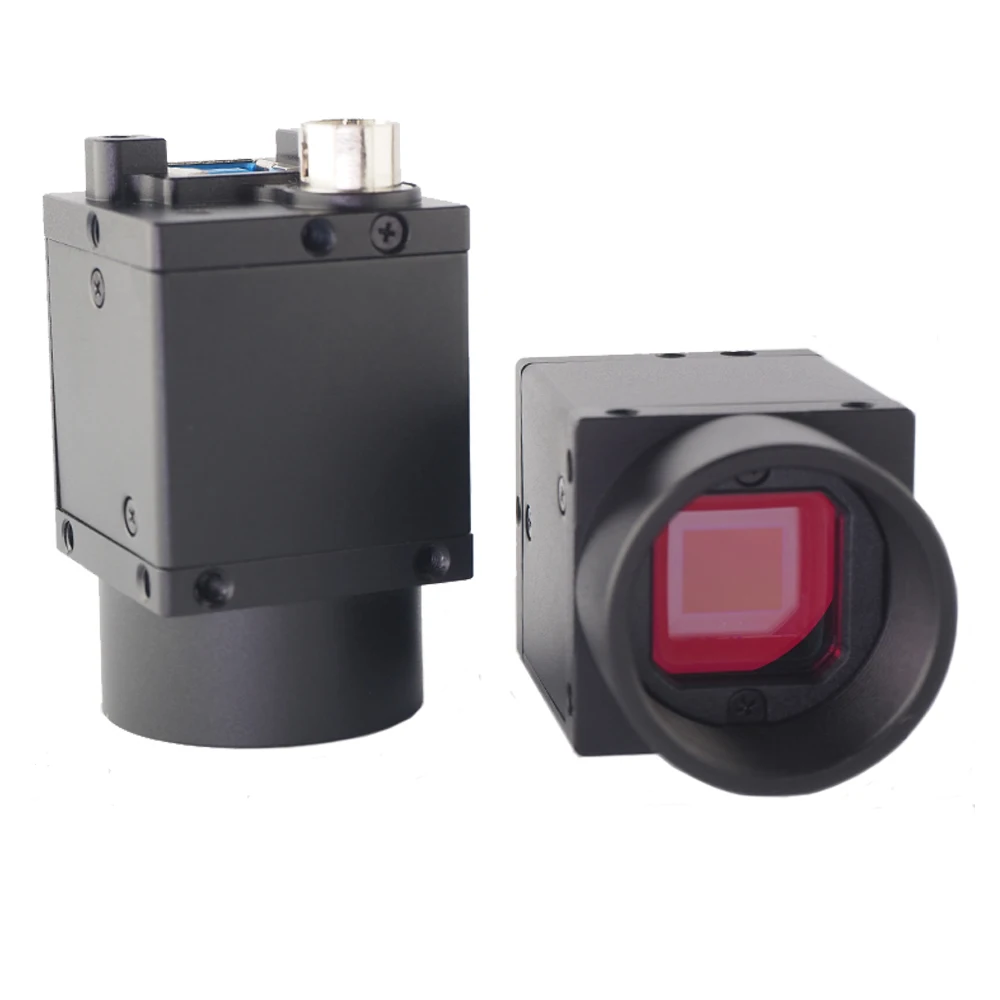

HT SUF890GM Machine Vision Camera 8.9MP Global Shutter Monochrome High Speed USB3.0 Industrial Digital Cameras 4096X2160 32FPS
- Category: Security >>>
- Supplier: Shenzhen,Huateng,Weishi,Technology,Co.,Ltd.
Share on:
Product Overview
Description
| Model | Product Model | HT-SUF890GM-T1V-C |
| Type | 8.9 MP 1 '' CMOS USB3.0 Area Scan Camera | |
| Camera | Sensor | IMX267 |
| Sensor Type | Global Shutter | |
| Pixel | 8.9MP | |
| Resolution | 4096 x 2160 px | |
| Max. Frame Rate | 32 fps | |
| Mono/Color | Monochrome | |
| Pixel Size | 3.45µm x 3.45µm | |
| Pixel Bit Depth | 12 bits | |
| Acquisition Mode | Via free run, Via software trigger, Via hardware trigger | |
| Exposure Time | 0.034~29546.9 ms | |
| Exposure Control | Programmable via the camera API, Via hardware trigger | |
| Reverse Image | Supports Horizontal And Vertical Reverse Image Output | |
| Electrical features | Data Interface | USB3.0 |
| GPIO | 6-Pin Hirose I/O, GPIO Input x1, GPIO Output x1; General I/O x1 | |
| Power Supply | 5 V, Supports USB3.0 Power Supply | |
| Power Consumption | Typ. 3 W @5 VDC (USB3.0 Provides Power Supply) | |

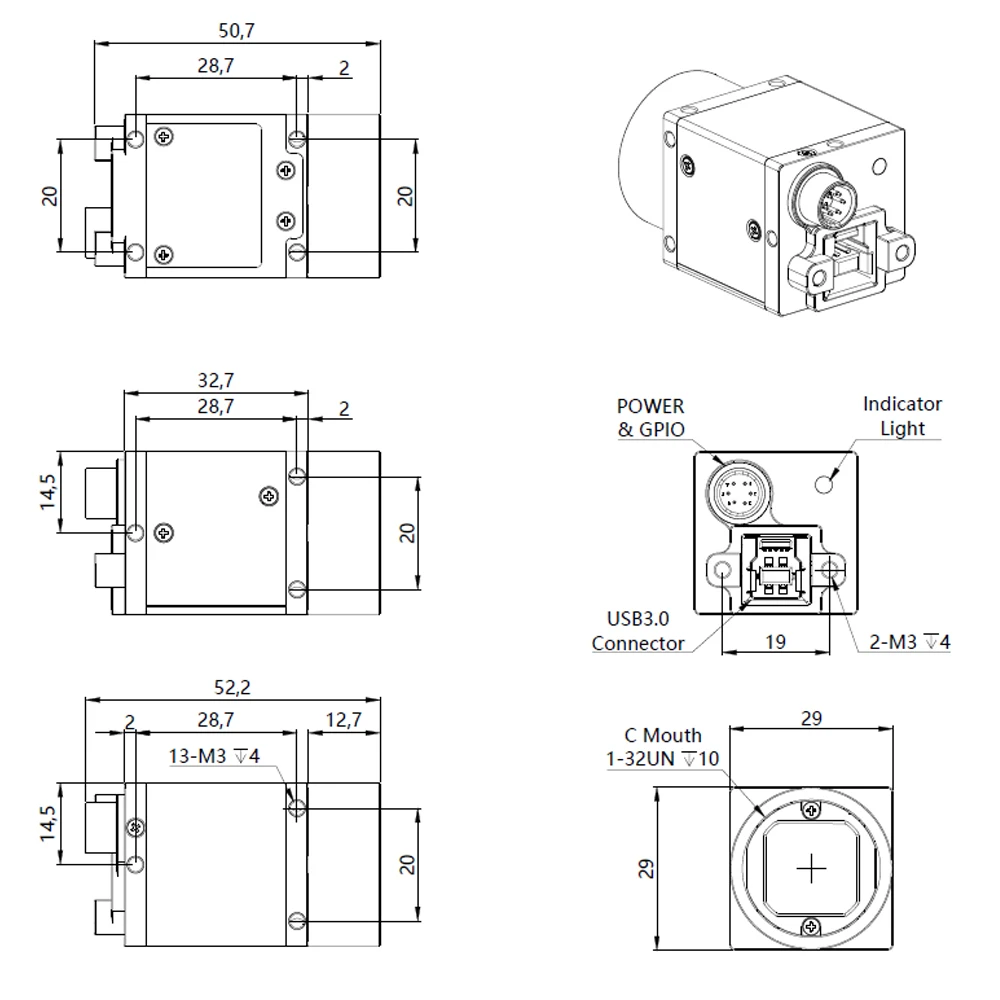

| Mechanical | Lens Mount | C-Mount |
| Dimension | 29mm × 29mm × 32.7mm | |
| Weight | Approx. 75 g | |
| Temperature | Working Temperature: 0 °C to 50 °C | |
| General | Client Software | Third-Party Software Compatible With USB3 Vision Protocol |
| Provide Examples | C/C++/C#/VB6/VB.NET/Delphi/Opencv/Python/Java | |
| Operation System | 32/64-bit Windows 7/10, 32/64-bit Linux , Android System | |
| Compatibility | USB3.0 Vision, GenICam |
