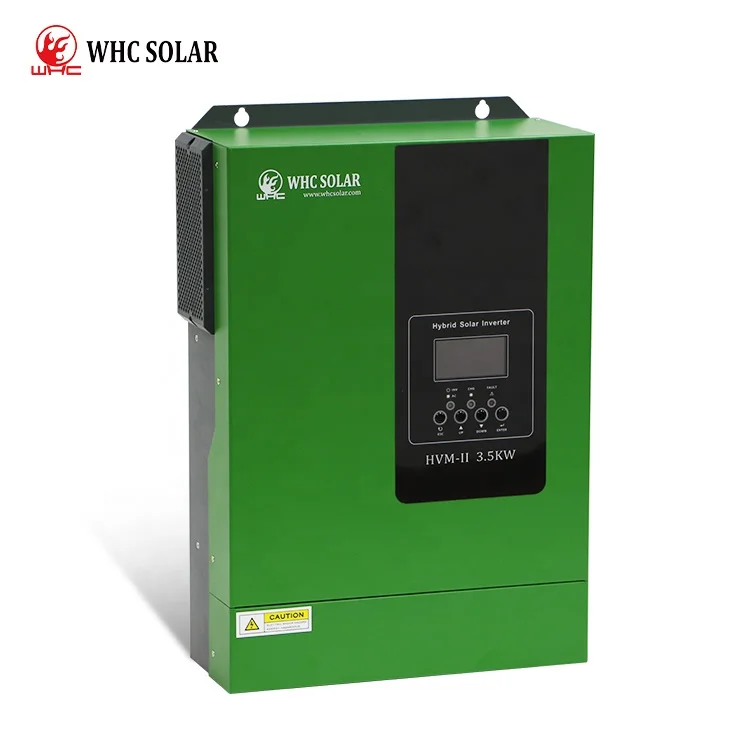

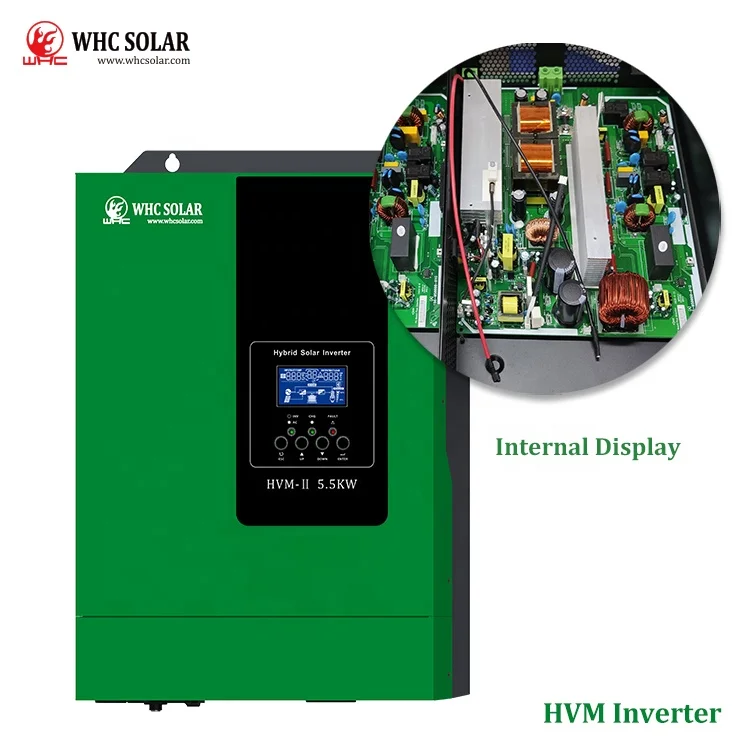

WHC Solar 5.5KW 48VDC to 220VAC Onduleur Solaire 3.5KW 5500KW Split Inverter Pure Sine Wave Solar Power Inverter
WHC Solar 5.5KW 48VDC to 220VAC Onduleur Solaire 3.5KW 5500KW Split Inverter Pure Sine Wave Solar Power Inverter
WHC Solar 5.5KW 48VDC to 220VAC Onduleur Solaire 3.5KW 5500KW Split Inverter Pure Sine Wave Solar Power Inverter
WHC Solar 5.5KW 48VDC to 220VAC Onduleur Solaire 3.5KW 5500KW Split Inverter Pure Sine Wave Solar Power Inverter
WHC Solar 5.5KW 48VDC to 220VAC Onduleur Solaire 3.5KW 5500KW Split Inverter Pure Sine Wave Solar Power Inverter
WHC Solar 5.5KW 48VDC to 220VAC Onduleur Solaire 3.5KW 5500KW Split Inverter Pure Sine Wave Solar Power Inverter
WHC Solar 5.5KW 48VDC to 220VAC Onduleur Solaire 3.5KW 5500KW Split Inverter Pure Sine Wave Solar Power Inverter

WHC Solar 5.5KW 48VDC to 220VAC Onduleur Solaire 3.5KW 5500KW Split Inverter Pure Sine Wave Solar Power Inverter

Share on (1600733014397):


Price:

Quantity:


Product Overview

Description



Specification


Product Features
1. Pure sine wave solar inverter 2. High PV input voltage range
3. Built-in MPPT solar controller
4. Battery equalization function to optimize battery performance and extend lifecycle
5. Inverter running without battery
6. Built-in anti-dusk kit for harsh environment Parallel operation with up to 12 units
7. WiFi/GPRS remote monitoring
8. RS485 communication for BMS(Optional)
9. Self consumption and Feed-in to the grid(Optional) Detachable LCD(Optional)


MODEL
HVM-ll 3.5KW
HVM-II 5.5KW
HVM-IIP 5.5KW
CAPACITY
3.5KW
5.5KW
5.5KW
Parallel Capability
NO
No
YES,12units
INPUT
Nominal Voltaga
230VAc
Acceptable Voltage Range
170-280VAC/90-280VAC
Frequency
50/60 Hz(Auto sensing)
OUTPUT
Nominal Voltage
220/230VAC ± 5%
Surge Power
6000VA 10000VA 10000A
Frequency
50/60 Hz
Waveform
Pure Sine wave
Transfer Time
10ms(For personal Computery;20ms(For Home Appliances)
Peak Efficiency (Pv to lNV)
97%
Peak Efficiency (Battery to INV)
93%
Overload Protection
5s@>=150% load;10s@110%~150%load
BATTERY
Battery Voltage
24VDC
48VDC
48VDC
Floating Charge Voltage
27VDC
54VDC
54VDC
Over Charge Protection
33VDC
63VDC
63VDC
Charging Method
CC/CV
Solar Charger & AC Charger
Solar Charger Type
MPPT
Max.PV Array Power
4000W
5000W
5000W
Max PV Array Open Circuit Voltage
500VDC
PV Array MPPT Voltage Range
120VDC~450VDC
Max.Solar Charge Current
100A
100A
100A
PHYSICAL
Dimensions (mm)
448*295*122
Package Dimensions (mm)
540*395*217
Net Weight(Kg)
8
10
Gross Weight(Kg)
9
11
Communication Interface
USB/RS232/Dry-contact


Product Description










FAQ


1.What is WHC ?
W--Wonderful
H--Hope
C--Challenge
WHC represents a Wonderful organization, full of Hope, and likes to Challenge.
WHC SOLAR 5000 Watts 1Kva 2Kva 3Kva 3.5Kva 5Kw 10Kva 500Kw On Off Grid Tie Inverseur Mppt Solar Inverter Hybrid Converter
2.What is different from other companies?
We love, we are experts, we focus, we only do solar products.
WHC SOLAR 5000 Watts 1Kva 2Kva 3Kva 3.5Kva 5Kw 10Kva 500Kw On Off Grid Tie Inverseur Mppt Solar Inverter Hybrid Converter
3.Why cooperate with WHC?
We incubate agents, we help agents solve problems, we help agents make money.
