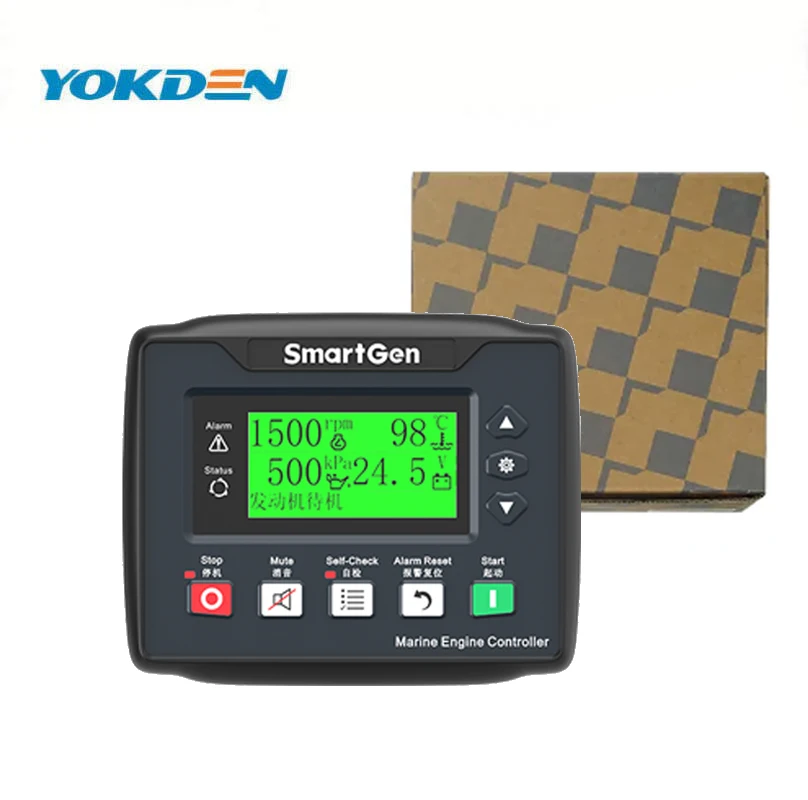

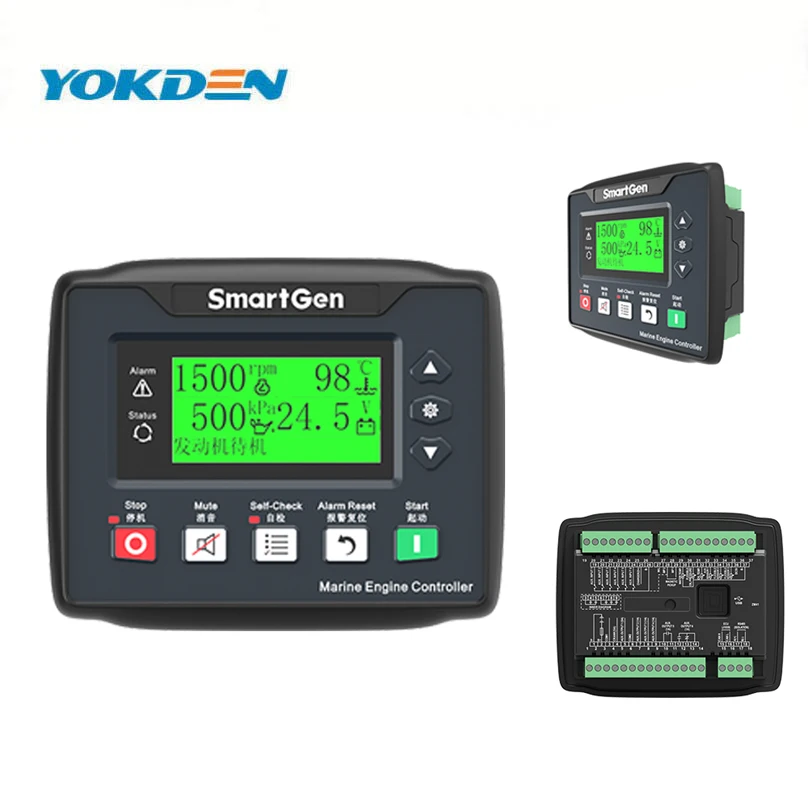

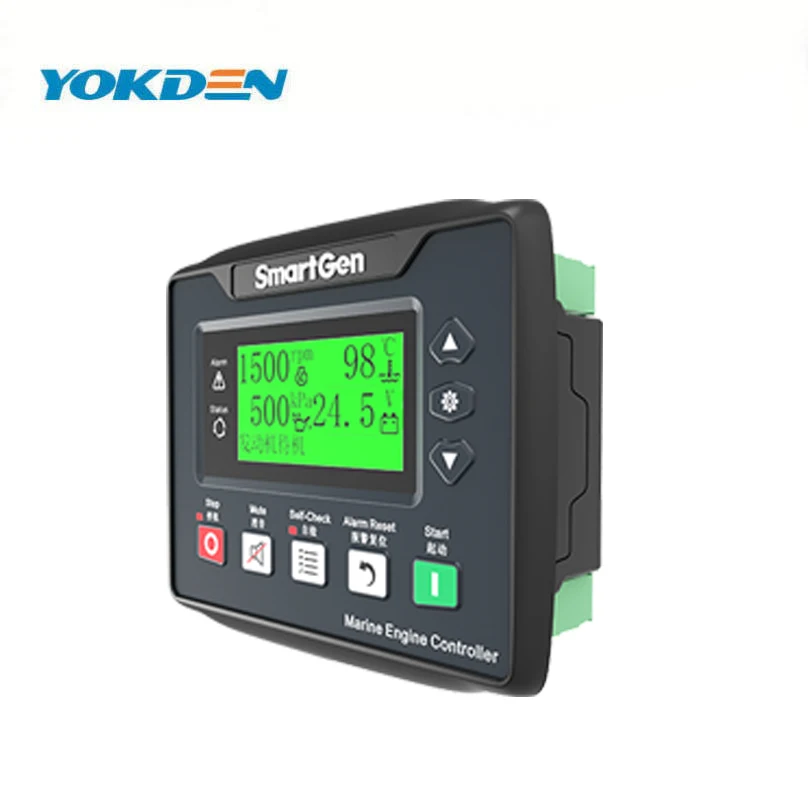

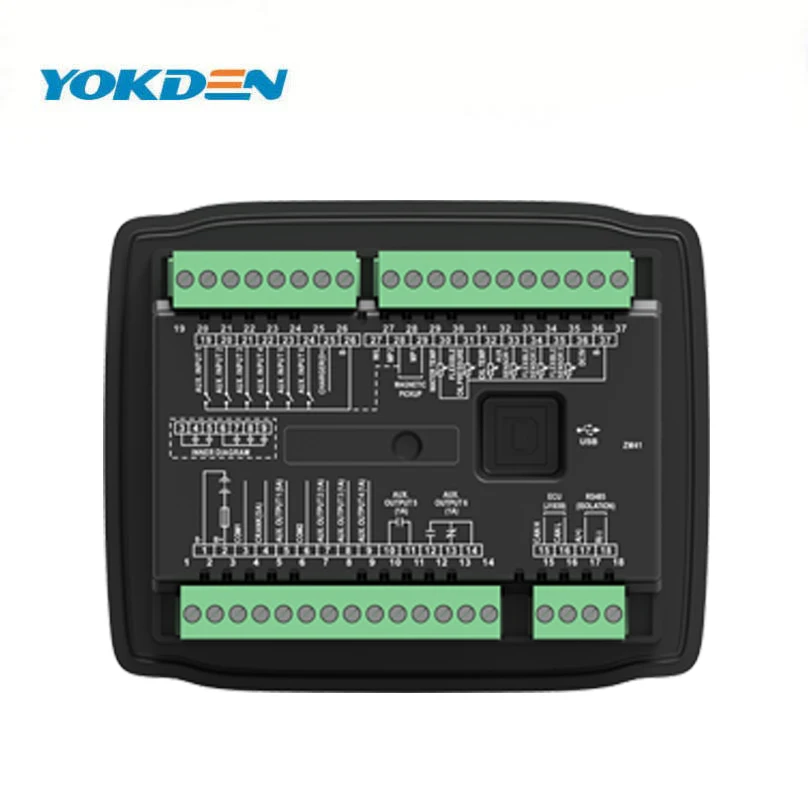

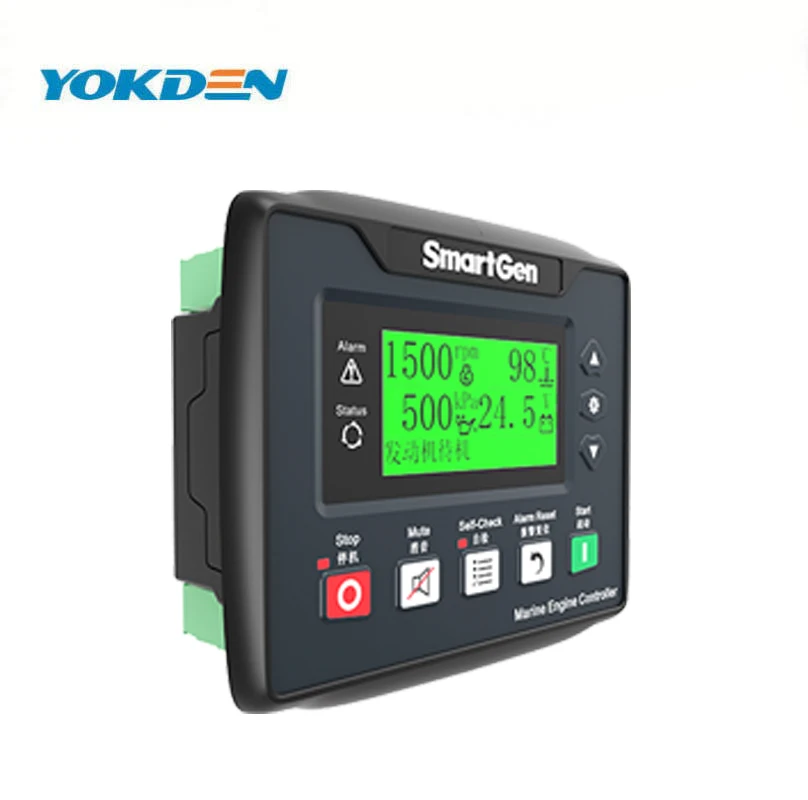

Genuine Smartgen Marine Main Propulsion Main Generator Engine Controller HMC4100

HMC4100 marine engine controller integrates digitization, intelligentization and network technology which are used for genset automation and monitor control system of single unit to achieve remote controlling for diesel engine, local start/stop, data measure, alarm protection and “three remote” (remote control, remote measuring and remote communication). It fit with 132*64 liquid display, optional Chinese/English languages interface, and it is reliable and easy to use.



HMC4100

Marine main propulsion, main generator controller

Working PowerRange : DC(8-35)V
Overall Dimension : 135*110*44
Installation Dimension : 116*90
Working Temperature : (-25~+70)℃
weight : 0.35kg


Main Features
1. 32-bit ARM micro-processor, 132*64 liquid display, optional Chinese/English interface, push-button operation;

2. Connect with remote monitoring module via CANBUS port to realize remote monitoring and remote start/stop control;

3. RPU560A security module can be expanded via CANBUS port;

4. Dozens of engines compatible with J1939 protocol can be monitored via CANBUS port;

5. RS485 communication ports enable data transmission as well as remote control, remote measurement and remote communication;

6. Control and protection: remote/local start and stop, alarm protection;


Technical Parameters
Display
LCD(132*64)
Analogue Input
6
Current Sensor
3
Resistance Sensor
3
Monitor Interface
CANBUS
DC Supply
DC(8～35)V
Case Dimensions(mm)
135*110*44
Panel Cutout(mm)
116*90
Operating Temp.
(-25~+70)℃
