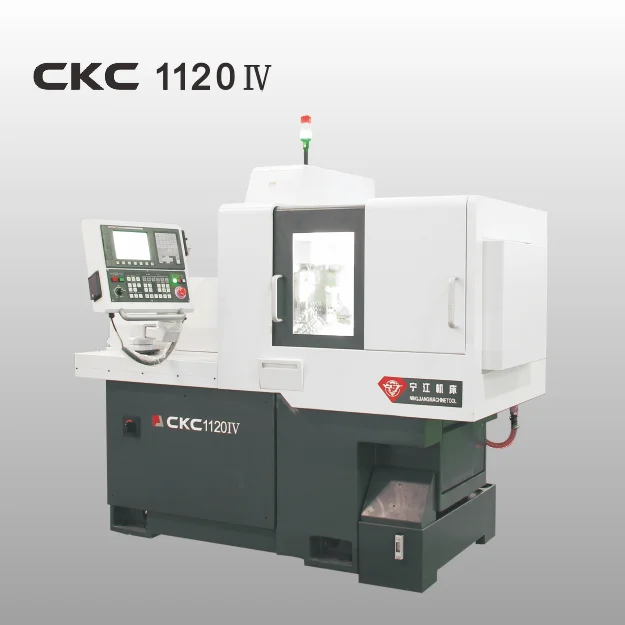

CKC1120IV Swiss type CNC lathe
CKC1120IV Swiss-type CNC lathe adopt FANUC 0i-TF plus Dual port Control system. It is designed for machining of shaft type work-piece widely used in various industries.
FEATURES AT A GLANCE
Compact structure
Built in spindle motor
Gang tool slide with movable headstock
Modular design for cutting tool.
AC servo control
FANUC 0i-TF plus dual port control system
Full closed cover
Modular structure
Working zone
Parameter
PRODUCT SPECIFICATIONS
No | Item | Data | ||
1 | Max. Working diameter | 20mm | ||
2 | Max. Working length | 200mm | ||
3 | Max. Spindle/Subspindle speed | 8000rpm | ||
4 | Tool capacity | 21 tools | ||
5 | Max. live tool speed | 4000rpm | ||
6 | Max. Drilling diameter | 10mm | ||
7 | Max. tapping diameter | M8 | ||
8 | Power | 7.5KVA |
